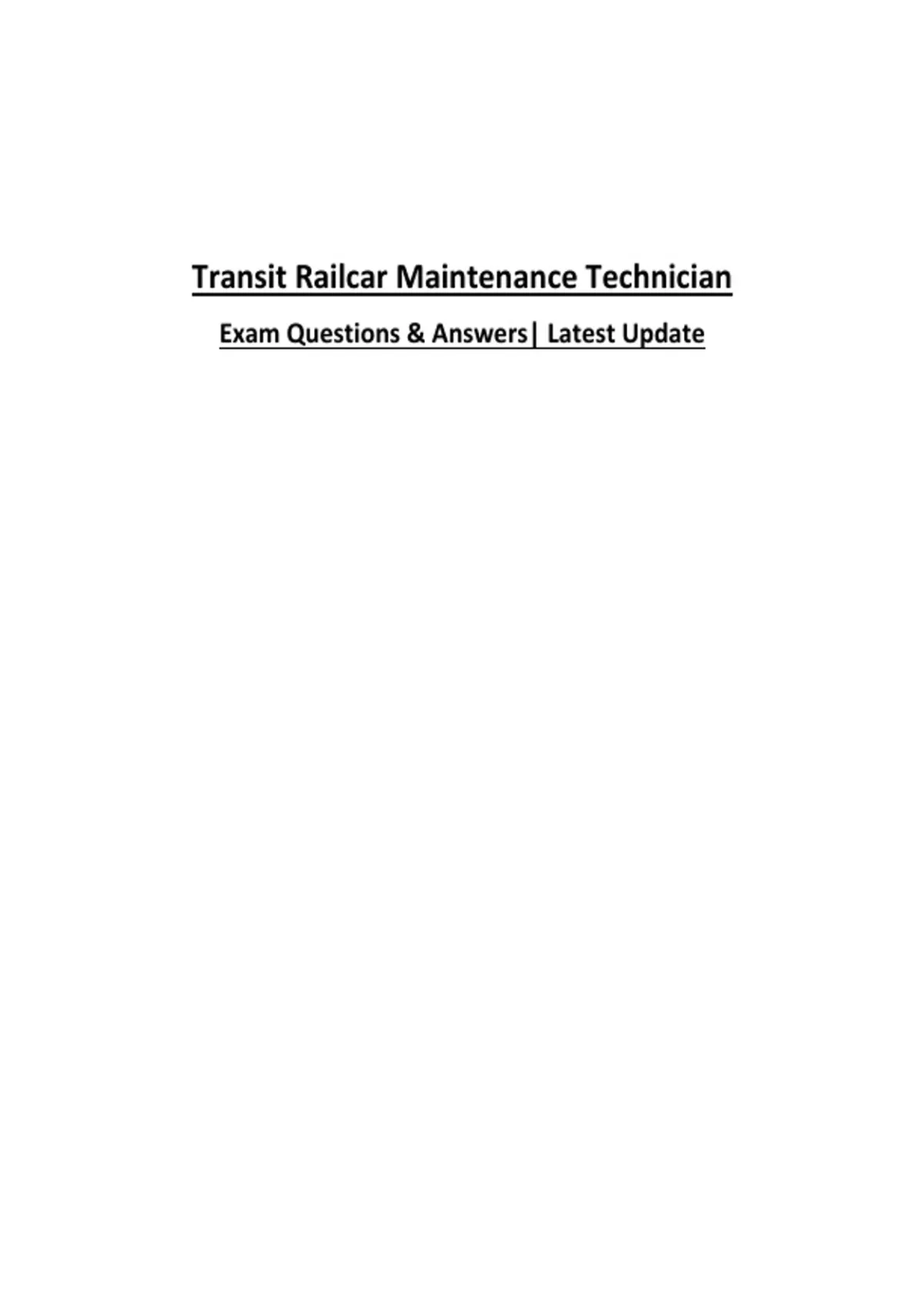

Transit Railcar Maintenance Technician
Exam Questions & Answers| Latest Update
,Q1. What instrument is used to measure electrical resistance in a railcar circuit?
A. Ammeter
B. Ohmmeter
C. Voltmeter
D. Wattmeter
Answer: B
Rationale: An ohmmeter measures resistance in ohms. Ammeters measure current,
voltmeters measure potential difference, and wattmeters measure power — none of
which directly measure resistance.
Q2. A circuit breaker on a railcar repeatedly trips when a motor is energized. What
is the most likely cause?
A. Low battery voltage
B. An overcurrent condition such as a short or ground fault
C. Excessive air pressure
D. A worn brake shoe
Answer: B
Rationale: Circuit breakers are protective devices designed to open when current
exceeds a safe threshold, which typically indicates a short circuit, ground fault, or
overloaded motor winding.
Q3. In a railcar's low-voltage control circuit, what is the primary purpose of a relay?
A. To step down high voltage to low voltage
B. To use a small control current to switch a larger load circuit
C. To store electrical energy
D. To convert AC to DC
Answer: B
Rationale: A relay is an electromechanical switch that allows a low-power control
signal to energize a coil, which then closes contacts to control a separate, often
higher-power, circuit.
Q4. When troubleshooting an open circuit with a multimeter set to continuity
mode, what result indicates a break in the wire?
A. A steady tone and near-zero resistance reading
, B. No tone and an infinite (OL) resistance reading
C. A fluctuating voltage reading
D. A short beep followed by silence
Answer: B
Rationale: Continuity testing sends a small current through the circuit; an open
(broken) conductor shows infinite resistance (often displayed as OL) and produces no
continuity tone.
Q5. Which wiring color convention is most commonly used in North American
transit railcars to indicate ground or return conductors?
A. Red
B. Black or white
C. Yellow
D. Blue
Answer: B
Rationale: While standards vary by manufacturer, black or white conductors are
conventionally used for ground/return paths, while red is typically reserved for
positive/hot conductors.
Q6. What is the purpose of a diode in a railcar's electrical charging circuit?
A. To increase voltage output
B. To allow current flow in only one direction, preventing backfeed
C. To measure current draw
D. To filter out electrical noise only
Answer: B
Rationale: A diode is a one-way electrical check valve; in charging circuits it prevents
the battery from discharging back through the charging source when the source
voltage drops below battery voltage.
Q7. A technician measures 37.5 VDC on a nominal 37.5 VDC control battery but
finds no response from a control circuit. What should be checked next?
A. Replace the battery immediately
B. Check for a blown fuse, open breaker, or bad ground in the specific circuit
C. Assume the propulsion system has failed
D. Increase the charging voltage
, Answer: B
Rationale: Since battery voltage is correct, the problem lies downstream in the
specific control circuit — fuses, breakers, connectors, or grounds should be checked
before replacing components with normal readings.
Q8. What does the term 'megger test' refer to in railcar electrical maintenance?
A. A test of motor RPM
B. An insulation resistance test using a high-voltage insulation tester
C. A test of air brake pressure
D. A measurement of AC frequency
Answer: B
Rationale: A megger (megohmmeter) applies a high DC test voltage to measure
insulation resistance, helping detect insulation breakdown or moisture ingress in
motors, cables, and windings.
Q9. Why must a technician verify a circuit is de-energized and apply lockout/tagout
before servicing electrical equipment on a railcar?
A. To comply with paperwork requirements only
B. To prevent accidental energization and protect personnel from shock or arc
flash hazards
C. To save electrical energy
D. It is only required for propulsion systems
Answer: B
Rationale: Lockout/tagout (LOTO) is a critical safety procedure that isolates energy
sources and prevents unexpected re-energization, protecting technicians from electric
shock, arc flash, and mechanical injury.
Q10. On a railcar with a 600 VDC third-rail or overhead power supply, what device
typically steps this down for use in low-voltage control and lighting circuits?
A. A transformer only
B. A static inverter or motor-generator/auxiliary power converter
C. A resistor bank
D. A relay panel
Answer: B
