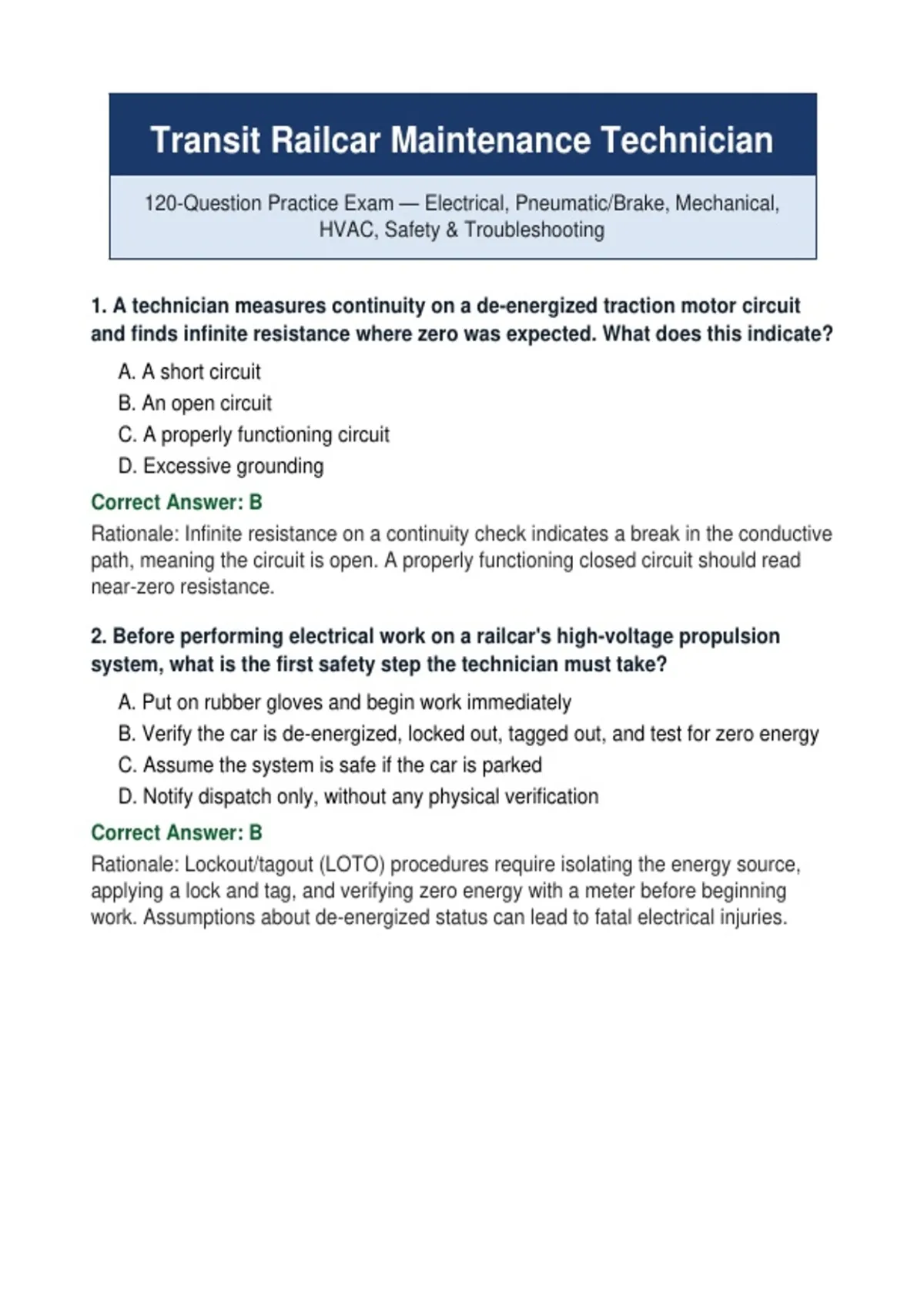

Transit Railcar Maintenance Technician
120-Question Practice Exam — Electrical, Pneumatic/Brake, Mechanical,
HVAC, Safety & Troubleshooting
1. A technician measures continuity on a de-energized traction motor circuit
and finds infinite resistance where zero was expected. What does this indicate?
A. A short circuit
B. An open circuit
C. A properly functioning circuit
D. Excessive grounding
Correct Answer: B
Rationale: Infinite resistance on a continuity check indicates a break in the conductive
path, meaning the circuit is open. A properly functioning closed circuit should read
near-zero resistance.
2. Before performing electrical work on a railcar's high-voltage propulsion
system, what is the first safety step the technician must take?
A. Put on rubber gloves and begin work immediately
B. Verify the car is de-energized, locked out, tagged out, and test for zero energy
C. Assume the system is safe if the car is parked
D. Notify dispatch only, without any physical verification
Correct Answer: B
Rationale: Lockout/tagout (LOTO) procedures require isolating the energy source,
applying a lock and tag, and verifying zero energy with a meter before beginning
work. Assumptions about de-energized status can lead to fatal electrical injuries.
,3. A multimeter set to the DC voltage range reads 0V across a battery that
should be producing 74V DC. What is the most likely first troubleshooting step?
A. Replace the entire propulsion system
B. Check the meter settings, probe connections, and battery circuit breaker or fuse
C. Assume the battery is fully charged
D. Increase the vehicle speed to test under load
Correct Answer: B
Rationale: Before concluding a component has failed, the technician should verify the
test equipment is set correctly, probes are making solid contact, and check simple
points of failure such as a tripped breaker or blown fuse in the circuit.
4. What is the primary purpose of a third rail or overhead catenary system on a
transit railcar?
A. To provide structural support to the car body
B. To supply electrical power to the propulsion and auxiliary systems
C. To provide braking force
D. To ground the car body to the rail
Correct Answer: B
Rationale: The third rail or overhead catenary is the power distribution system that
supplies high-voltage electricity to the railcar's traction motors and onboard electrical
systems via a current collector (shoe or pantograph).
5. A pantograph fails to maintain consistent contact with the overhead catenary
wire, causing arcing. What is a likely cause?
A. Worn or improperly adjusted pantograph carbon contact strips
B. Overinflated air brakes
C. A malfunctioning door sensor
D. Excessive HVAC refrigerant charge
Correct Answer: A
Rationale: Worn, misaligned, or improperly tensioned pantograph contact strips can
cause inconsistent contact with the catenary, resulting in arcing, power interruptions,
and accelerated wear of both the pantograph and the overhead wire.
,6. Which tool is most appropriate for verifying that a high-voltage circuit is
de-energized before beginning maintenance?
A. A non-contact voltage tester or a rated voltage meter designed for the voltage
class
B. A visual inspection alone
C. A standard household multimeter without a proper voltage rating
D. Touching the conductor with an insulated screwdriver
Correct Answer: A
Rationale: A voltage meter or tester rated for the specific voltage class present on the
equipment must be used to confirm zero energy state. Visual inspection alone cannot
detect the presence of voltage, and using improperly rated equipment is unsafe.
7. A technician is troubleshooting an intermittent electrical fault in a railcar
wiring harness. Which technique is most effective for isolating the fault?
A. Replacing the entire harness without testing
B. Wiggle testing the harness while monitoring circuit continuity or voltage to
identify the point of failure
C. Ignoring the issue until it becomes a permanent fault
D. Increasing the system voltage to force a visible failure
Correct Answer: B
Rationale: Wiggle testing (gently flexing sections of harness while monitoring the
circuit with a meter or diagnostic tool) helps pinpoint intermittent faults caused by
chafed insulation, loose connectors, or broken strands within the harness.
8. What is the function of a circuit breaker in a railcar's electrical system?
A. To increase current flow during overload conditions
B. To automatically interrupt current flow when it exceeds a safe threshold,
protecting the circuit from damage
C. To convert AC power to DC power
D. To store electrical energy for later use
Correct Answer: B
Rationale: A circuit breaker is a protective device that automatically opens the circuit
when current exceeds a predetermined safe level, preventing overheating, fire, or
damage to downstream components and wiring.
, 9. A railcar's auxiliary power system uses an inverter. What is the primary
function of this component?
A. Convert DC power from the battery or line supply to AC power for onboard
systems such as lighting and HVAC
B. Store mechanical energy for braking
C. Filter air for the HVAC system
D. Provide structural support to the undercarriage
Correct Answer: A
Rationale: An inverter converts direct current (DC), typically from the traction power
source or batteries, into alternating current (AC) needed to operate onboard auxiliary
systems like lighting, HVAC compressors, and outlets.
10. Which condition would most likely cause a ground fault indicator to activate
on a railcar?
A. Normal operation with all circuits properly insulated
B. Damaged insulation allowing current to leak to the car body or chassis
C. A fully charged battery
D. Correct torque on all fasteners
Correct Answer: B
Rationale: A ground fault occurs when damaged or degraded insulation allows current
to flow to an unintended path, such as the car body. Ground fault indicators alert
technicians to this condition, which poses shock and fire hazards.
11. A technician is replacing a traction motor's carbon brushes. Why is brush
wear closely monitored?
A. Worn brushes have no effect on motor performance
B. Excessively worn brushes can cause poor electrical contact with the
commutator, leading to arcing, overheating, and motor damage
C. Brushes only affect motor color, not performance
D. Brush wear is unrelated to motor maintenance
Correct Answer: B
Rationale: Carbon brushes conduct current to the rotating commutator. As brushes
wear down, contact pressure and surface area decrease, causing arcing, sparking,
increased resistance, and potential damage to the commutator and motor windings.
