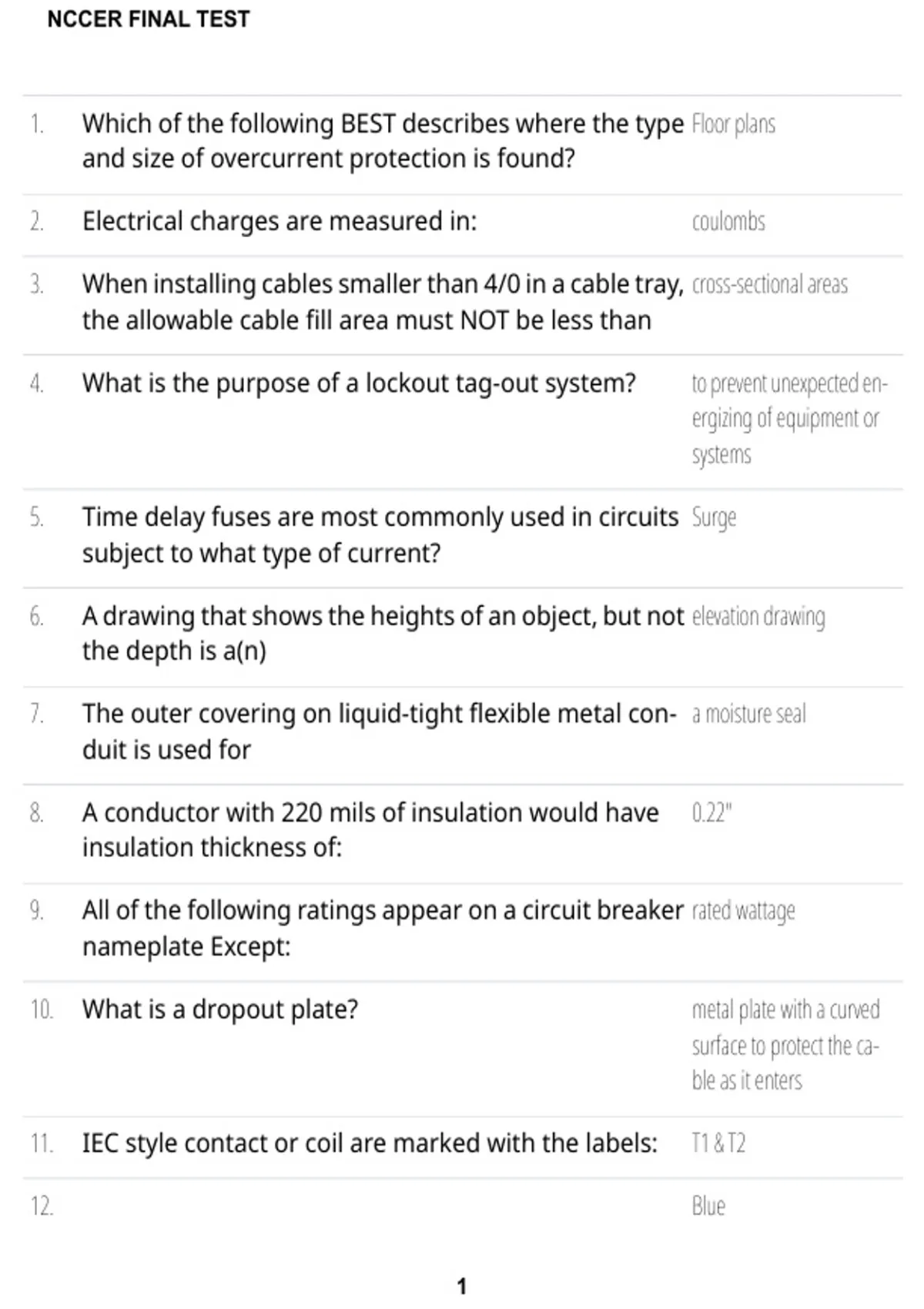

NCCER FINAL TEST
NCCER FINAL TEST
Study online at https://quizlet.com/_bjo5v1
1. Which of the following BEST describes where the type Floor plans
and size of overcurrent protection is found?
2. Electrical charges are measured in: coulombs
3. When installing cables smaller than 4/0 in a cable tray, cross-sectional areas
the allowable cable fill area must NOT be less than
4. What is the purpose of a lockout tag-out system? to prevent unexpected en-
ergizing of equipment or
systems
5. Time delay fuses are most commonly used in circuits Surge
subject to what type of current?
6. A drawing that shows the heights of an object, but not elevation drawing
the depth is a(n)
7. The outer covering on liquid-tight flexible metal con- a moisture seal
duit is used for
8. A conductor with 220 mils of insulation would have 0.22"
insulation thickness of:
9. All of the following ratings appear on a circuit breaker rated wattage
nameplate Except:
10. What is a dropout plate? metal plate with a curved
surface to protect the ca-
ble as it enters
11. IEC style contact or coil are marked with the labels: T1 & T2
12. Blue
1
, NCCER FINAL TEST
NCCER FINAL TEST
Study online at https://quizlet.com/_bjo5v1
An insulated type 600 volt crimp terminal for a 16-14
AWG is typically identified by which color
13. Which of the following statements about a service it may be smaller than the
neutral conductor is TRUE? ungrounded conductors
14. Which electrical values CANNOT be tested using a Watts
VOM?
15. What is the voltage drop for a #8 (16,510 cmil) copper 10.5
wire at 120V, 250ft one way and load of 39 amps?
16. Which type of transformer has its windings connected a delta transformer
in series?
17. What is insulating tape? nonconductive adhesive
tape?
18. A conduit brush or conduit swap is used to do what? remove water, sand, de-
bris and other light ob-
struction from the interior
of the conduit
19. Where may nonmetallic conduit (PVC) be used? both above and below
ground
20. Compounds made of porcelain and plastic are used as insulators
21. Eight incandescent lightning fixtures are to be in- 13.3 amps
stalled. Each fixture is 120 volts, with 200-watt lamp.
What is the total connected load?
22. What is the main characteristic of a confined space? limited access and egress
2
