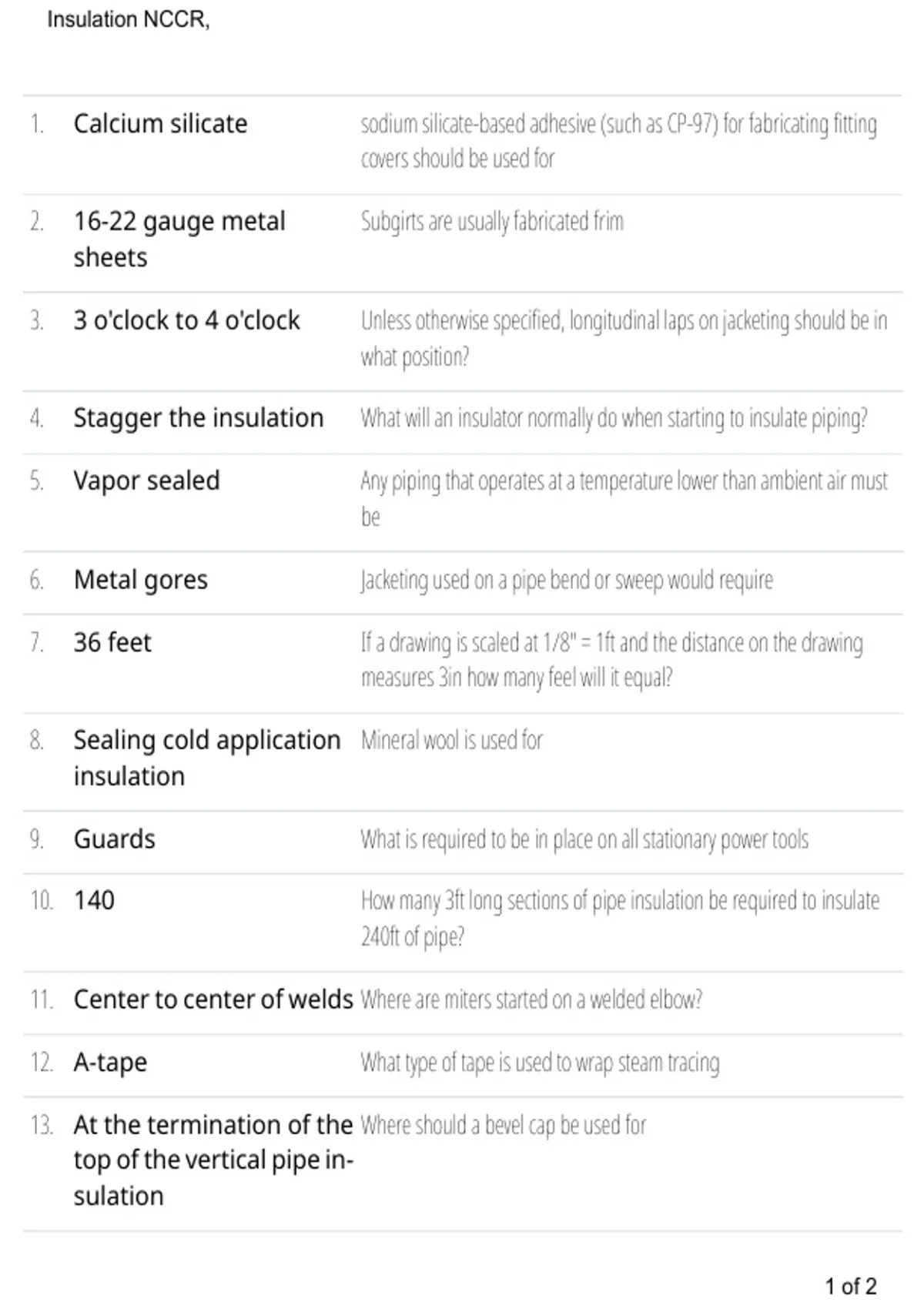

Insulation NCCR,
Insulation NCCR
Study online at https://quizlet.com/_a1bd7s
1. Calcium silicate sodium silicate-based adhesive (such as CP-97) for fabricating fitting
covers should be used for
2. 16-22 gauge metal Subgirts are usually fabricated frim
sheets
3. 3 o'clock to 4 o'clock Unless otherwise specified, longitudinal laps on jacketing should be in
what position?
4. Stagger the insulation What will an insulator normally do when starting to insulate piping?
5. Vapor sealed Any piping that operates at a temperature lower than ambient air must
be
6. Metal gores Jacketing used on a pipe bend or sweep would require
7. 36 feet If a drawing is scaled at 1/8" = 1ft and the distance on the drawing
measures 3in how many feel will it equal?
8. Sealing cold application Mineral wool is used for
insulation
9. Guards What is required to be in place on all stationary power tools
10. 140 How many 3ft long sections of pipe insulation be required to insulate
240ft of pipe?
11. Center to center of welds Where are miters started on a welded elbow?
12. A-tape What type of tape is used to wrap steam tracing
13. At the termination of the Where should a bevel cap be used for
top of the vertical pipe in-
sulation
1/2
1 of 2
