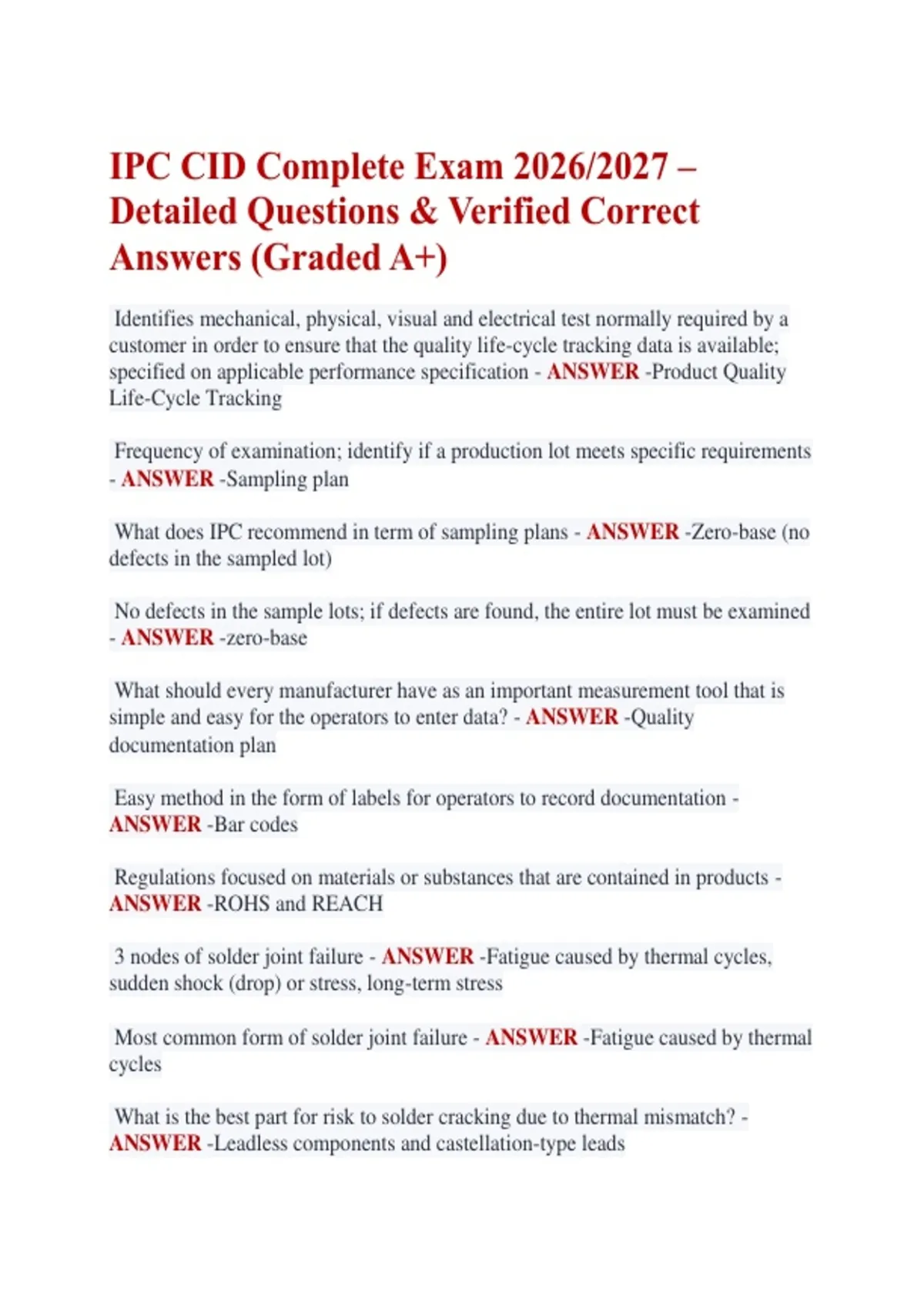

IPC CID Complete Exam 2026/2027 – Detailed Questions & Verified Correct Answers (Graded A+) Identifies mechanical, physical, visual and electrical test normally required by a customer in order to ensure that the quality life-cycle tracking data is available; specified on applicable performance specification - ANSWER -Product Quality Life-Cycle Tracking Frequency of examination; identify if a production lot meets specific requirements - ANSWER -Sampling plan What does IPC recommend in term of sampling plans - ANSWER -Zero-base (no defects in the sampled lot) No defects in the sample lots; if defects are found, the entire lot must be examined - ANSWER -zero-base What should every manufacturer have as an important measurement tool that is simple and easy for the operators to enter data? - ANSWER -Quality documentation plan Easy method in the form of labels for operators to record documentation - ANSWER -Bar codes Regulations focused on materials or substances that are contained in products - ANSWER -ROHS and REACH 3 nodes of solder joint failure - ANSWER -Fatigue caused by thermal cycles, sudden shock (drop) or stress, long-term stress Most common form of solder joint failure - ANSWER -Fatigue caused by thermal cycles What is the best part for risk to solder cracking due to thermal mismatch? - ANSWER -Leadless components and castellation-type leads What are key cost drivers for bare board manufacturing? - ANSWER -Laminate materials/mixed dielectrics, number of layers, total number of holes, minimum hole size, panel utilization, lamination cycles, co-planar, plated via-in-pad epoxy filled, back-drilling, impedance control DRC's for fabricators and assemblers often do not take into account what type of DRCs - ANSWER -electrical DRC's such as controlled signal lengths for timing Rectangular sheet of base material that is used for the processing of 1+ printed boards, and when required, one or more test coupons - ANSWER -Fabrication Panel Printed board image/patterns plus the additional contiguous deliverable material from the panel (+ tabs, fiducials, tooling holes, etc...) - ANSWER -Assembly Array What is the most common size panel? - ANSWER -18x24in, 460x610mm Stencil manufacturer work to what location/ - ANSWER -Nominal positioning location between two-dimensional variations What should the designer consider adding to help the stencil manufacturers? - ANSWER -Alignment fiducials What ratio should you never go beyond in terms of the length-to-width ratio? - ANSWER -12:! How do long, thin boards jeopardize conductor routability? - ANSWER -Routing is primarily on the longitudinal axis and may cause crosstalk and signal integrity problems What is the benefit of copper balancing? - ANSWER -Uniform exposure to the etching solutions Addition areas of copper foil intended to draw copper in the plating bath away from the fine conductor images; uniform plating distribution - ANSWER -Plating Thief What important effect is reduced as an output from copper balancing from the center to either side in the laminated product - ANSWER -Bow and Twist What can help straighten a board that does not have proper copper balance from bow and twist? - ANSWER -Mechanical features like heat sinks and stiffeners What thermal management technique transfers the heat down to a cooler plan/surface? - ANSWER -Thermal vias Thermal energy/heat that is transferred by electro-magnetic radiation primarily in the infrared (IR) wave length - ANSWER -Radiation How do large cores/large copper affect the reflow profile? - ANSWER Significant heatsink and impact the reflow of the solder surfaces What is highly advisable to do when a board contains a metal core? - ANSWER Add a note on the Assembly Drawing Why does 0402 equate to 0.03936~" x 0.01968~" not 0.04"x0.02"? - ANSWER Inaccurate round offs What are the 3 vantage points of dimensioning? - ANSWER -Mechanical Constraints Drawing (mating the PCB with the mechanical housing), PCB Master Drawing, QA inspection criteria (ensure conformance of manufactured product for intended usage) For the relationship of the PCB to the Mechanical Constraints drawing, what is critical to do to alleviate problems related to tolerance stackup? - ANSWER Using similar origins and coordinates, 0/0 origin (non-plated tooling hole) Unusual shaped boards are placed in an assembly array to do what? - ANSWER Maximize material usage and to facilitate board/array handling The first two tooling features form the basis for what? The third tooling features is a method for what? - ANSWER -Dimensioning system; determining any angular movement of a material Slots with a pin to allow for movement about the center without stressing any materials - ANSWER -Tooling features Pros and cons of buried and blind vias? - ANSWER -Cons: Add additional processing steps in manufacturing
