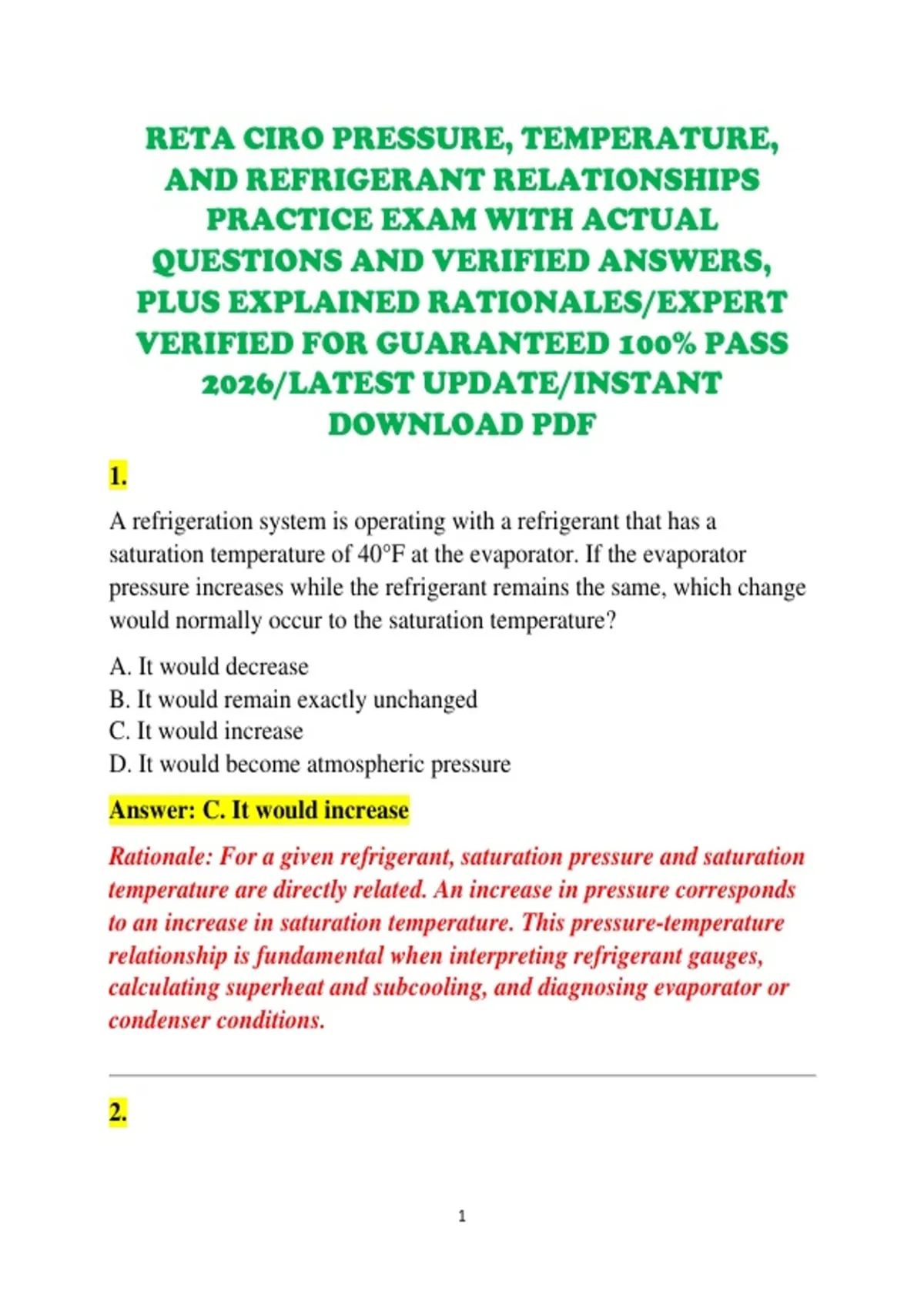

RETA CIRO PRESSURE, TEMPERATURE,
AND REFRIGERANT RELATIONSHIPS
PRACTICE EXAM WITH ACTUAL
QUESTIONS AND VERIFIED ANSWERS,
PLUS EXPLAINED RATIONALES/EXPERT
VERIFIED FOR GUARANTEED 100% PASS
2026/LATEST UPDATE/INSTANT
DOWNLOAD PDF
1.
A refrigeration system is operating with a refrigerant that has a
saturation temperature of 40°F at the evaporator. If the evaporator
pressure increases while the refrigerant remains the same, which change
would normally occur to the saturation temperature?
A. It would decrease
B. It would remain exactly unchanged
C. It would increase
D. It would become atmospheric pressure
Answer: C. It would increase
Rationale: For a given refrigerant, saturation pressure and saturation
temperature are directly related. An increase in pressure corresponds
to an increase in saturation temperature. This pressure-temperature
relationship is fundamental when interpreting refrigerant gauges,
calculating superheat and subcooling, and diagnosing evaporator or
condenser conditions.
2.
1
,A technician is using a pressure-temperature chart for a pure refrigerant
and finds that the measured evaporator pressure corresponds to a
saturation temperature of 35°F. The actual suction-line temperature
measured at the evaporator outlet is 45°F. What is the evaporator outlet
superheat?
A. 5°F
B. 10°F
C. 15°F
D. 80°F
Answer: B. 10°F
Rationale: Superheat is calculated as actual vapor temperature minus
the saturation temperature corresponding to the measured pressure.
Therefore, 45°F − 35°F = 10°F of superheat. The calculation is
meaningful only when the correct pressure-temperature relationship
for the refrigerant is used.
3.
A refrigeration technician measures a condenser pressure corresponding
to a saturation temperature of 110°F. The liquid refrigerant leaving the
condenser is measured at 95°F. What is the approximate liquid
subcooling?
A. 5°F
B. 10°F
C. 15°F
D. 205°F
Answer: C. 15°F
Rationale: Subcooling is the difference between the refrigerant's
saturation temperature at the measured condensing pressure and the
actual liquid temperature. Thus, 110°F − 95°F = 15°F of subcooling.
2
,Subcooling indicates how far the liquid has been cooled below its
saturation temperature at that pressure.
4.
Why must a technician use the pressure-temperature relationship
specific to the refrigerant being analyzed?
A. Every refrigerant has identical saturation pressures
B. Refrigerants have different pressure-temperature characteristics
C. Temperature has no relationship to refrigerant pressure
D. Gauge pressure automatically determines refrigerant type
Answer: B. Refrigerants have different pressure-temperature
characteristics
Rationale: Each refrigerant has its own thermodynamic properties and
therefore its own saturation pressure-temperature relationship. A
pressure that represents one saturation temperature for R-134a, for
example, will not necessarily represent the same temperature for
another refrigerant. Using the wrong PT chart can produce incorrect
superheat, subcooling, and diagnostic conclusions.
5.
A technician observes that the suction pressure of a refrigeration system
is significantly lower than expected. Assuming the refrigerant is
correctly identified, what does the lower pressure generally indicate
about the refrigerant saturation temperature?
A. The saturation temperature is lower
B. The saturation temperature is necessarily higher
C. The saturation temperature becomes independent of pressure
D. The saturation temperature equals the discharge temperature
3
, Answer: A. The saturation temperature is lower
Rationale: Within the normal operating range of a refrigerant,
decreasing pressure corresponds to decreasing saturation temperature.
A low suction pressure therefore generally means the refrigerant is
boiling at a lower saturation temperature. The technician must then
determine why the system is operating at that condition rather than
assuming a specific fault from pressure alone.
6.
At a given pressure, refrigerant is at its saturation temperature. What
condition exists when liquid and vapor can coexist in equilibrium?
A. Superheated vapor
B. Subcooled liquid
C. Saturated condition
D. Compressed air
Answer: C. Saturated condition
Rationale: Saturation is the condition at which a refrigerant is at the
phase-change boundary. At saturation, liquid can be changing into
vapor or vapor can be changing into liquid. The saturation pressure
and saturation temperature are directly linked for a particular
refrigerant.
7.
A vapor leaving an evaporator has a temperature higher than its
saturation temperature at the measured pressure. What is the refrigerant
condition?
A. Subcooled liquid
B. Saturated liquid
4
