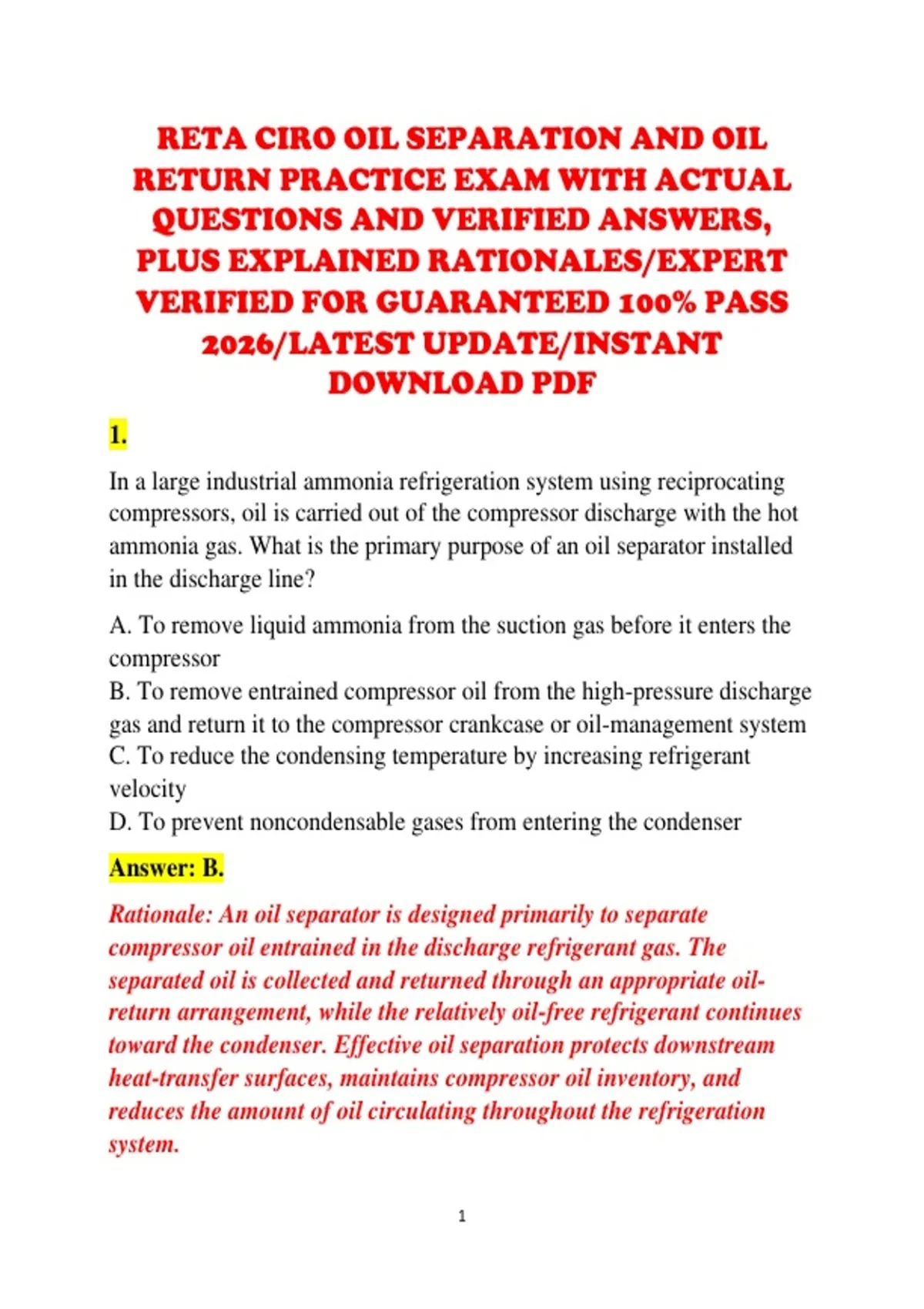

RETA CIRO OIL SEPARATION AND OIL
RETURN PRACTICE EXAM WITH ACTUAL
QUESTIONS AND VERIFIED ANSWERS,
PLUS EXPLAINED RATIONALES/EXPERT
VERIFIED FOR GUARANTEED 100% PASS
2026/LATEST UPDATE/INSTANT
DOWNLOAD PDF
1.
In a large industrial ammonia refrigeration system using reciprocating
compressors, oil is carried out of the compressor discharge with the hot
ammonia gas. What is the primary purpose of an oil separator installed
in the discharge line?
A. To remove liquid ammonia from the suction gas before it enters the
compressor
B. To remove entrained compressor oil from the high-pressure discharge
gas and return it to the compressor crankcase or oil-management system
C. To reduce the condensing temperature by increasing refrigerant
velocity
D. To prevent noncondensable gases from entering the condenser
Answer: B.
Rationale: An oil separator is designed primarily to separate
compressor oil entrained in the discharge refrigerant gas. The
separated oil is collected and returned through an appropriate oil-
return arrangement, while the relatively oil-free refrigerant continues
toward the condenser. Effective oil separation protects downstream
heat-transfer surfaces, maintains compressor oil inventory, and
reduces the amount of oil circulating throughout the refrigeration
system.
1
,2.
Why is excessive oil circulation through an industrial refrigeration
system undesirable even when the compressor itself continues to operate
normally?
A. Oil increases the refrigerant's electrical conductivity
B. Oil can accumulate in heat exchangers, reducing heat-transfer
efficiency and potentially interfering with refrigerant flow
C. Oil always causes immediate compressor seizure
D. Oil causes the evaporator pressure to become exactly equal to
condenser pressure
Answer: B.
Rationale: Refrigeration oil circulating with the refrigerant can
eventually collect in evaporators, condensers, piping, and other
components. An oil film on heat-transfer surfaces increases thermal
resistance and can reduce system capacity and efficiency. Large oil
accumulations can also interfere with flow passages and alter system
behavior. Therefore, oil management is both a compressor-lubrication
issue and a system-performance issue.
3.
A compressor has a normal oil level immediately after shutdown, but its
oil level falls significantly during extended operation. The oil separator
appears to be functioning, but oil is not visibly returning to the
compressor. Which condition should be investigated first?
A. The evaporator fan belt tension
B. The oil-return path for blockage, improper differential pressure, or
malfunctioning components
2
,C. The condenser water chemistry exclusively
D. The compressor suction temperature only
Answer: B.
Rationale: If oil leaves the compressor but does not return, the oil-
return circuit becomes a primary suspect. Restrictions, plugged
strainers, failed float mechanisms, incorrect valve positions,
inadequate pressure differential, or improperly configured return
piping can prevent oil from reaching the compressor. Operators
should diagnose the entire oil-return path rather than assuming that
the separator itself is defective.
4.
What fundamental principle allows many conventional oil separators to
remove oil from high-velocity refrigerant discharge gas?
A. Magnetic attraction
B. Gravity and reduction/change in gas velocity combined with
directional changes or coalescing
C. Refrigerant freezing
D. Electrical ionization exclusively
Answer: B.
Rationale: Oil separators commonly exploit the density difference
between oil and refrigerant vapor. When gas velocity is reduced and
the flow path changes direction, heavier oil droplets have greater
difficulty following the gas stream and can fall or collect in the
separator. More advanced separators may additionally use
impingement, coalescing surfaces, or other separation mechanisms to
improve efficiency.
3
, 5.
Why is separator placement near the compressor discharge particularly
important?
A. Refrigerant is always liquid immediately at the compressor outlet
B. Oil concentration in the discharge gas can be relatively high
immediately after compression
C. The compressor cannot produce discharge pressure unless the
separator is installed
D. The separator must replace the condenser
Answer: B.
Rationale: Compressor discharge gas can contain significant
quantities of entrained oil droplets. Installing the separator in the
discharge path allows much of that oil to be removed before it travels
through the condenser and the rest of the refrigeration system. This
minimizes oil circulation and increases the probability that oil remains
available to the compressor.
6.
A refrigeration technician finds that the oil separator is repeatedly filling
with oil but the compressor crankcase oil level remains low. Which
explanation is most plausible?
A. The oil separator is accumulating separated oil without successfully
completing the return cycle
B. The condenser is producing too much oil
C. The evaporator is converting refrigerant into oil
D. The compressor suction valve is creating oil
Answer: A.
4
