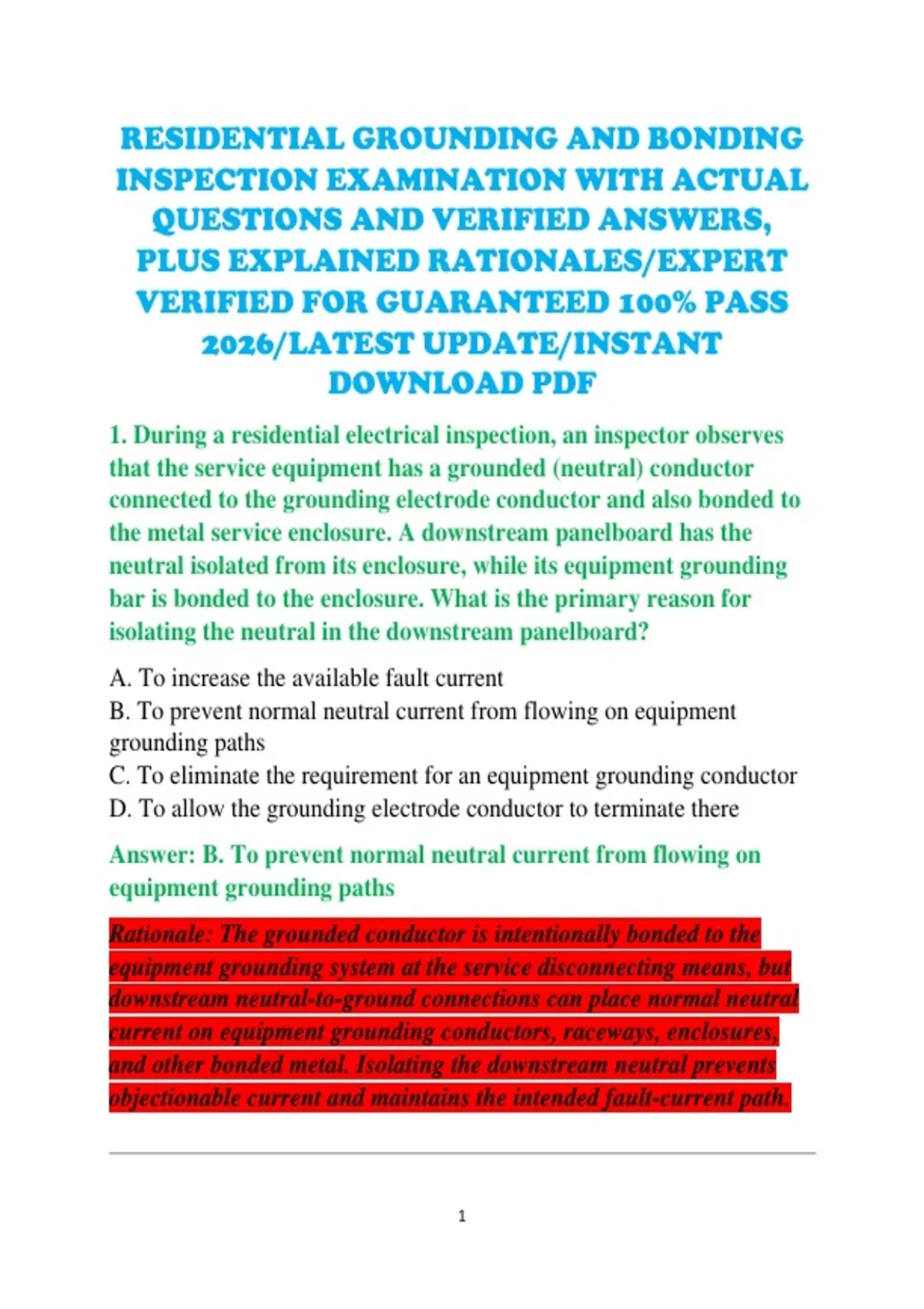

RESIDENTIAL GROUNDING AND BONDING
INSPECTION EXAMINATION WITH ACTUAL
QUESTIONS AND VERIFIED ANSWERS,
PLUS EXPLAINED RATIONALES/EXPERT
VERIFIED FOR GUARANTEED 100% PASS
2026/LATEST UPDATE/INSTANT
DOWNLOAD PDF
1. During a residential electrical inspection, an inspector observes
that the service equipment has a grounded (neutral) conductor
connected to the grounding electrode conductor and also bonded to
the metal service enclosure. A downstream panelboard has the
neutral isolated from its enclosure, while its equipment grounding
bar is bonded to the enclosure. What is the primary reason for
isolating the neutral in the downstream panelboard?
A. To increase the available fault current
B. To prevent normal neutral current from flowing on equipment
grounding paths
C. To eliminate the requirement for an equipment grounding conductor
D. To allow the grounding electrode conductor to terminate there
Answer: B. To prevent normal neutral current from flowing on
equipment grounding paths
Rationale: The grounded conductor is intentionally bonded to the
equipment grounding system at the service disconnecting means, but
downstream neutral-to-ground connections can place normal neutral
current on equipment grounding conductors, raceways, enclosures,
and other bonded metal. Isolating the downstream neutral prevents
objectionable current and maintains the intended fault-current path.
1
,2. A single-family dwelling has a 200-ampere service. The inspector
finds a grounding electrode conductor connected to a concrete-
encased electrode. The electrode consists of at least 20 feet of
electrically conductive reinforcing steel encased in concrete and in
direct contact with the earth. How should this electrode generally be
classified?
A. Ground rod
B. Concrete-encased electrode
C. Grounding ring
D. Underground metal water pipe
Answer: B. Concrete-encased electrode
Rationale: A concrete-encased electrode is an electrode consisting of
at least 20 feet of one or more bare or electrically conductive coated
reinforcing bars or rods of specified size, or other qualifying
conductive material, encased in concrete that is in direct contact with
the earth. Such an electrode is commonly called a Ufer grounding
electrode.
3. An inspector discovers that a residential service has a grounding
electrode system consisting of a metal underground water pipe
electrode. The inspector determines that the water pipe is in direct
contact with the earth for the required length. What additional
consideration is most important?
A. The water pipe can never be used as a grounding electrode
B. The water pipe must generally be supplemented by another qualifying
electrode
C. The water pipe must be connected only to the neutral bus
D. The water pipe eliminates the need for bonding metal piping
2
,Answer: B. The water pipe must generally be supplemented by
another qualifying electrode
Rationale: Where a qualifying underground metal water pipe is used
as a grounding electrode, it generally must be supplemented by
another grounding electrode recognized by the applicable electrical
code. This requirement recognizes that underground water piping can
be altered, replaced, or interrupted, reducing its reliability as the sole
grounding electrode.
4. A residential electrician installs two ground rods approximately 5
feet apart. The inspector asks why two rods were installed instead of
one. Which statement best explains the code-based purpose?
A. Two rods always double the fault current
B. Multiple electrodes can reduce reliance on a single earth connection
and may satisfy electrode resistance requirements
C. Two rods eliminate the grounding electrode conductor
D. Two rods are required for every 60-ampere circuit
Answer: B. Multiple electrodes can reduce reliance on a single earth
connection and may satisfy electrode resistance requirements
Rationale: Ground rods have relatively high impedance compared with
metallic fault-current paths. Where a single rod does not demonstrate
the required resistance to earth, an additional rod is generally
installed. The spacing between rods is also important; installing them
extremely close together does not provide the same benefit as proper
separation.
5. During inspection of a residential service, the grounding electrode
conductor is routed from the service equipment to a grounding
3
, electrode. The conductor is exposed to possible physical damage
near the foundation. What should the inspector evaluate?
A. Only the conductor's color
B. Whether the grounding electrode conductor is adequately protected
against physical damage
C. Whether the conductor is twisted around the water pipe
D. Whether the conductor is connected to a branch-circuit neutral
Answer: B. Whether the grounding electrode conductor is
adequately protected against physical damage
Rationale: Grounding electrode conductors are critical safety
conductors and must be installed and protected in accordance with
applicable code requirements. Where subject to physical damage,
appropriate protection such as raceway or other approved methods
may be required.
6. A residential service has a grounding electrode conductor
connected to the metal water piping near the point where the water
service enters the building. Which additional inspection concern
should be considered?
A. Whether interior metal water piping is properly bonded
B. Whether the water piping is painted blue
C. Whether every water fixture has its own grounding electrode
D. Whether the water pipe is connected to a branch-circuit neutral
Answer: A. Whether interior metal water piping is properly bonded
Rationale: Bonding metal water piping helps ensure that normally
non-current-carrying metal parts remain at approximately the same
electrical potential and provides a low-impedance path for fault
current where required. The grounding electrode connection and
4
