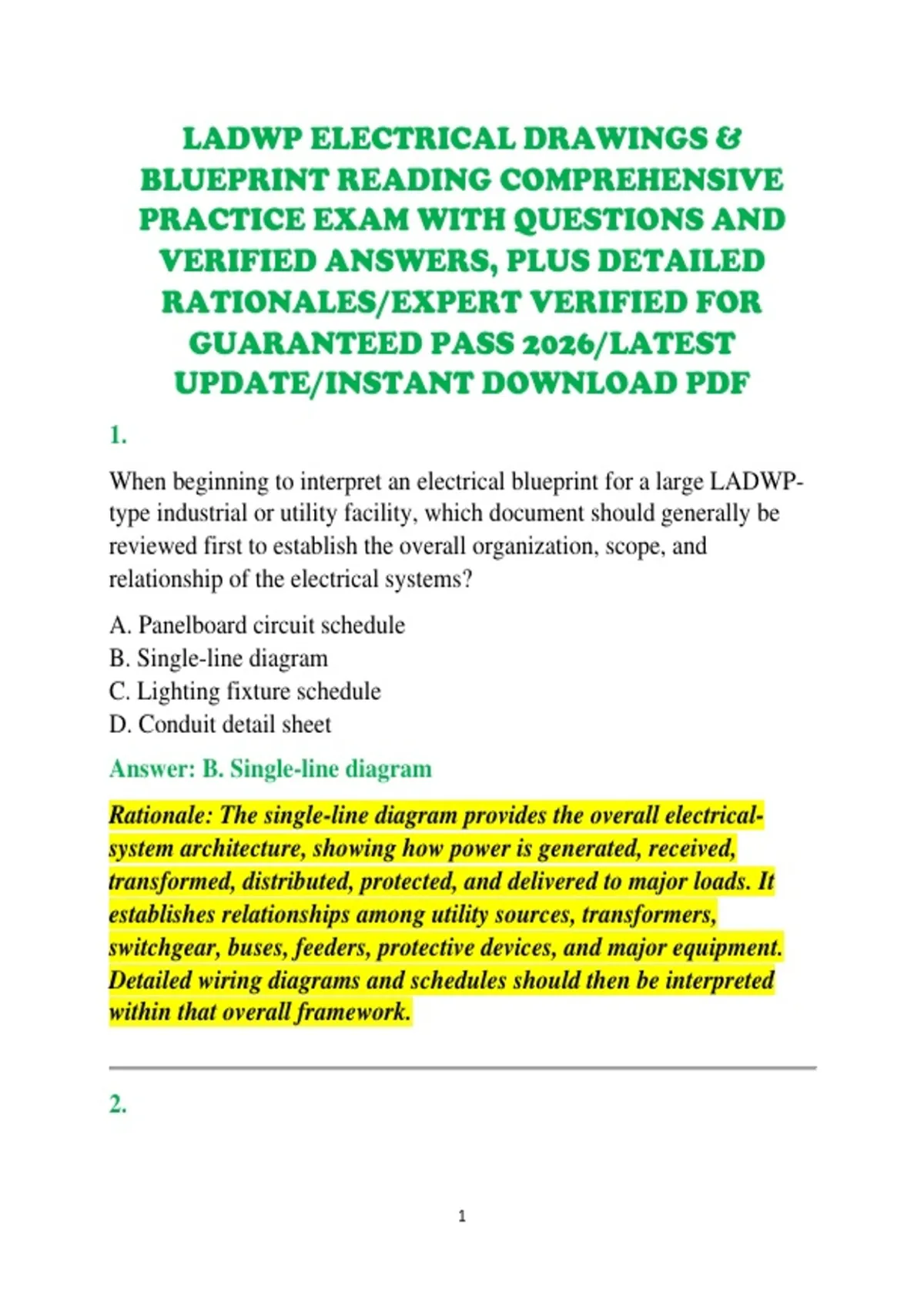

LADWP ELECTRICAL DRAWINGS &
BLUEPRINT READING COMPREHENSIVE
PRACTICE EXAM WITH QUESTIONS AND
VERIFIED ANSWERS, PLUS DETAILED
RATIONALES/EXPERT VERIFIED FOR
GUARANTEED PASS 2026/LATEST
UPDATE/INSTANT DOWNLOAD PDF
1.
When beginning to interpret an electrical blueprint for a large LADWP-
type industrial or utility facility, which document should generally be
reviewed first to establish the overall organization, scope, and
relationship of the electrical systems?
A. Panelboard circuit schedule
B. Single-line diagram
C. Lighting fixture schedule
D. Conduit detail sheet
Answer: B. Single-line diagram
Rationale: The single-line diagram provides the overall electrical-
system architecture, showing how power is generated, received,
transformed, distributed, protected, and delivered to major loads. It
establishes relationships among utility sources, transformers,
switchgear, buses, feeders, protective devices, and major equipment.
Detailed wiring diagrams and schedules should then be interpreted
within that overall framework.
2.
1
,A blueprint indicates a scale of 1/4 inch = 1 foot. A feeder route
measures 3.75 inches on the drawing. Assuming the drawing is not
distorted, what is the approximate actual length of the route?
A. 9.375 ft
B. 12 ft
C. 15 ft
D. 18 ft
Answer: C. 15 ft
Rationale: At a scale of 1/4 inch = 1 foot, every inch on the drawing
represents 4 actual feet. Therefore, 3.75 inches × 4 feet/inch = 15 feet.
Scale calculations are essential when estimating conduit runs, cable
lengths, equipment locations, and physical clearances from drawings.
3.
On an electrical plan, a symbol consisting of a circle with an “X”
through it most commonly represents which item?
A. Lighting fixture
B. Grounding electrode
C. Disconnect switch
D. Junction box
Answer: A. Lighting fixture
Rationale: A circle with an “X” is a commonly used electrical-plan
symbol for a light fixture or luminaire. Exact symbols can vary by
drafting standard, so the legend must always be consulted before
making a final interpretation. The legend takes precedence over
assumptions based solely on familiar symbols.
4.
2
,A drawing contains the notation “E-204.” In a typical electrical drawing
set, what does the “E” most commonly indicate?
A. Equipment specification
B. Electrical discipline
C. Emergency circuit
D. Existing condition
Answer: B. Electrical discipline
Rationale: Drawing identifiers commonly use discipline prefixes. “E”
is frequently used for electrical drawings, while architectural,
structural, mechanical, and civil sheets may use other prefixes. The
numerical designation identifies the particular sheet. The title block
and drawing index should be consulted to verify the project-specific
convention.
5.
An electrical plan shows a feeder labeled “4#500 kcmil Cu + 1#2 Cu
GND in 3-inch C.” What does this notation most directly communicate?
A. Four 500-kcmil copper conductors, one No. 2 copper grounding
conductor, installed in 3-inch conduit
B. Four No. 500 copper conductors and two grounding conductors in a
3-inch conduit
C. Four 500-amp copper conductors with a No. 2 conduit and 3-inch
grounding electrode
D. Five 500-kcmil conductors installed in three conduits
Answer: A. Four 500-kcmil copper conductors, one No. 2 copper
grounding conductor, installed in 3-inch conduit
Rationale: “4#500 kcmil Cu” indicates four copper conductors with a
conductor size of 500 kcmil. “+ 1#2 Cu GND” identifies one No. 2
copper grounding conductor. “in 3-inch C” indicates installation in a
3
, 3-inch conduit. Such notation allows installers and inspectors to
determine conductor quantity, material, size, grounding requirements,
and raceway size.
6.
What is the primary purpose of the title block on an electrical drawing?
A. To provide conduit fill calculations
B. To identify drawing information such as project, sheet number,
revision, scale, and approval information
C. To show all electrical loads
D. To replace the electrical legend
Answer: B. To identify drawing information such as project, sheet
number, revision, scale, and approval information
Rationale: The title block is a critical document-control component. It
commonly identifies the project, drawing title, drawing number,
revision status, date, designer, checker, approval information, and
sometimes scale. Checking the title block helps ensure that workers are
using the correct and current drawing revision.
7.
A revision cloud surrounds an area of an electrical drawing. What is its
primary purpose?
A. Identify a hazardous electrical area
B. Indicate the location of grounding electrodes
C. Highlight an area changed or revised from an earlier drawing issue
D. Identify equipment that must be replaced immediately
Answer: C. Highlight an area changed or revised from an earlier
drawing issue
