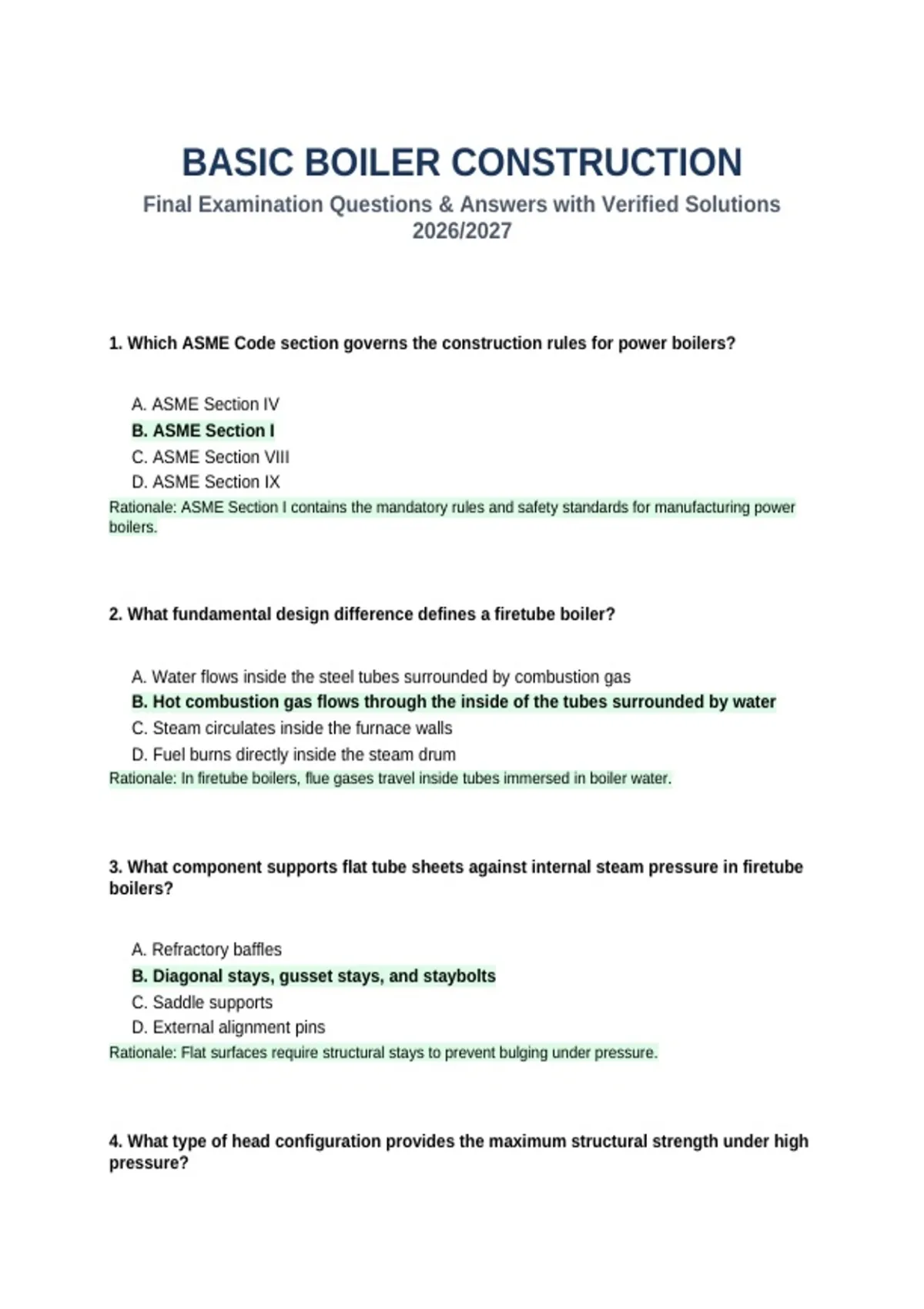

BASIC BOILER CONSTRUCTION
Final Examination Questions & Answers with Verified Solutions
2026/2027
1. Which ASME Code section governs the construction rules for power boilers?
A. ASME Section IV
B. ASME Section I
C. ASME Section VIII
D. ASME Section IX
Rationale: ASME Section I contains the mandatory rules and safety standards for manufacturing power
boilers.
2. What fundamental design difference defines a firetube boiler?
A. Water flows inside the steel tubes surrounded by combustion gas
B. Hot combustion gas flows through the inside of the tubes surrounded by water
C. Steam circulates inside the furnace walls
D. Fuel burns directly inside the steam drum
Rationale: In firetube boilers, flue gases travel inside tubes immersed in boiler water.
3. What component supports flat tube sheets against internal steam pressure in firetube
boilers?
A. Refractory baffles
B. Diagonal stays, gusset stays, and staybolts
C. Saddle supports
D. External alignment pins
Rationale: Flat surfaces require structural stays to prevent bulging under pressure.
4. What type of head configuration provides the maximum structural strength under high
pressure?
, A. Flat unstayed head
B. Torispherical head
C. Hemispherical head
D. Ellipsoidal head
Rationale: Hemispherical heads distribute pressure forces evenly across a true spherical shape.
5. What is the main structural advantage of small-diameter tubes in watertube boilers?
A. Small diameters handle high internal pressure with thinner wall steel
B. They hold more water volume than large drums
C. They do not require thermal expansion joints
D. They eliminate the need for feedwater treatment
Rationale: Hoop stress equations dictate that smaller tube diameters handle higher pressures safely.
6. Where does suspended sludge settle in a natural circulation watertube boiler?
A. Upper steam drum
B. Lower mud drum
C. Superheater manifold
D. Economizer header
Rationale: The mud drum sits at the lowest point, providing a quiet zone for sediment collection.
7. What construction feature forms gas-tight waterwalls in modern utility boilers?
A. Refractory brick linings
B. Membrane walls welded with steel bar fins between tubes
C. Overlapping canvas insulation blankets
D. Cast iron interlocking tiles
Rationale: Continuous steel fin bars welded between tubes create sealed, efficient furnace walls.
8. How are boiler tubes secured into tube sheet holes during shop assembly?
A. Soft soldering with copper wire
, B. Mechanical cold expansion rolling and bead welding
C. Threaded pipe fittings
D. High-temperature rubber gaskets
Rationale: Roller expansion deforms tube ends outward to seal tightly against tube sheet holes.
9. What primary force drives natural circulation in a watertube boiler?
A. Density difference between cold downcomer water and hot riser water
B. Mechanical feedwater pump pressure
C. Forced draft fan velocity
D. Vacuum suction in the steam line
Rationale: Heated water/steam in risers is lighter than cool water in unheated downcomers.
10. What boiler drum component separates water droplets from saturated steam?
A. Continuous blowdown pipe
B. Chevron demister or cyclone separator
C. Chemical feed sparger
D. Bottom drain nozzle
Rationale: Separators use directional changes and centrifugal force to fling water out of steam.
11. What function does a superheater serve in a power boiler setting?
A. Raises steam temperature above saturation without increasing pressure
B. Preheats cold incoming feedwater
C. Condenses waste steam for re-use
D. Lowers stack flue gas temperatures
Rationale: Superheaters add sensible heat to saturated steam to boost turbine efficiency.
12. What heat exchanger component preheats incoming feedwater using flue gas?
A. Air preheater
B. Economizer
C. Reheater
Final Examination Questions & Answers with Verified Solutions
2026/2027
1. Which ASME Code section governs the construction rules for power boilers?
A. ASME Section IV
B. ASME Section I
C. ASME Section VIII
D. ASME Section IX
Rationale: ASME Section I contains the mandatory rules and safety standards for manufacturing power
boilers.
2. What fundamental design difference defines a firetube boiler?
A. Water flows inside the steel tubes surrounded by combustion gas
B. Hot combustion gas flows through the inside of the tubes surrounded by water
C. Steam circulates inside the furnace walls
D. Fuel burns directly inside the steam drum
Rationale: In firetube boilers, flue gases travel inside tubes immersed in boiler water.
3. What component supports flat tube sheets against internal steam pressure in firetube
boilers?
A. Refractory baffles
B. Diagonal stays, gusset stays, and staybolts
C. Saddle supports
D. External alignment pins
Rationale: Flat surfaces require structural stays to prevent bulging under pressure.
4. What type of head configuration provides the maximum structural strength under high
pressure?
, A. Flat unstayed head
B. Torispherical head
C. Hemispherical head
D. Ellipsoidal head
Rationale: Hemispherical heads distribute pressure forces evenly across a true spherical shape.
5. What is the main structural advantage of small-diameter tubes in watertube boilers?
A. Small diameters handle high internal pressure with thinner wall steel
B. They hold more water volume than large drums
C. They do not require thermal expansion joints
D. They eliminate the need for feedwater treatment
Rationale: Hoop stress equations dictate that smaller tube diameters handle higher pressures safely.
6. Where does suspended sludge settle in a natural circulation watertube boiler?
A. Upper steam drum
B. Lower mud drum
C. Superheater manifold
D. Economizer header
Rationale: The mud drum sits at the lowest point, providing a quiet zone for sediment collection.
7. What construction feature forms gas-tight waterwalls in modern utility boilers?
A. Refractory brick linings
B. Membrane walls welded with steel bar fins between tubes
C. Overlapping canvas insulation blankets
D. Cast iron interlocking tiles
Rationale: Continuous steel fin bars welded between tubes create sealed, efficient furnace walls.
8. How are boiler tubes secured into tube sheet holes during shop assembly?
A. Soft soldering with copper wire
, B. Mechanical cold expansion rolling and bead welding
C. Threaded pipe fittings
D. High-temperature rubber gaskets
Rationale: Roller expansion deforms tube ends outward to seal tightly against tube sheet holes.
9. What primary force drives natural circulation in a watertube boiler?
A. Density difference between cold downcomer water and hot riser water
B. Mechanical feedwater pump pressure
C. Forced draft fan velocity
D. Vacuum suction in the steam line
Rationale: Heated water/steam in risers is lighter than cool water in unheated downcomers.
10. What boiler drum component separates water droplets from saturated steam?
A. Continuous blowdown pipe
B. Chevron demister or cyclone separator
C. Chemical feed sparger
D. Bottom drain nozzle
Rationale: Separators use directional changes and centrifugal force to fling water out of steam.
11. What function does a superheater serve in a power boiler setting?
A. Raises steam temperature above saturation without increasing pressure
B. Preheats cold incoming feedwater
C. Condenses waste steam for re-use
D. Lowers stack flue gas temperatures
Rationale: Superheaters add sensible heat to saturated steam to boost turbine efficiency.
12. What heat exchanger component preheats incoming feedwater using flue gas?
A. Air preheater
B. Economizer
C. Reheater
