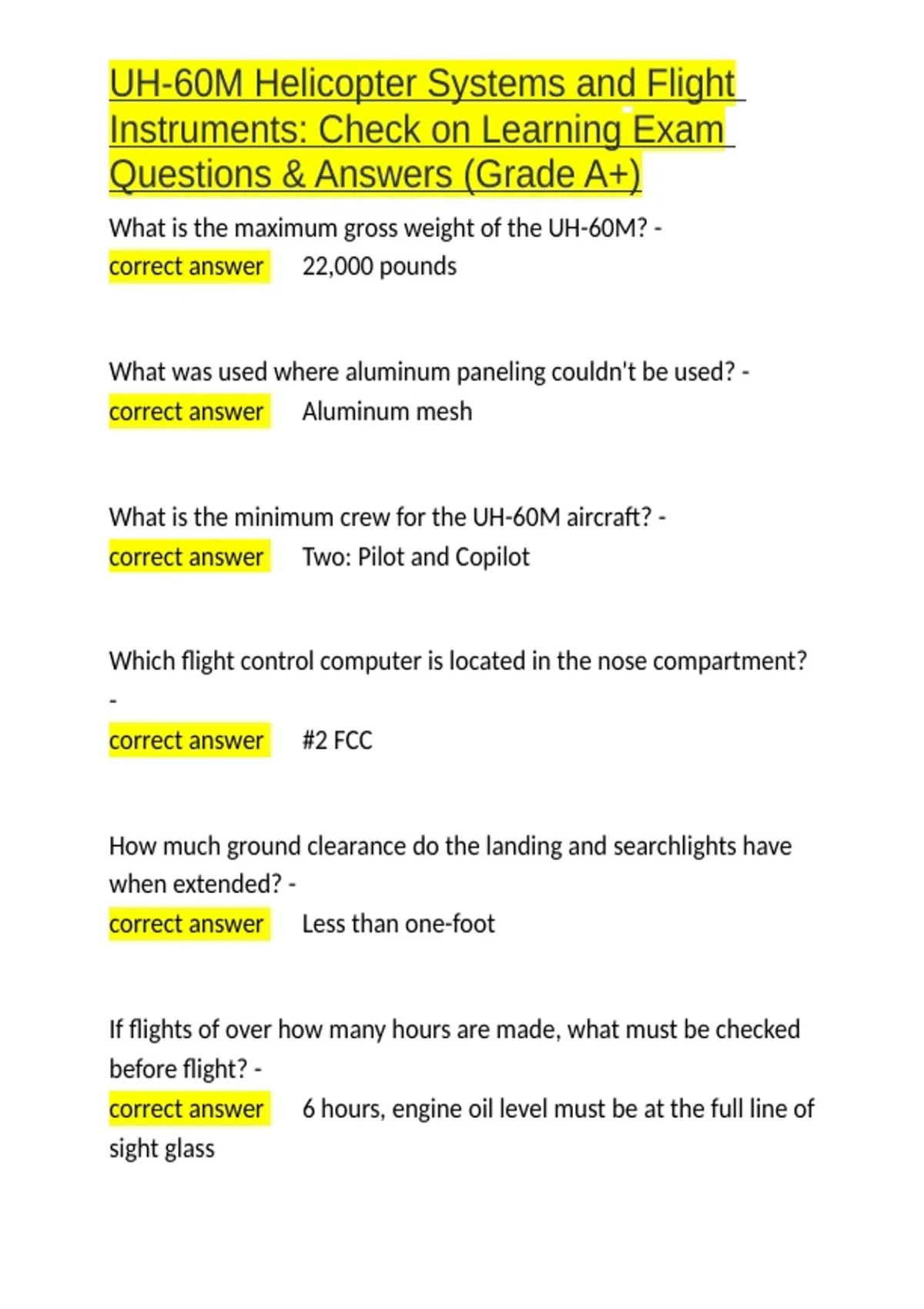

UH-60M Helicopter Systems and Flight
Instruments: Check on Learning Exam
Questions & Answers (Grade A+)
What is the maximum gross weight of the UH-60M? -
correct answer ✅22,000 pounds
What was used where aluminum paneling couldn't be used? -
correct answer ✅Aluminum mesh
What is the minimum crew for the UH-60M aircraft? -
correct answer ✅Two: Pilot and Copilot
Which flight control computer is located in the nose compartment?
-
correct answer ✅#2 FCC
How much ground clearance do the landing and searchlights have
when extended? -
correct answer ✅Less than one-foot
If flights of over how many hours are made, what must be checked
before flight? -
correct answer ✅6 hours, engine oil level must be at the full line of
sight glass
,UH-60M Helicopter Systems and Flight
Instruments: Check on Learning Exam
Questions & Answers (Grade A+)
The landing gear is designed to absorb a landing rate of up to how
many feet per second? -
correct answer ✅39 feet per second
What provides pneumatic power for main engine start, cabin
heating, and electrical power? -
correct answer ✅APU
What is the built-in forward tilt of the main transmission? -
correct answer ✅3 degrees
What is the cargo hook used to carry external loads up to? -
correct answer ✅9,000 lbs
What should the accumulator pressure gauge read for APU
starting? -
correct answer ✅2800 PSI
, UH-60M Helicopter Systems and Flight
Instruments: Check on Learning Exam
Questions & Answers (Grade A+)
What changes the direction, transmits torque, and reduces shaft
speed from the main gear box to the tail rotor gear box? -
correct answer ✅The intermediate gear box
How many degrees can the tail wheel swivel on a yoke assembly
when unlocked? -
correct answer ✅360 degrees
What is the camber of the bottom trailing edge of the tail pylon? -
correct answer ✅7 degrees
What does the helicopter's variable angle of incidence stabilator
enhance? -
correct answer ✅Handling qualities
Where is the #1 flight control computer located? -
correct answer ✅Aft avionics compartment
Why should you not store any items below the pilot seats? -
correct answer ✅Any obstruction will increase the probability and
severity of injury
Instruments: Check on Learning Exam
Questions & Answers (Grade A+)
What is the maximum gross weight of the UH-60M? -
correct answer ✅22,000 pounds
What was used where aluminum paneling couldn't be used? -
correct answer ✅Aluminum mesh
What is the minimum crew for the UH-60M aircraft? -
correct answer ✅Two: Pilot and Copilot
Which flight control computer is located in the nose compartment?
-
correct answer ✅#2 FCC
How much ground clearance do the landing and searchlights have
when extended? -
correct answer ✅Less than one-foot
If flights of over how many hours are made, what must be checked
before flight? -
correct answer ✅6 hours, engine oil level must be at the full line of
sight glass
,UH-60M Helicopter Systems and Flight
Instruments: Check on Learning Exam
Questions & Answers (Grade A+)
The landing gear is designed to absorb a landing rate of up to how
many feet per second? -
correct answer ✅39 feet per second
What provides pneumatic power for main engine start, cabin
heating, and electrical power? -
correct answer ✅APU
What is the built-in forward tilt of the main transmission? -
correct answer ✅3 degrees
What is the cargo hook used to carry external loads up to? -
correct answer ✅9,000 lbs
What should the accumulator pressure gauge read for APU
starting? -
correct answer ✅2800 PSI
, UH-60M Helicopter Systems and Flight
Instruments: Check on Learning Exam
Questions & Answers (Grade A+)
What changes the direction, transmits torque, and reduces shaft
speed from the main gear box to the tail rotor gear box? -
correct answer ✅The intermediate gear box
How many degrees can the tail wheel swivel on a yoke assembly
when unlocked? -
correct answer ✅360 degrees
What is the camber of the bottom trailing edge of the tail pylon? -
correct answer ✅7 degrees
What does the helicopter's variable angle of incidence stabilator
enhance? -
correct answer ✅Handling qualities
Where is the #1 flight control computer located? -
correct answer ✅Aft avionics compartment
Why should you not store any items below the pilot seats? -
correct answer ✅Any obstruction will increase the probability and
severity of injury
