EKG rhythms,, ,
EKG rhythms
Study online at https://quizlet.com/_jle3lf

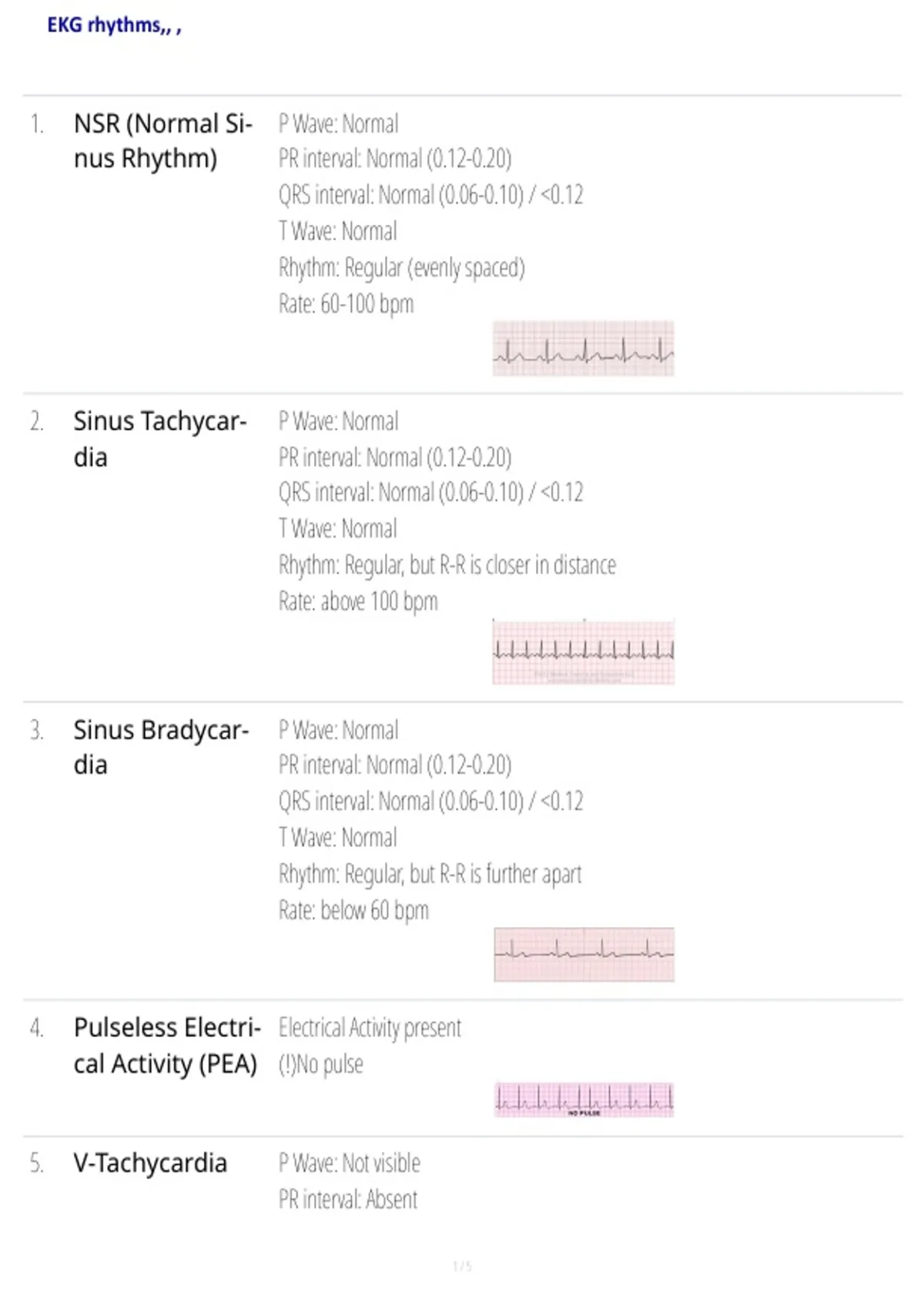

1. NSR (Normal Si- P Wave: Normal
nus Rhythm) PR interval: Normal (0.12-0.20)
QRS interval: Normal (0.06-0.10) / <0.12
T Wave: Normal
Rhythm: Regular (evenly spaced)
Rate: 60-100 bpm
2. Sinus Tachycar- P Wave: Normal
dia PR interval: Normal (0.12-0.20)
QRS interval: Normal (0.06-0.10) / <0.12
T Wave: Normal
Rhythm: Regular, but R-R is closer in distance
Rate: above 100 bpm
3. Sinus Bradycar- P Wave: Normal
dia PR interval: Normal (0.12-0.20)
QRS interval: Normal (0.06-0.10) / <0.12
T Wave: Normal
Rhythm: Regular, but R-R is further apart
Rate: below 60 bpm
4. Pulseless Electri- Electrical Activity present
cal Activity (PEA) (!)No pulse
5. V-Tachycardia P Wave: Not visible
PR interval: Absent
1/5
, EKG rhythms,, ,
EKG rhythms
Study online at https://quizlet.com/_jle3lf
QRS interval: Wide >0.12, tall
T Wave: Not visible
Rate: >100 bpm
(looks like mountains)
6. V-Fibrillation Fibrillatory waves
7. Torsades de QRS interval: Wide >0.12 & Twisting
pointes (looks like a spiral)
Rate: 120-200 bpm
8. A-Fibrillation P Wave: Replaced by fibrillatory lines (squiggles)
PR interval: Absent
QRS interval: Normal (0.06-0.10) / <0.12
T Wave: Absent
Rhythm: Irregular (R-R is variable)
9. A-Flutter P Wave: Absent; Sawtooth waves instead
PR interval: Absent
QRS interval: Normal (0.06-0.10) / <0.12
T Wave: Absent
Rhythm: Regular/Irregular
Rate: 250-350 bpm
2/5
