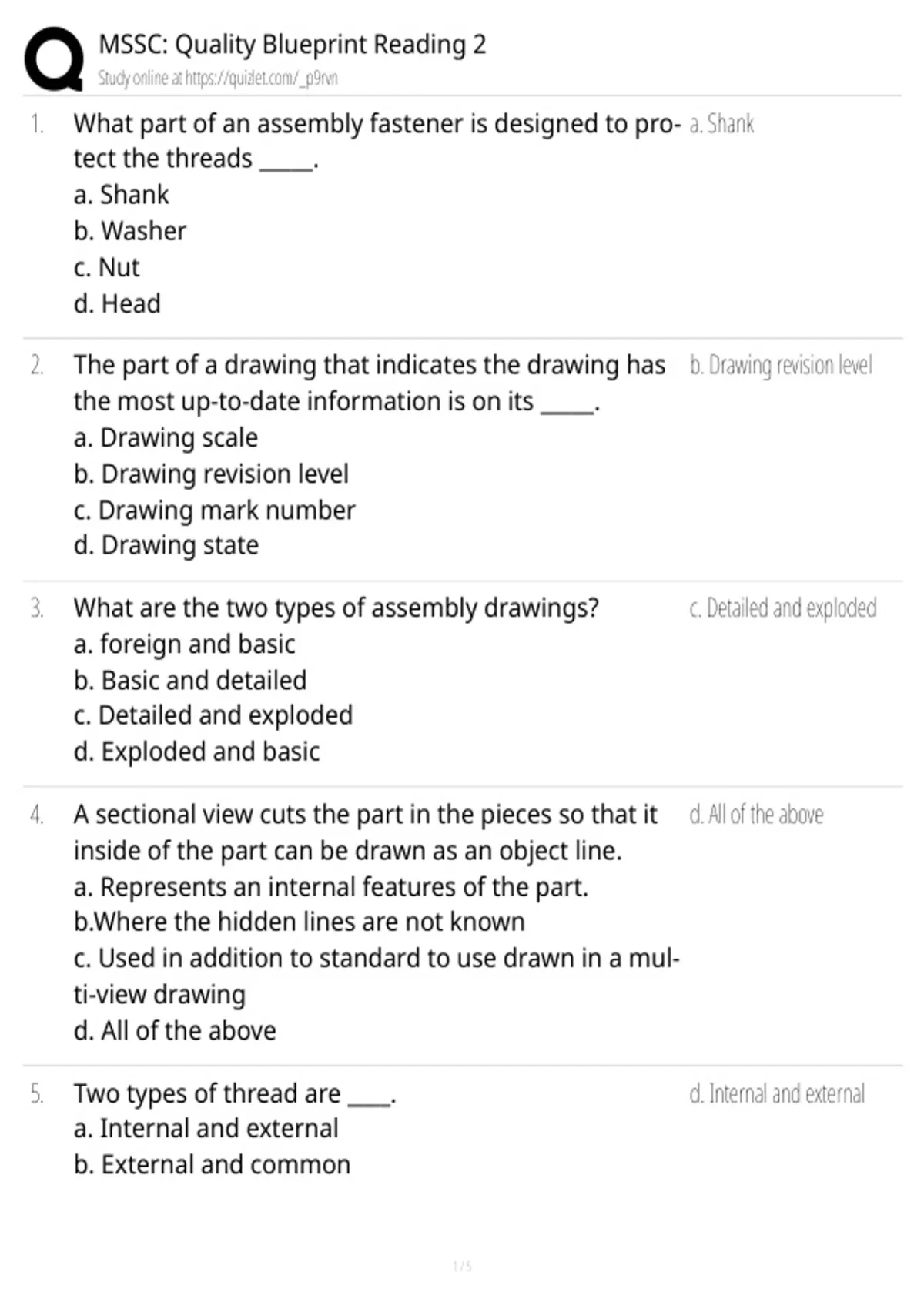

MSSC: Quality Blueprint Reading 2
Study online at https://quizlet.com/_p9rvn
1. What part of an assembly fastener is designed to pro- a. Shank
tect the threads _____.
a. Shank
b. Washer
c. Nut
d. Head
2. The part of a drawing that indicates the drawing has b. Drawing revision level
the most up-to-date information is on its _____.
a. Drawing scale
b. Drawing revision level
c. Drawing mark number
d. Drawing state
3. What are the two types of assembly drawings? c. Detailed and exploded
a. foreign and basic
b. Basic and detailed
c. Detailed and exploded
d. Exploded and basic
4. A sectional view cuts the part in the pieces so that it d. All of the above
inside of the part can be drawn as an object line.
a. Represents an internal features of the part.
b.Where the hidden lines are not known
c. Used in addition to standard to use drawn in a mul-
ti-view drawing
d. All of the above
5. Two types of thread are ____. d. Internal and external
a. Internal and external
b. External and common
1/5
, MSSC: Quality Blueprint Reading 2
Study online at https://quizlet.com/_p9rvn
c. Common and special
d. Internal and external
6. Metals treated by ____ processes to become soft. a. Annealing
a. Annealing
b. Quenching
c. Stamping
d. Twisting
7. Section lines on a blueprint indicate ______. c. A surface that has been
a. Edge featured cut
b. Main view
c. A surface that has been cut
d. Dimension points
8. If a feature on a drawing is drawn 3 inches and the c.12 inches
scale is 1:4, what is the actual dimension of the object?
a. 3 inches
b. 3/4 inches
c.12 inches
d. 6 inches
9. What type of hole is shown in the picture? a. Counter- b. Counterbore
sink
b. Counterbore
c. Threaded
d. Chamfer
10. A screw with national fine thread is represented on a d. 1/2 in 20 NF-2
drawing with what designation?
a. 1/2 in-20 NATF-2
b. 1/2 in 20 N Fine-2
2/5
