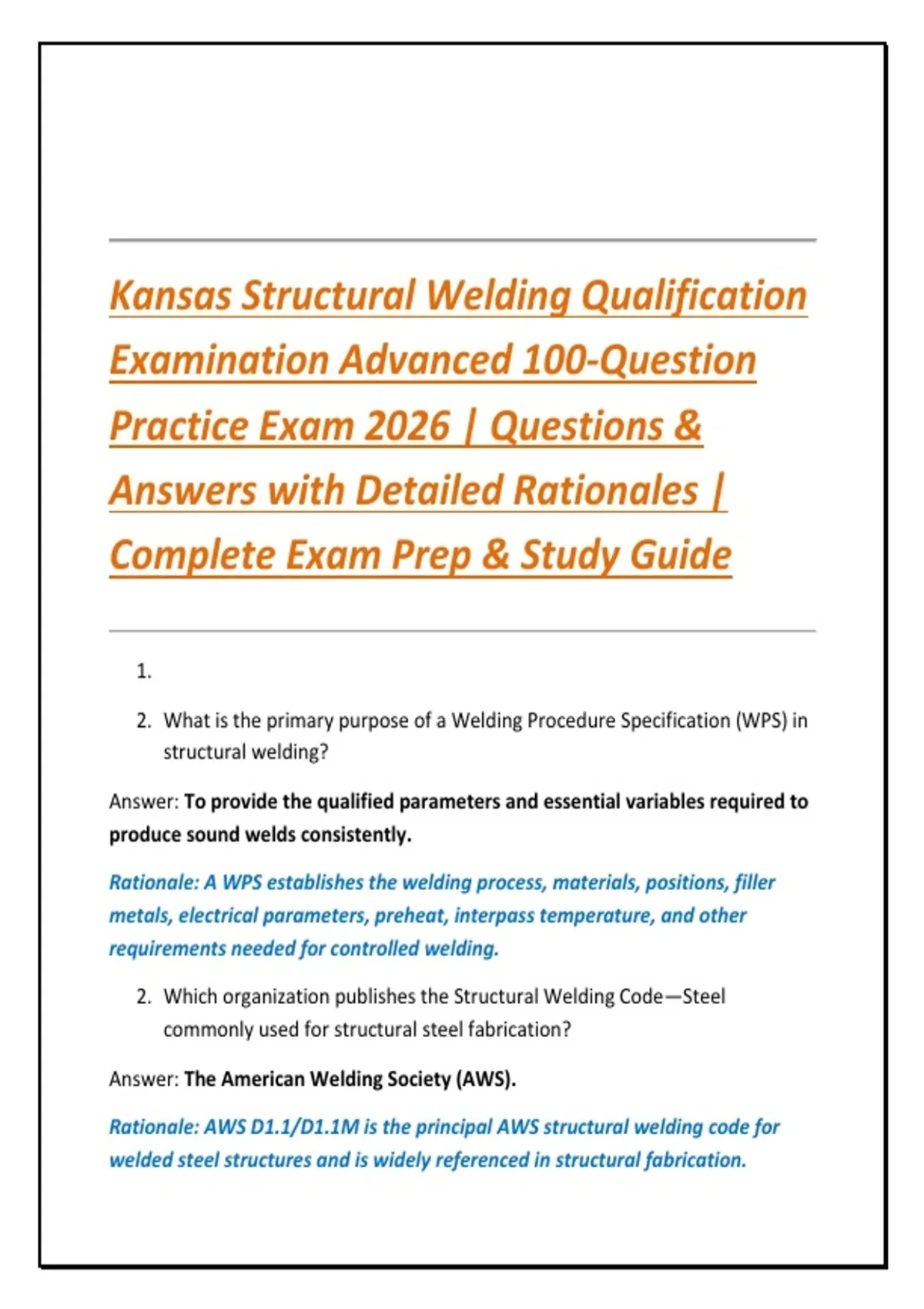

Kansas Structural Welding Qualification
Examination Advanced 100-Question
Practice Exam 2026 | Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1.
2. What is the primary purpose of a Welding Procedure Specification (WPS) in
structural welding?
Answer: To provide the qualified parameters and essential variables required to
produce sound welds consistently.
Rationale: A WPS establishes the welding process, materials, positions, filler
metals, electrical parameters, preheat, interpass temperature, and other
requirements needed for controlled welding.
2. Which organization publishes the Structural Welding Code—Steel
commonly used for structural steel fabrication?
Answer: The American Welding Society (AWS).
Rationale: AWS D1.1/D1.1M is the principal AWS structural welding code for
welded steel structures and is widely referenced in structural fabrication.
, 3. What is the purpose of a Procedure Qualification Record (PQR)?
Answer: To document the actual variables and test results used to qualify a
welding procedure.
Rationale: The PQR records the conditions used to make qualification test welds
and the mechanical or nondestructive examination results demonstrating that
the procedure meets applicable requirements.
4. A welder performs a groove weld test in a position that qualifies multiple
production positions. What determines the extent of positional
qualification?
Answer: The applicable qualification rules governing the test position, joint type,
and welding process.
Rationale: Welder qualification is not automatically unlimited. Position, process,
base-metal thickness, weld type, and other applicable variables determine the
qualified range.
5. What is the principal purpose of preheating structural steel before welding?
Answer: To reduce the cooling rate and help prevent hydrogen-induced
cracking.
Rationale: Preheat reduces thermal gradients and slows cooling, helping
hydrogen diffuse from the weld area and reducing the likelihood of cracking in
susceptible steels.
6. Which condition is most likely to increase the risk of hydrogen cracking?
Answer: High restraint combined with hydrogen, susceptible steel, and rapid
cooling.
Rationale: Hydrogen cracking generally requires a combination of diffusible
hydrogen, susceptible microstructure, and tensile stress or restraint.
, 7. Why must the minimum preheat temperature be maintained during
welding?
Answer: To control cooling conditions throughout the welded joint.
Rationale: Allowing the steel to fall below the specified preheat can increase
cooling rates and invalidate the intended welding procedure.
8. What is interpass temperature?
Answer: The temperature of the weld area immediately before depositing the
next weld pass.
Rationale: Interpass temperature affects cooling rate, microstructure, distortion,
and mechanical properties, so it may be controlled by the WPS.
9. What is the primary purpose of removing slag between weld passes?
Answer: To prevent slag inclusions and ensure proper fusion with the following
pass.
Rationale: Entrapped slag can become an internal discontinuity and may
substantially reduce weld quality and effective cross-sectional area.
10.Which discontinuity occurs when molten weld metal fails to fuse
completely with the base metal or previous weld metal?
Answer: Lack of fusion.
Rationale: Lack of fusion is a bonding failure between weld metal and the
adjoining material or between weld passes.
11.What is the difference between a weld discontinuity and a weld defect?
Answer: A discontinuity becomes a defect when it exceeds the acceptance
criteria of the applicable specification or code.
Rationale: Not every discontinuity is rejectable. Acceptance depends on its type,
size, location, and the requirements governing the weld.
