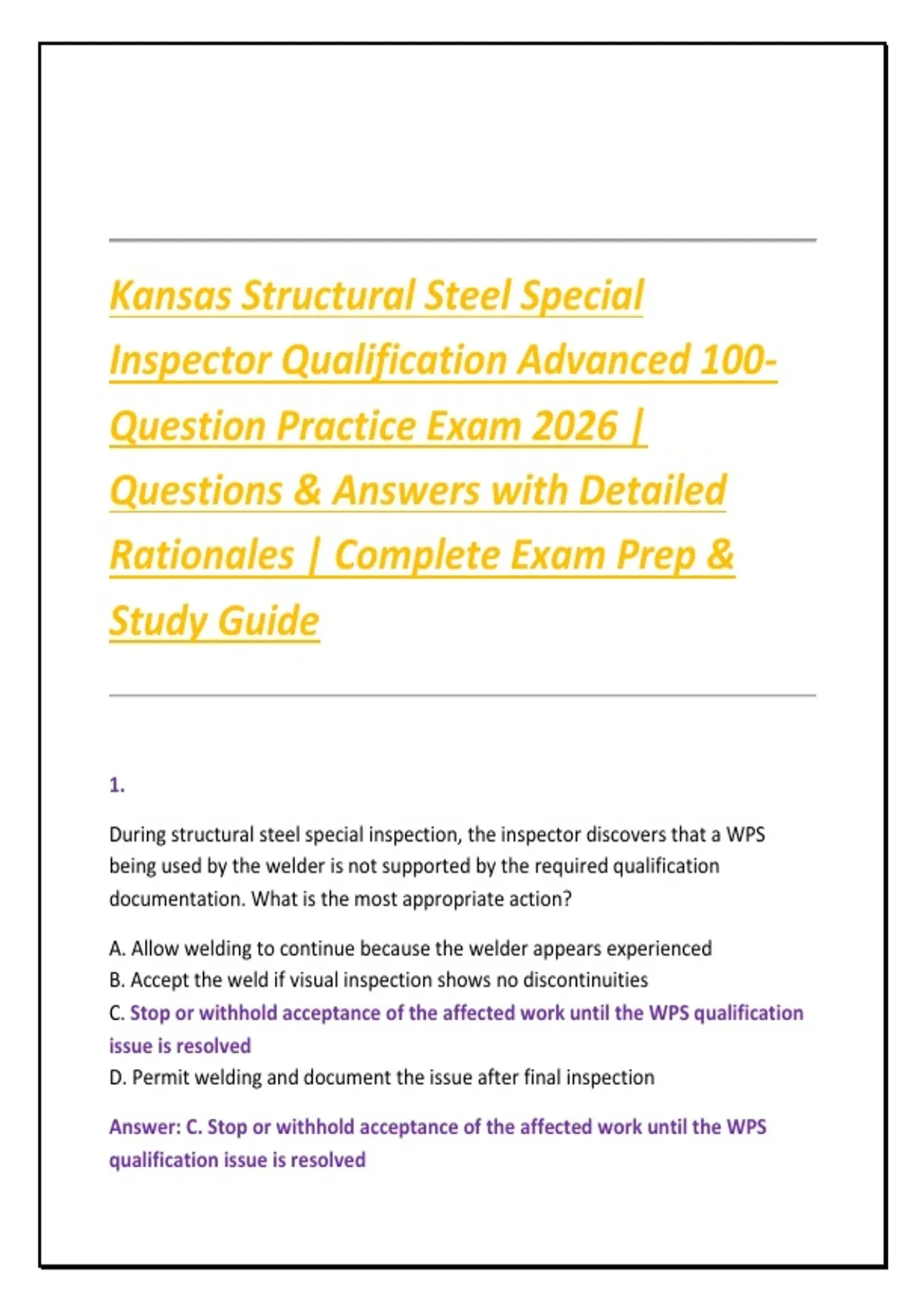

Kansas Structural Steel Special
Inspector Qualification Advanced 100-
Question Practice Exam 2026 |
Questions & Answers with Detailed
Rationales | Complete Exam Prep &
Study Guide
1.
During structural steel special inspection, the inspector discovers that a WPS
being used by the welder is not supported by the required qualification
documentation. What is the most appropriate action?
A. Allow welding to continue because the welder appears experienced
B. Accept the weld if visual inspection shows no discontinuities
C. Stop or withhold acceptance of the affected work until the WPS qualification
issue is resolved
D. Permit welding and document the issue after final inspection
Answer: C. Stop or withhold acceptance of the affected work until the WPS
qualification issue is resolved
,Rationale: A welding procedure must be properly qualified or otherwise
permitted by the governing specification. Visual appearance alone does not
establish procedure compliance.
2.
What is the primary purpose of a Welding Procedure Specification (WPS)?
A. To identify the inspector assigned to the project
B. To establish the structural engineer's design loads
C. To define the controlled variables and requirements for producing an
acceptable weld
D. To document the final weld inspection results
Answer: C. To define the controlled variables and requirements for producing an
acceptable weld
Rationale: The WPS establishes welding variables such as process, base metal,
filler metal, preheat, interpass temperature, electrical characteristics, position,
and technique as applicable.
3.
A Procedure Qualification Record (PQR) primarily demonstrates what?
A. That a particular welder is certified
B. That the inspector approved the welding procedure
C. That a welding procedure was qualified by testing or another permitted
qualification method
D. That the completed weld passed visual inspection
Answer: C. That a welding procedure was qualified by testing or another
permitted qualification method
,Rationale: The PQR records actual variables and test results used to establish
the qualification of a welding procedure.
4.
Which document primarily establishes that an individual welder is qualified to
perform a particular welding operation?
A. Material Test Report
B. PQR
C. Inspection Test Plan
D. Welder Performance Qualification record
Answer: D. Welder Performance Qualification record
Rationale: Welder qualification demonstrates that the individual can produce
welds meeting the applicable qualification requirements within the qualified
range.
5.
A steel member is marked ASTM A992. What does this designation primarily
identify?
A. The welding process required
B. The bolt installation method
C. A structural steel material specification with specified mechanical and
chemical requirements
D. The member's required fire-resistance rating
Answer: C. A structural steel material specification with specified mechanical
and chemical requirements
, Rationale: ASTM material specifications establish requirements for steel
products, including applicable strength, chemistry, dimensional, and testing
provisions.
6.
Why should an inspector compare material markings with mill test reports and
approved documents?
A. To determine the paint color
B. To calculate the building's dead load
C. To verify that the supplied material corresponds to the specified grade and
product requirements
D. To determine whether the welder needs certification
Answer: C. To verify that the supplied material corresponds to the specified
grade and product requirements
Rationale: Traceability is essential for confirming that the material incorporated
into the structure is the material required by the contract documents.
7.
A structural member arrives without adequate identification or traceability
documentation. What should the inspector do first?
A. Assume it is the correct material based on appearance
B. Accept it if the dimensions are correct
C. Place the material on hold and require identification or documentation
sufficient to establish compliance
D. Have the erector paint the specified grade on the member
Answer: C. Place the material on hold and require identification or
documentation sufficient to establish compliance
