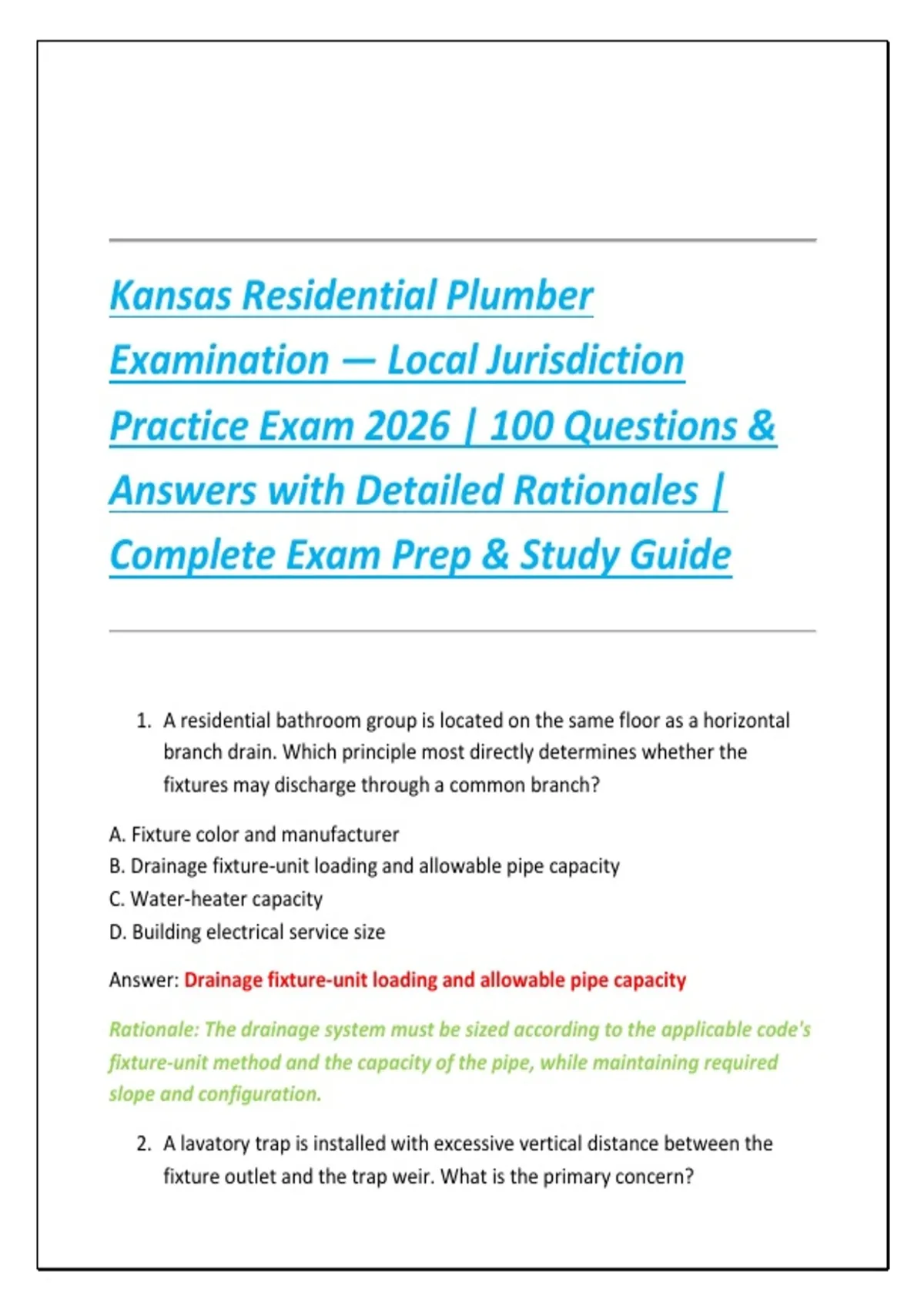

Kansas Residential Plumber
Examination — Local Jurisdiction
Practice Exam 2026 | 100 Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. A residential bathroom group is located on the same floor as a horizontal
branch drain. Which principle most directly determines whether the
fixtures may discharge through a common branch?
A. Fixture color and manufacturer
B. Drainage fixture-unit loading and allowable pipe capacity
C. Water-heater capacity
D. Building electrical service size
Answer: Drainage fixture-unit loading and allowable pipe capacity
Rationale: The drainage system must be sized according to the applicable code's
fixture-unit method and the capacity of the pipe, while maintaining required
slope and configuration.
2. A lavatory trap is installed with excessive vertical distance between the
fixture outlet and the trap weir. What is the primary concern?
,A. Increased water pressure
B. Loss of trap seal reliability
C. Excessive hot-water temperature
D. Reduced water-meter accuracy
Answer: Loss of trap seal reliability
Rationale: Improper trap configuration can promote siphonage, self-siphonage,
or other conditions that compromise the trap seal and allow sewer gases into
the building.
3. A residential kitchen sink is connected to a dishwasher through an
approved air-gap arrangement. What is the primary purpose of the air gap?
A. Increase dishwasher pressure
B. Prevent contamination from the drainage system from reaching the dishwasher
C. Increase drain velocity
D. Eliminate the need for a trap
Answer: Prevent contamination from the drainage system from reaching the
dishwasher
Rationale: An air gap provides physical separation that prevents wastewater
from being siphoned or forced back into the potable-side appliance connection.
4. A horizontal drainage pipe serving several fixtures has insufficient slope.
What is the most likely result?
A. Increased water pressure
B. Poor drainage and increased potential for solids deposition
C. Higher fixture flow rates
D. Improved venting
Answer: Poor drainage and increased potential for solids deposition
Rationale: Horizontal drainage piping must maintain the required grade so
wastewater can flow effectively and carry solids through the piping system.
, 5. Why is a vent system required in a residential drainage system?
A. To increase water-heater recovery
B. To protect trap seals and allow proper drainage-system air movement
C. To increase incoming water pressure
D. To replace the building sewer
Answer: To protect trap seals and allow proper drainage-system air movement
Rationale: Proper venting balances pressure within the drainage system and
helps prevent trap seal loss caused by siphonage, backpressure, or pressure
fluctuations.
6. A plumbing inspector discovers that a fixture trap has been replaced with a
section of flexible hose containing a low point that functions as a trap.
What is the principal concern?
A. Excessive water velocity
B. Unapproved trap configuration and potential sanitation problems
C. Excessive water pressure
D. Oversized water service
Answer: Unapproved trap configuration and potential sanitation problems
Rationale: Plumbing traps must be approved and installed in an appropriate
configuration. Improvised flexible tubing can create unreliable seals and
difficult-to-clean drainage conditions.
7. A residential building has a water pressure significantly above the pressure
permitted by the adopted plumbing requirements. What device is
commonly used to control excessive pressure?
A. Vacuum breaker
B. Pressure-reducing valve
C. Check valve only
D. Trap primer
Answer: Pressure-reducing valve
, Rationale: A pressure-reducing valve regulates excessive incoming water
pressure and helps protect fixtures, piping, and appliances from excessive
operating pressure.
8. What is the primary function of a water hammer arrestor?
A. Remove sediment from potable water
B. Absorb pressure surges caused by rapidly closing valves
C. Reduce sewer-gas pressure
D. Increase water temperature
Answer: Absorb pressure surges caused by rapidly closing valves
Rationale: Rapid valve closure can produce a hydraulic shock known as water
hammer. An approved arrestor provides a means of absorbing that pressure
surge.
9. A residential water distribution system is being designed with long runs to
remote fixtures. Which factor is especially important when determining
pipe sizing?
A. Paint color of the piping
B. Available pressure, developed length, flow demand, and pressure loss
C. Fixture brand only
D. Roof pitch
Answer: Available pressure, developed length, flow demand, and pressure loss
Rationale: Water-supply sizing must account for available pressure and pressure
losses through piping, fittings, elevation changes, and required fixture flow.
10.Why should a shutoff valve generally be provided at an individual plumbing
fixture?
A. To increase drainage velocity
B. To permit the fixture to be isolated for service without shutting down the
entire building
