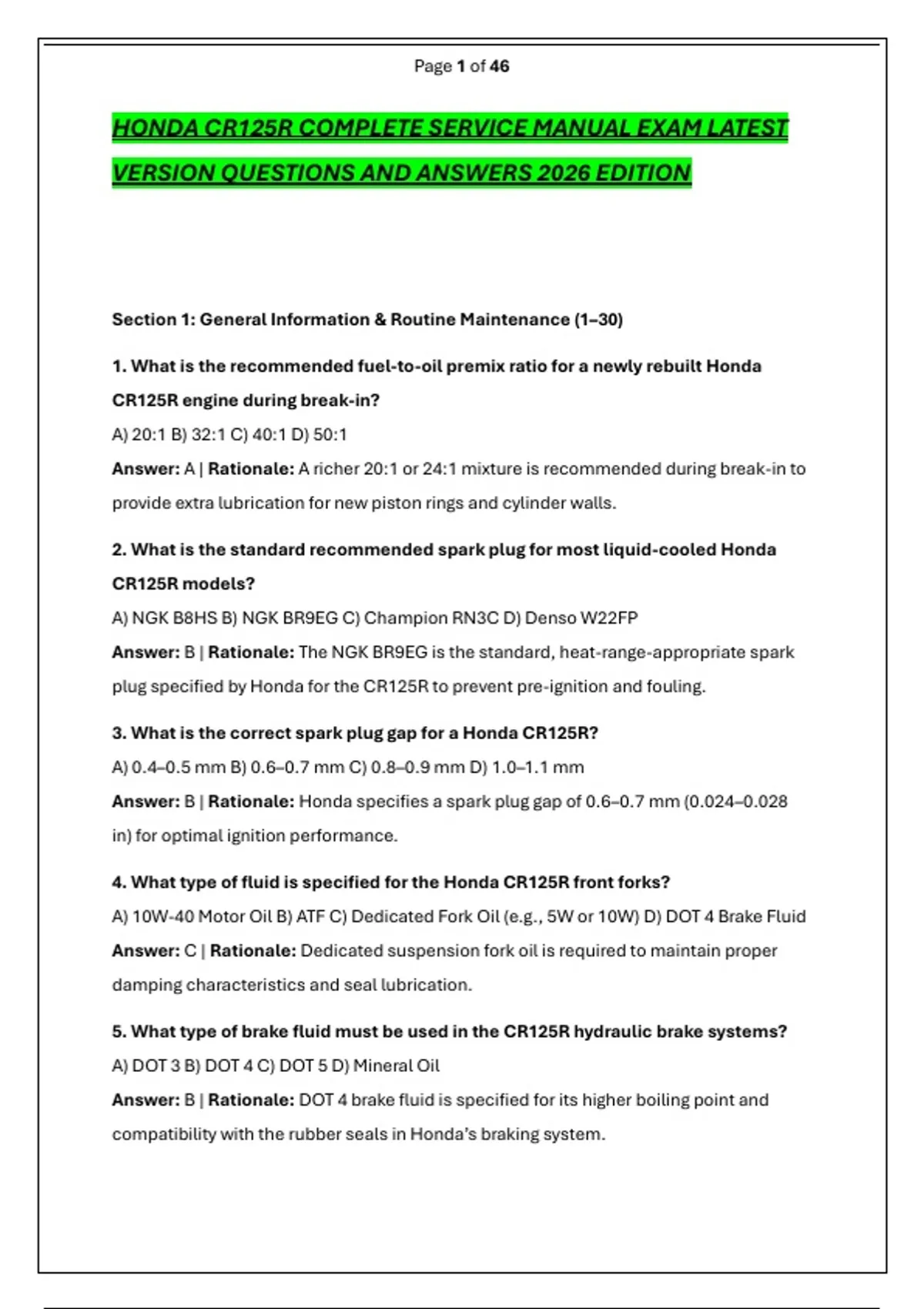

Page 1 of 46
HONDA CR125R COMPLETE SERVICE MANUAL EXAM LATEST
VERSION QUESTIONS AND ANSWERS 2026 EDITION
Section 1: General Information & Routine Maintenance (1–30)
1. What is the recommended fuel-to-oil premix ratio for a newly rebuilt Honda
CR125R engine during break-in?
A) 20:1 B) 32:1 C) 40:1 D) 50:1
Answer: A | Rationale: A richer 20:1 or 24:1 mixture is recommended during break-in to
provide extra lubrication for new piston rings and cylinder walls.
2. What is the standard recommended spark plug for most liquid-cooled Honda
CR125R models?
A) NGK B8HS B) NGK BR9EG C) Champion RN3C D) Denso W22FP
Answer: B | Rationale: The NGK BR9EG is the standard, heat-range-appropriate spark
plug specified by Honda for the CR125R to prevent pre-ignition and fouling.
3. What is the correct spark plug gap for a Honda CR125R?
A) 0.4–0.5 mm B) 0.6–0.7 mm C) 0.8–0.9 mm D) 1.0–1.1 mm
Answer: B | Rationale: Honda specifies a spark plug gap of 0.6–0.7 mm (0.024–0.028
in) for optimal ignition performance.
4. What type of fluid is specified for the Honda CR125R front forks?
A) 10W-40 Motor Oil B) ATF C) Dedicated Fork Oil (e.g., 5W or 10W) D) DOT 4 Brake Fluid
Answer: C | Rationale: Dedicated suspension fork oil is required to maintain proper
damping characteristics and seal lubrication.
5. What type of brake fluid must be used in the CR125R hydraulic brake systems?
A) DOT 3 B) DOT 4 C) DOT 5 D) Mineral Oil
Answer: B | Rationale: DOT 4 brake fluid is specified for its higher boiling point and
compatibility with the rubber seals in Honda’s braking system.
, Page 2 of 46
6. What is the recommended drive chain slack for the Honda CR125R?
A) 5–10 mm B) 15–25 mm C) 35–45 mm D) 50–60 mm
Answer: B | Rationale: Honda specifies 15–25 mm (0.6–1.0 in) of vertical chain slack
measured at the midpoint between the sprockets.
7. How often should the air filter be cleaned under normal racing conditions?
A) Every 10 hours B) After every ride C) Every 50 hours D) Once a season
Answer: B | Rationale: Motocross conditions are highly dusty; cleaning and re-oiling
the air filter after every ride is mandatory to prevent engine damage.
8. What type of lubricant is used for the air filter on a CR125R?
A) Motor oil B) Dedicated foam air filter oil C) Grease D) WD-40
Answer: B | Rationale: Dedicated tacky air filter oil traps fine dust particles without
degrading the foam, unlike motor oil which can drip into the carburetor.
9. What coolant mixture is recommended for the CR125R radiator?
A) 100% Distilled Water B) 50/50 Ethylene Glycol and Distilled Water C) 100% Antifreeze
D) Tap Water
Answer: B | Rationale: A 50/50 mix provides optimal freeze protection, boil-over
prevention, and corrosion inhibition for the aluminum radiator.
10. What is the primary purpose of the reed valve in a 2-stroke CR125R engine?
A) To exhaust gases B) To act as a one-way check valve for the fuel/air mixture into the
crankcase C) To cool the piston D) To lubricate the crankshaft
Answer: B | Rationale: The reed valve opens under crankcase vacuum to let the mixture
in and snaps shut under compression to prevent it from escaping back out the
carburetor.
11. What symptom indicates worn reed valve petals?
A) Excessive top-end power B) Poor low-end throttle response and rough idle C)
Overheating D) Hard starting only when hot
Answer: B | Rationale: Worn or chipped reed petals fail to seal properly, causing the
fuel/air mixture to leak back out, ruining low-end suction and throttle response.
, Page 3 of 46
12. What tool is required to properly remove the cylinder head nuts on a CR125R?
A) Standard open-end wrench B) Impact gun C) Torque wrench D) Pliers
Answer: C | Rationale: A torque wrench is mandatory to ensure cylinder head nuts are
tightened to the exact sequential specification to prevent warping the head or base
gasket leaks.
13. In what sequence should cylinder head nuts be tightened?
A) Randomly B) Clockwise C) In a crisscross pattern, in multiple progressive stages D)
All at once
Answer: C | Rationale: A crisscross pattern in progressive stages ensures even
clamping force, preventing head warpage and ensuring a proper seal.
14. What is the recommended method for cleaning a carbon-fouled spark plug on a
CR125R?
A) Sandblasting B) Wire brushing and chemical cleaner C) Filing the electrode D)
Soaking in gasoline
Answer: B | Rationale: Gentle wire brushing and approved spark plug cleaner remove
carbon without damaging the delicate electrode or altering the gap.
15. What does a "blistered" or white insulator on a spark plug indicate?
A) Rich fuel mixture B) Lean fuel mixture or overheating C) Oil fouling D) Normal
operation
Answer: B | Rationale: A white or blistered plug indicates the engine is running too lean
or overheating, which can lead to piston seizure.
16. What does a black, sooty, and wet spark plug indicate?
A) Lean mixture B) Rich fuel mixture or oil fouling C) Overheating D) Correct jetting
Answer: B | Rationale: Black, wet deposits mean unburned fuel or excess oil is not
combusting properly, indicating a rich condition or worn piston rings.
17. What is the correct procedure for installing a new base gasket?
A) Apply silicone sealant B) Install dry and clean C) Apply grease D) Soak in oil
Answer: B | Rationale: Base gaskets should be installed perfectly dry and clean on both
mating surfaces to ensure a proper crush seal without extrusion.
, Page 4 of 46
18. Why must the piston ring gap be checked before installation?
A) To ensure it is colorful B) To verify it meets minimum clearance specifications to
prevent seizure when the ring expands from heat C) To check ring thickness D) To
measure ring weight
Answer: B | Rationale: If the ring gap is too small, thermal expansion during operation
will cause the ring ends to butt together, scoring the cylinder or seizing the piston.
19. How should the piston ring gap be positioned during installation?
A) Aligned with the piston pin B) Aligned with the exhaust port C) Aligned with a locating
pin in the ring groove D) Randomly
Answer: C | Rationale: The ring gap must align with the small locating pin in the ring
groove to prevent the ring from rotating and catching on a cylinder port.
20. What is the purpose of the piston pin clips?
A) To lubricate the piston B) To retain the wrist pin and prevent it from sliding out and
scoring the cylinder C) To cool the piston D) To seal the combustion chamber
Answer: B | Rationale: Piston pin clips (circlips) secure the wrist pin axially; if one fails,
the pin can walk out and catastrophically destroy the cylinder and crankcase.
21. When installing piston pin clips, how many should be used per piston?
A) One B) Two C) Three D) None
Answer: B | Rationale: Two clips are required, one on each side of the piston, to ensure
the wrist pin is fully secured.
22. What is the correct orientation for installing the piston?
A) The arrow on the piston crown must point toward the exhaust port B) The arrow must
point toward the intake C) Orientation does not matter D) The arrow points to the left
side
Answer: A | Rationale: The arrow on the piston crown indicates the direction of the
exhaust port to ensure proper ring placement and piston skirt design alignment.
23. What tool is used to compress piston rings for cylinder installation?
A) Pliers B) Dedicated piston ring compressor band C) Hammer D) Screwdriver
Answer: B | Rationale: A ring compressor band evenly compresses the rings without
bending or breaking them, allowing safe sliding into the cylinder.
