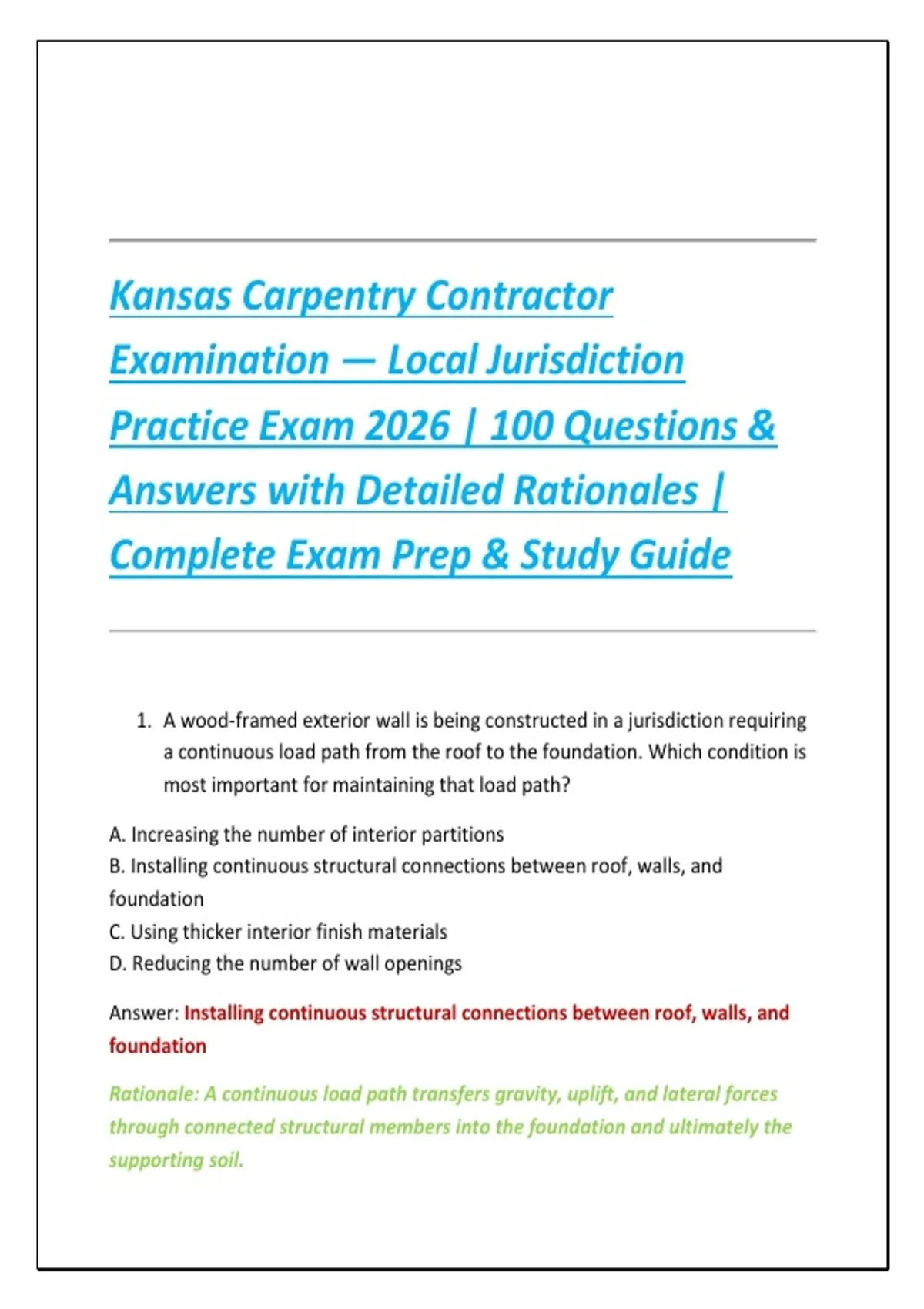

Kansas Carpentry Contractor
Examination — Local Jurisdiction
Practice Exam 2026 | 100 Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. A wood-framed exterior wall is being constructed in a jurisdiction requiring
a continuous load path from the roof to the foundation. Which condition is
most important for maintaining that load path?
A. Increasing the number of interior partitions
B. Installing continuous structural connections between roof, walls, and
foundation
C. Using thicker interior finish materials
D. Reducing the number of wall openings
Answer: Installing continuous structural connections between roof, walls, and
foundation
Rationale: A continuous load path transfers gravity, uplift, and lateral forces
through connected structural members into the foundation and ultimately the
supporting soil.
, 2. A contractor is installing a built-up wood beam supporting floor joists. Why
should the individual plies be adequately fastened together?
A. To improve the appearance of the beam
B. To prevent all dimensional shrinkage
C. To allow the plies to act together structurally
D. To eliminate the need for bearing
Answer: To allow the plies to act together structurally
Rationale: Proper fastening allows the individual members to share loads and
function as a composite built-up beam rather than as independent pieces.
3. When framing a load-bearing wall, which member directly transfers
concentrated roof or beam loads down to the foundation?
A. Nonbearing partition
B. Structural stud or post assembly
C. Interior trim board
D. Baseboard
Answer: Structural stud or post assembly
Rationale: Concentrated loads require adequately sized and connected vertical
structural members to transfer forces through the wall and into the supporting
structure.
4. A floor joist spans farther than permitted for its size and spacing. Which is
the most appropriate correction?
A. Install thinner subflooring
B. Increase the joist span
C. Reduce the joist spacing or increase joist size/depth as designed
D. Remove blocking
Answer: Reduce the joist spacing or increase joist size/depth as designed
,Rationale: Joist capacity depends on span, species, grade, size, spacing, and
loading. Increasing capacity or reducing the effective span addresses the
structural deficiency.
5. What is the primary structural purpose of rim joists in a typical wood-
framed floor system?
A. Provide decorative edge trim
B. Support drywall only
C. Tie the ends of floor joists together and transfer loads at the perimeter
D. Replace foundation anchorage
Answer: Tie the ends of floor joists together and transfer loads at the perimeter
Rationale: Rim joists provide perimeter support, help maintain joist alignment,
and contribute to load transfer and diaphragm behavior when properly
detailed.
6. A contractor notices that engineered wood I-joists have been cut through
the top and bottom flanges without manufacturer approval. What should
be done?
A. Cover the cuts with insulation
B. Add drywall below the joists
C. Follow the manufacturer's approved repair procedure or replace the damaged
member
D. Paint the damaged area
Answer: Follow the manufacturer's approved repair procedure or replace the
damaged member
Rationale: I-joist flanges carry significant bending stresses. Unauthorized cuts
can substantially weaken the member and require an engineered or
manufacturer-approved repair.
7. Why are structural sheathing panels commonly installed with specified
edge and field fastening patterns?
, A. To improve paint adhesion
B. To transfer lateral forces and maintain diaphragm performance
C. To reduce insulation requirements
D. To prevent all moisture movement
Answer: To transfer lateral forces and maintain diaphragm performance
Rationale: Proper sheathing attachment allows walls, floors, and roofs to act as
structural diaphragms or shear elements that resist lateral loads.
8. A wall opening is created in a load-bearing wall for a large window. Which
component normally transfers the load above the opening to the
surrounding framing?
A. Sill plate
B. Header
C. Baseboard
D. Furring strip
Answer: Header
Rationale: The header spans the opening and transfers loads to the supporting
jack or trimmer studs at each side.
9. What is the primary function of jack studs beneath a header?
A. Support the roof sheathing directly
B. Support the header and transfer its reaction to the supporting structure
C. Provide insulation support
D. Prevent drywall cracking
Answer: Support the header and transfer its reaction to the supporting structure
Rationale: Jack studs carry the header reactions downward into the wall
framing and foundation or supporting framing.
10.A carpenter discovers a floor joist with a large notch near its center span.
Why is this condition potentially serious?
