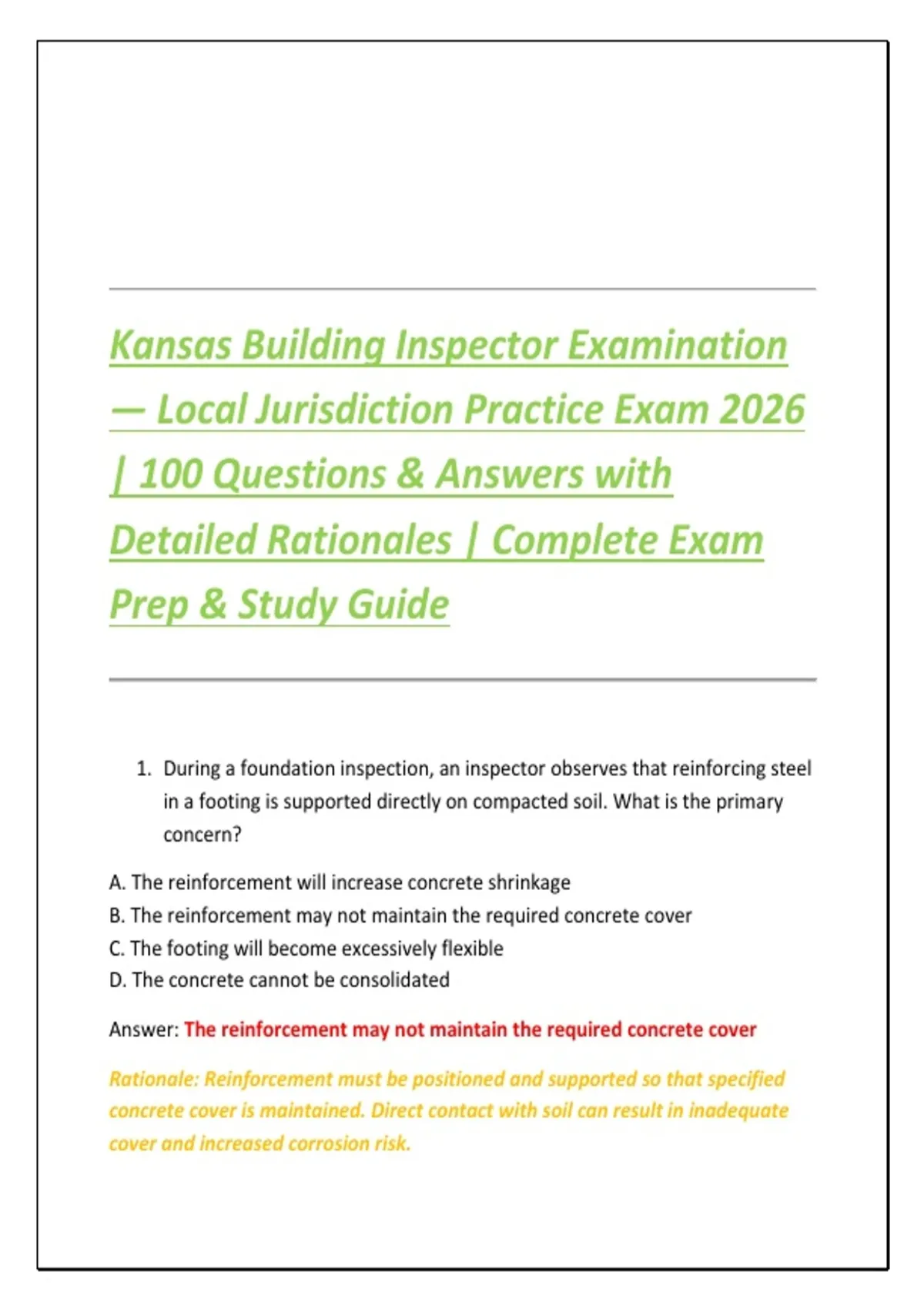

Kansas Building Inspector Examination
— Local Jurisdiction Practice Exam 2026
| 100 Questions & Answers with
Detailed Rationales | Complete Exam
Prep & Study Guide
1. During a foundation inspection, an inspector observes that reinforcing steel
in a footing is supported directly on compacted soil. What is the primary
concern?
A. The reinforcement will increase concrete shrinkage
B. The reinforcement may not maintain the required concrete cover
C. The footing will become excessively flexible
D. The concrete cannot be consolidated
Answer: The reinforcement may not maintain the required concrete cover
Rationale: Reinforcement must be positioned and supported so that specified
concrete cover is maintained. Direct contact with soil can result in inadequate
cover and increased corrosion risk.
, 2. A residential bearing wall is shown on the plans as supporting floor joists.
During inspection, the wall is removed and replaced with a header. What
must the inspector verify before approving the alteration?
A. Only the header's length
B. Only the wall finish
C. The header's structural capacity, bearing, connections, and load path
D. The color of the header
Answer: The header's structural capacity, bearing, connections, and load path
Rationale: Removing a bearing wall changes the structural load path. The
replacement member and its supports must safely transfer all imposed loads to
the foundation.
3. What is the principal purpose of a vapor retarder in an exterior wall
assembly?
A. To provide structural shear resistance
B. To control the movement of water vapor through the assembly
C. To replace flashing
D. To provide fire-resistance automatically
Answer: To control the movement of water vapor through the assembly
Rationale: A vapor retarder limits vapor diffusion. It does not replace weather-
resistive barriers, flashing, drainage planes, or structural components.
4. A concrete slab is placed over poorly compacted fill. Which defect is most
likely to develop?
A. Increased compressive strength
B. Differential settlement and cracking
C. Increased fire resistance
D. Reduced moisture migration
Answer: Differential settlement and cracking
,Rationale: Poorly compacted fill can consolidate after construction, causing
unsupported portions of the slab to settle and crack.
5. What is the primary purpose of a footing below a foundation wall?
A. To reduce roof loads
B. To distribute foundation loads to the supporting soil
C. To prevent all water penetration
D. To provide attic ventilation
Answer: To distribute foundation loads to the supporting soil
Rationale: Footings enlarge the bearing area and distribute structural loads so
that soil bearing pressures remain within acceptable limits.
6. During a framing inspection, a joist has been notched excessively near its
middle span. Why is this especially concerning?
A. Bending stresses are generally significant near the middle of a simply
supported span
B. Joists cannot contain any holes
C. The notch increases insulation
D. The notch improves ventilation
Answer: Bending stresses are generally significant near the middle of a simply
supported span
Rationale: Improper notching can substantially reduce the effective cross section
where bending demand is high. Approved hole and notch limitations must be
followed.
7. Which condition most directly indicates a potential problem with a masonry
veneer drainage system?
A. A properly installed roof ridge vent
B. Missing or blocked weep openings
C. Increased attic insulation
D. A larger interior door
, Answer: Missing or blocked weep openings
Rationale: Weeps provide drainage from the veneer cavity. Blocking them can
trap water behind the veneer and contribute to deterioration.
8. What is the primary function of flashing at a window opening?
A. Increase window thermal conductivity
B. Direct water away from vulnerable wall penetrations
C. Support the roof structure
D. Replace structural headers
Answer: Direct water away from vulnerable wall penetrations
Rationale: Proper flashing creates a drainage path around penetrations and
reduces the likelihood of water entering the wall assembly.
9. An inspector discovers that a structural steel column bears on a concrete
slab-on-grade rather than the designed footing. What should the inspector
do?
A. Approve it if the column appears straight
B. Approve it if the slab has cured
C. Require verification of the intended structural support and load path
D. Ignore it because steel is stronger than concrete
Answer: Require verification of the intended structural support and load path
Rationale: A slab-on-grade is not automatically designed to support
concentrated structural column loads. The foundation must be designed for the
transferred loads.
10.What is the primary purpose of a shear wall in a wood-framed building?
A. Carry only gravity loads
B. Resist lateral forces through a defined load path
C. Provide plumbing ventilation
D. Increase roof insulation
