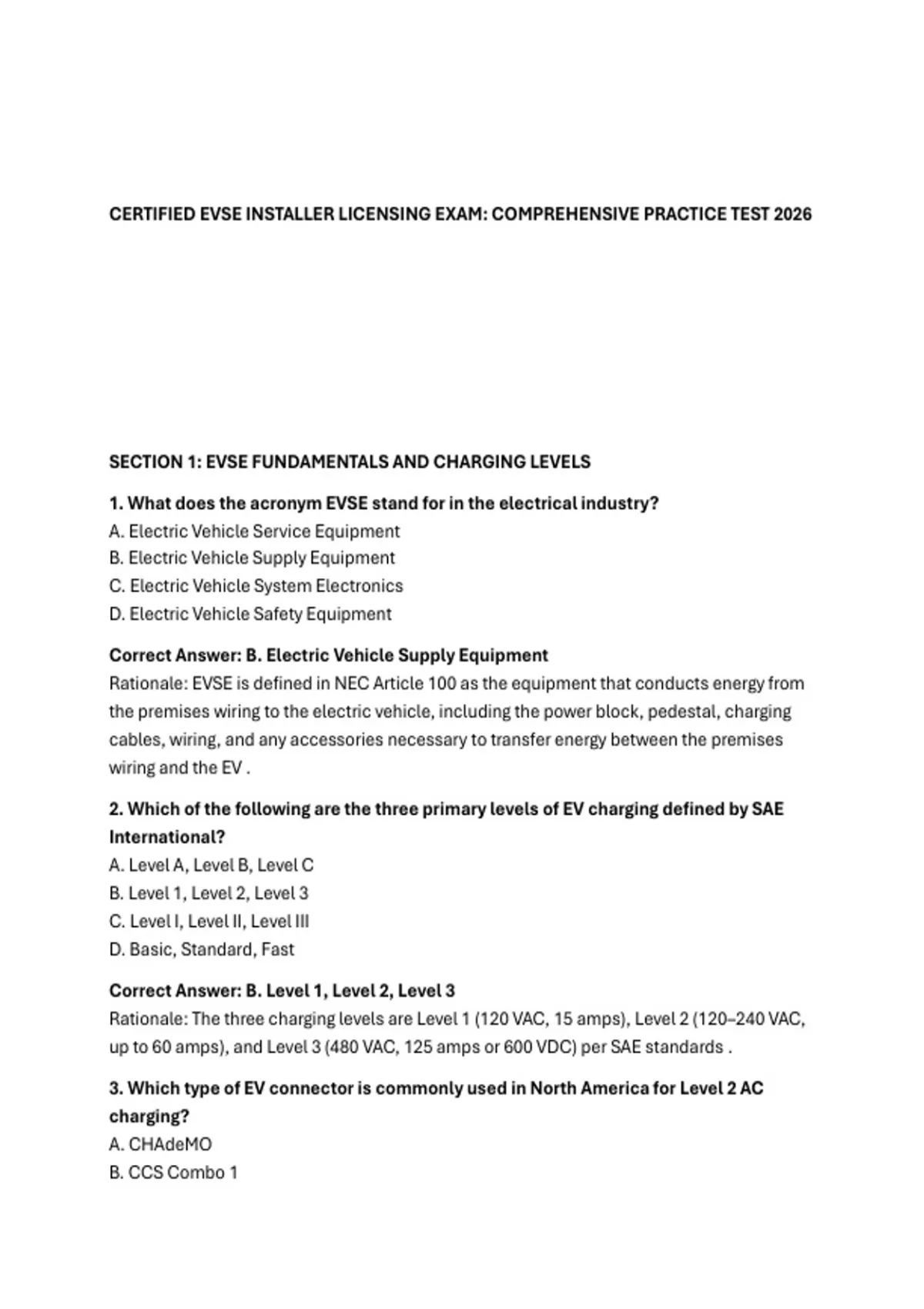

CERTIFIED EVSE INSTALLER LICENSING EXAM: COMPREHENSIVE PRACTICE TEST 2026
SECTION 1: EVSE FUNDAMENTALS AND CHARGING LEVELS
1. What does the acronym EVSE stand for in the electrical industry?
A. Electric Vehicle Service Equipment
B. Electric Vehicle Supply Equipment
C. Electric Vehicle System Electronics
D. Electric Vehicle Safety Equipment
Correct Answer: B. Electric Vehicle Supply Equipment
Rationale: EVSE is defined in NEC Article 100 as the equipment that conducts energy from
the premises wiring to the electric vehicle, including the power block, pedestal, charging
cables, wiring, and any accessories necessary to transfer energy between the premises
wiring and the EV .
2. Which of the following are the three primary levels of EV charging defined by SAE
International?
A. Level A, Level B, Level C
B. Level 1, Level 2, Level 3
C. Level I, Level II, Level III
D. Basic, Standard, Fast
Correct Answer: B. Level 1, Level 2, Level 3
Rationale: The three charging levels are Level 1 (120 VAC, 15 amps), Level 2 (120–240 VAC,
up to 60 amps), and Level 3 (480 VAC, 125 amps or 600 VDC) per SAE standards .
3. Which type of EV connector is commonly used in North America for Level 2 AC
charging?
A. CHAdeMO
B. CCS Combo 1
,C. SAE J1772
D. Type 2 Mennekes
Correct Answer: C. SAE J1772
Rationale: SAE J1772 is the standard connector for AC Level 1 and Level 2 charging in North
America, compatible with most non-Tesla EVs. Tesla vehicles typically use the North
American Charging Standard (NACS) .
4. What is the typical voltage and current for a Level 1 EV charger?
A. 240V, 32A
B. 120V, 15A
C. 480V, 125A
D. 208V, 40A
Correct Answer: B. 120V, 15A
Rationale: Level 1 chargers use a standard 120V AC branch circuit, typically 15 amperes,
and provide approximately 1kW to 2kW of power output. These are commonly used in
residential settings for overnight charging .
5. What is the typical power output range for a Level 2 EV charger?
A. 1kW to 2kW
B. 7kW to 19kW
C. 50kW to 350kW
D. 5kW to 10kW
Correct Answer: B. 7kW to 19kW
Rationale: Level 2 chargers typically use 208V to 240V AC power inputs and can output
roughly 7kW to 19kW of power, providing significantly faster charging than Level 1
chargers .
6. Which EV charging level is also known as DC Fast Charging (DCFC)?
A. Level 1
B. Level 2
C. Level 3
D. Level 4
Correct Answer: C. Level 3
Rationale: Level 3 chargers, also known as direct current fast chargers (DCFC), typically
use 3-phase 480V or 208V AC power input converted to 200V to 1,000V DC output,
delivering power directly to the battery .
,7. What connector type is most commonly associated with DC fast charging in North
America?
A. SAE J1772
B. CHAdeMO
C. NEMA 5-15
D. Type 2
Correct Answer: B. CHAdeMO
Rationale: CHAdeMO is a DC fast charging protocol originally developed in Japan and
commonly used with Nissan and Mitsubishi EVs. CCS Combo 1 is also widely used for
DCFC in North America .
8. What type of EV battery is most commonly used in modern electric vehicles?
A. Lead-acid
B. Nickel-metal hydride (NiMH)
C. Lithium-ion (Li-ion)
D. Sodium-ion
Correct Answer: C. Lithium-ion (Li-ion)
Rationale: Lithium-ion batteries are the predominant choice for modern EVs due to their
high energy density, long cycle life, and declining cost .
9. How long does it typically take to fully charge a 60kWh EV battery from empty using
a Level 2 charger?
A. Less than 1 hour
B. 2-4 hours
C. Approximately 10 hours
D. More than 40 hours
Correct Answer: C. Approximately 10 hours
Rationale: With a higher power output (7kW to 19kW), Level 2 chargers provide improved
charge times compared to Level 1 chargers—approximately 10 hours to fully charge a
60kWh battery from empty .
10. What is the primary purpose of the control pilot pin in an EVSE connector?
A. Ground the vehicle
B. Charge the battery directly
C. Communicate vehicle status and allow safe charging current regulation
D. Provide Wi-Fi connection
Correct Answer: C. Communicate vehicle status and allow safe charging current
regulation
, Rationale: The control pilot enables handshake communication between the EVSE and the
vehicle to ensure safe operation and allows charging current regulation based on vehicle
needs .
SECTION 2: NEC ARTICLE 625 COMPLIANCE AND CODE REQUIREMENTS
11. Which NEC article specifically governs electric vehicle supply equipment (EVSE)?
A. Article 210
B. Article 310
C. Article 625
D. Article 700
Correct Answer: C. Article 625
Rationale: NEC Article 625 covers conductors, grounding, disconnects, and all
requirements specifically for electric vehicle supply equipment .
12. According to NEC 625.41, how must conductors for EVSE be sized?
A. 80% of the load rating
B. 100% of the load rating
C. 125% of the maximum load
D. 150% of the load rating
Correct Answer: C. 125% of the maximum load
Rationale: NEC 625.41 requires that EVSE conductors be considered a continuous load
and sized at 125% of the maximum load to account for continuous duty operation .
13. For a commercial Level 2 EVSE with a nameplate rating of 40A, what is the
minimum ampacity required for the feeder conductors?
A. 40A
B. 45A
C. 50A
D. 60A
Correct Answer: C. 50A
Rationale: 40A × 1.25 continuous load factor = 50A minimum circuit ampacity per NEC
625.41 and 210.20(A) .
14. What is the maximum ground-fault protection level required by NEC 625.54 for
EVSE installations?
A. 5mA
B. 10mA
