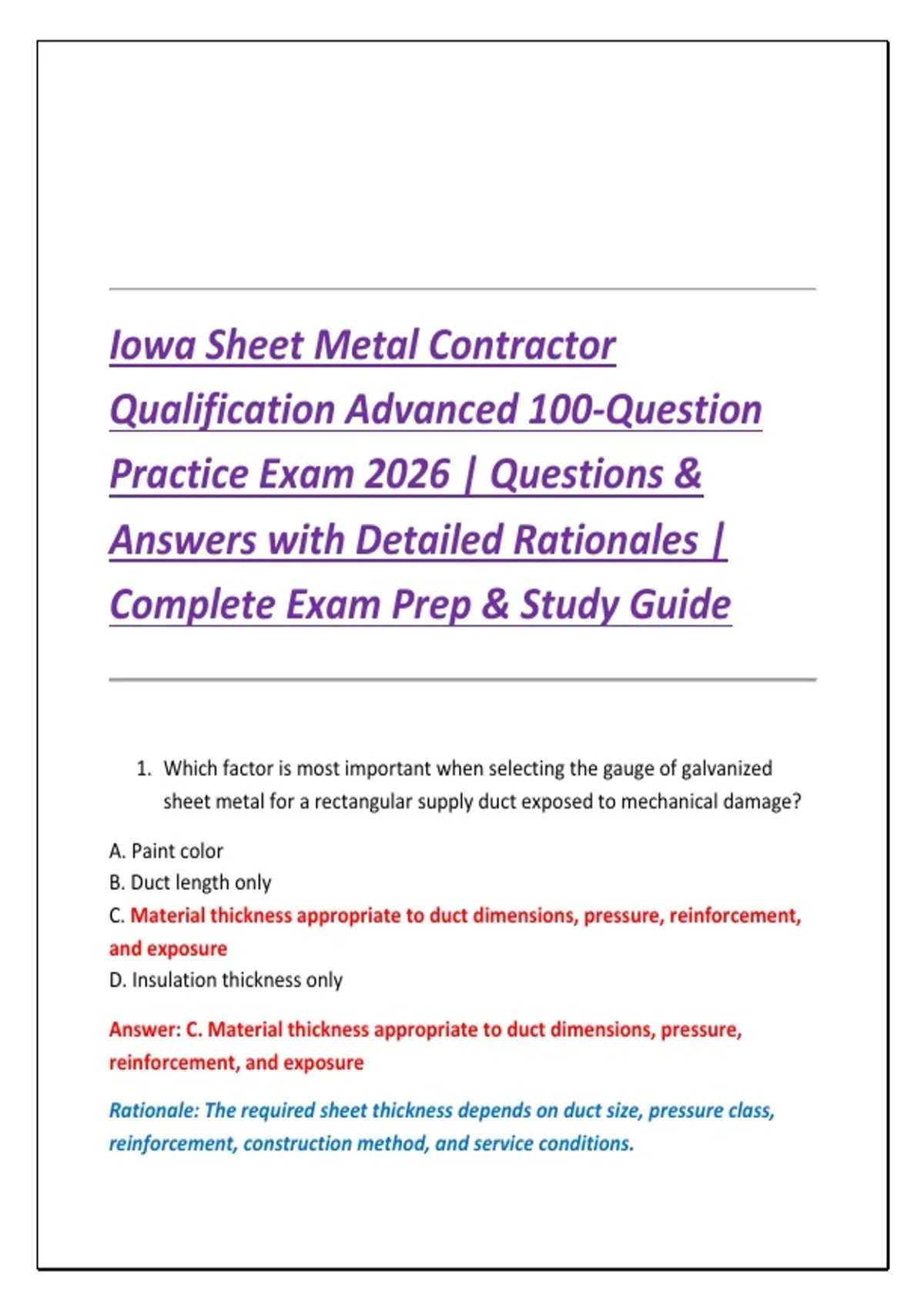

Iowa Sheet Metal Contractor
Qualification Advanced 100-Question
Practice Exam 2026 | Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. Which factor is most important when selecting the gauge of galvanized
sheet metal for a rectangular supply duct exposed to mechanical damage?
A. Paint color
B. Duct length only
C. Material thickness appropriate to duct dimensions, pressure, reinforcement,
and exposure
D. Insulation thickness only
Answer: C. Material thickness appropriate to duct dimensions, pressure,
reinforcement, and exposure
Rationale: The required sheet thickness depends on duct size, pressure class,
reinforcement, construction method, and service conditions.
, 2. In a high-pressure rectangular duct system, what is the primary purpose of
transverse reinforcement?
A. Reduce insulation conductivity
B. Limit panel deflection and increase duct rigidity
C. Increase airflow temperature
D. Prevent condensation inside the duct
Answer: B. Limit panel deflection and increase duct rigidity
Rationale: Reinforcement resists panel deformation caused by positive or
negative pressure and helps maintain the designed duct geometry.
3. A rectangular duct has excessive panel vibration during operation. Which
correction is generally most appropriate?
A. Remove all reinforcement
B. Increase the number of elbows
C. Add or improve reinforcement and verify the duct pressure class
D. Reduce insulation thickness
Answer: C. Add or improve reinforcement and verify the duct pressure class
Rationale: Excessive vibration often indicates inadequate stiffness, improper
reinforcement, or operation outside the intended pressure classification.
4. What is the principal purpose of turning vanes in a rectangular 90-degree
duct elbow?
A. Increase duct leakage
B. Reduce insulation thickness
C. Improve airflow distribution and reduce turbulence and pressure loss
D. Increase the duct's operating temperature
Answer: C. Improve airflow distribution and reduce turbulence and pressure
loss
,Rationale: Properly designed turning vanes guide the air through the elbow and
can reduce turbulence and pressure loss compared with an unassisted sharp
elbow.
5. When fabricating a rectangular duct, why must the developed flat pattern
account for seam allowances?
A. To increase airflow
B. Because the finished dimensions must include material consumed by seams
and connections
C. To eliminate reinforcement
D. To reduce the duct's pressure rating
Answer: B. Because the finished dimensions must include material consumed by
seams and connections
Rationale: Ignoring seam allowances can produce a finished duct that is
undersized and difficult or impossible to assemble correctly.
6. What is the primary concern when installing ductwork through a fire-rated
wall?
A. Matching the ceiling color
B. Maintaining the required fire-resistance and approved penetration system
C. Increasing duct velocity
D. Eliminating all access panels
Answer: B. Maintaining the required fire-resistance and approved penetration
system
Rationale: Penetrations through fire-resistance-rated assemblies must be
protected using an approved system that maintains the required rating.
7. What is the purpose of a fire damper installed where a duct penetrates a
rated wall or floor assembly?
A. Increase airflow
B. Reduce fan horsepower
, C. Limit the spread of fire through the duct opening
D. Increase duct static pressure
Answer: C. Limit the spread of fire through the duct opening
Rationale: Fire dampers are designed to close under specified conditions and
restrict fire passage through duct penetrations.
8. A smoke damper primarily addresses which hazard?
A. Structural settlement
B. Movement of smoke through an HVAC system
C. Refrigerant leakage
D. Roof drainage
Answer: B. Movement of smoke through an HVAC system
Rationale: Smoke dampers control smoke migration and are often integrated
with the building's smoke-control or fire alarm systems.
9. What should be verified before connecting sheet-metal ductwork to a
variable-air-volume terminal?
A. Roofing membrane color
B. Connection dimensions, airflow requirements, pressure classification, and
manufacturer requirements
C. Concrete compressive strength only
D. Plumbing fixture locations only
Answer: B. Connection dimensions, airflow requirements, pressure
classification, and manufacturer requirements
Rationale: Proper coordination prevents leakage, excessive pressure drop,
equipment damage, and improper terminal performance.
10.Why should flexible duct connectors be installed between certain air-
handling equipment and rigid ductwork?
