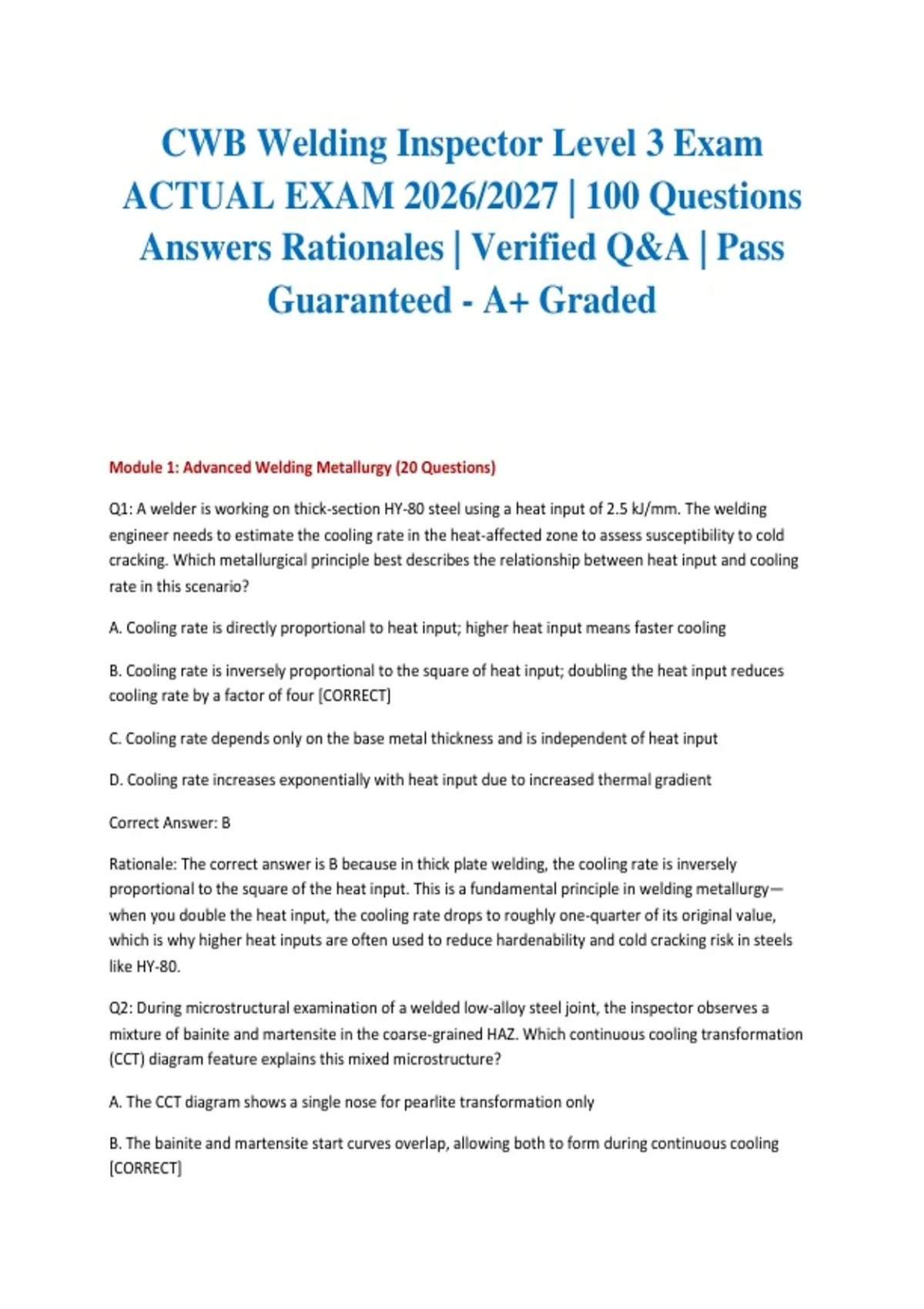

CWB Welding Inspector Level 3 Exam
ACTUAL EXAM 2026/2027 | 100 Questions
Answers Rationales | Verified Q&A | Pass
Guaranteed - A+ Graded
Module 1: Advanced Welding Metallurgy (20 Questions)
Q1: A welder is working on thick-section HY-80 steel using a heat input of 2.5 kJ/mm. The welding
engineer needs to estimate the cooling rate in the heat-affected zone to assess susceptibility to cold
cracking. Which metallurgical principle best describes the relationship between heat input and cooling
rate in this scenario?
A. Cooling rate is directly proportional to heat input; higher heat input means faster cooling
B. Cooling rate is inversely proportional to the square of heat input; doubling the heat input reduces
cooling rate by a factor of four [CORRECT]
C. Cooling rate depends only on the base metal thickness and is independent of heat input
D. Cooling rate increases exponentially with heat input due to increased thermal gradient
Correct Answer: B
Rationale: The correct answer is B because in thick plate welding, the cooling rate is inversely
proportional to the square of the heat input. This is a fundamental principle in welding metallurgy—
when you double the heat input, the cooling rate drops to roughly one-quarter of its original value,
which is why higher heat inputs are often used to reduce hardenability and cold cracking risk in steels
like HY-80.
Q2: During microstructural examination of a welded low-alloy steel joint, the inspector observes a
mixture of bainite and martensite in the coarse-grained HAZ. Which continuous cooling transformation
(CCT) diagram feature explains this mixed microstructure?
A. The CCT diagram shows a single nose for pearlite transformation only
B. The bainite and martensite start curves overlap, allowing both to form during continuous cooling
[CORRECT]
,C. The ferrite start line intersects the austenite grain boundary at the welding temperature
D. The martensite finish temperature is above room temperature for this alloy
Correct Answer: B
Rationale: The correct answer is B because in low-alloy steels, the bainite and martensite start curves on
the CCT diagram often overlap or are closely spaced. During the rapid cooling typical of welding, the
cooling path can intersect both transformation regions, resulting in a mixed bainite-martensite
microstructure in the coarse-grained HAZ.
Q3: An inspector is evaluating a weldment that failed in service due to lamellar tearing. Which
microstructural characteristic of the base metal is the primary contributing factor to this type of
discontinuity?
A. High volume fraction of equiaxed ferrite grains oriented perpendicular to the rolling direction
B. Elongated manganese sulfide inclusions and stringers aligned parallel to the rolling direction
[CORRECT]
C. Fine pearlite colonies randomly distributed throughout the ferrite matrix
D. High density of dislocation tangles from prior cold working operations
Correct Answer: B
Rationale: The correct answer is B because lamellar tearing is fundamentally caused by the presence of
elongated non-metallic inclusions, particularly manganese sulfides, that are aligned parallel to the plate
rolling direction. When through-thickness stresses develop during welding, these inclusion stringers
create weak planes where tearing initiates and propagates.
Q4: A welding engineer is selecting filler metal for a 316L stainless steel pressure vessel to minimize
susceptibility to stress corrosion cracking (SCC) in a chloride environment. Which metallurgical
consideration is most critical for this selection?
A. The filler metal should have a ferrite number between 3 and 8 to form a duplex microstructure that
resists SCC propagation [CORRECT]
B. The filler metal must contain at least 0.08% carbon to maximize austenite stability
C. The nickel content should be reduced below 8% to prevent sigma phase formation
D. The molybdenum content should be eliminated to avoid pitting corrosion initiation
Correct Answer: A
Rationale: The correct answer is A because maintaining a small amount of ferrite (typically FN 3-8) in the
austenitic weld metal creates a duplex microstructure that significantly improves resistance to stress
,corrosion cracking. The ferrite phase disrupts crack propagation paths and provides a more corrosion-
resistant microstructure in chloride-bearing environments.
Q5: During elevated temperature service assessment of a Cr-Mo steel weldment operating at 550°C, the
inspector notes creep damage. Which microstructural evolution is most characteristic of the tertiary
creep stage in this material?
A. Formation of discrete, spherical carbides uniformly distributed throughout the matrix
B. Coarsening of prior austenite grain boundaries with precipitation of continuous carbide films and
cavity nucleation [CORRECT]
C. Recovery of dislocation substructure with subgrain formation and decreased internal stress
D. Precipitation of intermetallic chi phase at ferrite-austenite interfaces
Correct Answer: B
Rationale: The correct answer is B because during tertiary creep of Cr-Mo steels, the microstructural
degradation involves coarsening of carbides at prior austenite grain boundaries, often forming
continuous or semi-continuous films. This boundary weakening, combined with cavity nucleation and
linkage, leads to the accelerated strain rate characteristic of tertiary creep before final rupture.
Q6: A metallographer is examining the solidification microstructure of an austenitic stainless steel weld
and observes a vermicular ferrite morphology. What does this microstructure indicate about the
solidification mode?
A. The weld solidified as primary ferrite (FA mode) with ferrite transforming to austenite via a peritectic
reaction
B. The weld solidified as primary austenite (A mode) with ferrite forming by eutectic reaction at the end
of solidification [CORRECT]
C. The weld solidified as primary ferrite that remained stable to room temperature (F mode)
D. The weld experienced a martensitic transformation during post-weld cooling
Correct Answer: B
Rationale: The correct answer is B because vermicular or lacy ferrite morphology in austenitic stainless
steel welds is characteristic of primary austenite solidification (A mode), where ferrite forms as a
eutectic constituent at the end of solidification. This differs from the more desirable primary ferrite (FA)
mode where ferrite forms first and transforms to austenite, providing better resistance to hot cracking.
Q7: An inspector is evaluating cold cracking in a high-strength steel weldment. The crack morphology
shows a distinct intergranular pattern along prior austenite grain boundaries in the HAZ. Which
mechanism is most likely responsible for this fracture appearance?
, A. Hydrogen-induced cracking facilitated by grain boundary segregation of impurity elements [CORRECT]
B. Solidification cracking caused by low melting point eutectics at grain boundaries
C. Reheat cracking due to stress relaxation in the coarse-grained HAZ
D. Lamellar tearing initiated by through-thickness tensile stresses
Correct Answer: A
Rationale: The correct answer is A because intergranular cracking along prior austenite grain boundaries
in the HAZ is the classic signature of hydrogen-induced cracking (HIC). Hydrogen diffuses to these
boundaries, where it combines with local stress concentrations and often interacts with segregated
impurities like sulfur or phosphorus, leading to decohesion at the grain boundaries.
Q8: A phase diagram for a hypothetical binary alloy system shows a eutectic reaction at 800°C with
limited solid solubility of element B in element A. At the eutectic composition, which microstructural
constituent would be expected just below the eutectic temperature?
A. Single-phase solid solution of B in A with no second phase present
B. A mixture of proeutectic alpha and a eutectic microconstituent consisting of alternating plates of
alpha and beta [CORRECT]
C. A single intermetallic compound phase with ordered crystal structure
D. A mixture of liquid phase and primary beta crystals
Correct Answer: B
Rationale: The correct answer is B because at the eutectic composition, the microstructure just below
the eutectic temperature consists of the eutectic microconstituent itself—a fine, alternating lamellar
structure of alpha and beta phases. The limited solid solubility means both terminal solid solutions have
restricted composition ranges, and the eutectic reaction produces this characteristic two-phase mixture.
Q9: In a face-centered cubic (FCC) metal such as austenitic stainless steel, which crystallographic feature
explains the excellent ductility and formability compared to body-centered cubic (BCC) metals?
A. FCC metals have fewer slip systems available compared to BCC metals
B. FCC metals have close-packed {111} planes with high planar density, allowing extensive dislocation
motion before failure [CORRECT]
C. BCC metals have higher stacking fault energy, promoting cross-slip and work hardening
D. FCC metals undergo a phase transformation to BCC during deformation, increasing ductility
Correct Answer: B
