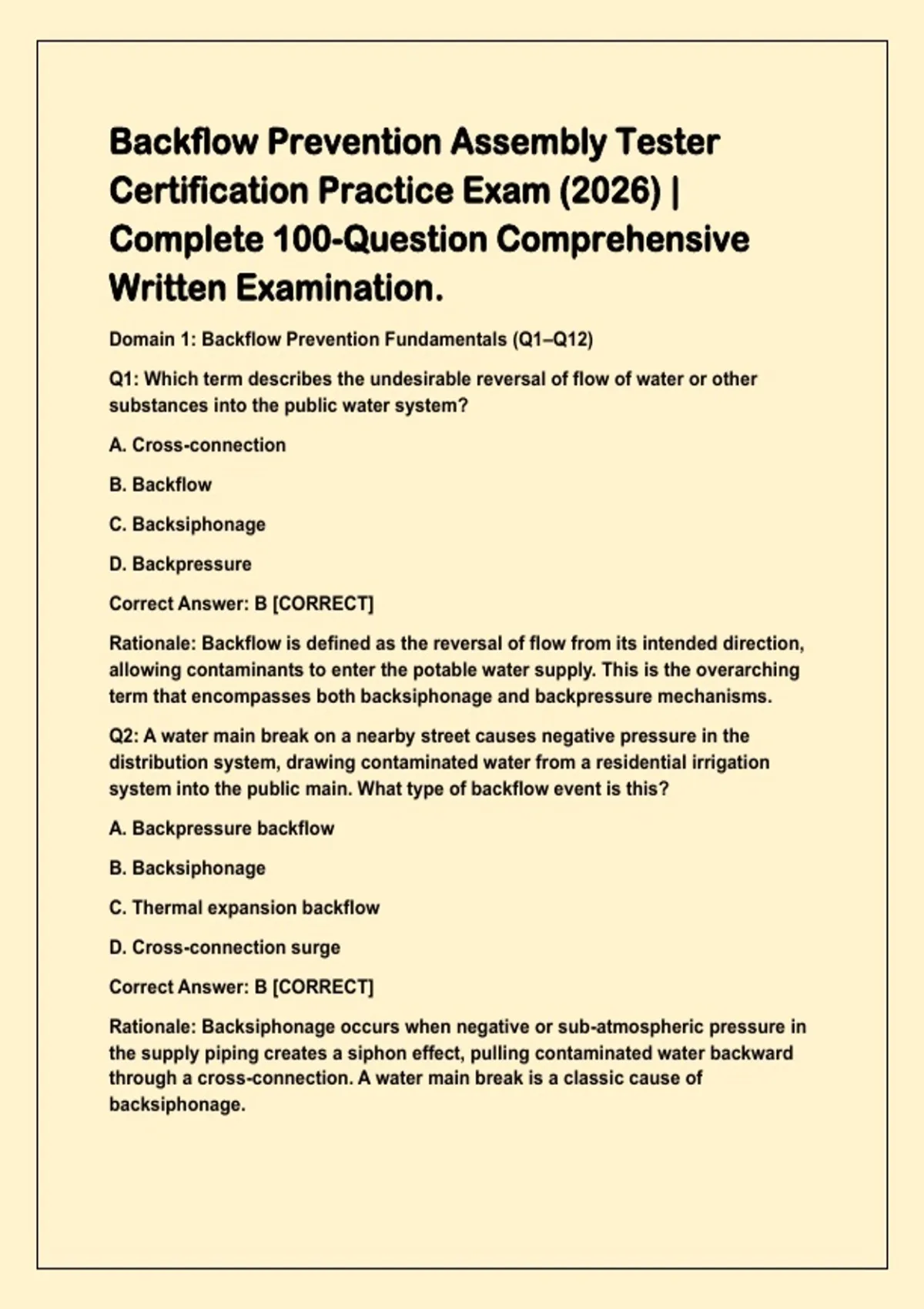

Backflow Prevention Assembly Tester
Certification Practice Exam (2026) |
Complete 100-Question Comprehensive
Written Examination.
Domain 1: Backflow Prevention Fundamentals (Q1–Q12)
Q1: Which term describes the undesirable reversal of flow of water or other
substances into the public water system?
A. Cross-connection
B. Backflow
C. Backsiphonage
D. Backpressure
Correct Answer: B [CORRECT]
Rationale: Backflow is defined as the reversal of flow from its intended direction,
allowing contaminants to enter the potable water supply. This is the overarching
term that encompasses both backsiphonage and backpressure mechanisms.
Q2: A water main break on a nearby street causes negative pressure in the
distribution system, drawing contaminated water from a residential irrigation
system into the public main. What type of backflow event is this?
A. Backpressure backflow
B. Backsiphonage
C. Thermal expansion backflow
D. Cross-connection surge
Correct Answer: B [CORRECT]
Rationale: Backsiphonage occurs when negative or sub-atmospheric pressure in
the supply piping creates a siphon effect, pulling contaminated water backward
through a cross-connection. A water main break is a classic cause of
backsiphonage.
,Q3: A high-rise building booster pump increases the pressure on the private side
to 95 psi while the public main supplies 65 psi. If no backflow preventer is
installed, what backflow mechanism will occur?
A. Backsiphonage
B. Backpressure backflow
C. Thermal expansion
D. Atmospheric backflow
Correct Answer: B [CORRECT]
Rationale: Backpressure backflow occurs when the downstream pressure
exceeds the supply pressure, forcing contaminated water backward into the
public system. Booster pumps are a common source of backpressure conditions.
Q4: What is the minimum acceptable air gap measurement for a 1.5-inch diameter
pipe supplying a non-pressurized tank?
A. 1 inch
B. 1.5 inches
C. 2 inches
D. 3 inches
Correct Answer: D [CORRECT]
Rationale: An air gap must be at least twice the effective opening diameter or 1
inch, whichever is greater. For a 1.5-inch pipe, 2 × 1.5 = 3 inches, which exceeds
the 1-inch minimum per USC FCCCHR and plumbing code requirements.
Q5: A chemical manufacturing plant has process water lines connected to the
potable water supply for cooling equipment. The process water contains toxic
chemicals. How should this cross-connection be classified?
A. Low hazard, non-health hazard
B. High hazard, health hazard
C. Moderate hazard, aesthetic hazard
D. Minor hazard, plumbing hazard
Correct Answer: B [CORRECT]
,Rationale: Any connection to toxic chemicals constitutes a high health hazard
because contamination could cause death, illness, or serious health effects. High
hazard applications require the highest level of backflow protection, typically an
RP assembly or air gap.
Q6: Which of the following best describes a cross-connection?
A. A physical break in the water main
B. Any actual or potential connection between a potable water supply and a non-
potable source
C. A backflow prevention assembly that has failed testing
D. A pressure differential between two points in the distribution system
Correct Answer: B [CORRECT]
Rationale: A cross-connection is defined as any actual or potential physical
connection between a public water system and any other source that could allow
contamination to enter the potable supply, per USC FCCCHR and EPA guidance.
Q7: During a thermal expansion event in a closed plumbing system, what
happens to system pressure?
A. Pressure decreases as water heats
B. Pressure increases as water heats and expands with no room for expansion
C. Pressure remains constant regardless of temperature
D. Water volume decreases, lowering pressure
Correct Answer: B [CORRECT]
Rationale: Water expands when heated. In a closed system with a check valve or
backflow preventer, the expanding water has no room to expand back into the
main, causing pressure to increase significantly—often enough to create a
backpressure condition or damage plumbing components.
Q8: What is the relationship between elevation and water pressure?
A. 1 psi increase per 1 foot of elevation gain
B. 2.31 feet of elevation change per 1 psi
C. 1 foot of elevation change per 2.31 psi
D. 10 psi decrease per 1 foot of elevation loss
, Correct Answer: B [CORRECT]
Rationale: Water pressure changes by 1 psi for every 2.31 feet of vertical
elevation change. This is a fundamental hydraulic principle used to calculate
pressure differentials in backflow testing and system design, based on the weight
of a water column.
Q9: The Venturi effect is most relevant to understanding which backflow
mechanism?
A. Backpressure from booster pumps
B. Backsiphonage created by high-velocity flow past a connection
C. Thermal expansion in closed systems
D. Direct cross-connection via submerged inlet
Correct Answer: B [CORRECT]
Rationale: The Venturi effect describes how fluid velocity increases and pressure
decreases when flowing through a constricted section. In water distribution, high-
velocity flow past a branch connection can create localized negative pressure,
contributing to backsiphonage conditions.
Q10: Who has the primary responsibility for operating and maintaining an
effective cross-connection control program?
A. The individual property owner only
B. The state environmental protection agency only
C. The water purveyor (public water system operator)
D. The backflow assembly tester only
Correct Answer: C [CORRECT]
Rationale: Under the Safe Drinking Water Act and standard cross-connection
control programs, the water purveyor has the primary responsibility to protect the
public water system from contamination, including implementing and enforcing
cross-connection control measures.
Q11: Static pressure is best defined as:
A. The pressure in a pipe when water is flowing at maximum demand
B. The pressure in a pipe when no water is running
C. The pressure loss due to friction in the piping system
