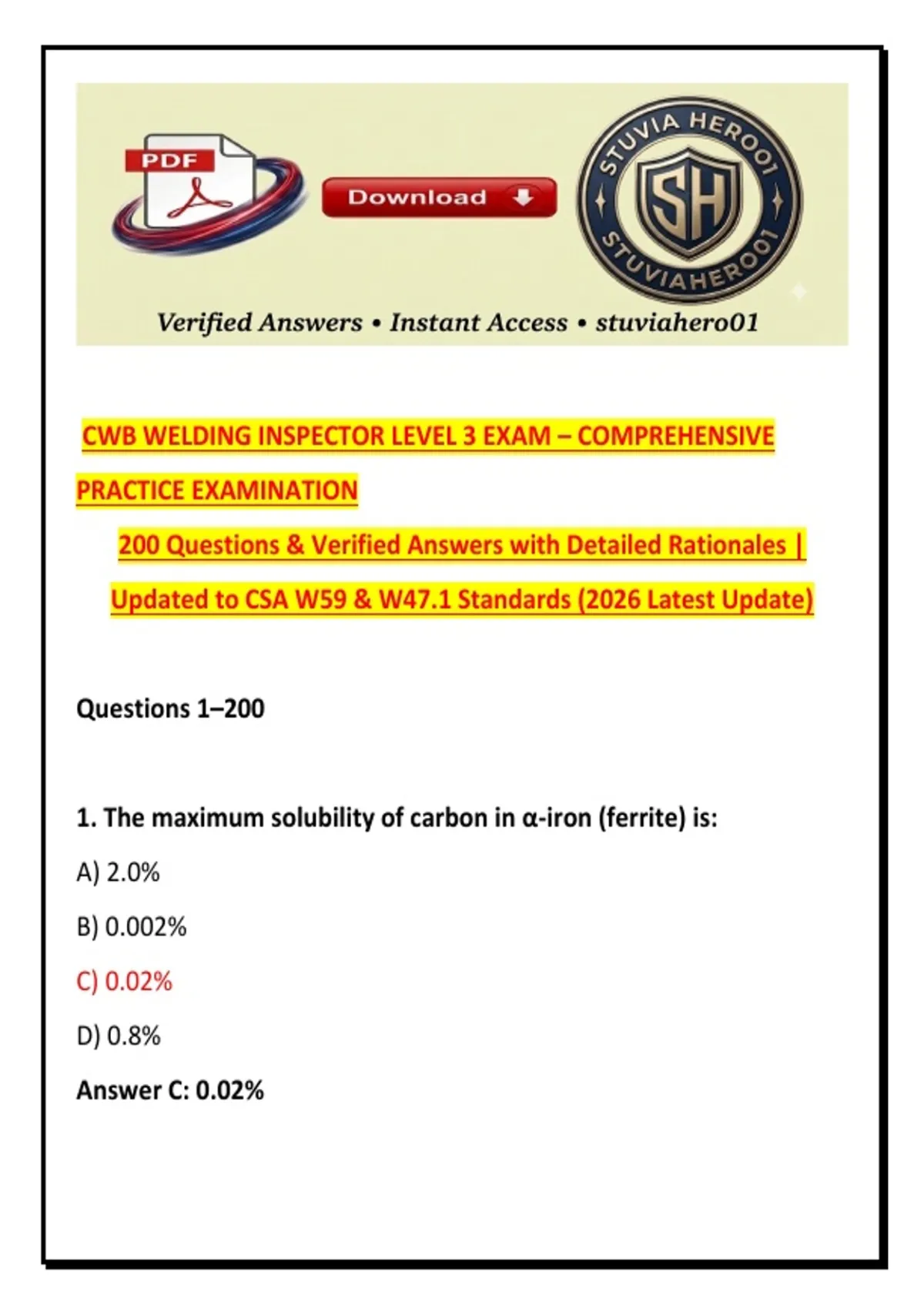

CWB WELDING INSPECTOR LEVEL 3 EXAM – COMPREHENSIVE
PRACTICE EXAMINATION
200 Questions & Verified Answers with Detailed Rationales |
Updated to CSA W59 & W47.1 Standards (2026 Latest Update)
Questions 1–200
1. The maximum solubility of carbon in α-iron (ferrite) is:
A) 2.0%
B) 0.002%
C) 0.02%
D) 0.8%
Answer C: 0.02%
,Rationale: Ferrite (α-iron) has a BCC structure with very limited
interstitial sites for carbon, resulting in maximum carbon solubility of
only 0.02% at the eutectoid temperature.
2. Multiplication and subsequent congestion of moving dislocations
causes:
A) Elastic extension
B) Work or strain hardening
C) A drop in the yield stress
D) A reduction in tensile strength
Answer B: Work or strain hardening
Rationale: As dislocations multiply and become congested during
plastic deformation, they impede each other's movement, requiring
increasing stress for continued deformation.
3. Which of the following metals has the highest thermal
conductivity?
A) Carbon steel
B) Stainless steel
,C) Aluminum
D) Copper
Answer C: Aluminum
Rationale: Aluminum has higher thermal conductivity compared to
carbon steel and stainless steel, making it more efficient at
transferring heat.
4. The Ellingham diagram:
A) Is a plot of thermal conductivity against temperature
B) Shows the free energy of oxide formation against temperature
C) Shows the rate of oxidation of metals against temperature
D) Shows the melting point against alloy composition
Answer B: Shows the free energy of oxide formation against
temperature
Rationale: The Ellingham diagram graphically represents the Gibbs
free energy change for the formation of metal oxides as a function of
temperature.
, 5. True or False? A metal with a high negative free energy of oxide
formation will generally require greater shielding from the
atmosphere during welding.
A) True
B) False
Answer A: True
Rationale: Metals with high negative free energy of oxide formation
are more reactive with oxygen and require greater shielding to
prevent oxidation.
6. Electricity can be conducted by:
A) Atoms and electrons
B) Electrons and ions
C) Only ions
D) Only electrons
Answer B: Electrons and ions
Rationale: Electrical conduction in metals occurs through electron
movement; in electrolytic solutions, ions also conduct electricity.
