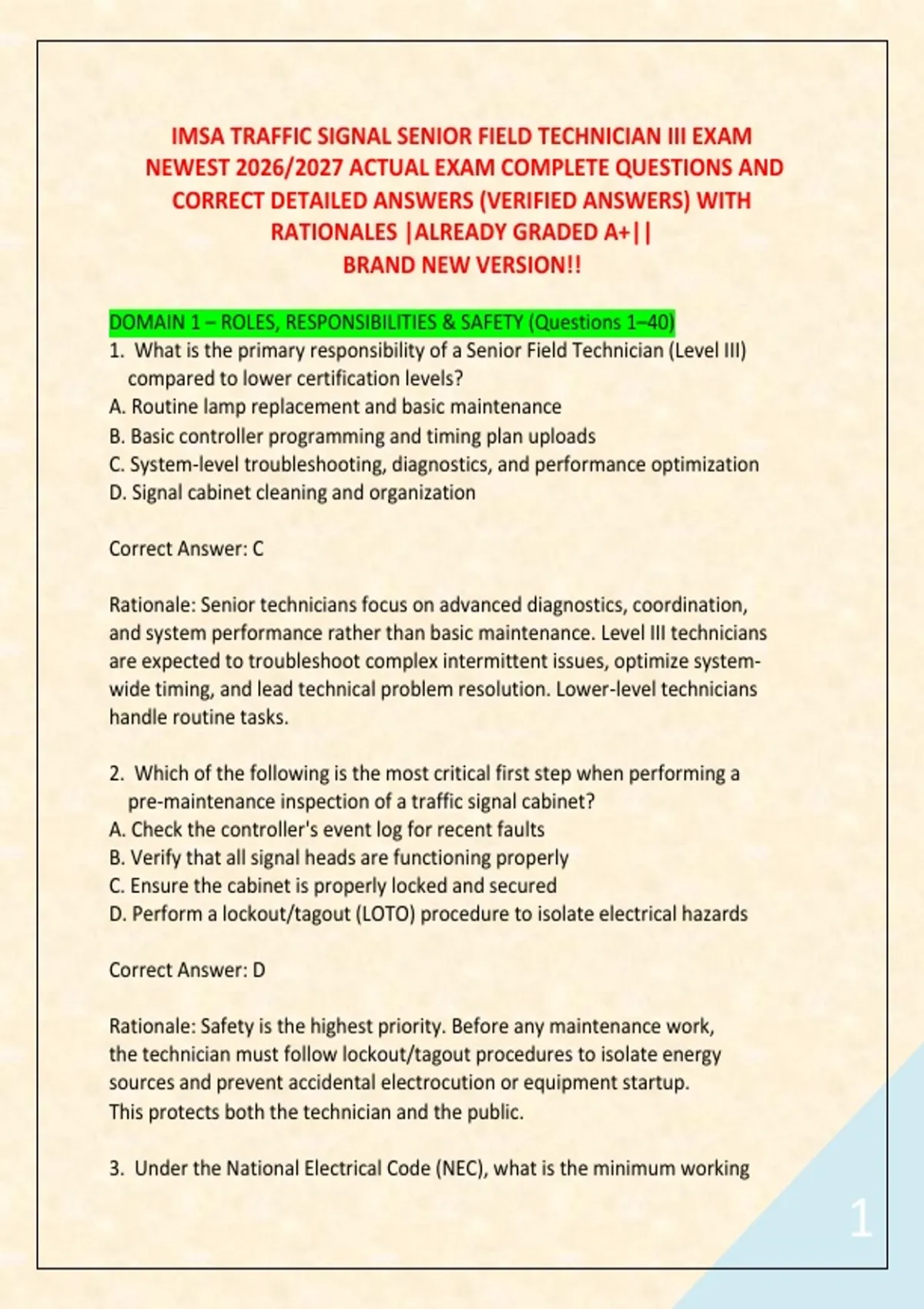

IMSA TRAFFIC SIGNAL SENIOR FIELD TECHNICIAN III EXAM
NEWEST 2026/2027 ACTUAL EXAM COMPLETE QUESTIONS AND
CORRECT DETAILED ANSWERS (VERIFIED ANSWERS) WITH
RATIONALES |ALREADY GRADED A+||
BRAND NEW VERSION!!
DOMAIN 1 – ROLES, RESPONSIBILITIES & SAFETY (Questions 1–40)
1. What is the primary responsibility of a Senior Field Technician (Level III)
compared to lower certification levels?
A. Routine lamp replacement and basic maintenance
B. Basic controller programming and timing plan uploads
C. System-level troubleshooting, diagnostics, and performance optimization
D. Signal cabinet cleaning and organization
Correct Answer: C
Rationale: Senior technicians focus on advanced diagnostics, coordination,
and system performance rather than basic maintenance. Level III technicians
are expected to troubleshoot complex intermittent issues, optimize system-
wide timing, and lead technical problem resolution. Lower-level technicians
handle routine tasks.
2. Which of the following is the most critical first step when performing a
pre-maintenance inspection of a traffic signal cabinet?
A. Check the controller's event log for recent faults
B. Verify that all signal heads are functioning properly
C. Ensure the cabinet is properly locked and secured
D. Perform a lockout/tagout (LOTO) procedure to isolate electrical hazards
Correct Answer: D
Rationale: Safety is the highest priority. Before any maintenance work,
the technician must follow lockout/tagout procedures to isolate energy
sources and prevent accidental electrocution or equipment startup.
This protects both the technician and the public.
3. Under the National Electrical Code (NEC), what is the minimum working
1
, clearance required in front of traffic signal control equipment?
A. 24 inches
B. 30 inches
C. 36 inches
D. 48 inches
Correct Answer: B
Rationale: NEC requirements mandate a minimum working clearance of
30 inches in front of electrical equipment operating at 600V or less.
This allows safe access for maintenance and emergency shutdown.
Local jurisdictions may have additional requirements.
4. Which Personal Protective Equipment (PPE) is REQUIRED when working on
energized traffic signal equipment?
A. Safety glasses only
B. Hard hat and safety vest
C. Voltage-rated gloves, safety glasses, and arc-rated clothing
D. Steel-toe boots and hearing protection
Correct Answer: C
Rationale: When working on or near energized equipment, technicians must
wear appropriate PPE including voltage-rated gloves (tested and dated),
safety glasses or face shield, and arc-rated clothing to protect against
electrical shock and arc flash hazards. This is a fundamental safety requirement.
5. What is the purpose of a "safety ground" in a traffic signal cabinet?
A. To provide a return path for the controller's logic circuits
B. To protect personnel from electrical shock by providing a low-impedance
path to earth
C. To improve signal timing accuracy
D. To reduce electromagnetic interference
Correct Answer: B
Rationale: The safety ground provides a low-impedance path to earth to
safely carry fault currents, protecting personnel from shock and equipment
2
,from damage. It is distinct from the neutral conductor, which carries
normal operating current.
6. When using a multimeter to troubleshoot a 120V AC circuit, what is the
proper safety practice?
A. Set the meter to DC volts before testing
B. Use one hand only and keep the other hand in your pocket
C. Set the meter to the highest AC voltage range before measuring
D. Both B and C are correct
Correct Answer: D
Rationale: Using one hand reduces the risk of a current path through the
chest. Starting on the highest voltage range prevents meter damage and
allows the technician to safely step down to the appropriate range.
Both practices are standard electrical safety procedures.
7. The National Electric Safety Code (NESC) primarily addresses:
A. Indoor electrical wiring standards
B. Overhead and underground utility lines, including traffic signal supply
and communication lines
C. Consumer product safety
D. Fire alarm system installation
Correct Answer: B
Rationale: The NESC covers the installation, operation, and maintenance
of electric supply and communication lines, including overhead and
underground lines that supply traffic signal equipment. It is the primary
standard for utility and outside plant safety.
8. What is the maximum allowable voltage drop for a traffic signal circuit
from the service panel to the load?
A. 1%
B. 3%
C. 5%
D. 10%
3
, Correct Answer: C
Rationale: Excessive voltage drop can cause erratic operation of controllers,
detectors, and LED signal heads. A maximum of 5% for branch circuits is
the generally accepted limit to ensure proper operation.
9. Which of the following is a common cause of intermittent signal operation?
A. Burned-out bulbs
B. Controller software error
C. Loose or corroded wiring
D. Pedestrian push button failure
Correct Answer: C
Rationale: Loose or corroded wiring can cause intermittent electrical
continuity, leading to sporadic signal operation. This is the most
frequent cause of intermittent faults in the field.
10. When performing lockout/tagout on a traffic signal cabinet, the technician
must:
A. Only lock out the controller power
B. Lock out ALL energy sources including AC power, battery backup, and
capacitor stored energy
C. Place a tag on the cabinet door only
D. Remove the fuses and leave them on the workbench
Correct Answer: B
Rationale: A proper LOTO procedure requires isolating all hazardous energy
sources. This includes main AC power, battery backup systems, and stored
energy in capacitors. All sources must be locked and tagged.
11. What is the primary purpose of the MUTCD (Manual on Uniform Traffic
Control Devices)?
A. To provide design standards for traffic signal cabinets
B. To establish uniform standards for all traffic control devices, including
signals, signs, and pavement markings
C. To regulate the electrical wiring of traffic signals
4
