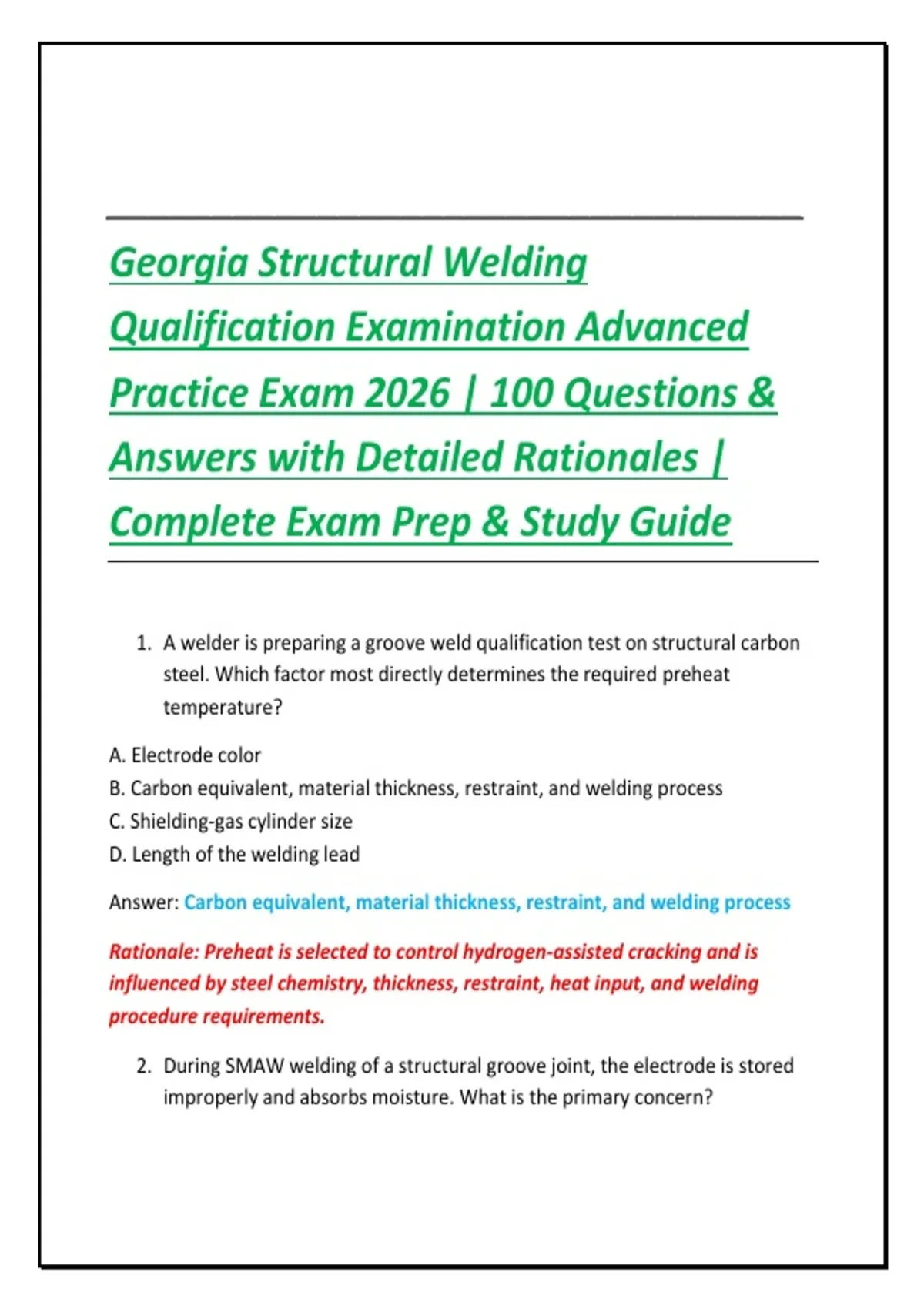

Georgia Structural Welding
Qualification Examination Advanced
Practice Exam 2026 | 100 Questions &
Answers with Detailed Rationales |
Complete Exam Prep & Study Guide
1. A welder is preparing a groove weld qualification test on structural carbon
steel. Which factor most directly determines the required preheat
temperature?
A. Electrode color
B. Carbon equivalent, material thickness, restraint, and welding process
C. Shielding-gas cylinder size
D. Length of the welding lead
Answer: Carbon equivalent, material thickness, restraint, and welding process
Rationale: Preheat is selected to control hydrogen-assisted cracking and is
influenced by steel chemistry, thickness, restraint, heat input, and welding
procedure requirements.
2. During SMAW welding of a structural groove joint, the electrode is stored
improperly and absorbs moisture. What is the primary concern?
,A. Excessive electrode diameter
B. Hydrogen-induced cracking
C. Excessive arc voltage only
D. Increased shielding-gas flow
Answer: Hydrogen-induced cracking
Rationale: Moisture introduces hydrogen into the weld deposit, increasing the
potential for hydrogen-assisted cracking, particularly in restrained structural
joints.
3. A qualified WPS specifies a minimum preheat of 150°F. The base metal
temperature immediately before welding measures 125°F. What should the
welder do?
A. Begin welding because the joint will heat rapidly
B. Increase interpass temperature only
C. Raise the base metal to at least the specified minimum preheat
D. Reduce welding current
Answer: Raise the base metal to at least the specified minimum preheat
Rationale: The minimum preheat specified by the applicable WPS must be
achieved before welding begins.
4. Which weld discontinuity is characterized by a groove melted into the base
metal adjacent to the weld toe or root and left unfilled?
A. Overlap
B. Undercut
C. Slag inclusion
D. Porosity
Answer: Undercut
Rationale: Undercut is a groove or depression at the weld toe or root caused by
melting of the base metal without sufficient filler-metal replacement.
, 5. A structural groove-weld test coupon contains lack of fusion between the
weld metal and sidewall. Which welding variable is most likely associated
with this defect?
A. Excessive cleaning
B. Improper travel angle or insufficient heat input
C. Proper electrode manipulation
D. Excessive interpass cleaning
Answer: Improper travel angle or insufficient heat input
Rationale: Lack of fusion commonly results from inadequate heat, improper
electrode angle, excessive travel speed, or poor joint preparation.
6. What is the principal function of shielding gas in GMAW?
A. Increase base-metal hardness
B. Prevent atmospheric contamination of the molten weld pool
C. Reduce electrode diameter
D. Eliminate the need for joint preparation
Answer: Prevent atmospheric contamination of the molten weld pool
Rationale: Shielding gas protects molten metal from oxygen, nitrogen, and
other atmospheric contaminants that can cause porosity and other weld defects.
7. In FCAW, what provides shielding for the weld pool in a flux-cored
electrode?
A. Flux ingredients and, depending on the process, external shielding gas
B. Compressed air
C. Base-metal coating only
D. Welding lead insulation
Answer: Flux ingredients and, depending on the process, external shielding gas
, Rationale: FCAW may be self-shielded or gas-shielded. Flux ingredients generate
protective gases and slag, while gas-shielded FCAW also uses an external
shielding gas.
8. A welder changes from a qualified electrode classification to another
electrode classification that is outside the ranges permitted by the
applicable qualification standard. What is the proper action?
A. Continue welding without documentation
B. Verify whether the change is permitted by the qualification requirements
C. Increase amperage by 25%
D. Reduce preheat to compensate
Answer: Verify whether the change is permitted by the qualification
requirements
Rationale: Changes to essential variables can invalidate a welder or procedure
qualification. The applicable code must be consulted before making the change.
9. Which testing method is commonly used to reveal internal discontinuities
in a structural weld?
A. Visual examination only
B. Radiographic or ultrasonic examination
C. Paint inspection
D. Dimensional measurement only
Answer: Radiographic or ultrasonic examination
Rationale: RT and UT are volumetric nondestructive examination methods
capable of detecting internal weld discontinuities.
10.What is the purpose of a root opening in a groove-weld joint?
A. Prevent penetration
B. Provide access for proper root fusion and penetration
C. Eliminate the need for filler metal
D. Reduce weld size automatically
