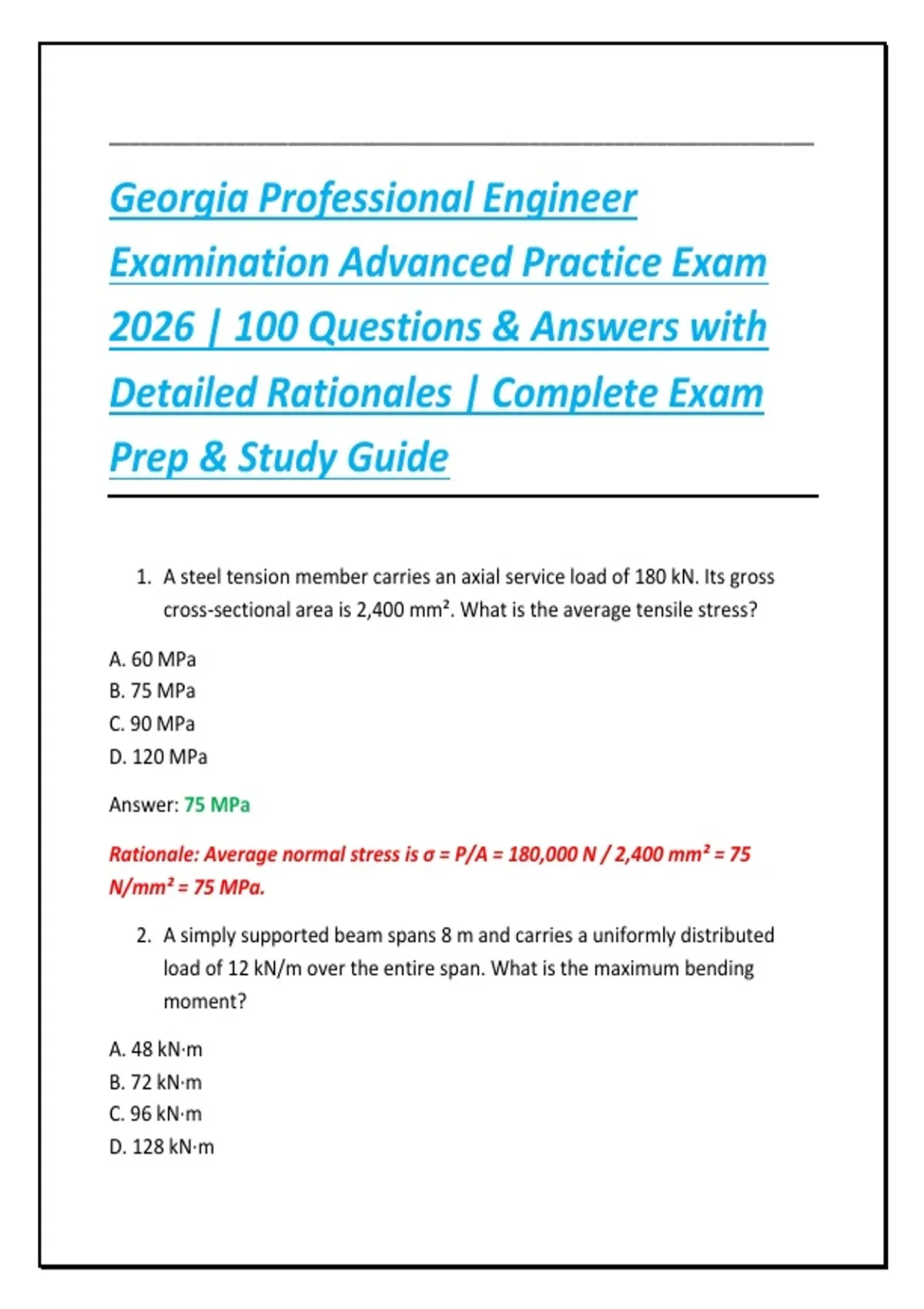

Georgia Professional Engineer
Examination Advanced Practice Exam
2026 | 100 Questions & Answers with
Detailed Rationales | Complete Exam
Prep & Study Guide
1. A steel tension member carries an axial service load of 180 kN. Its gross
cross-sectional area is 2,400 mm². What is the average tensile stress?
A. 60 MPa
B. 75 MPa
C. 90 MPa
D. 120 MPa
Answer: 75 MPa
Rationale: Average normal stress is ς = P/A = 180,000 N / 2,400 mm² = 75
N/mm² = 75 MPa.
2. A simply supported beam spans 8 m and carries a uniformly distributed
load of 12 kN/m over the entire span. What is the maximum bending
moment?
A. 48 kN·m
B. 72 kN·m
C. 96 kN·m
D. 128 kN·m
,Answer: 96 kN·m
Rationale: For a simply supported beam with a uniform load, Mmax = wL²/8 =
12(8²)/8 = 96 kN·m.
3. A concrete column is subjected to a factored concentric axial load. Which
failure mode becomes particularly important when the column is slender?
A. Local yielding only
B. Buckling and second-order effects
C. Fatigue cracking only
D. Shear lag
Answer: Buckling and second-order effects
Rationale: Slender compression members can experience lateral deflection that
amplifies bending moments, producing P-Δ and P-δ effects and potentially
instability.
4. For a homogeneous beam subjected to elastic bending, the neutral axis
passes through the:
A. Top extreme fiber
B. Bottom extreme fiber
C. Centroid of the cross-sectional area
D. Shear center only
Answer: Centroid of the cross-sectional area
Rationale: For a homogeneous prismatic member under ordinary elastic
bending, the neutral axis passes through the centroid of the cross section.
5. A soil has a total unit weight of 19.5 kN/m³ and a saturated unit weight of
20.5 kN/m³. If the groundwater table is at the ground surface, what
approximate effective unit weight should be used for submerged soil when
γw = 9.81 kN/m³?
,A. 9.81 kN/m³
B. 10.69 kN/m³
C. 19.50 kN/m³
D. 30.31 kN/m³
Answer: 10.69 kN/m³
Rationale: The submerged or buoyant unit weight is γ′ = γsat − γw = 20.5 − 9.81
= 10.69 kN/m³.
6. Darcy's law for one-dimensional saturated groundwater flow relates
discharge to:
A. Hydraulic gradient and hydraulic conductivity
B. Soil cohesion and friction angle only
C. Atmospheric pressure and density only
D. Porosity and temperature only
Answer: Hydraulic gradient and hydraulic conductivity
Rationale: Darcy's law is q = −kA(dh/dL), showing that flow depends on
hydraulic conductivity, cross-sectional area, and hydraulic gradient.
7. A pump supplies water at 0.08 m³/s against a total dynamic head of 45 m. If
the pump efficiency is 78%, what is the approximate required shaft power?
A. 32 kW
B. 45 kW
C. 55 kW
D. 72 kW
Answer: 45 kW
Rationale: Hydraulic power is ρgQH = 1,000(9.81)(0.08)(45) ≈ 35.3 kW. Dividing
by 0.78 gives approximately 45.3 kW.
8. In open-channel hydraulics, a Froude number greater than 1 indicates:
, A. Subcritical flow
B. Critical flow
C. Supercritical flow
D. Hydrostatic equilibrium
Answer: Supercritical flow
Rationale: Fr < 1 indicates subcritical flow, Fr = 1 critical flow, and Fr > 1
supercritical flow.
9. A Reynolds number substantially greater than the critical transition range in
a circular pipe generally indicates:
A. Laminar flow
B. Transitional flow
C. Turbulent flow
D. Static flow
Answer: Turbulent flow
Rationale: For internal pipe flow, sufficiently high Reynolds numbers indicate
turbulent conditions, where inertial effects dominate viscous effects.
10.The Darcy-Weisbach equation is primarily used to calculate:
A. Structural deflection
B. Pipe friction head loss
C. Soil consolidation
D. Electrical voltage drop
Answer: Pipe friction head loss
Rationale: The Darcy-Weisbach equation calculates major head loss caused by
friction along a pipe: hf = f(L/D)(V²/2g).
11.A closed system receives 500 kJ of heat and performs 150 kJ of boundary
work. Neglecting changes in kinetic and potential energy, what is the
change in internal energy?
