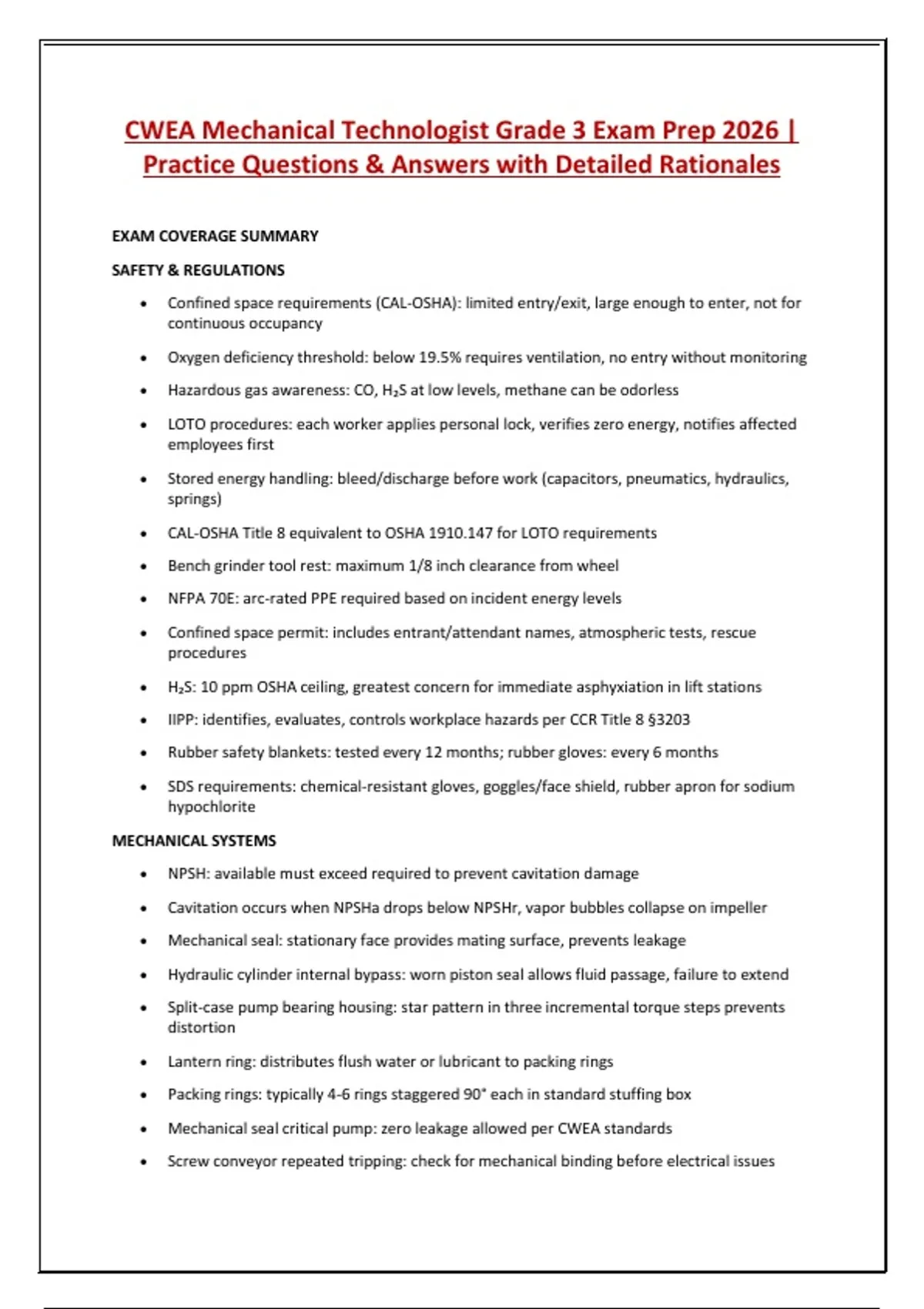

CWEA Mechanical Technologist Grade 3 Exam Prep 2026 |
Practice Questions & Answers with Detailed Rationales

EXAM COVERAGE SUMMARY
SAFETY & REGULATIONS
 Confined space requirements (CAL-OSHA): limited entry/exit, large enough to enter, not for
continuous occupancy
 Oxygen deficiency threshold: below 19.5% requires ventilation, no entry without monitoring
 Hazardous gas awareness: CO, H₂S at low levels, methane can be odorless
 LOTO procedures: each worker applies personal lock, verifies zero energy, notifies affected
employees first
 Stored energy handling: bleed/discharge before work (capacitors, pneumatics, hydraulics,
springs)
 CAL-OSHA Title 8 equivalent to OSHA 1910.147 for LOTO requirements
 Bench grinder tool rest: maximum 1/8 inch clearance from wheel
 NFPA 70E: arc-rated PPE required based on incident energy levels
 Confined space permit: includes entrant/attendant names, atmospheric tests, rescue
procedures
 H₂S: 10 ppm OSHA ceiling, greatest concern for immediate asphyxiation in lift stations
 IIPP: identifies, evaluates, controls workplace hazards per CCR Title 8 §3203
 Rubber safety blankets: tested every 12 months; rubber gloves: every 6 months
 SDS requirements: chemical-resistant gloves, goggles/face shield, rubber apron for sodium
hypochlorite
MECHANICAL SYSTEMS
 NPSH: available must exceed required to prevent cavitation damage
 Cavitation occurs when NPSHa drops below NPSHr, vapor bubbles collapse on impeller
 Mechanical seal: stationary face provides mating surface, prevents leakage
 Hydraulic cylinder internal bypass: worn piston seal allows fluid passage, failure to extend
 Split-case pump bearing housing: star pattern in three incremental torque steps prevents
distortion
 Lantern ring: distributes flush water or lubricant to packing rings
 Packing rings: typically 4-6 rings staggered 90° each in standard stuffing box
 Mechanical seal critical pump: zero leakage allowed per CWEA standards
 Screw conveyor repeated tripping: check for mechanical binding before electrical issues

,  Silent check valve prevents slamming; swing checks rely on gravity
 CMMS: tracks work orders, PM scheduling, spare parts inventory, equipment history
 Plain bearings: quieter, less costly but require proper lubrication
 PTFE vs graphite packing: graphite withstands 1200°F, PTFE melts above 500°F
 Impeller wear rings: increased clearance causes recirculation, reduced efficiency
 Vibration 2x running speed with small 1x = angular misalignment
 Eccentric reducer: flat side up on suction to prevent air pockets
 Backlash: play between gear teeth prevents binding
 Alignment sequence: complete vertical alignment first
 Plain bearings recommended for high-speed, heavy-load applications
 Anti-friction bearing cage: spaces rolling elements and guides through load zone
 Shaft sleeve: protects pump shaft from wear
 Globe valve: most widely used smaller sized pipe valve
 Altitude valve: automatically limits water level in elevated tanks
 Positive displacement compressors: reciprocating and rotary types
 Stuffing box: area holding packing on centrifugal pump
INSTALLATION, ALIGNMENT, FABRICATION
 Baselines: locate first in machinery installation preparation
 SMAW: most popular welding process in use today
 Offset misalignment: shafts parallel but not on same axis
 Soft foot: machine feet not making complete contact with base plate
 Motor is normally the machine to be shimmed during alignment
 Angular misalignment correction: use level on top of pulley parallel with shaft
 Deflection height for belt retensioning: straightedge or string across pulley tops
 Bolt torquing: star or cross pattern in multiple increments
 Hidden line: represented by dashed line in mechanical drawings
 Sheet steel thickness: gauge number designation
 Gasket selection: based on fluid compatibility, temperature, pressure
 Weld preparation: bevel edges for proper penetration
ELECTRICAL & INSTRUMENTATION
 SCADA troubleshooting: manually verify level with dip tape before transducer replacement
 Motor overload after starting: mechanical binding in driven equipment

,  3-phase motor high running current above FLA = overload, not electrical fault
 GFCI interrupting current: 5-6 mA
 Aluminum stepladder forbidden for electrical work (conductive)
 Current kills in electrical shock, not voltage
 Electromagnetism: relationship between electric current and magnetic field
 Manual starter: on-off switch with overload relays
 Dielectric strength: potential difference insulation can withstand
 Ohm's Law: I = V/R, P = V × I, P = I² × R
 Instrument transformers (CTs, PTs): reduce high voltages/currents to safe values
 Hazardous Class I: flammable vapors and gases
 Nomex: best work clothing fabric for electrical work
 Leather over rubber gloves: best combination for electrical work
 Predictive maintenance: measurements on operating equipment
 Category ratings: Cat 4 for service drop, Cat 1 for protected electronics
 Megger test: applies voltage several times higher than normal for insulation resistance
MAINTENANCE MANAGEMENT & DOCUMENTATION
 Corrective work: requested, discovered during inspections, or while performing other tasks
 Logbook: documents all work performed during shift
 Preventive maintenance: ensures proper functioning of equipment, pipelines, valves
 Breakdown maintenance: run-to-failure approach, not proactive
 Job preparation: receiving instruction and planning equipment use
 Anticipating other tasks reduces emergencies
 Group job planning improves productivity
 Inventory control: monitors spare parts, tools, test instruments
 Record runtime hours at repair for baseline PM intervals
 Failure Report: equipment not operating as intended
PIPING SYSTEMS & VALVES
 Eccentric reducer on horizontal pump suction: flat side up prevents air pockets
 Globe valve: most widely used smaller sized pipe valve
 Silent check valve prevents slamming
 Pressure relief valve pilot stage plugged: causes pressure override
 Altitude valve: limits water level in elevated tanks

,  Chlorine gas flange connection: requires work permit before breaking
HYDRAULICS & PNEUMATICS
 Hydraulic cylinder internal bypass: worn piston seal causes failure to extend
 Worn pump low volumetric efficiency: slow cycles when oil hot
 Pilot-operated relief valve plugged orifice: prevents full opening, pressure override
 Relief valve set point: determines maximum system pressure
ENGINES & COMPRESSORS
 Positive displacement compressors: reciprocating and rotary types
 Engine tuning: valve clearance, regulator cleaning, points inspection, timing, control checks
 Compressor valve inspection: check carbon buildup, warpage, spring integrity
DRAWINGS & DOCUMENTATION
 P&ID: entire process system view
 Ladder diagram: PLC programming language
 Redline drawings: as-built modifications showing changes made during construction
 Blueprint reading: symbols for pumps, valves, motors, instrumentation
MATHEMATICS & CALCULATIONS
 Volume: L × W × H × 7.48 gal/cu ft
 Pump BHP = (Flow × Total Head × SG) ÷ (3960 × Efficiency)
 Motor amperage: single-phase I = P ÷ (V × PF × Eff); three-phase I = P ÷ (V × √3 × PF × Eff)
 Thermal expansion: ΔL = α × L × ΔT (α steel = 0.00000633/°F)
 Chlorine dosage: lbs = MG × mg/L × 8.34
 #12 THWN copper ampacity = 25 amps at 75°C
 Motor synchronous speed: RPM = (120 × f) ÷ P
 Cost: KWh = (Watts × Hours) ÷ 1000; Cost = KWh × rate


QUESTIONS

1. A maintenance technician discovers a pump running with excessive vibration at exactly 2×
running speed with minimal 1× amplitude. What is the most likely cause?

A) Unbalance condition
B) Angular misalignment
C) Bearing wear
D) Cavitation
