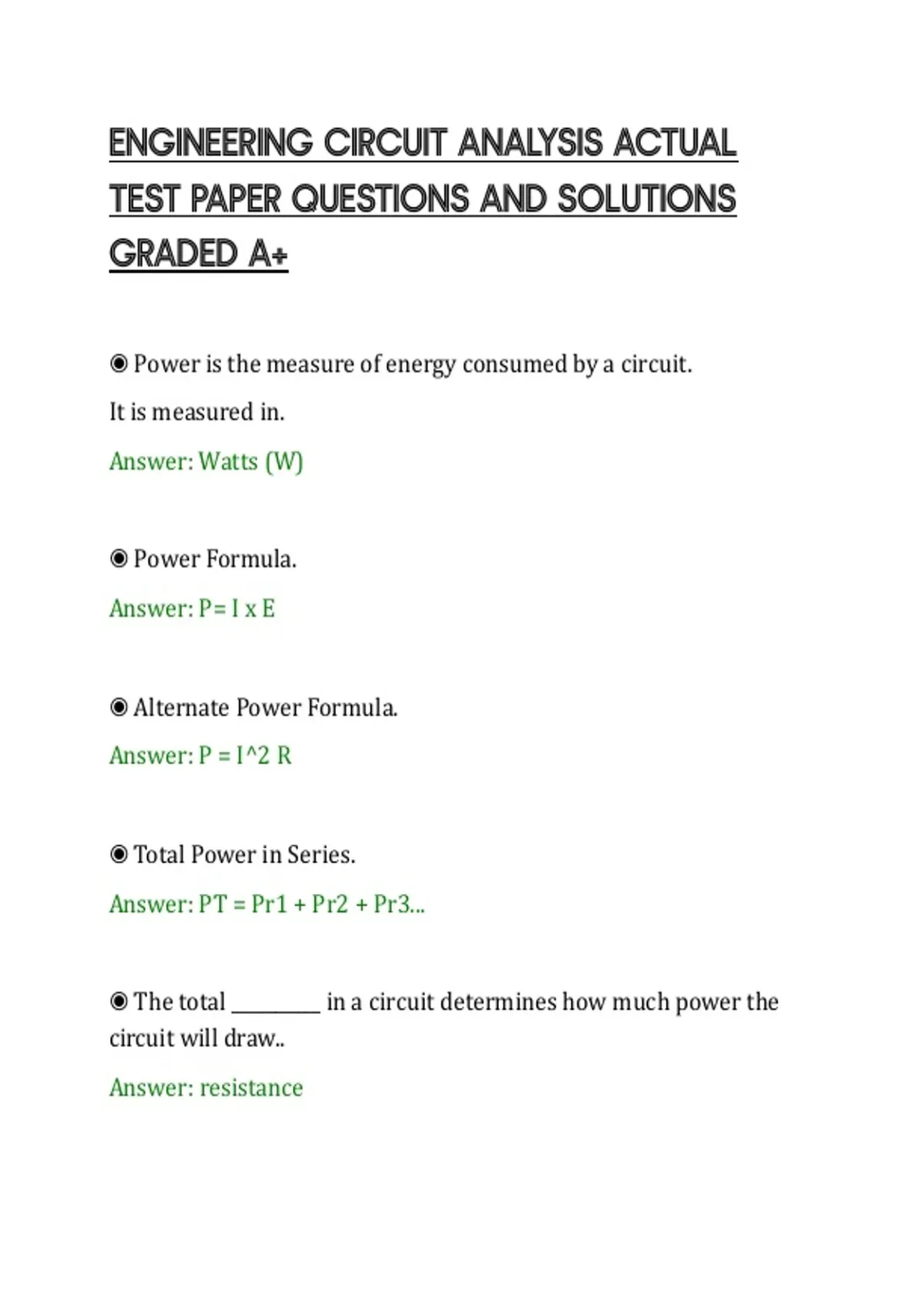

ENGINEERING CIRCUIT ANALYSIS ACTUAL TEST PAPER QUESTIONS AND SOLUTIONS GRADED A+

Content preview

ENGINEERING CIRCUIT ANALYSIS ACTUAL
TEST PAPER QUESTIONS AND SOLUTIONS
GRADED A+

◉ Power is the measure of energy consumed by a circuit.
It is measured in.
Answer: Watts (W)


◉ Power Formula.
Answer: P= I x E


◉ Alternate Power Formula.
Answer: P = I^2 R


◉ Total Power in Series.
Answer: PT = Pr1 + Pr2 + Pr3...


◉ The total __________ in a circuit determines how much power the
circuit will draw..
Answer: resistance

, ◉ The total voltage drop in a series circuit is equal to the _______ of all
the individual voltage drop..
Answer: sum


◉ Ohm's states that one volt can push one _______ through one ohm
of resistant..
Answer: amp


◉ ___________ is the measure of the energy consumes by a circuit..
Answer: Power


◉ Electrical law that states that the amount of current flowing from
the power supply is equal to the current flowing back to the power
supply..
Answer: Kirchhoff's Current Law


◉ Kirchhoff's Current Law applies to ____________ circuits.


Series
Parallel.
Answer: Both Series and Parallel
