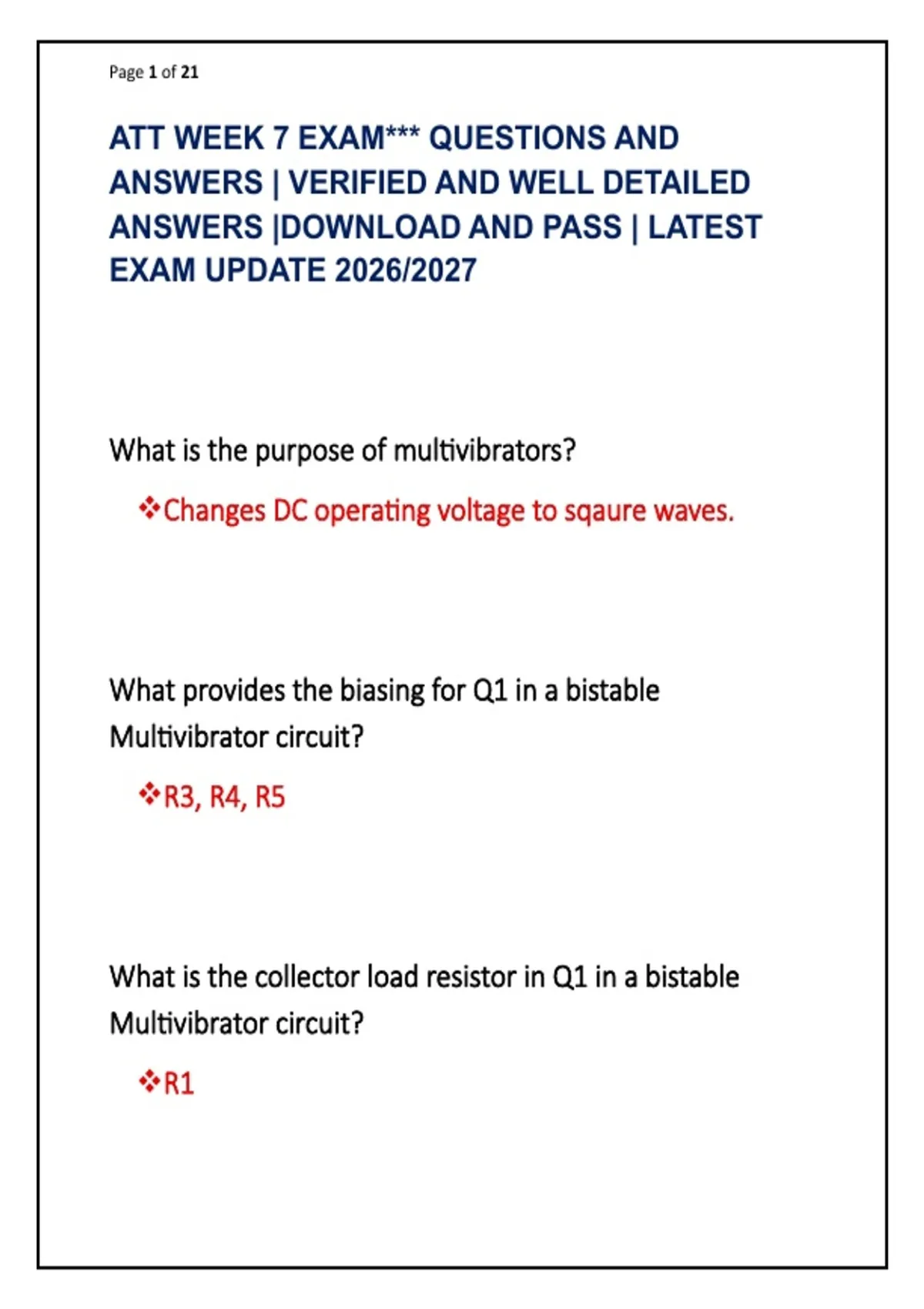

ATT WEEK 7 EXAM*** QUESTIONS AND
ANSWERS | VERIFIED AND WELL DETAILED
ANSWERS |DOWNLOAD AND PASS | LATEST
EXAM UPDATE 2026/2027




What is the purpose of multivibrators?
❖Changes DC operating voltage to sqaure waves.




What provides the biasing for Q1 in a bistable
Multivibrator circuit?
❖R3, R4, R5




What is the collector load resistor in Q1 in a bistable
Multivibrator circuit?
❖R1

,Page 2 of 21




What provides base bias for Q1 in a bistable multivibrator
Circuit?
❖R3, R5




What provides biasing for Q2 in a bistable Multivibrator
circuit?
❖R1, R2, R6




What is the collector load resistor for Q2 in a bistable
Multivibrator Circuit?
❖R4




What provides base bias for Q2 in a bistable multivibrator
circuit?
❖R2, R6

, Page 3 of 21




C1, D1, C4, and D2 in a bistable Multivibrator circuit are
used for...
❖Input trigger pulse




What is the output frequency of a bistable Multivibrator
circuit?
❖Half of the input frequency




What is the first step in Multivibrator TS?
❖Check output




What is the second step in Multivibrator TS?
❖Check input
