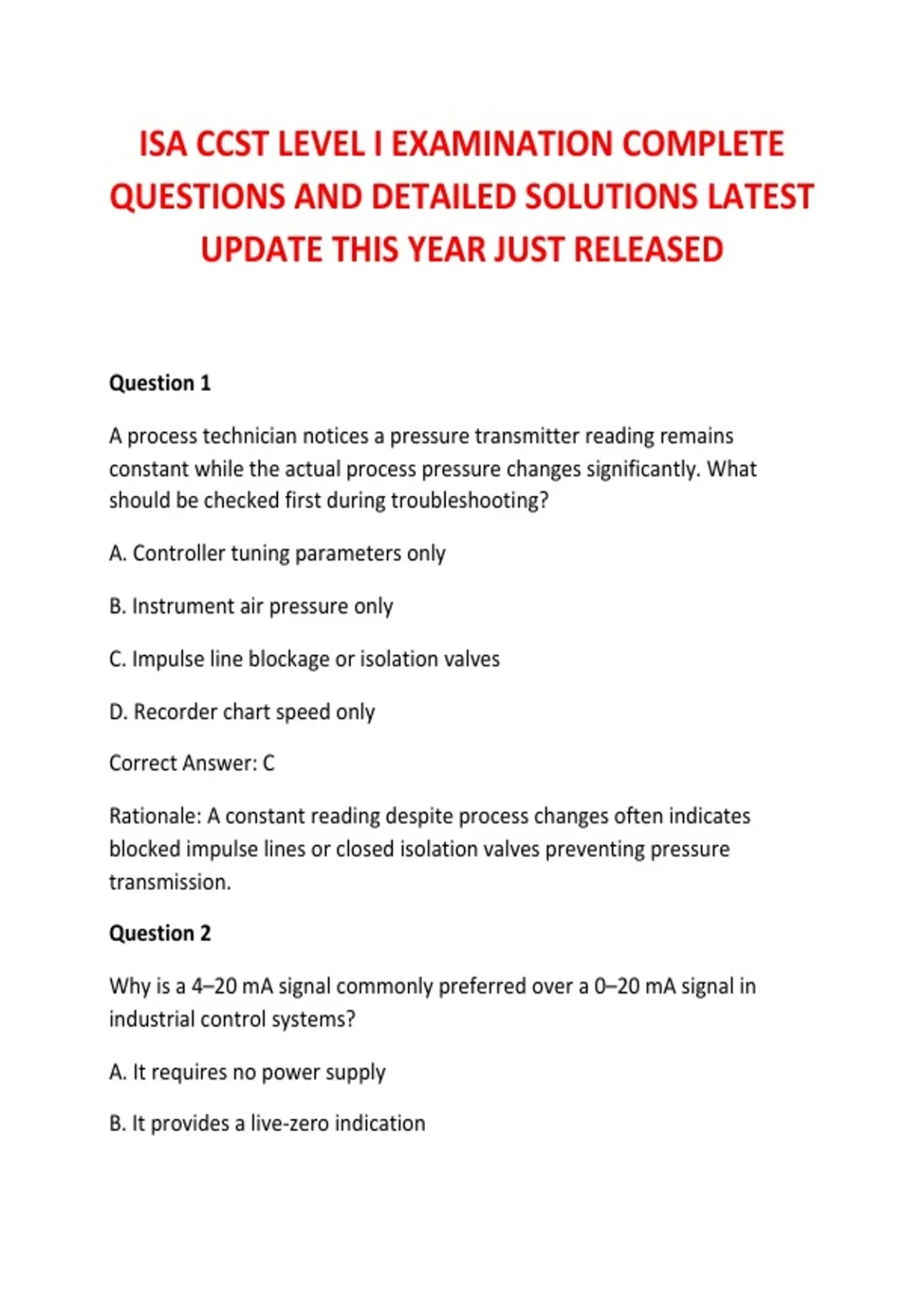

ISA CCST LEVEL I EXAMINATION COMPLETE
QUESTIONS AND DETAILED SOLUTIONS LATEST
UPDATE THIS YEAR JUST RELEASED
Question 1
A process technician notices a pressure transmitter reading remains
constant while the actual process pressure changes significantly. What
should be checked first during troubleshooting?
A. Controller tuning parameters only
B. Instrument air pressure only
C. Impulse line blockage or isolation valves
D. Recorder chart speed only
Correct Answer: C
Rationale: A constant reading despite process changes often indicates
blocked impulse lines or closed isolation valves preventing pressure
transmission.
Question 2
Why is a 4–20 mA signal commonly preferred over a 0–20 mA signal in
industrial control systems?
A. It requires no power supply
B. It provides a live-zero indication
,C. It eliminates calibration requirements
D. It doubles measurement accuracy
Correct Answer: B
Rationale: The 4 mA live zero allows detection of open circuits and
distinguishes zero measurement from signal failure.
Question 3
A thermocouple measures temperature by generating a voltage due to
which physical phenomenon?
A. Hall effect
B. Piezoelectric effect
C. Seebeck effect
D. Photoelectric effect
Correct Answer: C
Rationale: The Seebeck effect produces a small voltage when two dissimilar
metals experience a temperature difference.
Question 4
Before removing a field-mounted control valve for maintenance, which
safety action should be completed first?
A. Increase controller gain
B. Bypass or isolate the process safely
C. Remove the valve positioner
D. Open the valve fully
,Correct Answer: B
Rationale: Safe process isolation prevents uncontrolled flow, pressure
release, and potential injury during valve maintenance.
Question 5
What is the primary purpose of grounding instrument shields at one end
only?
A. Increase signal voltage
B. Prevent ground loop currents
C. Reduce conductor resistance
D. Improve pneumatic response
Correct Answer: B
Rationale: Single-point grounding minimizes circulating ground currents that
can introduce electrical noise into measurement signals.
Question 6
A differential pressure transmitter used for flow measurement is installed
below the pipe on a liquid service. Why is this location generally preferred?
A. Easier wiring access
B. Keeps impulse lines filled with liquid
C. Increases transmitter span
D. Reduces process pressure
Correct Answer: B
, Rationale: Installing below the pipe helps maintain liquid-filled impulse lines,
improving measurement stability and accuracy.
Question 7
Which document shows the complete path of an instrument signal from the
field device to the control system?
A. Equipment layout drawing
B. Mechanical isometric drawing
C. Loop diagram
D. Civil foundation drawing
Correct Answer: C
Rationale: Loop diagrams provide detailed wiring, terminals, junction boxes,
and signal routing information for instrumentation circuits.
Question 8
A controller output oscillates continuously with a constant amplitude after a
tuning change. Which parameter is most likely excessive?
A. Integral time
B. Derivative time
C. Proportional gain
D. Filter setting
Correct Answer: C
Rationale: Excessive proportional gain commonly causes sustained
oscillations because the controller reacts too aggressively to error changes.
