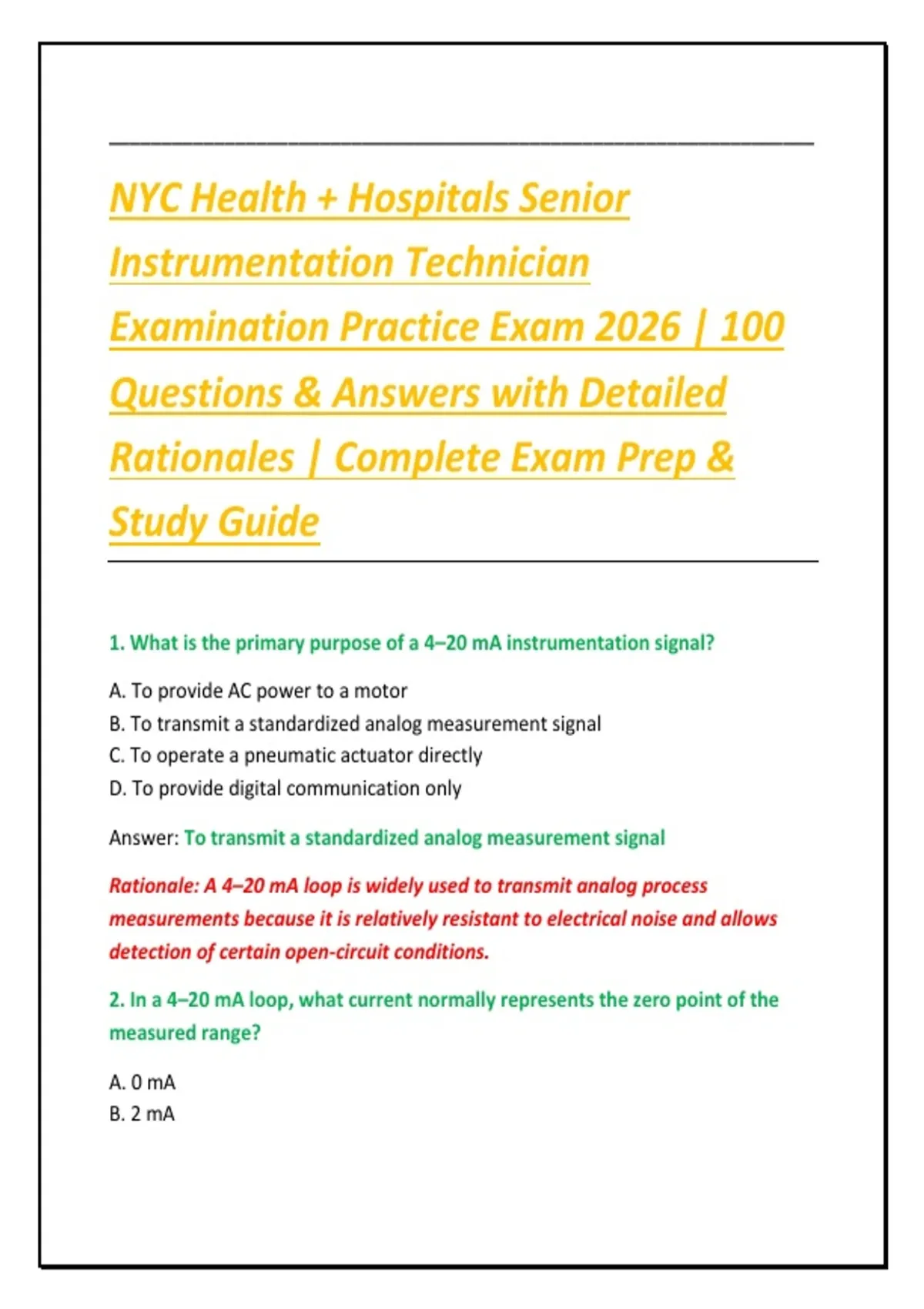

NYC Health + Hospitals Senior
Instrumentation Technician
Examination Practice Exam 2026 | 100
Questions & Answers with Detailed
Rationales | Complete Exam Prep &
Study Guide
1. What is the primary purpose of a 4–20 mA instrumentation signal?
A. To provide AC power to a motor
B. To transmit a standardized analog measurement signal
C. To operate a pneumatic actuator directly
D. To provide digital communication only
Answer: To transmit a standardized analog measurement signal
Rationale: A 4–20 mA loop is widely used to transmit analog process
measurements because it is relatively resistant to electrical noise and allows
detection of certain open-circuit conditions.
2. In a 4–20 mA loop, what current normally represents the zero point of the
measured range?
A. 0 mA
B. 2 mA
,C. 4 mA
D. 20 mA
Answer: 4 mA
Rationale: The live-zero convention uses 4 mA for the lower range value and 20
mA for the upper range value.
3. A pressure transmitter has a range of 0–100 psi. What pressure should a
properly calibrated transmitter indicate at 12 mA?
A. 25 psi
B. 40 psi
C. 50 psi
D. 75 psi
Answer: 50 psi
Rationale: The span from 4 to 20 mA represents 0–100 psi. Twelve milliamps is
halfway between 4 and 20 mA, so the reading should be 50 psi.
4. What instrument is commonly used to measure electrical current in a control
loop?
A. Megohmmeter
B. Ammeter
C. Oscilloscope only
D. Tachometer
Answer: Ammeter
Rationale: An ammeter measures electrical current. For a 4–20 mA loop, a
properly connected milliammeter can verify loop current.
5. What is the main purpose of calibration?
A. To increase equipment size
B. To compare an instrument against a known standard and adjust it when
,necessary
C. To eliminate all electrical wiring
D. To replace preventive maintenance
Answer: To compare an instrument against a known standard and adjust it
when necessary
Rationale: Calibration establishes the relationship between an instrument's
indication and a recognized reference standard.
6. What does a thermocouple primarily measure?
A. Pressure
B. Temperature
C. Flow
D. Liquid level
Answer: Temperature
Rationale: A thermocouple produces a small voltage related to the temperature
difference between its measuring junction and reference junction.
7. Which device commonly converts a physical process variable into an electrical
signal?
A. Transducer
B. Fuse
C. Contactor
D. Transformer only
Answer: Transducer
Rationale: A transducer converts one form of energy or physical quantity into
another, such as converting pressure into an electrical signal.
8. What is the purpose of a pressure transmitter?
, A. To measure and transmit pressure information
B. To cool compressed air
C. To mechanically open every valve
D. To generate steam
Answer: To measure and transmit pressure information
Rationale: A pressure transmitter senses pressure and converts it into a
standardized output signal for monitoring or control.
9. What is the function of a control valve?
A. To store electrical energy
B. To regulate process flow
C. To measure resistance
D. To provide grounding only
Answer: To regulate process flow
Rationale: A control valve changes the flow of a process fluid in response to a
control signal.
10. What is a common failure symptom of a broken thermocouple circuit?
A. Infinite or unusually high resistance
B. Zero pressure
C. Increased lubrication
D. Higher water flow
Answer: Infinite or unusually high resistance
Rationale: An open thermocouple circuit interrupts the measurement path and
typically produces an open-circuit condition.
11. What is the purpose of a loop calibrator?
A. To clean pneumatic tubing
B. To source or measure standardized instrumentation signals
