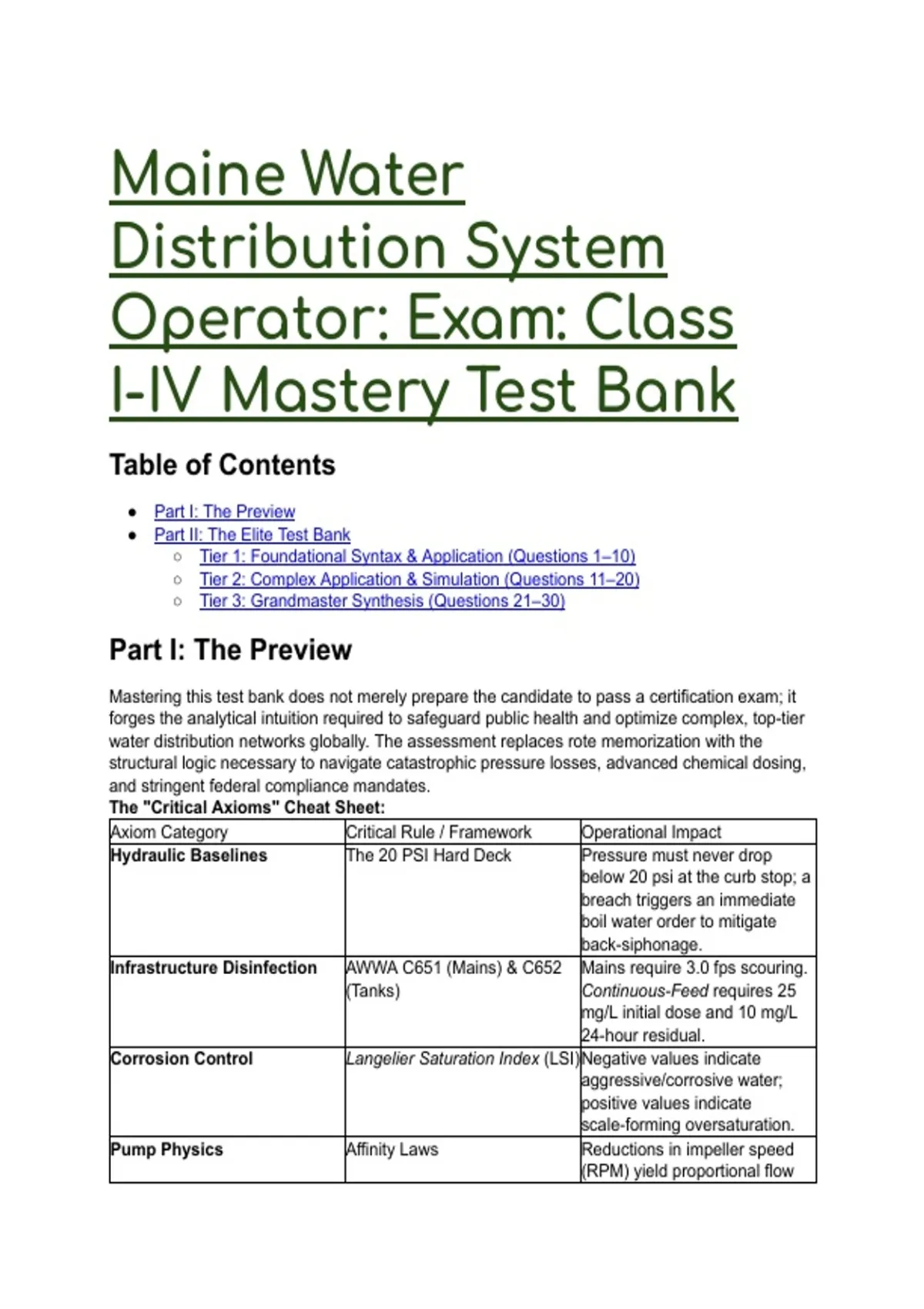

Maine Water
Distribution System
Operator: Exam: Class
I-IV Mastery Test Bank
Table of Contents
● Part I: The Preview
● Part II: The Elite Test Bank
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
Part I: The Preview
Mastering this test bank does not merely prepare the candidate to pass a certification exam; it
forges the analytical intuition required to safeguard public health and optimize complex, top-tier
water distribution networks globally. The assessment replaces rote memorization with the
structural logic necessary to navigate catastrophic pressure losses, advanced chemical dosing,
and stringent federal compliance mandates.
The "Critical Axioms" Cheat Sheet:
Axiom Category Critical Rule / Framework Operational Impact
Hydraulic Baselines The 20 PSI Hard Deck Pressure must never drop
below 20 psi at the curb stop; a
breach triggers an immediate
boil water order to mitigate
back-siphonage.
Infrastructure Disinfection AWWA C651 (Mains) & C652 Mains require 3.0 fps scouring.
(Tanks) Continuous-Feed requires 25
mg/L initial dose and 10 mg/L
24-hour residual.
Corrosion Control Langelier Saturation Index (LSI) Negative values indicate
aggressive/corrosive water;
positive values indicate
scale-forming oversaturation.
Pump Physics Affinity Laws Reductions in impeller speed
(RPM) yield proportional flow
,Axiom Category Critical Rule / Framework Operational Impact
drops, squared head drops,
and cubed power reductions.
Federal Mandates LCRR / LCRI Classifications Service lines must strictly be
classified as Lead, Galvanized
Requiring Replacement (GRR),
Unknown, or Non-Lead.
Part II: The Elite Test Bank
Tier 1: Foundational Syntax & Application (Questions 1–10)
Q1: A Class II water distribution system experiences a severe main break, causing the pressure
at several curb stops in a residential neighborhood to drop to 14 psi. Based on the principles of
the Maine Drinking Water Program regulations, which action is the IMMEDIATE priority? A)
Dispatch a crew to hyper-chlorinate the isolated section using the Slug Method at 50 mg/L. B)
Increase the system's pumping rate to restore pressure to 35 psi before investigating the break.
C) Issue a precautionary Boil Water Order for the affected area and notify the Maine Drinking
Water Program. D) Perform a Level 1 RTCR Assessment to identify potential sanitary defects in
the storage tank.
● Answer/Respuesta/Réponse: C (Issue a precautionary Boil Water Order for the affected
area and notify the Maine Drinking Water Program.)
● Distractor Analysis:
○ A is incorrect: While chemical disinfection will be required after the physical repair
per AWWA C651, it is not the immediate first action. Public health notification
supersedes maintenance protocols.
○ B is incorrect: Blindly increasing pumping rates into a ruptured main will exacerbate
infrastructure damage, flood the area, and fail to mitigate the biological backflow
contamination risk that has already occurred.
○ D is incorrect: A Level 1 Assessment is triggered by positive total coliform samples
under the Revised Total Coliform Rule, not strictly by a hydraulic pressure drop.
The Mentor's Analysis: A distribution system's physical integrity relies entirely on positive
pressure. When pressure falls below the regulatory hard deck of 20 psi, the hydraulic gradient
reverses, allowing groundwater, non-potable cross-connections, and pathogens to be siphoned
directly into the potable supply. By issuing a Boil Water Order, the operator bypasses the novice
error of attempting to quietly fix the problem while the public unknowingly consumes potentially
contaminated water. Professional/Academic Intuition: Never compromise the 20 psi hard
deck; pressure loss is inherently treated as an acute biological contamination event.
Q2: When commissioning a newly installed 8-inch ductile iron water main, the operator opts for
the AWWA C651 Continuous-Feed Method of disinfection. To meet compliance standards, what
is the MINIMUM acceptable free chlorine residual after the 24-hour contact period? A) 0.2 mg/L
B) 10.0 mg/L C) 25.0 mg/L D) 50.0 mg/L
● Answer/Respuesta/Réponse: B (10.0 mg/L)
● Distractor Analysis:
○ A is incorrect: 0.2 mg/L is the standard minimum residual for normal, active
distribution operation in many jurisdictions to maintain a trace barrier, not the
rigorous requirement for new main disinfection.
○ C is incorrect: 25.0 mg/L is the initial target dose applied during the
, Continuous-Feed Method, not the required residual after the 24-hour depletion
period.
○ D is incorrect: 50.0 mg/L is the residual target associated with the 3-hour Slug
Method, which utilizes a higher concentration for a significantly shorter duration.
The Mentor's Analysis: Disinfection of new infrastructure is a war of attrition against biofilm
and pathogens introduced during trenching. The Continuous-Feed Method requires an initial
assault of 25 mg/L, but organic demand will consume a portion of this halogen. AWWA C651
dictates that if the residual drops below 10 mg/L after 24 hours, the biological demand was too
high, and the main remains unsafe. Professional/Academic Intuition: A 24-hour residual of
less than 10 mg/L during continuous-feed commissioning invalidates the disinfection
process, mandating immediate re-chlorination.
Q3: To adequately prepare a new pipeline for disinfection, the main must be flushed to remove
construction debris, pipe oils, and sediment. According to AWWA C651, what is the MINIMUM
recommended water velocity required to achieve sufficient scouring? A) 1.5 feet per second
(fps) B) 2.0 feet per second (fps) C) 3.0 feet per second (fps) D) 5.0 feet per second (fps)
● Answer/Respuesta/Réponse: C (3.0 feet per second (fps))
● Distractor Analysis:
○ A is incorrect: 1.5 fps is hydraulically insufficient to lift heavy particulates like sand,
gravel, and metal shavings out of the pipe invert.
○ B is incorrect: 2.0 fps is often used for routine distribution system flushing to refresh
water age, but it lacks the kinetic energy required for the heavy scouring of newly
installed mains.
○ D is incorrect: While 5.0 fps provides excellent scouring and is utilized by some
internal utility policies, AWWA C651 explicitly sets the universal baseline minimum
at 3.0 fps.
The Mentor's Analysis: Disinfection chemicals cannot penetrate heavy layers of sediment or
construction grease. If the operator fails to physically scour the pipe, the halogen will merely
disinfect the outer layer of the sediment, leaving pathogens shielded underneath. Generating a
minimum velocity of 3.0 fps ensures the turbulent flow necessary to suspend and expel heavy
debris prior to chemical injection. Professional/Academic Intuition: Chemical disinfection is
useless without prior mechanical scouring; 3.0 fps is the undeniable floor for
pre-commissioning flushing.
Q4: A municipality relies heavily on a 500,000-gallon non-pressurized potable water storage
tank. After completing routine interior painting and allowing it to cure, the operator must disinfect
the tank using AWWA C652 Method 2. Which procedure is the MOST ACCURATE application
of this standard? A) Filling the tank completely with water and adding sodium hypochlorite to
achieve a 10 mg/L residual for 24 hours. B) Spraying all interior water-contact surfaces with a
200 mg/L free chlorine solution and allowing a 30-minute contact time. C) Filling the bottom 5%
of the tank with 50 mg/L chlorine, waiting 6 hours, and then filling the remainder of the tank. D)
Applying a 25 mg/L chlorine gas solution directly into the fill line until the tank reaches the
overflow elevation.
● Answer/Respuesta/Réponse: B (Spraying all interior water-contact surfaces with a 200
mg/L free chlorine solution and allowing a 30-minute contact time.)
● Distractor Analysis:
○ A is incorrect: This perfectly describes AWWA C652 Method 1, which requires filling
the entire tank volume and holding it for 24 hours (or 6 hours if gas-fed) to achieve
a 10 mg/L residual.
○ C is incorrect: This describes AWWA C652 Method 3, a two-step process utilizing a
