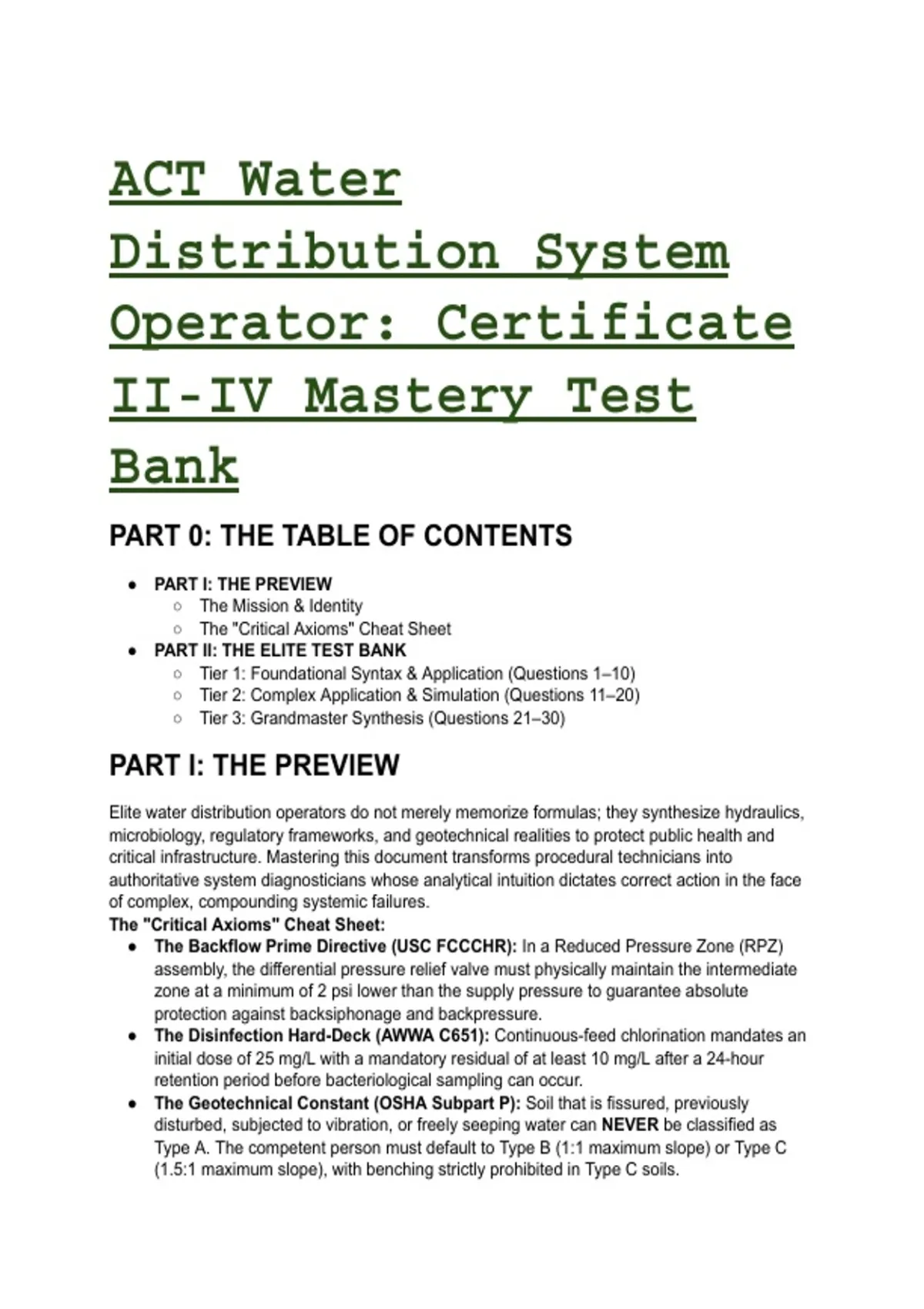

ACT Water
Distribution System
Operator: Certificate
II-IV Mastery Test
Bank
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Mission & Identity
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
Elite water distribution operators do not merely memorize formulas; they synthesize hydraulics,
microbiology, regulatory frameworks, and geotechnical realities to protect public health and
critical infrastructure. Mastering this document transforms procedural technicians into
authoritative system diagnosticians whose analytical intuition dictates correct action in the face
of complex, compounding systemic failures.
The "Critical Axioms" Cheat Sheet:
● The Backflow Prime Directive (USC FCCCHR): In a Reduced Pressure Zone (RPZ)
assembly, the differential pressure relief valve must physically maintain the intermediate
zone at a minimum of 2 psi lower than the supply pressure to guarantee absolute
protection against backsiphonage and backpressure.
● The Disinfection Hard-Deck (AWWA C651): Continuous-feed chlorination mandates an
initial dose of 25 mg/L with a mandatory residual of at least 10 mg/L after a 24-hour
retention period before bacteriological sampling can occur.
● The Geotechnical Constant (OSHA Subpart P): Soil that is fissured, previously
disturbed, subjected to vibration, or freely seeping water can NEVER be classified as
Type A. The competent person must default to Type B (1:1 maximum slope) or Type C
(1.5:1 maximum slope), with benching strictly prohibited in Type C soils.
, ● The Hydrostatic Law (AWWA C600): Allowable pipeline leakage is an absolute
mathematical boundary defined as L = SD\sqrt{P} / 133,200. Test pressure must be
maintained at a minimum of 1.5 times the working pressure for exactly two hours.
● The Efficiency Benchmark (WASREB): Under Kenyan regulatory standards, a
Non-Revenue Water (NRW) ratio of <20% is categorized as "good." The reduction of both
Apparent Losses (commercial) and Real Losses (physical leakages) is non-negotiable for
sustainable utility survival.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A newly installed 8-inch ductile iron water main in Kajiado County requires disinfection prior
to commissioning. The installation team utilizes the Continuous Feed Method. According to
AWWA C651, which combination of initial dosage and 24-hour retention residual is the MOST
ACCURATE requirement for this procedure? A) Initial concentration of 100 mg/L with a residual
of 50 mg/L after 3 hours. B) Initial concentration of 50 mg/L with a detectable residual of 25
mg/L after 24 hours. C) Initial concentration of 25 mg/L with a residual of 10 mg/L after 24
hours. D) Initial concentration of 10 mg/L with a residual of 2 mg/L after 24 hours.
● Answer: C (Initial concentration of 25 mg/L with a residual of 10 mg/L after 24 hours.)
● Distractor Analysis:
○ A is incorrect: This describes the Slug Method, which utilizes a highly concentrated
100 mg/L dose for a short 3-hour duration, primarily used for long, large-diameter
transmission mains to reduce highly chlorinated waste.
○ B is incorrect: This mimics the Tablet Method parameters, which requires an initial
25-50 mg/L dose but necessitates a detectable residual of 25 mg/L (or ≥0.2 mg/L in
some specific local agency modifications) after 24 hours, as it cannot be
pre-flushed.
○ D is incorrect: This describes the Complete Fill Method specifically engineered for
storage tank disinfection, not distribution main disinfection.
The Mentor's Analysis: Disinfection protocols are heavily standardized because biological
contamination represents a zero-tolerance failure. The Continuous Feed Method relies on a
sustained oxidative state, balancing a moderate initial dose against the natural chlorine demand
of the newly laid pipe environment over a 24-hour period. By utilizing the Continuous Feed
Method, the operator bypasses the common trap of inadequate flushing associated with tablet
disinfection. Professional/Academic Intuition: AWWA C651 dictates that if the free chlorine
residual drops below 10 mg/L after 24 hours using the continuous feed method, the
oxidative barrier has failed, and re-chlorination is strictly required.
Q2: When calculating the allowable leakage during a hydrostatic pressure test on a newly
constructed PVC water main using the AWWA C600/C605 formula (L = SD\sqrt{P} / 133,200),
the variable "P" represents the MOST ACCURATE measurement of which parameter? A) The
maximum specified working pressure of the system in pounds per square inch. B) The peak
surge pressure calculated during expected water hammer transient conditions. C) The average
test pressure applied during the leakage test in pounds per square inch. D) The initial test
pressure mathematically multiplied by a mandatory safety factor of 1.5.
● Answer: C (The average test pressure applied during the leakage test in pounds per
square inch.)
, ● Distractor Analysis:
○ A is incorrect: Allowable leakage is a strict function of the actual physical pressure
applied during the test protocol, not the theoretical, steady-state working pressure
of the system.
○ B is incorrect: Surge pressures (water hammer) are instantaneous transient events
and are wholly irrelevant to sustained hydrostatic volumetric testing calculations.
○ D is incorrect: While the test pressure itself is generally calculated as 1.5 times the
working pressure, the variable "P" in the formula strictly represents the empirical
average test pressure observed on the gauge during the duration of the test.
The Mentor's Analysis: The hydrostatic testing formula defines the maximum physical
tolerance for joint seepage under elevated pipeline stress. Misidentifying the input variables
compromises the integrity of the test, leading to the hazardous acceptance of failing
infrastructure. When facing hydrostatic validation, the immediate priority is applying the correct
empirical variables to the standard formula. Professional/Academic Intuition: Hydrostatic
tests do not demand absolute zero leakage; they demand predictable, mathematically
bounded leakage strictly governed by the square root of the average applied test
pressure.
Q3: A competent person is evaluating a trench excavated for a pipe repair. The soil is visually
identified as hard, dense clay with a measured unconfined compressive strength of 1.7 tsf.
However, the trench is situated directly adjacent to a heavily trafficked highway, subjecting the
sidewalls to constant mechanical vibration. According to OSHA Subpart P, what is the MOST
APPROPRIATE soil classification? A) Type A B) Type B C) Type C D) Stable Rock
● Answer: B (Type B)
● Distractor Analysis:
○ A is incorrect: Although the soil has an unconfined compressive strength greater
than 1.5 tsf and is cohesive clay, the presence of active environmental vibration
immediately downgrades the soil from Type A.
○ C is incorrect: Type C soil requires a compressive strength of 0.5 tsf or less, or must
contain freely seeping water or submerged granular matrices. Vibration alone acting
on dense clay does not downgrade it to the lowest stability tier.
○ D is incorrect: Stable rock strictly refers to natural solid mineral matter that can be
excavated with vertical sides, which does not apply to clay deposits.
The Mentor's Analysis: Geotechnical stability is highly sensitive to external kinetic forces.
While cohesive clay initially exhibits high internal shear strength, continuous mechanical
vibration disrupts inter-particle bonds, accelerating the risk of a catastrophic shear plane failure.
Soil Classification Compressive Strength (tsf) Maximum Allowable Slope
Type A \ge 1.5 3/4:1 (53 degrees)
Type B 0.5 - 1.5 1:1 (45 degrees)
Type C \le 0.5 1.5:1 (34 degrees)
Professional/Academic Intuition: A trench is only as stable as its weakest operational
variable; any fissuring, prior disturbance, or active vibration permanently eliminates a
Type A classification.
Q4: A water utility in Ngong is experiencing severe mechanical noise, often described as rapid
"chattering" or "buzzing," from a Pressure Reducing Valve (PRV) in the distribution network.
This specific noise exclusively occurs between 1:00 AM and 4:00 AM. Which hydraulic
phenomenon is PRIMARILY responsible for this localized instability? A) Excessive inlet
pressure causing extreme fluid velocity and destructive cavitation. B) Flow starvation due to an
