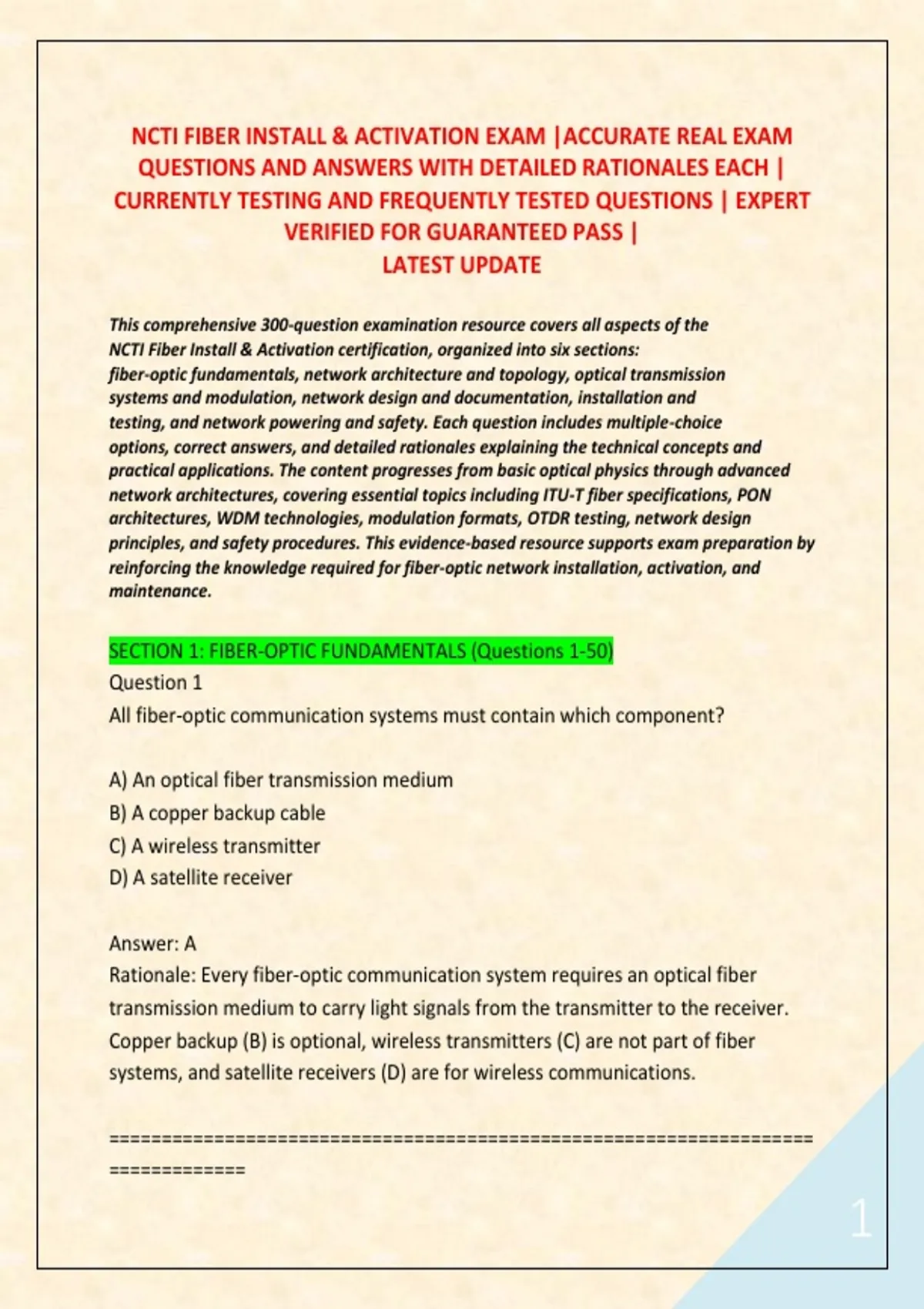

NCTI FIBER INSTALL & ACTIVATION EXAM |ACCURATE REAL EXAM
QUESTIONS AND ANSWERS WITH DETAILED RATIONALES EACH |
CURRENTLY TESTING AND FREQUENTLY TESTED QUESTIONS | EXPERT
VERIFIED FOR GUARANTEED PASS |
LATEST UPDATE
This comprehensive 300-question examination resource covers all aspects of the
NCTI Fiber Install & Activation certification, organized into six sections:
fiber-optic fundamentals, network architecture and topology, optical transmission
systems and modulation, network design and documentation, installation and
testing, and network powering and safety. Each question includes multiple-choice
options, correct answers, and detailed rationales explaining the technical concepts and
practical applications. The content progresses from basic optical physics through advanced
network architectures, covering essential topics including ITU-T fiber specifications, PON
architectures, WDM technologies, modulation formats, OTDR testing, network design
principles, and safety procedures. This evidence-based resource supports exam preparation by
reinforcing the knowledge required for fiber-optic network installation, activation, and
maintenance.
SECTION 1: FIBER-OPTIC FUNDAMENTALS (Questions 1-50)
Question 1
All fiber-optic communication systems must contain which component?
A) An optical fiber transmission medium
B) A copper backup cable
C) A wireless transmitter
D) A satellite receiver
Answer: A
Rationale: Every fiber-optic communication system requires an optical fiber
transmission medium to carry light signals from the transmitter to the receiver.
Copper backup (B) is optional, wireless transmitters (C) are not part of fiber
systems, and satellite receivers (D) are for wireless communications.
===================================================================
=============
1
,Question 2
What is the core principle behind total internal reflection in optical fibers?
A) Light bends away from the normal when entering a denser medium
B) Light reflects completely at the boundary when the incident angle exceeds the
critical angle
C) Light passes through the cladding without any reflection
D) Light is absorbed by the core material
Answer: B
Rationale: Total internal reflection occurs when light traveling in a denser medium
(core) strikes the boundary with a less dense medium (cladding) at an angle
greater than the critical angle. This causes 100% reflection back into the core,
enabling light transmission along the fiber.
===================================================================
=============
Question 3
Which wavelength range is most commonly used in single-mode fiber-optic
communications?
A) 850 nm
B) 1310 nm and 1550 nm
C) 650 nm
D) 980 nm
Answer: B
Rationale: Single-mode fiber operates primarily at 1310 nm and 1550 nm
wavelengths due to low attenuation and dispersion characteristics. 850 nm (A) is
used for multimode fiber. 650 nm (C) is visible light, and 980 nm (D) is used for
pump lasers in amplifiers.
2
,===================================================================
=============
Question 4
What is the typical core diameter of a single-mode fiber?
A) 50 microns
B) 62.5 microns
C) 8-10 microns
D) 100 microns
Answer: C
Rationale: Single-mode fiber has a small core diameter of approximately 8-10
microns, which allows only one mode of light to propagate. Multimode fibers (A
and B) have larger core diameters of 50 or 62.5 microns.
===================================================================
=============
Question 5
The cladding in an optical fiber serves which primary purpose?
A) To carry the optical signal
B) To provide mechanical strength
C) To confine light within the core through a lower refractive index
D) To protect against moisture
Answer: C
Rationale: The cladding has a lower refractive index than the core, which creates
the conditions for total internal reflection and confines light within the core.
Mechanical strength (B) is provided by buffer coatings and strength members.
3
, ===================================================================
=============
Question 6
What is the primary cause of attenuation in optical fibers?
A) Absorption and scattering
B) Electrical interference
C) Mechanical stress only
D) Temperature changes only
Answer: A
Rationale: Attenuation (signal loss) in optical fibers is primarily caused by
absorption (material impurities absorbing light) and scattering (Rayleigh
scattering). Electrical interference (B) does not affect optical fibers, and
mechanical stress (C) causes microbending losses but is not the primary cause.
===================================================================
=============
Question 7
What is the difference between single-mode and multimode fiber?
A) Single-mode has a larger core and supports multiple light paths
B) Single-mode has a smaller core and supports one light path
C) Multimode has a smaller core and supports one light path
D) There is no difference
Answer: B
Rationale: Single-mode fiber has a small core (8-10 microns) that supports only
one propagation mode, allowing longer transmission distances. Multimode fiber
has a larger core (50 or 62.5 microns) that supports multiple modes but has
higher dispersion.
4
QUESTIONS AND ANSWERS WITH DETAILED RATIONALES EACH |
CURRENTLY TESTING AND FREQUENTLY TESTED QUESTIONS | EXPERT
VERIFIED FOR GUARANTEED PASS |
LATEST UPDATE
This comprehensive 300-question examination resource covers all aspects of the
NCTI Fiber Install & Activation certification, organized into six sections:
fiber-optic fundamentals, network architecture and topology, optical transmission
systems and modulation, network design and documentation, installation and
testing, and network powering and safety. Each question includes multiple-choice
options, correct answers, and detailed rationales explaining the technical concepts and
practical applications. The content progresses from basic optical physics through advanced
network architectures, covering essential topics including ITU-T fiber specifications, PON
architectures, WDM technologies, modulation formats, OTDR testing, network design
principles, and safety procedures. This evidence-based resource supports exam preparation by
reinforcing the knowledge required for fiber-optic network installation, activation, and
maintenance.
SECTION 1: FIBER-OPTIC FUNDAMENTALS (Questions 1-50)
Question 1
All fiber-optic communication systems must contain which component?
A) An optical fiber transmission medium
B) A copper backup cable
C) A wireless transmitter
D) A satellite receiver
Answer: A
Rationale: Every fiber-optic communication system requires an optical fiber
transmission medium to carry light signals from the transmitter to the receiver.
Copper backup (B) is optional, wireless transmitters (C) are not part of fiber
systems, and satellite receivers (D) are for wireless communications.
===================================================================
=============
1
,Question 2
What is the core principle behind total internal reflection in optical fibers?
A) Light bends away from the normal when entering a denser medium
B) Light reflects completely at the boundary when the incident angle exceeds the
critical angle
C) Light passes through the cladding without any reflection
D) Light is absorbed by the core material
Answer: B
Rationale: Total internal reflection occurs when light traveling in a denser medium
(core) strikes the boundary with a less dense medium (cladding) at an angle
greater than the critical angle. This causes 100% reflection back into the core,
enabling light transmission along the fiber.
===================================================================
=============
Question 3
Which wavelength range is most commonly used in single-mode fiber-optic
communications?
A) 850 nm
B) 1310 nm and 1550 nm
C) 650 nm
D) 980 nm
Answer: B
Rationale: Single-mode fiber operates primarily at 1310 nm and 1550 nm
wavelengths due to low attenuation and dispersion characteristics. 850 nm (A) is
used for multimode fiber. 650 nm (C) is visible light, and 980 nm (D) is used for
pump lasers in amplifiers.
2
,===================================================================
=============
Question 4
What is the typical core diameter of a single-mode fiber?
A) 50 microns
B) 62.5 microns
C) 8-10 microns
D) 100 microns
Answer: C
Rationale: Single-mode fiber has a small core diameter of approximately 8-10
microns, which allows only one mode of light to propagate. Multimode fibers (A
and B) have larger core diameters of 50 or 62.5 microns.
===================================================================
=============
Question 5
The cladding in an optical fiber serves which primary purpose?
A) To carry the optical signal
B) To provide mechanical strength
C) To confine light within the core through a lower refractive index
D) To protect against moisture
Answer: C
Rationale: The cladding has a lower refractive index than the core, which creates
the conditions for total internal reflection and confines light within the core.
Mechanical strength (B) is provided by buffer coatings and strength members.
3
, ===================================================================
=============
Question 6
What is the primary cause of attenuation in optical fibers?
A) Absorption and scattering
B) Electrical interference
C) Mechanical stress only
D) Temperature changes only
Answer: A
Rationale: Attenuation (signal loss) in optical fibers is primarily caused by
absorption (material impurities absorbing light) and scattering (Rayleigh
scattering). Electrical interference (B) does not affect optical fibers, and
mechanical stress (C) causes microbending losses but is not the primary cause.
===================================================================
=============
Question 7
What is the difference between single-mode and multimode fiber?
A) Single-mode has a larger core and supports multiple light paths
B) Single-mode has a smaller core and supports one light path
C) Multimode has a smaller core and supports one light path
D) There is no difference
Answer: B
Rationale: Single-mode fiber has a small core (8-10 microns) that supports only
one propagation mode, allowing longer transmission distances. Multimode fiber
has a larger core (50 or 62.5 microns) that supports multiple modes but has
higher dispersion.
4
