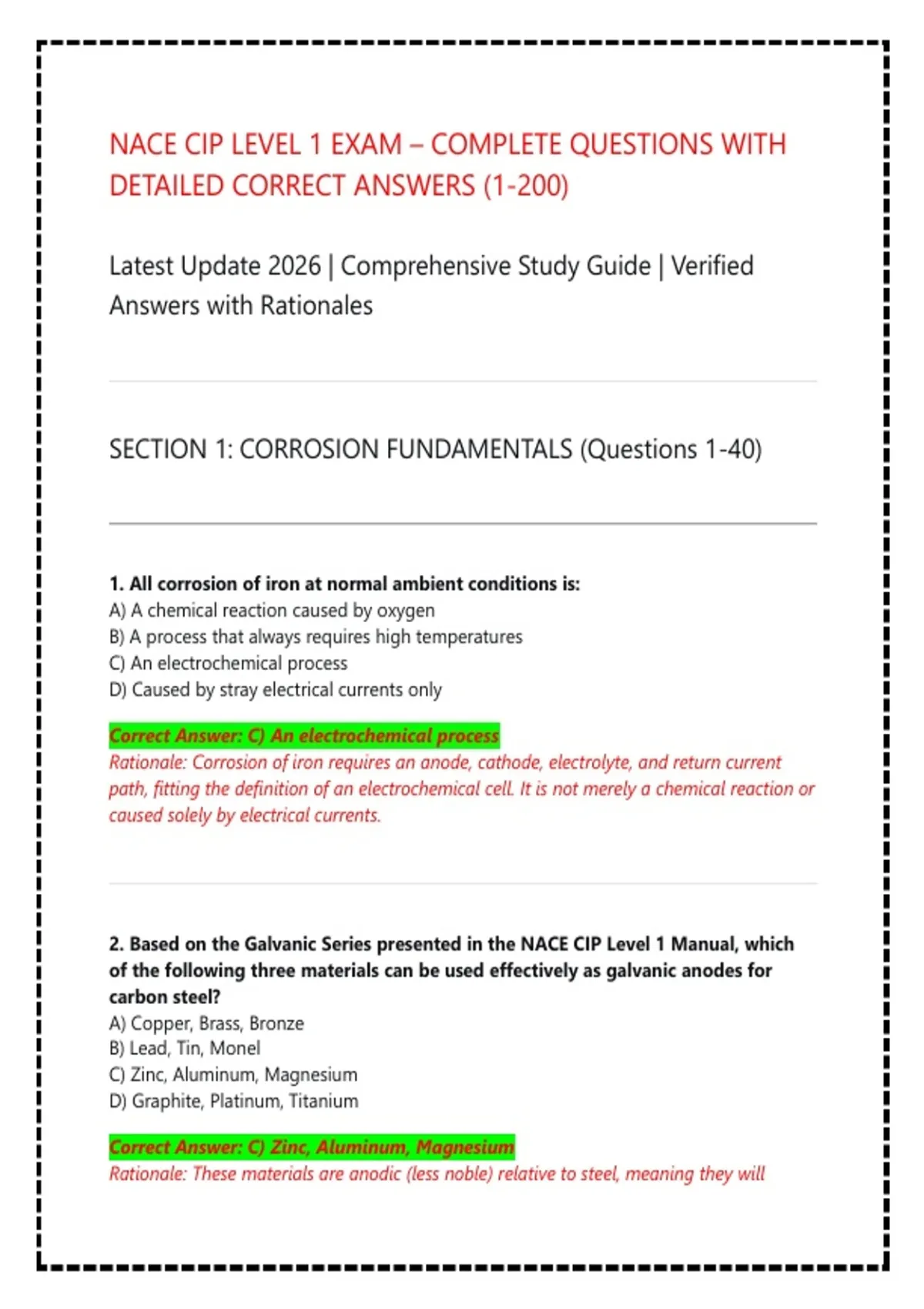

NACE CIP LEVEL 1 EXAM – COMPLETE QUESTIONS WITH
DETAILED CORRECT ANSWERS (1-200)
Latest Update 2026 | Comprehensive Study Guide | Verified
Answers with Rationales
SECTION 1: CORROSION FUNDAMENTALS (Questions 1-40)
1. All corrosion of iron at normal ambient conditions is:
A) A chemical reaction caused by oxygen
B) A process that always requires high temperatures
C) An electrochemical process
D) Caused by stray electrical currents only
Correct Answer: C) An electrochemical process
Rationale: Corrosion of iron requires an anode, cathode, electrolyte, and return current
path, fitting the definition of an electrochemical cell. It is not merely a chemical reaction or
caused solely by electrical currents.
2. Based on the Galvanic Series presented in the NACE CIP Level 1 Manual, which
of the following three materials can be used effectively as galvanic anodes for
carbon steel?
A) Copper, Brass, Bronze
B) Lead, Tin, Monel
C) Zinc, Aluminum, Magnesium
D) Graphite, Platinum, Titanium
Correct Answer: C) Zinc, Aluminum, Magnesium
Rationale: These materials are anodic (less noble) relative to steel, meaning they will
,corrode preferentially, protecting the steel substrate. Zinc, aluminum, and magnesium are
the three most commonly used galvanic anodes for protecting carbon steel.
3. Dew point is defined as the temperature at which:
A) Water freezes
B) Relative humidity reaches 0%
C) Condensation occurs
D) The air is completely dry
Correct Answer: C) Condensation occurs
Rationale: The dew point is the saturation temperature. If the surface temperature falls
below the dew point, moisture will condense on the surface.
4. A decrease in ambient temperature will generally cause the corrosion rate to:
A) Increase
B) Decrease
C) Remain the same
D) Fluctuate randomly
Correct Answer: B) Decrease
Rationale: Corrosion is an electrochemical reaction. Lower temperatures slow down the
kinetic energy of the reactants and the rate of the chemical reaction.
5. What is the function of the electrolyte in a corrosion cell?
A) Allows flow of electrons between anode and cathode
B) Provides the metallic connection between anode and cathode
C) Allows passage of ions to connect the corrosion cell
D) Prevents the flow of electrical current
Correct Answer: C) Allows passage of ions to connect the corrosion cell
Rationale: The electrolyte is a medium that conducts ionic current, allowing the passage of
ions to connect the corrosion cell. This ionic flow completes the electrical circuit.
,6. What is the function of the metallic pathway in a corrosion cell?
A) Allows the passage of ions to connect the corrosion cell
B) Allows the flow of electrons to connect the corrosion cell
C) Prevents corrosion from occurring
D) Acts as the electrolyte
Correct Answer: B) Allows the flow of electrons to connect the corrosion cell
Rationale: The metallic pathway is the conductor that allows electrons to flow from the
anode to the cathode. This flow of electrons completes the electrical circuit required for
corrosion to occur.
7. What is the galvanic series?
A) A listing of metals in order of their melting points
B) A listing of metals in order of reactivity (more or less noble) in seawater at 25°C
C) A listing of metals in order of their density
D) A listing of metals in order of their hardness
Correct Answer: B) A listing of metals in order of reactivity (more or less noble) in
seawater at 25°C
Rationale: The galvanic series is a listing of metals and alloys in order of their
electrochemical reactivity in seawater (or other specific electrolytes). The series ranks
metals from more noble (cathodic) to less noble (anodic).
8. The general rules of galvanic corrosion are:
A) The more noble metal will corrode preferentially
B) The less noble (or more reactive) metal when connected to a more noble metal will
corrode preferentially
C) Both metals will corrode equally
D) Neither metal will corrode
Correct Answer: B) The less noble (or more reactive) metal when connected to a
more noble metal will corrode preferentially
Rationale: When dissimilar metals are connected in an electrolyte, the less noble (more
, active) metal becomes the anode and corrodes preferentially. The more noble metal
becomes the cathode and is protected.
9. What is the anode in a corrosion cell?
A) The electrode where reduction occurs
B) The electrode where oxidation occurs
C) The electrode that is protected from corrosion
D) The electrode that receives electrons
Correct Answer: B) The electrode where oxidation occurs
Rationale: The anode is the electrode where oxidation occurs, meaning metal atoms lose
electrons and go into solution as ions. This results in the corrosion (deterioration) of the
anodic metal.
10. What is the cathode in a corrosion cell?
A) The electrode where oxidation occurs
B) The electrode where reduction occurs
C) The electrode that corrodes
D) The electrode that gives up electrons
Correct Answer: B) The electrode where reduction occurs
Rationale: The cathode is the electrode where reduction occurs. Reduction is a chemical
reaction where a substance gains electrons. The cathode is protected from corrosion.
11. Passivation can best be described as:
A) The removal of all surface contaminants
B) A layer of oxides formed on the surface of a metal that provides corrosion protection
C) The application of a protective coating
D) The process of removing rust from steel
Correct Answer: B) A layer of oxides formed on the surface of a metal that provides
corrosion protection
DETAILED CORRECT ANSWERS (1-200)
Latest Update 2026 | Comprehensive Study Guide | Verified
Answers with Rationales
SECTION 1: CORROSION FUNDAMENTALS (Questions 1-40)
1. All corrosion of iron at normal ambient conditions is:
A) A chemical reaction caused by oxygen
B) A process that always requires high temperatures
C) An electrochemical process
D) Caused by stray electrical currents only
Correct Answer: C) An electrochemical process
Rationale: Corrosion of iron requires an anode, cathode, electrolyte, and return current
path, fitting the definition of an electrochemical cell. It is not merely a chemical reaction or
caused solely by electrical currents.
2. Based on the Galvanic Series presented in the NACE CIP Level 1 Manual, which
of the following three materials can be used effectively as galvanic anodes for
carbon steel?
A) Copper, Brass, Bronze
B) Lead, Tin, Monel
C) Zinc, Aluminum, Magnesium
D) Graphite, Platinum, Titanium
Correct Answer: C) Zinc, Aluminum, Magnesium
Rationale: These materials are anodic (less noble) relative to steel, meaning they will
,corrode preferentially, protecting the steel substrate. Zinc, aluminum, and magnesium are
the three most commonly used galvanic anodes for protecting carbon steel.
3. Dew point is defined as the temperature at which:
A) Water freezes
B) Relative humidity reaches 0%
C) Condensation occurs
D) The air is completely dry
Correct Answer: C) Condensation occurs
Rationale: The dew point is the saturation temperature. If the surface temperature falls
below the dew point, moisture will condense on the surface.
4. A decrease in ambient temperature will generally cause the corrosion rate to:
A) Increase
B) Decrease
C) Remain the same
D) Fluctuate randomly
Correct Answer: B) Decrease
Rationale: Corrosion is an electrochemical reaction. Lower temperatures slow down the
kinetic energy of the reactants and the rate of the chemical reaction.
5. What is the function of the electrolyte in a corrosion cell?
A) Allows flow of electrons between anode and cathode
B) Provides the metallic connection between anode and cathode
C) Allows passage of ions to connect the corrosion cell
D) Prevents the flow of electrical current
Correct Answer: C) Allows passage of ions to connect the corrosion cell
Rationale: The electrolyte is a medium that conducts ionic current, allowing the passage of
ions to connect the corrosion cell. This ionic flow completes the electrical circuit.
,6. What is the function of the metallic pathway in a corrosion cell?
A) Allows the passage of ions to connect the corrosion cell
B) Allows the flow of electrons to connect the corrosion cell
C) Prevents corrosion from occurring
D) Acts as the electrolyte
Correct Answer: B) Allows the flow of electrons to connect the corrosion cell
Rationale: The metallic pathway is the conductor that allows electrons to flow from the
anode to the cathode. This flow of electrons completes the electrical circuit required for
corrosion to occur.
7. What is the galvanic series?
A) A listing of metals in order of their melting points
B) A listing of metals in order of reactivity (more or less noble) in seawater at 25°C
C) A listing of metals in order of their density
D) A listing of metals in order of their hardness
Correct Answer: B) A listing of metals in order of reactivity (more or less noble) in
seawater at 25°C
Rationale: The galvanic series is a listing of metals and alloys in order of their
electrochemical reactivity in seawater (or other specific electrolytes). The series ranks
metals from more noble (cathodic) to less noble (anodic).
8. The general rules of galvanic corrosion are:
A) The more noble metal will corrode preferentially
B) The less noble (or more reactive) metal when connected to a more noble metal will
corrode preferentially
C) Both metals will corrode equally
D) Neither metal will corrode
Correct Answer: B) The less noble (or more reactive) metal when connected to a
more noble metal will corrode preferentially
Rationale: When dissimilar metals are connected in an electrolyte, the less noble (more
, active) metal becomes the anode and corrodes preferentially. The more noble metal
becomes the cathode and is protected.
9. What is the anode in a corrosion cell?
A) The electrode where reduction occurs
B) The electrode where oxidation occurs
C) The electrode that is protected from corrosion
D) The electrode that receives electrons
Correct Answer: B) The electrode where oxidation occurs
Rationale: The anode is the electrode where oxidation occurs, meaning metal atoms lose
electrons and go into solution as ions. This results in the corrosion (deterioration) of the
anodic metal.
10. What is the cathode in a corrosion cell?
A) The electrode where oxidation occurs
B) The electrode where reduction occurs
C) The electrode that corrodes
D) The electrode that gives up electrons
Correct Answer: B) The electrode where reduction occurs
Rationale: The cathode is the electrode where reduction occurs. Reduction is a chemical
reaction where a substance gains electrons. The cathode is protected from corrosion.
11. Passivation can best be described as:
A) The removal of all surface contaminants
B) A layer of oxides formed on the surface of a metal that provides corrosion protection
C) The application of a protective coating
D) The process of removing rust from steel
Correct Answer: B) A layer of oxides formed on the surface of a metal that provides
corrosion protection
