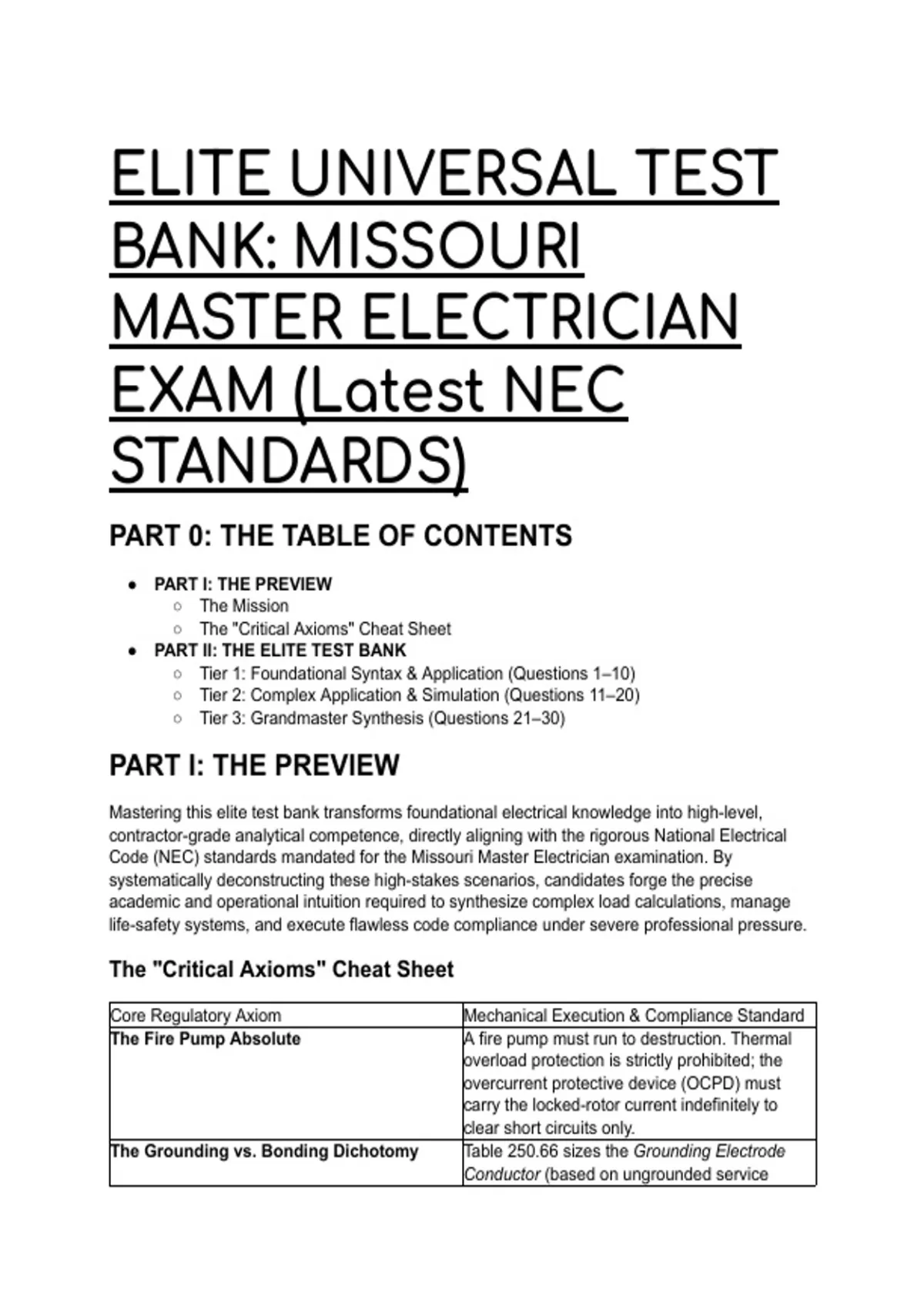

ELITE UNIVERSAL TEST
BANK: MISSOURI
MASTER ELECTRICIAN
EXAM (Latest NEC
STANDARDS)
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Mission
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
Mastering this elite test bank transforms foundational electrical knowledge into high-level,
contractor-grade analytical competence, directly aligning with the rigorous National Electrical
Code (NEC) standards mandated for the Missouri Master Electrician examination. By
systematically deconstructing these high-stakes scenarios, candidates forge the precise
academic and operational intuition required to synthesize complex load calculations, manage
life-safety systems, and execute flawless code compliance under severe professional pressure.
The "Critical Axioms" Cheat Sheet
Core Regulatory Axiom Mechanical Execution & Compliance Standard
The Fire Pump Absolute A fire pump must run to destruction. Thermal
overload protection is strictly prohibited; the
overcurrent protective device (OCPD) must
carry the locked-rotor current indefinitely to
clear short circuits only.
The Grounding vs. Bonding Dichotomy Table 250.66 sizes the Grounding Electrode
Conductor (based on ungrounded service
,Core Regulatory Axiom Mechanical Execution & Compliance Standard
conductors), while Table 250.122 sizes the
Equipment Grounding Conductor (based on the
circuit's overcurrent protective device).
The Kitchen Demand Mandate When applying Table 220.56 for commercial
kitchen equipment, the final calculated demand
load must never be less than the sum of the
two largest equipment loads operating
simultaneously.
The Multi-Family Dryer Rule Under Section 220.54, a household clothes
dryer is always calculated at a minimum of
5,000 VA or its nameplate rating—whichever is
greater—before applying tabular demand
factors.
The Ampacity Double-Penalty When conductors face both high ambient
temperatures and bundling of more than three
current-carrying conductors, both derating
factors (Tables 310.15(B)(1) and 310.15(C)(1))
must be applied simultaneously.
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A new commercial facility is being supplied by a 400-ampere service. The ungrounded
service-entrance conductors are 500 kcmil copper. The grounding electrode system consists
solely of a single driven ground rod. Based on the principles of NEC Article 250, what is the
MAXIMUM size copper grounding electrode conductor required to connect the service
equipment to this ground rod?
A) 1/0 AWG B) 2 AWG C) 6 AWG D) 4 AWG
● Answer: C (6 AWG)
● Distractor Analysis:
○ A is incorrect: 1/0 AWG is the default size required by Table 250.66 for 500 kcmil
copper conductors if terminating to a water pipe or structural steel. It fails to account
for the specific earth-contact limitations of a ground rod.
○ B is incorrect: 2 AWG is the required maximum size for a ground ring, not a driven
ground rod.
○ D is incorrect: 4 AWG is the maximum required size for a concrete-encased
electrode (Ufer ground), representing a common novice mix-up of isolated electrode
limitations.
The Mentor's Analysis: Table 250.66 provides the baseline for Grounding Electrode Conductor
(GEC) sizing, but specific standalone electrodes possess hard regulatory ceilings due to their
inherent earth-contact resistance limits. A ground rod (or pipe/plate) will mathematically never
dissipate more fault energy into the surrounding soil than a 6 AWG copper conductor can safely
carry, regardless of how massive the service entrance conductors are upstream. Upsizing the
copper beyond 6 AWG for a ground rod does not force the earth to absorb more current; it only
wastes expensive material. Professional/Academic Intuition: When terminating exclusively
to a ground rod, pipe, or plate, the Grounding Electrode Conductor never needs to be
, larger than 6 AWG Copper.
Q2: A contractor is preparing to label a newly installed 1200-ampere industrial switchboard in
accordance with NEC 110.16(B) and NFPA 70E. Which of the following combinations of safety
data is STRICTLY PROHIBITED from appearing simultaneously on the exact same arc flash
warning label?
A) The nominal system voltage and the calculated arc flash boundary. B) The available incident
energy and the precise working distance. C) The specific PPE category (e.g., Category 2) and
the available incident energy (e.g., 4.2 cal/cm²). D) The limited approach boundary and the
restricted approach boundary for shock hazards.
● Answer: C (The specific PPE category (e.g., Category 2) and the available incident
energy (e.g., 4.2 cal/cm²).)
● Distractor Analysis:
○ A is incorrect: Nominal system voltage and the arc flash boundary are universally
required, non-negotiable baseline elements on all compliant labels.
○ B is incorrect: Incident energy and working distance are paired data points allowed
and actively encouraged under the incident energy analysis method via IEEE 1584.
○ D is incorrect: Shock protection boundaries are standard auxiliary requirements that
must appear alongside arc flash data to establish safe approach parameters.
The Mentor's Analysis: NFPA 70E Section 130.5(H) requires absolute clarity to prevent fatal
hesitation during an emergency maintenance event. Providing both the calculated incident
energy and a PPE category derived from generic tables causes critical cognitive friction, as the
two methods utilize entirely different fundamental engineering assumptions. The Incident Energy
method calculates specific thermal output, whereas the PPE Category method assumes
generalized fault clearing times. Mixing them introduces a liability where a worker might utilize
the wrong standard. Professional/Academic Intuition: An arc flash label must dictate ONE,
and only one, method for PPE selection. Superimposing the Incident Energy Analysis
method with the PPE Category method is a severe, life-threatening compliance violation.
Q3: When calculating the feeder demand load for household electric clothes dryers in a
multi-family dwelling, the NEC requires the calculation to be anchored to a specific baseline
volt-ampere (VA) rating. If a specific dwelling unit is slated for a high-efficiency dryer with a
manufacturer nameplate rating of 4,200 watts, what value MUST the electrical designer use for
this appliance prior to applying demand factors?
A) 4,200 VA B) 4,500 VA C) 5,000 VA D) 8,000 VA
● Answer: C (5,000 VA)
● Distractor Analysis:
○ A is incorrect: 4,200 VA is the literal nameplate rating. Utilizing this figure falls below
the mandatory statutory minimum baseline established by Article 220.
○ B is incorrect: 4,500 VA is a common residential water heater baseline rating,
frequently confused by novice designers for the dryer baseline.
○ D is incorrect: 8,000 VA is the baseline starting point for a single household electric
range per Table 220.55, which utilizes entirely different diversity logic.
The Mentor's Analysis: Section 220.54 requires that household electric clothes dryers be
calculated at a minimum of 5,000 VA or the nameplate rating, whichever is larger. The
underlying architectural implication here is future-proofing. The Code anticipates that
homeowners frequently replace low-draw, builder-grade appliances with heavier-duty, high-heat
models over the lifespan of the property. Forcing the feeder calculation to assume a minimum of
5,000 VA ensures the infrastructure can absorb eventual residential upgrades without
catastrophic thermal overloading of the feeder neutral. Professional/Academic Intuition: In
BANK: MISSOURI
MASTER ELECTRICIAN
EXAM (Latest NEC
STANDARDS)
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Mission
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
Mastering this elite test bank transforms foundational electrical knowledge into high-level,
contractor-grade analytical competence, directly aligning with the rigorous National Electrical
Code (NEC) standards mandated for the Missouri Master Electrician examination. By
systematically deconstructing these high-stakes scenarios, candidates forge the precise
academic and operational intuition required to synthesize complex load calculations, manage
life-safety systems, and execute flawless code compliance under severe professional pressure.
The "Critical Axioms" Cheat Sheet
Core Regulatory Axiom Mechanical Execution & Compliance Standard
The Fire Pump Absolute A fire pump must run to destruction. Thermal
overload protection is strictly prohibited; the
overcurrent protective device (OCPD) must
carry the locked-rotor current indefinitely to
clear short circuits only.
The Grounding vs. Bonding Dichotomy Table 250.66 sizes the Grounding Electrode
Conductor (based on ungrounded service
,Core Regulatory Axiom Mechanical Execution & Compliance Standard
conductors), while Table 250.122 sizes the
Equipment Grounding Conductor (based on the
circuit's overcurrent protective device).
The Kitchen Demand Mandate When applying Table 220.56 for commercial
kitchen equipment, the final calculated demand
load must never be less than the sum of the
two largest equipment loads operating
simultaneously.
The Multi-Family Dryer Rule Under Section 220.54, a household clothes
dryer is always calculated at a minimum of
5,000 VA or its nameplate rating—whichever is
greater—before applying tabular demand
factors.
The Ampacity Double-Penalty When conductors face both high ambient
temperatures and bundling of more than three
current-carrying conductors, both derating
factors (Tables 310.15(B)(1) and 310.15(C)(1))
must be applied simultaneously.
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: A new commercial facility is being supplied by a 400-ampere service. The ungrounded
service-entrance conductors are 500 kcmil copper. The grounding electrode system consists
solely of a single driven ground rod. Based on the principles of NEC Article 250, what is the
MAXIMUM size copper grounding electrode conductor required to connect the service
equipment to this ground rod?
A) 1/0 AWG B) 2 AWG C) 6 AWG D) 4 AWG
● Answer: C (6 AWG)
● Distractor Analysis:
○ A is incorrect: 1/0 AWG is the default size required by Table 250.66 for 500 kcmil
copper conductors if terminating to a water pipe or structural steel. It fails to account
for the specific earth-contact limitations of a ground rod.
○ B is incorrect: 2 AWG is the required maximum size for a ground ring, not a driven
ground rod.
○ D is incorrect: 4 AWG is the maximum required size for a concrete-encased
electrode (Ufer ground), representing a common novice mix-up of isolated electrode
limitations.
The Mentor's Analysis: Table 250.66 provides the baseline for Grounding Electrode Conductor
(GEC) sizing, but specific standalone electrodes possess hard regulatory ceilings due to their
inherent earth-contact resistance limits. A ground rod (or pipe/plate) will mathematically never
dissipate more fault energy into the surrounding soil than a 6 AWG copper conductor can safely
carry, regardless of how massive the service entrance conductors are upstream. Upsizing the
copper beyond 6 AWG for a ground rod does not force the earth to absorb more current; it only
wastes expensive material. Professional/Academic Intuition: When terminating exclusively
to a ground rod, pipe, or plate, the Grounding Electrode Conductor never needs to be
, larger than 6 AWG Copper.
Q2: A contractor is preparing to label a newly installed 1200-ampere industrial switchboard in
accordance with NEC 110.16(B) and NFPA 70E. Which of the following combinations of safety
data is STRICTLY PROHIBITED from appearing simultaneously on the exact same arc flash
warning label?
A) The nominal system voltage and the calculated arc flash boundary. B) The available incident
energy and the precise working distance. C) The specific PPE category (e.g., Category 2) and
the available incident energy (e.g., 4.2 cal/cm²). D) The limited approach boundary and the
restricted approach boundary for shock hazards.
● Answer: C (The specific PPE category (e.g., Category 2) and the available incident
energy (e.g., 4.2 cal/cm²).)
● Distractor Analysis:
○ A is incorrect: Nominal system voltage and the arc flash boundary are universally
required, non-negotiable baseline elements on all compliant labels.
○ B is incorrect: Incident energy and working distance are paired data points allowed
and actively encouraged under the incident energy analysis method via IEEE 1584.
○ D is incorrect: Shock protection boundaries are standard auxiliary requirements that
must appear alongside arc flash data to establish safe approach parameters.
The Mentor's Analysis: NFPA 70E Section 130.5(H) requires absolute clarity to prevent fatal
hesitation during an emergency maintenance event. Providing both the calculated incident
energy and a PPE category derived from generic tables causes critical cognitive friction, as the
two methods utilize entirely different fundamental engineering assumptions. The Incident Energy
method calculates specific thermal output, whereas the PPE Category method assumes
generalized fault clearing times. Mixing them introduces a liability where a worker might utilize
the wrong standard. Professional/Academic Intuition: An arc flash label must dictate ONE,
and only one, method for PPE selection. Superimposing the Incident Energy Analysis
method with the PPE Category method is a severe, life-threatening compliance violation.
Q3: When calculating the feeder demand load for household electric clothes dryers in a
multi-family dwelling, the NEC requires the calculation to be anchored to a specific baseline
volt-ampere (VA) rating. If a specific dwelling unit is slated for a high-efficiency dryer with a
manufacturer nameplate rating of 4,200 watts, what value MUST the electrical designer use for
this appliance prior to applying demand factors?
A) 4,200 VA B) 4,500 VA C) 5,000 VA D) 8,000 VA
● Answer: C (5,000 VA)
● Distractor Analysis:
○ A is incorrect: 4,200 VA is the literal nameplate rating. Utilizing this figure falls below
the mandatory statutory minimum baseline established by Article 220.
○ B is incorrect: 4,500 VA is a common residential water heater baseline rating,
frequently confused by novice designers for the dryer baseline.
○ D is incorrect: 8,000 VA is the baseline starting point for a single household electric
range per Table 220.55, which utilizes entirely different diversity logic.
The Mentor's Analysis: Section 220.54 requires that household electric clothes dryers be
calculated at a minimum of 5,000 VA or the nameplate rating, whichever is larger. The
underlying architectural implication here is future-proofing. The Code anticipates that
homeowners frequently replace low-draw, builder-grade appliances with heavier-duty, high-heat
models over the lifespan of the property. Forcing the feeder calculation to assume a minimum of
5,000 VA ensures the infrastructure can absorb eventual residential upgrades without
catastrophic thermal overloading of the feeder neutral. Professional/Academic Intuition: In
