1

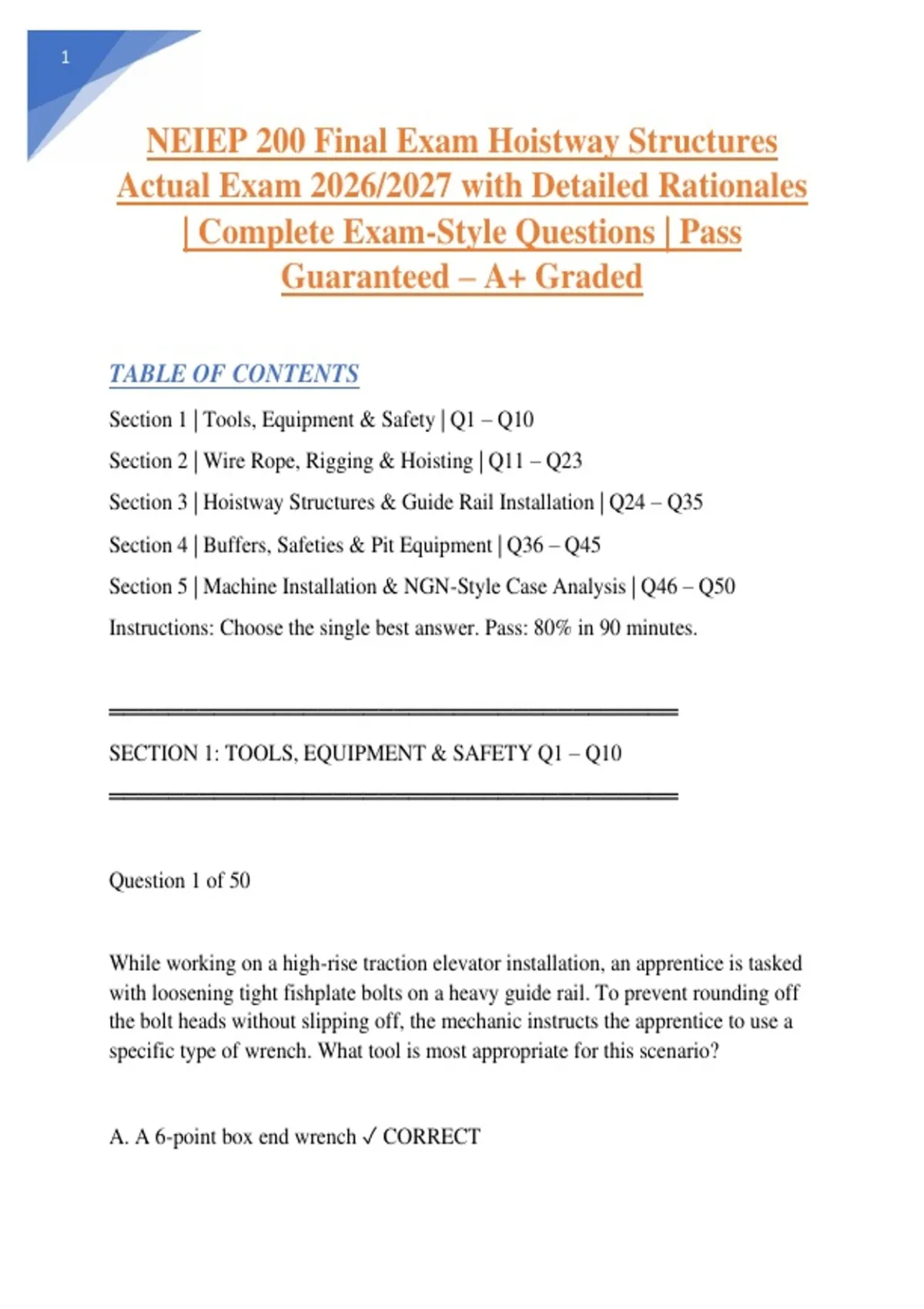

NEIEP 200 Final Exam Hoistway Structures
Actual Exam 2026/2027 with Detailed Rationales
| Complete Exam-Style Questions | Pass
Guaranteed – A+ Graded
TABLE OF CONTENTS
Section 1 | Tools, Equipment & Safety | Q1 – Q10
Section 2 | Wire Rope, Rigging & Hoisting | Q11 – Q23
Section 3 | Hoistway Structures & Guide Rail Installation | Q24 – Q35
Section 4 | Buffers, Safeties & Pit Equipment | Q36 – Q45
Section 5 | Machine Installation & NGN-Style Case Analysis | Q46 – Q50
Instructions: Choose the single best answer. Pass: 80% in 90 minutes.
══════════════════════════════════════
SECTION 1: TOOLS, EQUIPMENT & SAFETY Q1 – Q10
══════════════════════════════════════
Question 1 of 50
While working on a high-rise traction elevator installation, an apprentice is tasked
with loosening tight fishplate bolts on a heavy guide rail. To prevent rounding off
the bolt heads without slipping off, the mechanic instructs the apprentice to use a
specific type of wrench. What tool is most appropriate for this scenario?
A. A 6-point box end wrench ✓ CORRECT
,2
B. A 12-point combination wrench
C. An adjustable crescent wrench
D. A pair of locking pliers
Correct Answer: A
Rationale: A 6-point box end wrench completely encapsulates the bolt head,
providing maximum contact surface and minimizing the risk of rounding off the
corners on stubborn fishplate bolts. A 12-point wrench, while easier to position in
tight spaces, has less metal-to-metal contact and is more likely to slip and strip the
bolt head under high torque.
Question 2 of 50
An apprentice is setting up a drill press in the hoistway to bore holes for rail
bracket supports. The mechanic asks the apprentice to select a drill bit for a
specific chuck size. What determines the maximum bit diameter that can be safely
used in a drill?
A. The shank length of the drill bit
B. The motor amperage of the drill
C. The drill chuck size ✓ CORRECT
D. The RPM setting of the drill
Correct Answer: C
Rationale: The physical capacity of the drill chuck determines the maximum bit
diameter that can be securely held during operation. Using a bit with a larger shank
than the chuck capacity will result in an insecure grip, causing the bit to spin and
potentially causing injury or damage to the workpiece.
,3
Question 3 of 50
During the initial layout of a 20-story hoistway, the crew needs to establish a
perfectly true vertical reference line for the entire height of the shaft. The mechanic
specifies a particular material that will not stretch or sway over long distances.
What material should be used for the plumb line?
A. Braided nylon rope
B. Piano wire ✓ CORRECT
C. Heavy cotton twine
D. Fluorescent chalk line
Correct Answer: B
Rationale: Piano wire is used for high-rise installations because its high tensile
strength prevents stretching and minimizes movement caused by hoistway air
currents over long vertical distances. Braided nylon rope stretches under tension,
which would introduce dangerous inaccuracies in the plumb reference over a 20-
story drop.
Question 4 of 50
A constructor is setting up an oxy-acetylene torch to cut through old guide rail
brackets in a modernization project. After attaching the regulators, the constructor
prepares to set the working pressure for the acetylene. What is the maximum safe
working pressure for acetylene?
A. 5 psi
, 4
B. 10 psi
C. 12 psi
D. 15 psi ✓ CORRECT
Correct Answer: D
Rationale: Acetylene becomes unstable and highly explosive when subjected to
pressures exceeding 15 psi, making it an absolute safety limit for oxy-acetylene
setups. Setting the pressure higher than 15 psi risks spontaneous decomposition of
the gas within the hose or torch, creating a severe explosion hazard.
Question 5 of 50
A rigging crew is preparing to lift a heavy traction machine into the machine room
using a beam clamp attached to a structural overhead beam. The beam clamp is
rated for 2,000 lbs, but the lift requires a specific configuration that reduces its
capacity. What capacity reduction must be applied when using a beam clamp in
this manner?
A. 25%
B. 50% ✓ CORRECT
C. 75%
D. No reduction
Correct Answer: B
Rationale: When a beam clamp is used at an angle or subjected to side-loading
forces rather than a straight vertical pull, its rated capacity must be reduced to
50%. Assuming the full 2,000 lb rating applies to an angled lift ignores the lateral
stress on the clamp's jaws and could lead to catastrophic rigging failure.
