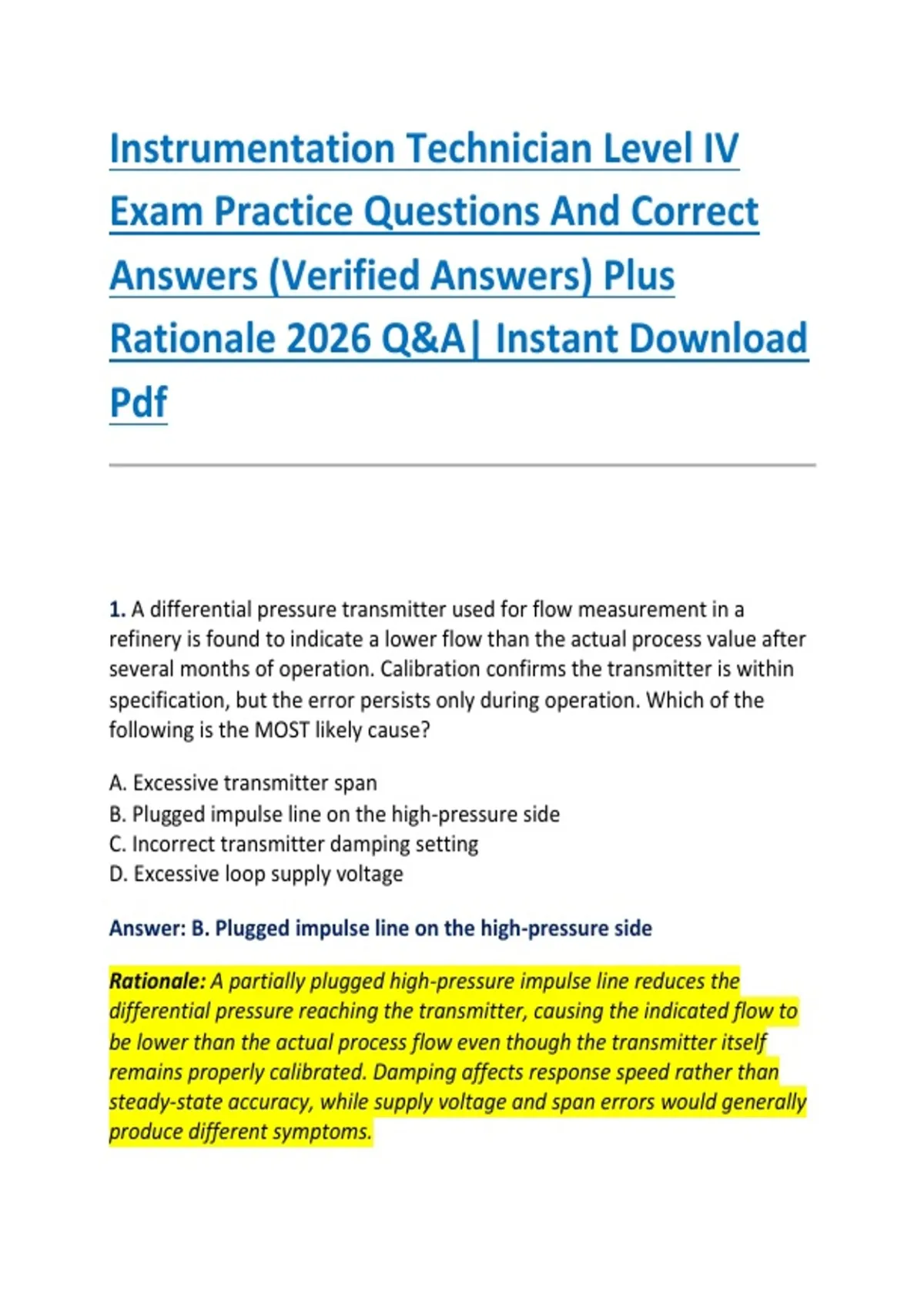

Instrumentation Technician Level IV
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. A differential pressure transmitter used for flow measurement in a
refinery is found to indicate a lower flow than the actual process value after
several months of operation. Calibration confirms the transmitter is within
specification, but the error persists only during operation. Which of the
following is the MOST likely cause?
A. Excessive transmitter span
B. Plugged impulse line on the high-pressure side
C. Incorrect transmitter damping setting
D. Excessive loop supply voltage
Answer: B. Plugged impulse line on the high-pressure side
Rationale: A partially plugged high-pressure impulse line reduces the
differential pressure reaching the transmitter, causing the indicated flow to
be lower than the actual process flow even though the transmitter itself
remains properly calibrated. Damping affects response speed rather than
steady-state accuracy, while supply voltage and span errors would generally
produce different symptoms.
,2. A 4–20 mA pressure transmitter is configured with a Lower Range Value
(LRV) of 0 psi and an Upper Range Value (URV) of 500 psi. The measured
loop current is 12 mA. What pressure is the transmitter indicating?
A. 125 psi
B. 250 psi
C. 300 psi
D. 375 psi
Rationale: Twelve milliamperes is exactly halfway between 4 mA and 20 mA.
Half of the calibrated span of 500 psi equals 250 psi, so the indicated
pressure is 250 psi.
3. Which communication protocol allows multiple field devices to
communicate digitally over the same pair of wires while also supplying
operating power?
A. RS-232
B. Modbus RTU
C. FOUNDATION Fieldbus H1
D. Ethernet/IP
Rationale: FOUNDATION Fieldbus H1 is specifically designed for digital field
instrumentation using a powered two-wire bus. RS-232, Modbus RTU, and
Ethernet/IP do not inherently provide the same field-power architecture.
4. During valve signature testing, an increase in breakaway force compared
with previous test results MOST commonly indicates:
A. Increased instrument air pressure
B. Improved actuator efficiency
C. Packing friction or mechanical binding
D. Excessive controller gain
Rationale: Higher breakaway force usually indicates increased friction within
the valve assembly, commonly due to tighter packing, corrosion, or
mechanical wear that resists initial stem movement.
,5. In a Safety Instrumented System (SIS), the primary purpose of proof
testing is to:
A. Verify operator training
B. Reduce process variability
C. Detect dangerous hidden failures
D. Improve control valve response time
Rationale: Proof testing identifies dangerous undetected failures that may
prevent a safety instrumented function from operating when demanded,
thereby maintaining the required Safety Integrity Level (SIL).
6. Which instrument provides the highest accuracy for calibrating a precision
pressure transmitter in a laboratory environment?
A. Bourdon tube pressure gauge
B. U-tube manometer
C. Deadweight tester
D. Capsule gauge
Rationale: A deadweight tester generates highly accurate pressure using
calibrated masses acting on a precisely known piston area, making it the
primary standard for pressure calibration.
7. A control loop begins to oscillate continuously with nearly constant
amplitude after maintenance. Which controller adjustment is MOST likely to
reduce the oscillation?
A. Increase proportional gain
B. Increase integral action
C. Reduce proportional gain
D. Increase derivative filter
Rationale: Continuous oscillation often results from excessive proportional
gain. Reducing proportional gain decreases loop aggressiveness and
improves stability.
, 8. Which thermocouple law states that intermediate metals inserted into a
thermocouple circuit do not affect the generated EMF provided both
junctions are at the same temperature?
A. Law of Homogeneous Materials
B. Law of Intermediate Metals
C. Law of Intermediate Temperatures
D. Seebeck Principle
Rationale: The Law of Intermediate Metals states that adding another metal
into a thermocouple circuit does not affect the output if the introduced
junctions remain at identical temperatures.
9. When troubleshooting a smart transmitter using HART communication,
the analog loop current remains fixed at 4 mA while digital diagnostics
indicate a sensor failure. This behavior indicates:
A. Normal measurement operation
B. Incorrect polling address
C. Transmitter has entered fail-safe mode
D. Excessive cable capacitance
Rationale: Smart transmitters commonly drive the analog output to a
predetermined fail-safe current upon detecting critical internal failures while
continuing to report diagnostics digitally.
10. In cascade control, the primary advantage is:
A. Eliminating all process disturbances
B. Reducing installation cost
C. Correcting secondary disturbances before they affect the primary
variable
D. Eliminating controller tuning
Rationale: Cascade control improves disturbance rejection by allowing the
secondary controller to respond quickly to disturbances before they
propagate to the primary controlled variable.
