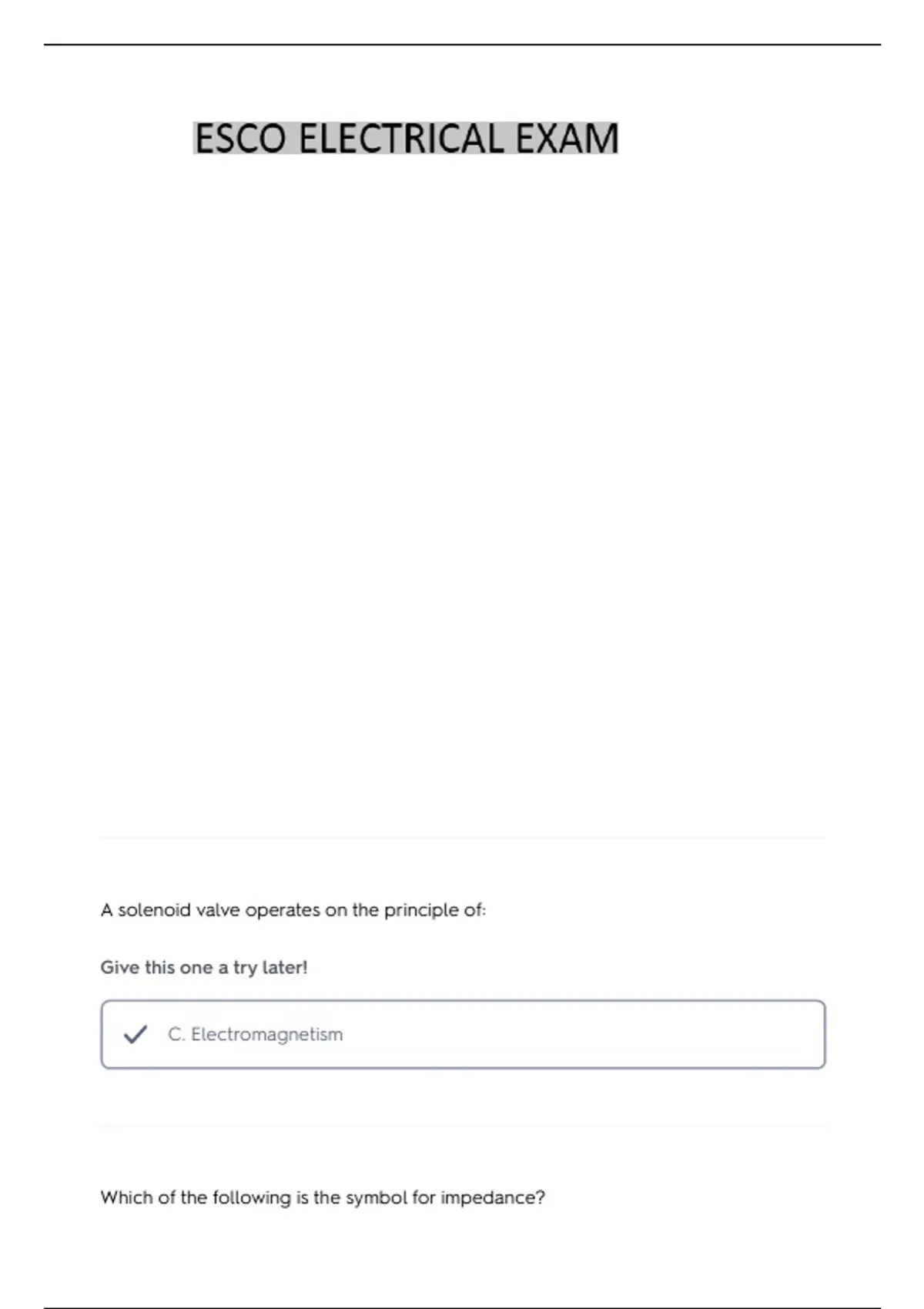

A solenoid valve operates on the principle of:
Give this one a try later!
C. Electromagnetism
Which of the following is the symbol for impedance?
,Give this one a try later!
D. Z
What would be the result if a 24 volt, 20 ohm contactor coil was wired in series with a
24 volt, 200 ohm control relay?
Give this one a try later!
B.Only the control relay would operate
What amperage measurement would you expect if you clamped your meter around
both wires in a two wire circuit?
Give this one a try later!
A.0 due to the cancellation of the two magnetic fields
The safety ground conductor is usually colored:
Give this one a try later!
B.Green
When resistors are wired parallel:
, Give this one a try later!
B.The voltage drop across each resistor will be the same as the applied
source voltage
How much resistance must be placed in a 120 volt circuit to limit the current to 2
amps?
Give this one a try later!
A.60 ohms
Like charges will
Give this one a try later!
B.Repel each other
Which of the following statements about current is true?
Give this one a try later!
B.Current flow will increase when voltage increases
The synchronous speed of a four pole, 60 Hz single phase motor is:
Give this one a try later!
