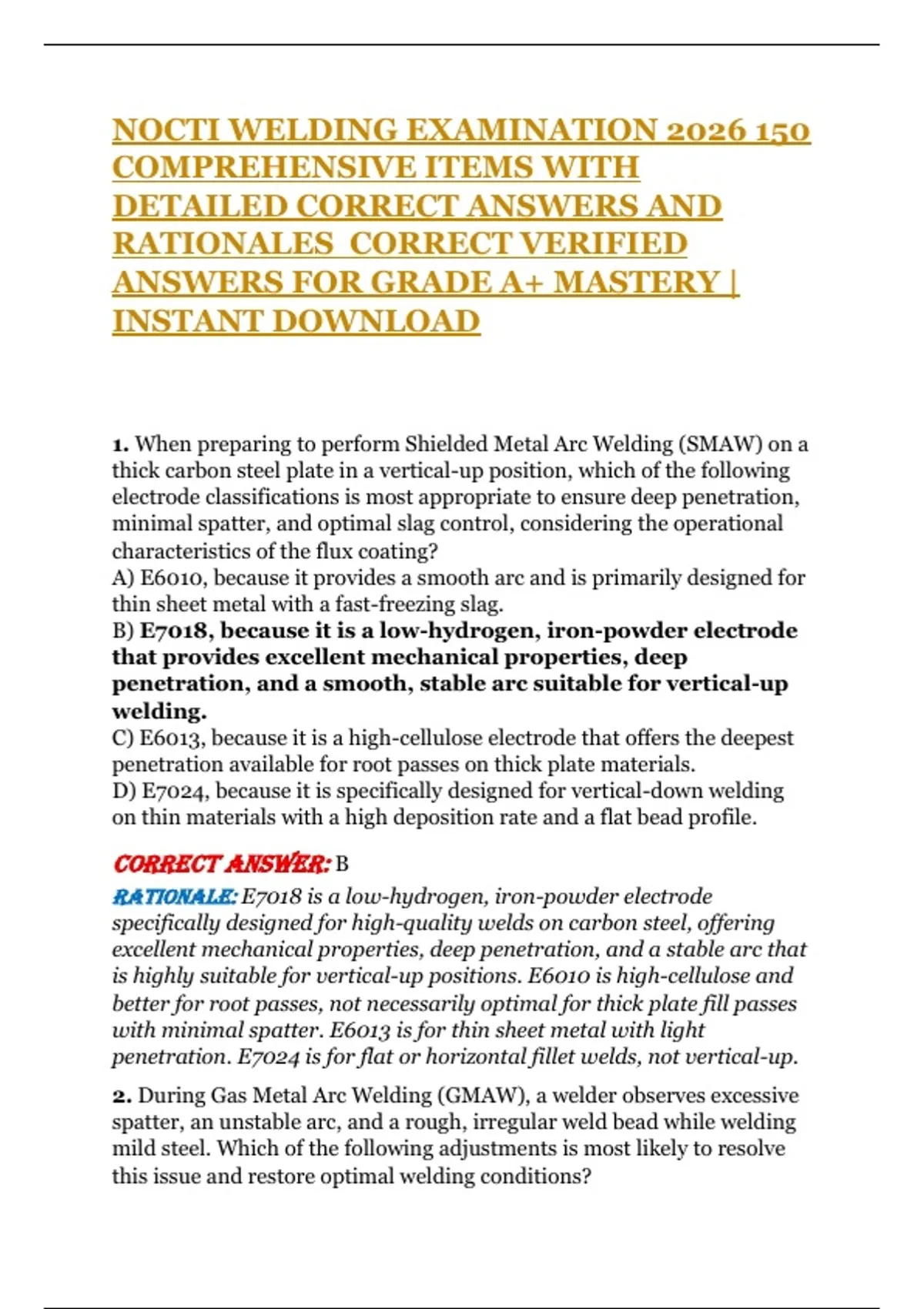

NOCTI WELDING EXAMINATION 2026 150
COMPREHENSIVE ITEMS WITH
DETAILED CORRECT ANSWERS AND
RATIONALES CORRECT VERIFIED
ANSWERS FOR GRADE A+ MASTERY |
INSTANT DOWNLOAD
1. When preparing to perform Shielded Metal Arc Welding (SMAW) on a
thick carbon steel plate in a vertical-up position, which of the following
electrode classifications is most appropriate to ensure deep penetration,
minimal spatter, and optimal slag control, considering the operational
characteristics of the flux coating?
A) E6010, because it provides a smooth arc and is primarily designed for
thin sheet metal with a fast-freezing slag.
B) E7018, because it is a low-hydrogen, iron-powder electrode
that provides excellent mechanical properties, deep
penetration, and a smooth, stable arc suitable for vertical-up
welding.
C) E6013, because it is a high-cellulose electrode that offers the deepest
penetration available for root passes on thick plate materials.
D) E7024, because it is specifically designed for vertical-down welding
on thin materials with a high deposition rate and a flat bead profile.
Correct Answer: B
Rationale: E7018 is a low-hydrogen, iron-powder electrode
specifically designed for high-quality welds on carbon steel, offering
excellent mechanical properties, deep penetration, and a stable arc that
is highly suitable for vertical-up positions. E6010 is high-cellulose and
better for root passes, not necessarily optimal for thick plate fill passes
with minimal spatter. E6013 is for thin sheet metal with light
penetration. E7024 is for flat or horizontal fillet welds, not vertical-up.
2. During Gas Metal Arc Welding (GMAW), a welder observes excessive
spatter, an unstable arc, and a rough, irregular weld bead while welding
mild steel. Which of the following adjustments is most likely to resolve
this issue and restore optimal welding conditions?
,A) Increasing the shielding gas flow rate to an excessively high level to
forcefully clear the weld pool of atmospheric contaminants.
B) Decreasing the voltage slightly or increasing the wire feed
speed to achieve a stable short-circuiting or globular transfer
mode appropriate for the material thickness.
C) Switching from a 75% Argon / 25% CO2 mixture to 100% CO2 to
increase the arc temperature and stabilize the molten puddle.
D) Lengthening the electrode extension (stick-out) significantly to
increase the electrical resistance and preheat the filler wire before it
reaches the arc.
Correct Answer: B
Rationale: Excessive spatter and an unstable arc in GMAW are often
caused by an imbalance between voltage and wire feed speed.
Adjusting these parameters to match the desired metal transfer mode
stabilizes the arc. Excessive gas flow can cause turbulence and porosity,
100% CO2 increases spatter, and excessive stick-out leads to poor
shielding and erratic arcs.
3. In the context of welding safety and occupational health, what is the
primary purpose of using a local exhaust ventilation (LEV) system
positioned as close as possible to the welding arc, rather than relying
solely on general dilution ventilation?
A) To cool the welding equipment and prevent the power source from
overheating during prolonged, high-amperage welding operations.
B) To capture and remove hazardous welding fumes, gases,
and particulate matter at the source before they can enter the
welder’s breathing zone.
C) To provide a continuous supply of fresh oxygen to the weld pool,
thereby improving the metallurgical properties of the solidified weld
metal.
D) To disperse the intense ultraviolet (UV) and infrared (IR) radiation
emitted by the arc, reducing the risk of arc flash to nearby personnel.
Correct Answer: B
Rationale: Local exhaust ventilation (LEV) is designed to capture
contaminants at the source, preventing them from entering the welder's
breathing zone. General ventilation only dilutes the contaminants. LEV
does not cool equipment, supply oxygen to the weld pool, or disperse
UV/IR radiation.
,4. When interpreting standard American Welding Society (AWS)
welding symbols, what does a solid black flag positioned at the junction
of the reference line and the arrow specifically indicate about the welding
operation?
A) The weld must be performed using a specific automated or robotic
welding process to ensure consistent quality.
B) The weld is to be ground smooth and finished to a specific contour, as
indicated by an accompanying finish symbol.
C) The weld is to be performed in the field (on-site) rather than
in the shop or fabrication facility where the component was
originally manufactured.
D) The weld requires a backing bar or backing strip to be left in place
permanently after the welding operation is completed.
Correct Answer: C
Rationale: In AWS welding symbols, a flag at the junction of the
arrow and reference line denotes a "field weld," meaning the weld is to
be made at the final installation site, not in the fabrication shop. A
finish symbol dictates grinding, and a backing weld has its own distinct
symbol.
5. During Gas Tungsten Arc Welding (GTAW) of aluminum, why is
Alternating Current (AC) with a high-frequency start predominantly
used instead of Direct Current Electrode Negative (DCEN)?
A) Because DCEN provides a deeper penetration profile that is necessary
to melt the high thermal conductivity of aluminum without causing
burn-through.
B) Because the AC cycle provides a cathodic cleaning action
during the electrode-positive half-cycle, which breaks up the
refractory aluminum oxide layer on the surface.
C) Because high-frequency start is the only method that can prevent
tungsten inclusion in the weld pool when using a pure tungsten electrode
on non-ferrous metals.
D) Because AC current eliminates the need for any external shielding
gas, relying instead on the high-frequency wave to ionize the ambient air
for protection.
Correct Answer: B
Rationale: Aluminum rapidly forms a tenacious oxide layer with a
much higher melting point than the base metal. The electrode-positive
(EP) half of the AC cycle provides a "cleaning action" that bombards
, and removes this oxide layer, while the electrode-negative (EN) half
provides penetration. DCEN lacks this cleaning action.
6. Which of the following metallurgical phenomena is most likely to
occur in the Heat-Affected Zone (HAZ) of a high-carbon steel weldment
if proper preheating and post-weld heat treatment (PWHT) procedures
are not followed?
A) Excessive grain refinement, leading to a softer, more ductile HAZ that
is highly susceptible to abrasive wear during service.
B) The formation of hard, brittle martensite due to rapid
cooling rates, significantly increasing the risk of hydrogen-
induced cold cracking.
C) The complete dissolution of the base metal's alloying elements into
the weld pool, resulting in a weld metal with lower tensile strength than
the base metal.
D) An increase in the material's electrical conductivity, which interferes
with the stability of the welding arc and causes frequent arc outages.
Correct Answer: B
Rationale: High-carbon steels are highly hardenable. Rapid cooling
after welding transforms the austenite in the HAZ into hard, brittle
martensite. This microstructure, especially in the presence of diffusible
hydrogen, is highly susceptible to cold cracking. Preheating slows the
cooling rate to prevent this.
7. In Flux-Cored Arc Welding (FCAW), what is the primary functional
advantage of using a self-shielded flux-cored electrode (FCAW-S) over a
gas-shielded flux-cored electrode (FCAW-G) when working on an
outdoor construction site?
A) Self-shielded electrodes produce a higher quality weld with
significantly less slag and no risk of porosity, regardless of
environmental conditions.
B) Self-shielded electrodes generate their own shielding gases
and deoxidizers from the flux core, making them highly
resistant to wind interference that would otherwise disperse
external shielding gas.
C) Self-shielded electrodes operate exclusively on Direct Current
Electrode Positive (DCEP), which provides a smoother arc and lower
spatter levels than gas-shielded variants.
D) Self-shielded electrodes require a much lower voltage setting, which
