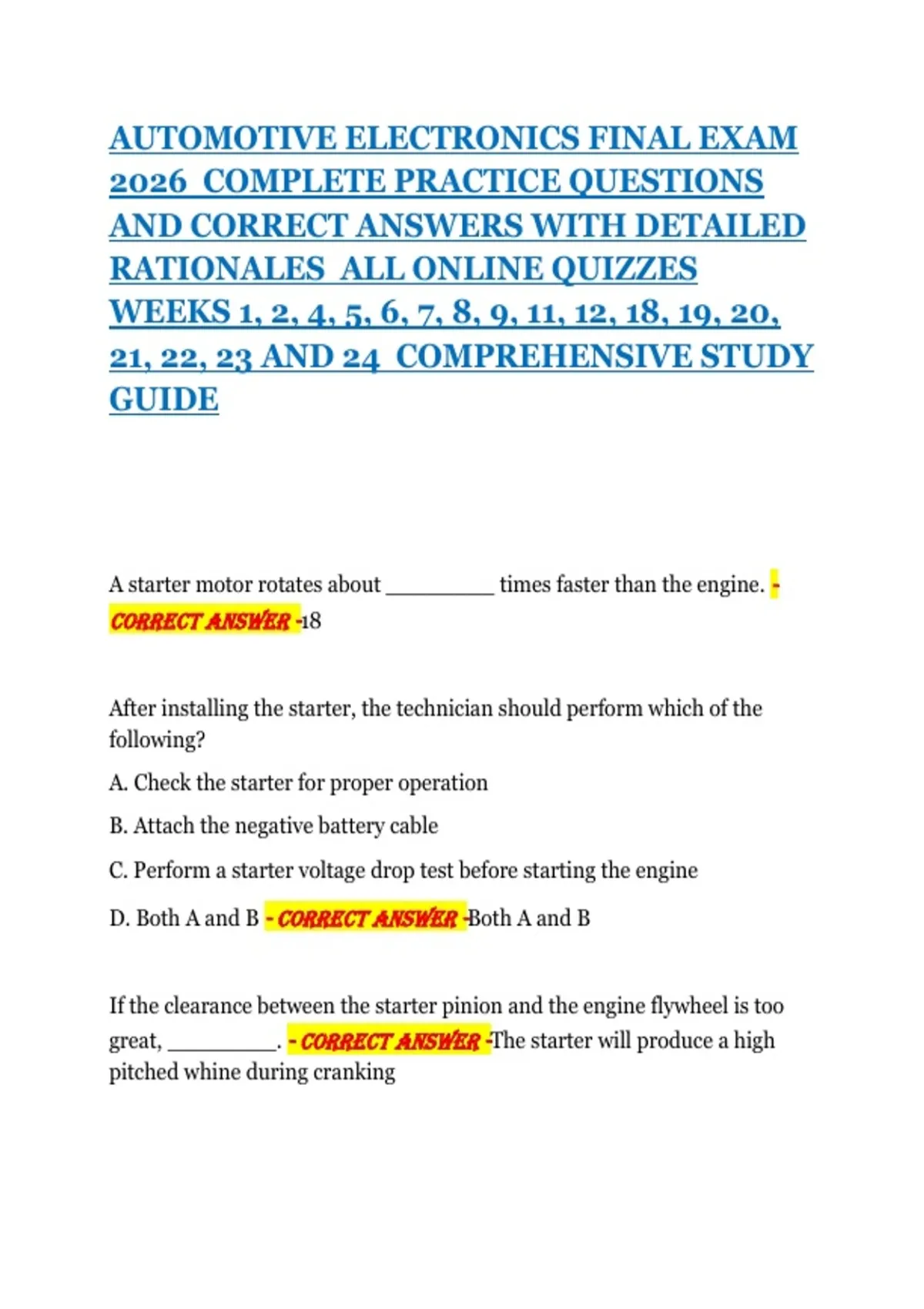

AUTOMOTIVE ELECTRONICS FINAL EXAM
2026 COMPLETE PRACTICE QUESTIONS
AND CORRECT ANSWERS WITH DETAILED
RATIONALES ALL ONLINE QUIZZES
WEEKS 1, 2, 4, 5, 6, 7, 8, 9, 11, 12, 18, 19, 20,
21, 22, 23 AND 24 COMPREHENSIVE STUDY
GUIDE
A starter motor rotates about ________ times faster than the engine. -
CORRECT ANSWER -18
After installing the starter, the technician should perform which of the
following?
A. Check the starter for proper operation
B. Attach the negative battery cable
C. Perform a starter voltage drop test before starting the engine
D. Both A and B - CORRECT ANSWER -Both A and B
If the clearance between the starter pinion and the engine flywheel is too
great, ________. - CORRECT ANSWER -The starter will produce a high
pitched whine during cranking
,Technician A says that a discharged battery (lower than normal battery
voltage) can cause solenoid clicking. Technician B says that a discharged
battery or dirty (corroded) battery cables can cause solenoid clicking.
Which technician is correct? - CORRECT ANSWER -Both technicians
Which one of these would NOT be a diagnostic step when Diagnosing a "no
crank" customer concern? - CORRECT ANSWER -Check the condition of the
engine oil
Slow cranking by the starter can be caused by all of these, EXCEPT
________. - CORRECT ANSWER -Open neutral safety switch
A technician connects one lead of a digital voltmeter to the positive (+)
terminal of the battery and the other meter lead to the battery terminal (B)
of the starter solenoid and then cranks the engine. During cranking, the
voltmeter displays a reading of 878 mV. Technician A says that this reading
indicates that the positive battery cable has too high resistance. Technician
B says that this reading indicates that the starter is defective. Which
technician is correct? - CORRECT ANSWER -Technician A only
What is the first step for removing a starter? - CORRECT ANSWER -
Disconnect the battery negative cable
Two technicians are discussing what could be the cause of slow cranking
and excessive current draw. Technician A says that an engine mechanical
fault could be the cause. Technician B says that the starter motor could be
binding or defective. Which technician is correct? - CORRECT ANSWER -
Both technicians
, A V-6 is being checked for starter amperage draw. The Initial surge current
was about 210 amperes and about 160 amperes during cranking.
Technician A says the starter is defective and should be replaced because
the current flow exceeds 200 amperes. Technician B says this is normal
current draw for a starter motor on a V-6 engine. Which technician is
correct? - CORRECT ANSWER -Technician B only
Bench testing of a starter should be done ________.
A. After reassembling an old starter
B. Before installing a new starter
C. After removing the old starter
D. Both A and B - CORRECT ANSWER -Both A and B
A magnetic field created in the ________ is used to induce a voltage in the
________. - CORRECT ANSWER -rotor; stator
The alternator output current is produced in the ________. - CORRECT
ANSWER -Stator
How is the AC voltage produced in the alternator changed to DC voltage? -
CORRECT ANSWER -Diodes inside the alternator
Technician A says that an alternator overrunning pulley is used to reduce
vibration and noise. Technician B says that an overrunning alternator
pulley or dampener uses a one-way clutch. Which technician is correct? -
CORRECT ANSWER -Both technicians
