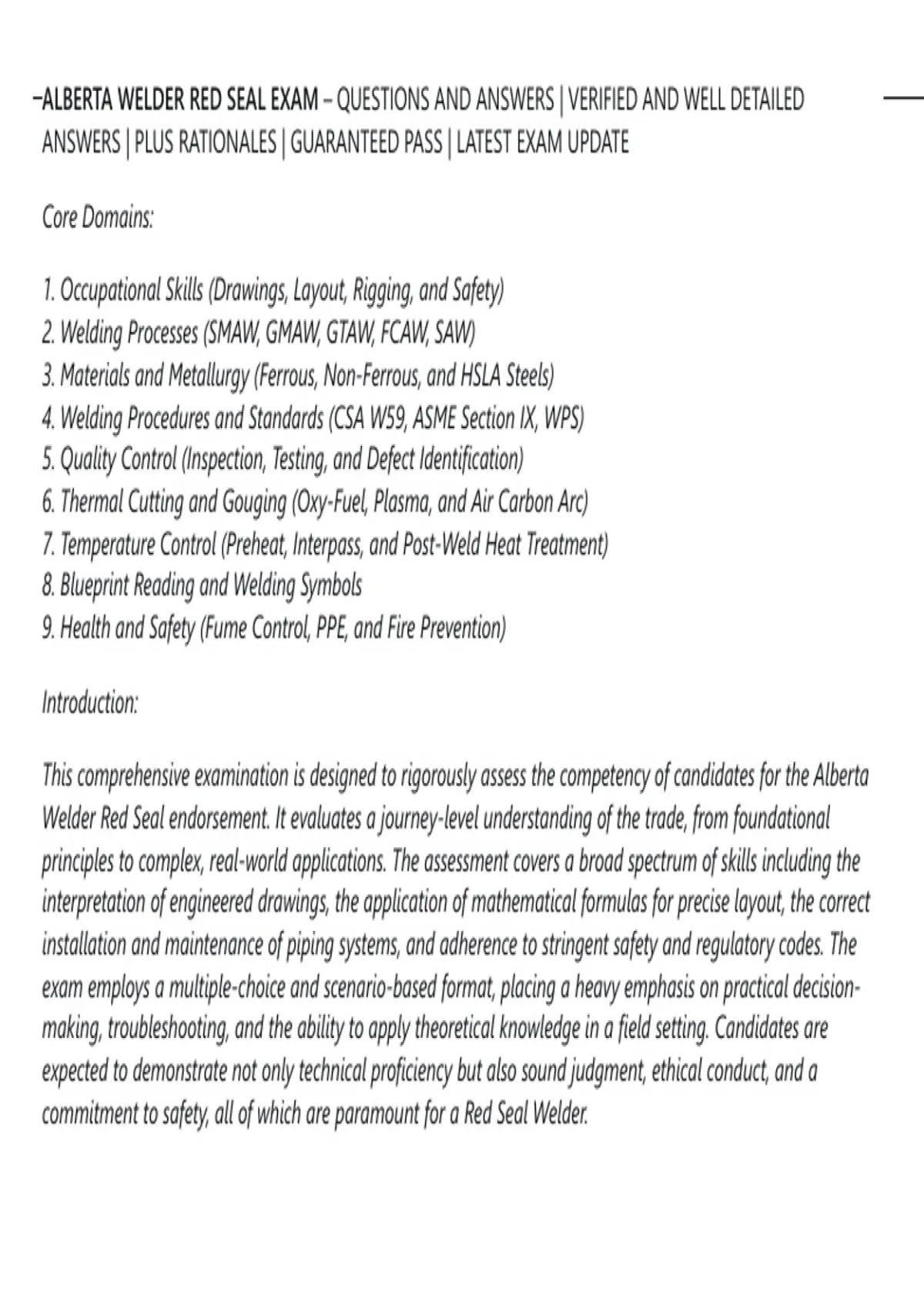

ALBERTA WELDER RED SEAL EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED
ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains:
1. Occupational Skills (Drawings, Layout, Rigging, and Safety)
2. Welding Processes (SMAW, GMAW, GTAW, FCAW, SAW)
3. Materials and Metallurgy (Ferrous, Non-Ferrous, and HSLA Steels)
4. Welding Procedures and Standards (CSA W59, ASME Section IX, WPS)
5. Quality Control (Inspection, Testing, and Defect Identification)
6. Thermal Cutting and Gouging (Oxy-Fuel, Plasma, and Air Carbon Arc)
7. Temperature Control (Preheat, Interpass, and Post-Weld Heat Treatment)
8. Blueprint Reading and Welding Symbols
9. Health and Safety (Fume Control, PPE, and Fire Prevention)
Introduction:
This comprehensive examination is designed to rigorously assess the competency of candidates for the Alberta
Welder Red Seal endorsement. It evaluates a journey-level understanding of the trade, from foundational
principles to complex, real-world applications. The assessment covers a broad spectrum of skills including the
interpretation of engineered drawings, the application of mathematical formulas for precise layout, the correct
installation and maintenance of piping systems, and adherence to stringent safety and regulatory codes. The
exam employs a multiple-choice and scenario-based format, placing a heavy emphasis on practical decision-
making, troubleshooting, and the ability to apply theoretical knowledge in a field setting. Candidates are
expected to demonstrate not only technical proficiency but also sound judgment, ethical conduct, and a
commitment to safety, all of which are paramount for a Red Seal Welder.
,SECTION ONE: QUESTIONS 1 - 100
1. What does 3F designate on a welding specification sheet?
A. Flat fillet weld position
B. Horizontal fillet weld position
C. Vertical fillet weld position
D. Overhead weld position
🟢C
🔴 Explanation: 3F is the standard designation for a vertical fillet weld position. The number 3 indicates
vertical, and the F indicates a fillet weld. This is a fundamental element of weld position classification used on
specifications and drawings .
2. What is the most likely reason for using a drag angle when welding with the Shielded Metal Arc
Welding (SMAW) process?
A. To increase the deposition rate
B. To improve penetration
C. To control the slag and prevent porosity
D. To decrease the heat input
🟢B
🔴 Explanation: A drag angle (pointing the electrode back into the weld puddle) helps to force the arc into
the base metal, increasing penetration. This is a common technique used to ensure fusion at the root of the
joint .
3. Which standard covers welded steel construction using metal arc welding in Canada?
A. CSA Z662
,B. CSA W178.2
C. CSA W59
D. CSA W47.1
🟢C
🔴 Explanation: CSA W59 is the Canadian standard for welded steel construction (metal arc welding). It
governs the requirements for welding structural steel, including qualifications, procedures, and acceptance
criteria .
4. A welder is three passes into a multi-pass weld on a cold day. The WPS specifies a maximum interpass
temperature of 230°C. The joint temperature reads 265°C. What is the correct action?
A. Continue welding to maintain productivity
B. Allow the joint to cool below 230°C before depositing the next pass
C. Increase the travel speed to reduce heat input
D. Decrease the amperage to lower the temperature
🟢B
🔴 Explanation: Interpass temperature is a maximum, not a minimum. Exceeding it leads to grain growth and
loss of toughness. The correct action is to wait for the joint to cool below the specified maximum before
continuing .
5. What does "slag" refer to in welding?
A. A cooling agent
B. A protective layer
C. The weld pool
D. Impurities
, 🟢B
🔴 Explanation: Slag is a protective layer of solidified flux that forms on the surface of the weld. It shields the
molten metal from atmospheric contamination during cooling and must be removed between passes .
6. Which of the following is the primary hazard associated with ultraviolet (UV) radiation from a welding
arc?
A. Hearing damage
B. Electrical shock
C. Skin burns and eye damage
D. Fume inhalation
🟢C
🔴 Explanation: The intense UV radiation from the welding arc is a major hazard to the welder's skin and
eyes, causing burns and the painful condition known as 'arc eye' (photokeratitis). Proper PPE, like a welding
helmet with the correct shade lens, is essential .
7. In ASME Section IX, what is used to identify weld metal chemical composition?
A. A-numbers
B. B-numbers
C. F-numbers
D. P-numbers
🟢A
🔴 Explanation: In ASME Section IX, A-numbers are used to group filler metals based on their chemical
composition for welding procedure and performance qualifications. This ensures the correct filler metal is
used for the base material .
