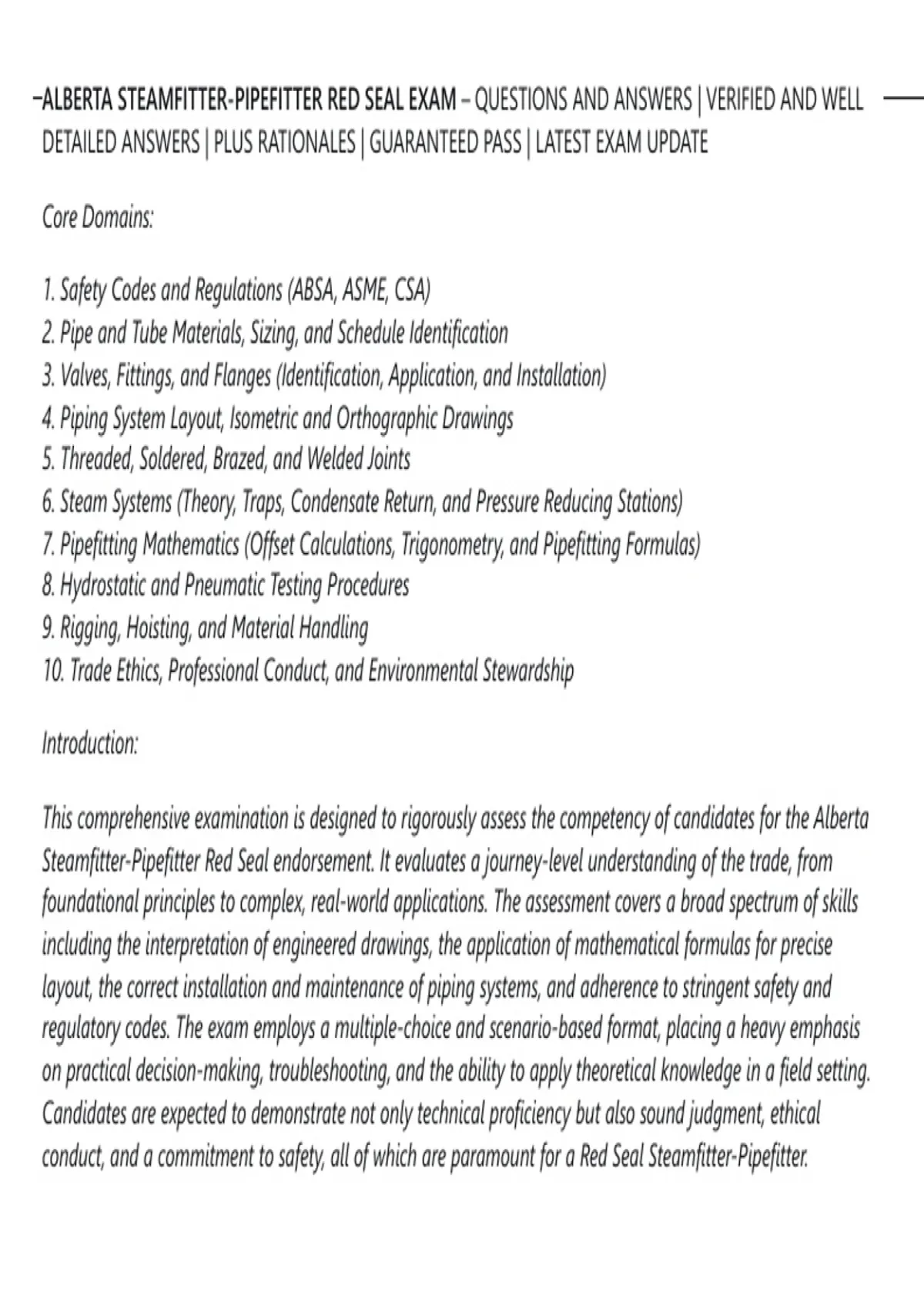

ALBERTA STEAMFITTER-PIPEFITTER RED SEAL EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains:
1. Safety Codes and Regulations (ABSA, ASME, CSA)
2. Pipe and Tube Materials, Sizing, and Schedule Identification
3. Valves, Fittings, and Flanges (Identification, Application, and Installation)
4. Piping System Layout, Isometric and Orthographic Drawings
5. Threaded, Soldered, Brazed, and Welded Joints
6. Steam Systems (Theory, Traps, Condensate Return, and Pressure Reducing Stations)
7. Pipefitting Mathematics (Offset Calculations, Trigonometry, and Pipefitting Formulas)
8. Hydrostatic and Pneumatic Testing Procedures
9. Rigging, Hoisting, and Material Handling
10. Trade Ethics, Professional Conduct, and Environmental Stewardship
Introduction:
This comprehensive examination is designed to rigorously assess the competency of candidates for the Alberta
Steamfitter-Pipefitter Red Seal endorsement. It evaluates a journey-level understanding of the trade, from
foundational principles to complex, real-world applications. The assessment covers a broad spectrum of skills
including the interpretation of engineered drawings, the application of mathematical formulas for precise
layout, the correct installation and maintenance of piping systems, and adherence to stringent safety and
regulatory codes. The exam employs a multiple-choice and scenario-based format, placing a heavy emphasis
on practical decision-making, troubleshooting, and the ability to apply theoretical knowledge in a field setting.
Candidates are expected to demonstrate not only technical proficiency but also sound judgment, ethical
conduct, and a commitment to safety, all of which are paramount for a Red Seal Steamfitter-Pipefitter.
,SECTION ONE: QUESTIONS 1 - 100
1. According to the ASME B31.1 Power Piping Code, what is the primary factor that determines the
maximum allowable working pressure (MAWP) for a piping system?
A. The yield strength of the pipe material at room temperature
B. The ultimate tensile strength of the pipe material at 100°F
C. The pipe's nominal diameter and wall thickness
D. The allowable stress value of the material at the design temperature
🟢D
🔴 Explanation: The ASME B31.1 code provides specific allowable stress values for different materials at
various temperatures. The MAWP is calculated based on these allowable stresses, along with pipe
dimensions and joint efficiency, to ensure safe operation at the design temperature.
2. A steam trap fails in the open position. What is the most likely immediate effect on the steam system?
A. A significant increase in steam pressure
B. A loss of steam, reduced system efficiency, and potential water hammer
C. Complete blockage of the condensate return line
D. Overheating of the downstream equipment
🟢B
🔴 Explanation: A trap that fails open allows live steam to blow through into the condensate return system.
This wastes energy, reduces system efficiency, can cause water hammer due to flashing condensate, and can
damage pumps and other equipment due to high temperatures.
3. When interpreting an isometric drawing for a pipe spool, what is the primary purpose of the "Bill of
Materials" (BOM) or material takeoff list?
,A. To show the flow direction of the process fluid
B. To specify the sequence of welding operations
C. To list all required components, quantities, sizes, and material specifications for that spool
D. To indicate the exact coordinates and elevations for pipe supports
🟢C
🔴 Explanation: The Bill of Materials is a critical part of an isometric drawing. It provides the fitter with a
comprehensive list of all the pipe, fittings, flanges, and valves needed to fabricate and install the specific
spool, which is essential for material procurement and efficient assembly.
4. What is the minimum required length of a threaded engagement for a 1-inch NPT (National Pipe Taper)
joint on standard steel pipe?
A. 3/4 inch
B. 7/8 inch
C. 1 inch
D. 1 1/8 inch
🟢A
🔴 Explanation: For standard steel pipe, the minimum thread engagement for a 1-inch NPT is typically 3/4 of
an inch. While hand-tight turns are a rough guide, the number of threads to be engaged is specified by
standards like ASME B1.20.1 to ensure a strong, leak-free seal.
5. A pipefitter is tasked with joining two pieces of 6-inch stainless steel pipe using a TIG (GTAW) root pass
and a Stick (SMAW) fill. What is the most critical preparation step to ensure weld quality and prevent
sugaring?
A. Beveling the pipe ends to a 60-degree included angle
B. Using a high-purity argon purge gas on the inside of the pipe
, C. Preheating the pipe to 300°F (150°C)
D. Applying a layer of anti-spatter compound to the outside surface
🟢B
🔴 Explanation: Stainless steel is highly susceptible to oxidation and "sugaring" (formation of chromium
carbide) when heated in the presence of oxygen. Back-purging the pipe with an inert gas like argon on the
inside is essential to displace oxygen and prevent this contamination, which compromises corrosion
resistance.
6. What does a "laminar" flow pattern in a piping system imply?
A. Fluid particles move in a chaotic, mixing motion
B. Fluid particles move in parallel layers with minimal disruption
C. The fluid is flowing at a velocity exceeding its critical point
D. The fluid contains a high percentage of entrained solids
🟢B
🔴 Explanation: Laminar flow is characterized by smooth, orderly movement of fluid in parallel layers. In
contrast, turbulent flow is chaotic and mixed. The Reynolds number is used to determine which flow regime
is present based on fluid velocity, viscosity, and pipe diameter.
7. According to the Alberta Occupational Health and Safety (OHS) Code, what is the maximum working
load for a synthetic web sling that is marked with a 1,000 kg capacity when used in a vertical hitch?
A. 500 kg
B. 1,000 kg
C. 800 kg
D. 2,000 kg
