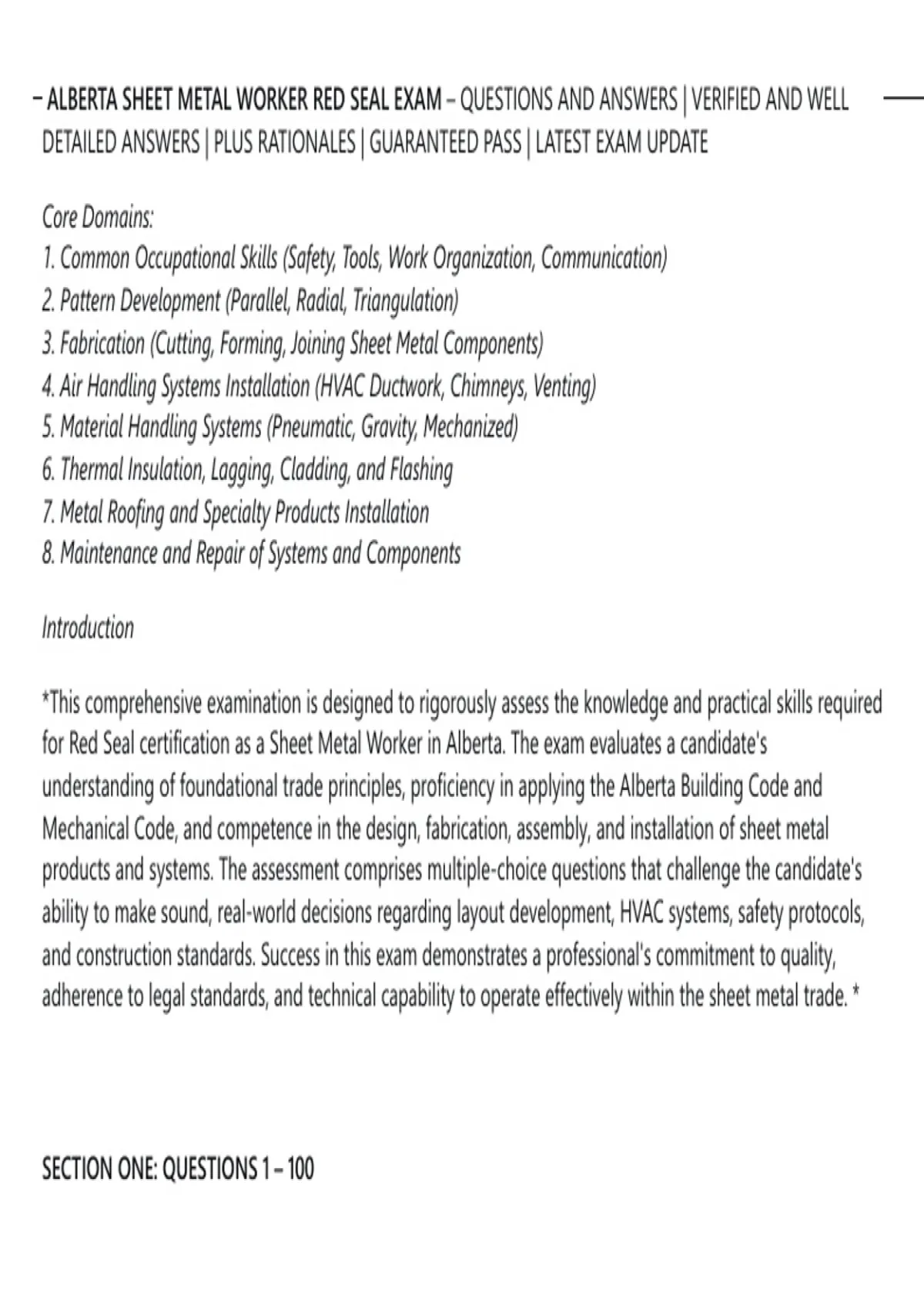

ALBERTA SHEET METAL WORKER RED SEAL EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains:
1. Common Occupational Skills (Safety, Tools, Work Organization, Communication)
2. Pattern Development (Parallel, Radial, Triangulation)
3. Fabrication (Cutting, Forming, Joining Sheet Metal Components)
4. Air Handling Systems Installation (HVAC Ductwork, Chimneys, Venting)
5. Material Handling Systems (Pneumatic, Gravity, Mechanized)
6. Thermal Insulation, Lagging, Cladding, and Flashing
7. Metal Roofing and Specialty Products Installation
8. Maintenance and Repair of Systems and Components
Introduction
*This comprehensive examination is designed to rigorously assess the knowledge and practical skills required
for Red Seal certification as a Sheet Metal Worker in Alberta. The exam evaluates a candidate's
understanding of foundational trade principles, proficiency in applying the Alberta Building Code and
Mechanical Code, and competence in the design, fabrication, assembly, and installation of sheet metal
products and systems. The assessment comprises multiple-choice questions that challenge the candidate's
ability to make sound, real-world decisions regarding layout development, HVAC systems, safety protocols,
and construction standards. Success in this exam demonstrates a professional's commitment to quality,
adherence to legal standards, and technical capability to operate effectively within the sheet metal trade. *
SECTION ONE: QUESTIONS 1 – 100
,1. According to the Red Seal Occupational Standard, what is the primary purpose of a hard hat on a
construction site?
A. To reduce noise levels
B. To identify the worker's trade
C. To protect against falling objects
D. To keep the head warm
🟢 C. To protect against falling objects
🔴 Explanation: Hard hats are designed to protect the wearer's head from impact with falling or flying
objects, which is the most common head hazard on construction sites .
2. When performing lockout/tagout on a sheet metal brake, which step must be completed first?
A. Remove all fasteners
B. Test the brake for movement
C. Verify the brake is turned off
D. Apply the lock to the power source
🟢 D. Apply the lock to the power source
🔴 Explanation: The first step in lockout/tagout is to isolate the energy source by applying a lock, ensuring
the equipment cannot be energized inadvertently .
3. Which type of PPE is required when cutting galvanized steel with an abrasive disc?
A. Ear plugs only
B. Safety glasses only
C. Heat-resistant gloves
D. Respirator with P100 filter
,🟢 D. Respirator with P100 filter
🔴 Explanation: Cutting galvanized steel releases zinc fumes that are hazardous; a respirator with a P100
filter protects the worker's respiratory system .
4. The correct sequence for sharpening a hand file is:
A. Clean, oil, file, test
B. Oil, clean, file, test
C. Clean, file, oil, test
D. Test, clean, oil, file
🟢 C. Clean, file, oil, test
🔴 Explanation: First remove debris (clean), then shape the cutting edge (file), lubricate the tool (oil), and
finally verify the file's performance (test) .
5. Which power tool is most appropriate for making a straight cut in a 24-gauge aluminum sheet?
A. Angle grinder with a cut-off wheel
B. Reciprocating saw with a metal blade
C. Circular saw with a carbide blade
D. Electric shear
🟢 D. Electric shear
🔴 Explanation: Electric shears are specifically designed for making straight cuts in thin sheet metal,
providing a clean, accurate cut without distorting the material .
6. Which ductwork symbol typically represents a transition or change in duct size on blueprints?
A. A straight line
B. A circle
, C. An arrow
D. The "∩" symbol
🟢 D. The "∩" symbol
🔴 Explanation: The "∩" symbol is used in ductwork drawings to represent a transition or change in duct size
or shape .
7. What term refers to the distance measured along the centerline of a duct from the inlet to the outlet?
A. Pitch
B. Run length
C. Span
D. Rise
🟢 B. Run length
🔴 Explanation: Run length is the linear distance along the centerline of a duct, critical for sizing and
pressure calculations .
8. When mentoring an apprentice, the most effective way to teach proper rivet installation is to:
A. Hand the apprentice the finished product
B. Provide a written manual only
C. Allow the apprentice to watch videos without practice
D. Demonstrate the technique, then have the apprentice repeat under supervision
🟢 D. Demonstrate the technique, then have the apprentice repeat under supervision
🔴 Explanation: Hands-on practice with immediate feedback ensures the apprentice learns the correct
technique and develops muscle memory .
