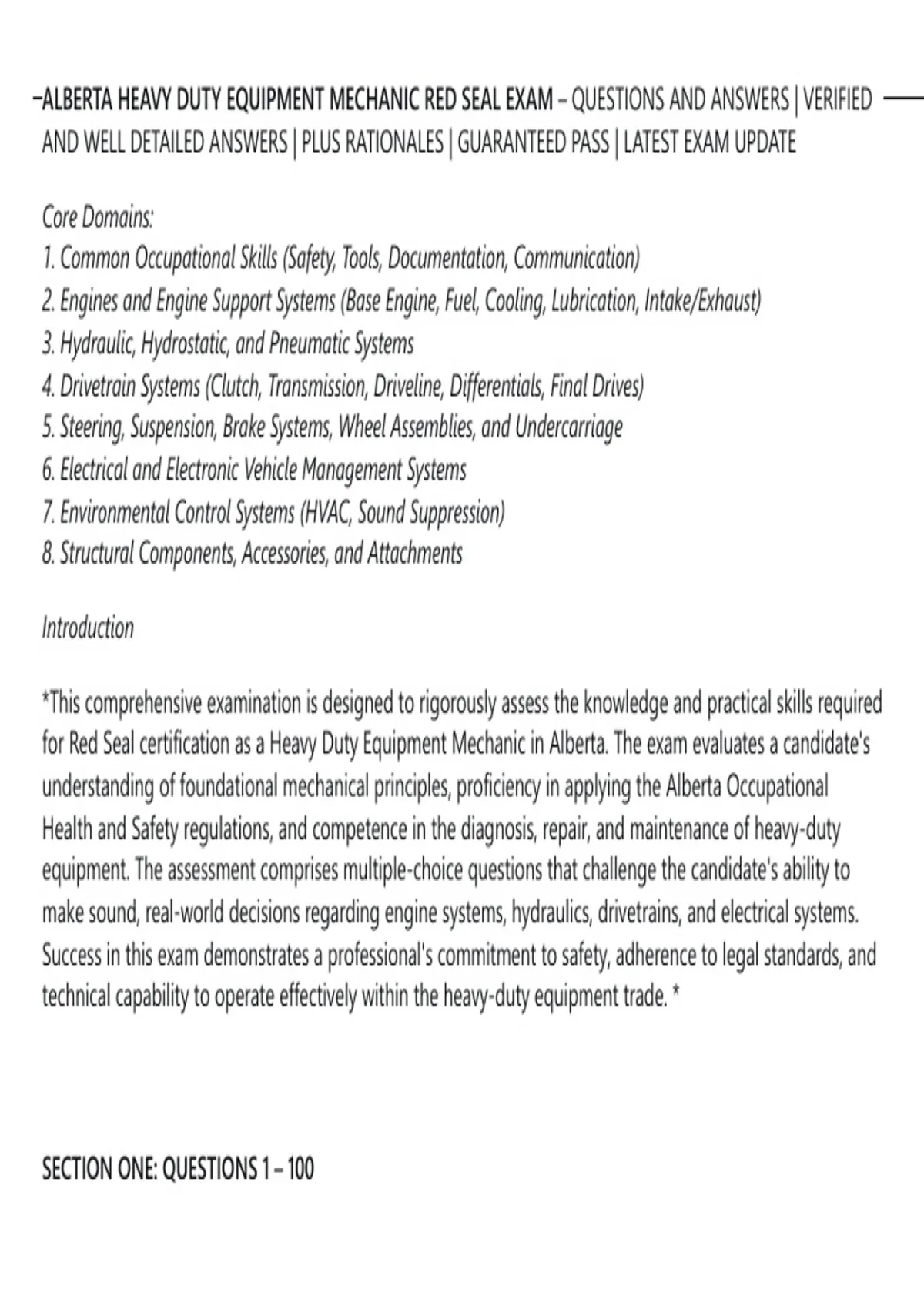

ALBERTA HEAVY DUTY EQUIPMENT MECHANIC RED SEAL EXAM – QUESTIONS AND ANSWERS | VERIFIED
AND WELL DETAILED ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains:
1. Common Occupational Skills (Safety, Tools, Documentation, Communication)
2. Engines and Engine Support Systems (Base Engine, Fuel, Cooling, Lubrication, Intake/Exhaust)
3. Hydraulic, Hydrostatic, and Pneumatic Systems
4. Drivetrain Systems (Clutch, Transmission, Driveline, Differentials, Final Drives)
5. Steering, Suspension, Brake Systems, Wheel Assemblies, and Undercarriage
6. Electrical and Electronic Vehicle Management Systems
7. Environmental Control Systems (HVAC, Sound Suppression)
8. Structural Components, Accessories, and Attachments
Introduction
*This comprehensive examination is designed to rigorously assess the knowledge and practical skills required
for Red Seal certification as a Heavy Duty Equipment Mechanic in Alberta. The exam evaluates a candidate's
understanding of foundational mechanical principles, proficiency in applying the Alberta Occupational
Health and Safety regulations, and competence in the diagnosis, repair, and maintenance of heavy-duty
equipment. The assessment comprises multiple-choice questions that challenge the candidate's ability to
make sound, real-world decisions regarding engine systems, hydraulics, drivetrains, and electrical systems.
Success in this exam demonstrates a professional's commitment to safety, adherence to legal standards, and
technical capability to operate effectively within the heavy-duty equipment trade. *
SECTION ONE: QUESTIONS 1 – 100
,1. What is the first step a Heavy Duty Equipment Mechanic must take before beginning any inspection on a
hydraulic system?
A. Check the fluid level in the reservoir
B. Start the engine and cycle the hydraulic functions
C. Depressurize the system by relieving stored energy
D. Visually inspect all hoses and fittings for leaks
🟢 C. Depressurize the system by relieving stored energy
🔴 Explanation: Hydraulic systems operate under extremely high pressure, often exceeding 3,000 PSI, and
can store significant energy even when the engine is off. Depressurizing the system is the critical first safety
step to prevent the sudden release of high-pressure fluid, which can cause severe injection injuries or burns .
2. A technician diagnoses a diesel engine that is overheating. What is the most common cause to investigate
first?
A. A faulty fuel injector
B. A clogged air filter
C. Low coolant level or poor circulation
D. A broken exhaust manifold
🟢 C. Low coolant level or poor circulation
🔴 Explanation: The cooling system is the primary mechanism for managing engine temperature. Low
coolant levels, a faulty thermostat, or a failing water pump are the most frequent and fundamental causes of
overheating in heavy-duty diesel engines. It is the logical starting point for diagnosis before suspecting more
complex issues .
3. According to the Red Seal exam weighting, which Major Work Activity carries the highest percentage of
questions?
,A. Hydraulic, Hydrostatic, and Pneumatic Systems
B. Engines and Engine Support Systems
C. Electrical and Electronic Vehicle Management Systems
D. Steering, Suspension, Brake Systems, Wheel Assemblies, and Undercarriage
🟢 A. Hydraulic, Hydrostatic, and Pneumatic Systems
🔴 Explanation: The "Hydraulic, Hydrostatic, and Pneumatic Systems" Major Work Activity accounts for the
largest portion (approximately 19%) of the Red Seal examination questions, emphasizing its critical
importance in the trade .
4. What is the primary purpose of a limited-slip differential in heavy equipment?
A. To increase the vehicle's top speed
B. To provide equal torque distribution to all wheels for better traction
C. To reduce fuel consumption during highway driving
D. To prevent the wheels from rotating during braking
🟢 B. To provide equal torque distribution to all wheels for better traction
🔴 Explanation: A limited-slip differential is designed to improve traction in challenging conditions by
distributing torque more evenly to the drive wheels, especially when one wheel is on a slippery surface .
5. When inspecting a drive belt, what is the maximum allowable amount of cracking or wear before it
requires replacement?
A. Up to 5% of the surface area
B. Up to 15% of the ribs or surface
C. Up to 25% of the ribs or surface
D. Any visible cracking in the ribs
, 🟢 D. Any visible cracking in the ribs
🔴 Explanation: Drive belts, such as serpentine belts, are critical for powering the alternator, water pump,
and other accessories. Even minor visible cracking in the belt's ribs indicates it has lost flexibility and is prone
to failure, requiring immediate replacement to prevent breakdowns .
6. The function of a differential in heavy-duty equipment is to:
A. Increase the engine's torque output
B. Control the fuel injection timing
C. Allow the drive wheels to rotate at different speeds
D. Engage and disengage the power from the engine
🟢 C. Allow the drive wheels to rotate at different speeds
🔴 Explanation: The differential is a critical drivetrain component that allows the wheels on the same axle to
rotate at different speeds, which is essential when the vehicle is turning a corner .
7. A hydraulic brake system relies on which principle to transmit force from the pedal to the wheel cylinders?
A. Compressible gas law
B. Pascal's law of incompressible fluids
C. Magnetic induction
D. Thermal expansion of brake fluid
🟢 B. Pascal's law of incompressible fluids
🔴 Explanation: Hydraulic brake systems operate on Pascal's law, which states that pressure applied to an
enclosed, incompressible fluid is transmitted undiminished throughout the fluid. This allows the small force
at the pedal to be multiplied and distributed to all brakes .
