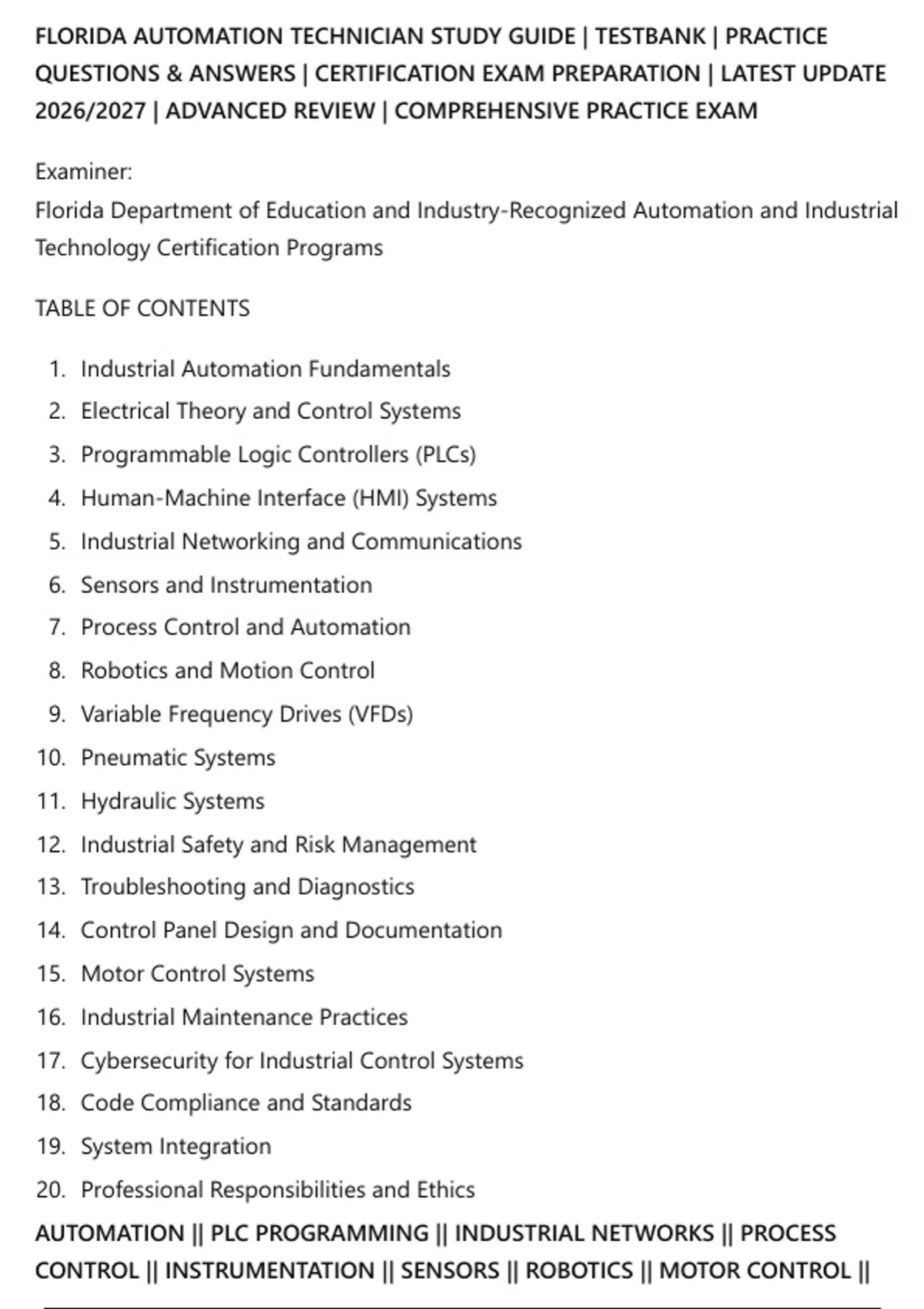

FLORIDA AUTOMATION TECHNICIAN STUDY GUIDE | TESTBANK | PRACTICE
QUESTIONS & ANSWERS | CERTIFICATION EXAM PREPARATION | LATEST UPDATE
2026/2027 | ADVANCED REVIEW | COMPREHENSIVE PRACTICE EXAM
Examiner:
Florida Department of Education and Industry-Recognized Automation and Industrial
Technology Certification Programs
TABLE OF CONTENTS
1. Industrial Automation Fundamentals
2. Electrical Theory and Control Systems
3. Programmable Logic Controllers (PLCs)
4. Human-Machine Interface (HMI) Systems
5. Industrial Networking and Communications
6. Sensors and Instrumentation
7. Process Control and Automation
8. Robotics and Motion Control
9. Variable Frequency Drives (VFDs)
10. Pneumatic Systems
11. Hydraulic Systems
12. Industrial Safety and Risk Management
13. Troubleshooting and Diagnostics
14. Control Panel Design and Documentation
15. Motor Control Systems
16. Industrial Maintenance Practices
17. Cybersecurity for Industrial Control Systems
18. Code Compliance and Standards
19. System Integration
20. Professional Responsibilities and Ethics
AUTOMATION || PLC PROGRAMMING || INDUSTRIAL NETWORKS || PROCESS
CONTROL || INSTRUMENTATION || SENSORS || ROBOTICS || MOTOR CONTROL ||
,VFDs || HMI SYSTEMS || SCADA || CYBERSECURITY || TROUBLESHOOTING ||
HYDRAULICS || PNEUMATICS || ELECTRICAL SAFETY || INDUSTRIAL MAINTENANCE
|| CONTROL PANELS || DOCUMENTATION || COMPLIANCE
QUESTION 1.
A manufacturing facility experiences intermittent production interruptions after
integrating a new Ethernet/IP-enabled robotic cell into an existing automation
network. The interruptions occur only during peak production hours when network
utilization exceeds 75%. Which corrective action is most likely to resolve the issue
while preserving deterministic communications?
A. Replace all managed switches with unmanaged switches
B. Segment control traffic using VLANs and prioritize automation packets with QoS
C. Increase robot cycle times to reduce controller demand
D. Disable network diagnostics and monitoring functions
Correct Answer: B. Segment control traffic using VLANs and prioritize
automation packets with QoS
Explanation: Industrial automation networks require predictable communication
performance. VLAN segmentation and Quality of Service prioritize critical control
traffic and reduce congestion-related latency. Replacing managed switches
removes valuable control features, while increasing cycle times or disabling
diagnostics does not address the underlying network architecture issue.
────────────────────────────────────────
QUESTION 2.
A PLC-controlled process uses a normally closed emergency stop circuit wired
through a safety relay. During inspection, an engineer proposes replacing the
normally closed contacts with normally open contacts to simplify troubleshooting.
What is the strongest objection?
A. Normally open contacts consume more current
B. The modification eliminates fail-safe detection of wiring faults
,C. Safety relays cannot operate with normally open devices
D. The PLC scan time would increase significantly
Correct Answer: B. The modification eliminates fail-safe detection of wiring
faults
Explanation: Normally closed emergency stop circuits are designed so that broken
wires, loose terminals, or component failures result in a safe shutdown condition.
This fail-safe design is a fundamental safety principle. The proposed change would
reduce fault detection capability and increase risk during equipment operation.
────────────────────────────────────────
QUESTION 3.
An automation technician observes that a 4–20 mA pressure transmitter consistently
reads 12 mA when actual process pressure is zero. Which condition is most likely?
A. Proper calibration at midpoint
B. Open loop condition
C. Transmitter zero offset error
D. Excessive PLC scan time
Correct Answer: C. Transmitter zero offset error
Explanation: A properly calibrated 4–20 mA transmitter should output
approximately 4 mA at its lower range value. A constant reading of 12 mA at zero
pressure indicates a calibration or zero-shift problem. An open loop would typically
result in loss of signal rather than a stable midrange value.
────────────────────────────────────────
QUESTION 4.
A VFD-driven centrifugal pump repeatedly trips on overcurrent during acceleration
despite no mechanical binding. Which parameter adjustment should be evaluated
first?
, A. Increase motor horsepower rating
B. Reduce acceleration time aggressiveness
C. Increase line voltage
D. Disable motor protection functions
Correct Answer: B. Reduce acceleration time aggressiveness
Explanation: Rapid acceleration can create excessive current demand, particularly
with high-inertia loads. Increasing acceleration time reduces inrush current and
mechanical stress. Increasing voltage or disabling protections can create additional
hazards and does not address the root cause.
────────────────────────────────────────
QUESTION 5.
A process control loop exhibits continuous oscillation after a technician significantly
increases proportional gain. Which interpretation is most accurate?
A. Loop responsiveness has become excessive
B. Sensor resolution is insufficient
C. Network bandwidth is inadequate
D. The actuator is undersized
Correct Answer: A. Loop responsiveness has become excessive
Explanation: Excessive proportional gain can cause a controller to overreact to
process deviations, resulting in sustained oscillations and instability. Proper tuning
requires balancing responsiveness with stability. The issue is directly associated
with control-loop dynamics rather than network or actuator limitations.
────────────────────────────────────────
QUESTION 6.
During troubleshooting of a three-phase motor starter, line voltage is present at the
contactor input but absent at the output while the coil is energized. What is the most
QUESTIONS & ANSWERS | CERTIFICATION EXAM PREPARATION | LATEST UPDATE
2026/2027 | ADVANCED REVIEW | COMPREHENSIVE PRACTICE EXAM
Examiner:
Florida Department of Education and Industry-Recognized Automation and Industrial
Technology Certification Programs
TABLE OF CONTENTS
1. Industrial Automation Fundamentals
2. Electrical Theory and Control Systems
3. Programmable Logic Controllers (PLCs)
4. Human-Machine Interface (HMI) Systems
5. Industrial Networking and Communications
6. Sensors and Instrumentation
7. Process Control and Automation
8. Robotics and Motion Control
9. Variable Frequency Drives (VFDs)
10. Pneumatic Systems
11. Hydraulic Systems
12. Industrial Safety and Risk Management
13. Troubleshooting and Diagnostics
14. Control Panel Design and Documentation
15. Motor Control Systems
16. Industrial Maintenance Practices
17. Cybersecurity for Industrial Control Systems
18. Code Compliance and Standards
19. System Integration
20. Professional Responsibilities and Ethics
AUTOMATION || PLC PROGRAMMING || INDUSTRIAL NETWORKS || PROCESS
CONTROL || INSTRUMENTATION || SENSORS || ROBOTICS || MOTOR CONTROL ||
,VFDs || HMI SYSTEMS || SCADA || CYBERSECURITY || TROUBLESHOOTING ||
HYDRAULICS || PNEUMATICS || ELECTRICAL SAFETY || INDUSTRIAL MAINTENANCE
|| CONTROL PANELS || DOCUMENTATION || COMPLIANCE
QUESTION 1.
A manufacturing facility experiences intermittent production interruptions after
integrating a new Ethernet/IP-enabled robotic cell into an existing automation
network. The interruptions occur only during peak production hours when network
utilization exceeds 75%. Which corrective action is most likely to resolve the issue
while preserving deterministic communications?
A. Replace all managed switches with unmanaged switches
B. Segment control traffic using VLANs and prioritize automation packets with QoS
C. Increase robot cycle times to reduce controller demand
D. Disable network diagnostics and monitoring functions
Correct Answer: B. Segment control traffic using VLANs and prioritize
automation packets with QoS
Explanation: Industrial automation networks require predictable communication
performance. VLAN segmentation and Quality of Service prioritize critical control
traffic and reduce congestion-related latency. Replacing managed switches
removes valuable control features, while increasing cycle times or disabling
diagnostics does not address the underlying network architecture issue.
────────────────────────────────────────
QUESTION 2.
A PLC-controlled process uses a normally closed emergency stop circuit wired
through a safety relay. During inspection, an engineer proposes replacing the
normally closed contacts with normally open contacts to simplify troubleshooting.
What is the strongest objection?
A. Normally open contacts consume more current
B. The modification eliminates fail-safe detection of wiring faults
,C. Safety relays cannot operate with normally open devices
D. The PLC scan time would increase significantly
Correct Answer: B. The modification eliminates fail-safe detection of wiring
faults
Explanation: Normally closed emergency stop circuits are designed so that broken
wires, loose terminals, or component failures result in a safe shutdown condition.
This fail-safe design is a fundamental safety principle. The proposed change would
reduce fault detection capability and increase risk during equipment operation.
────────────────────────────────────────
QUESTION 3.
An automation technician observes that a 4–20 mA pressure transmitter consistently
reads 12 mA when actual process pressure is zero. Which condition is most likely?
A. Proper calibration at midpoint
B. Open loop condition
C. Transmitter zero offset error
D. Excessive PLC scan time
Correct Answer: C. Transmitter zero offset error
Explanation: A properly calibrated 4–20 mA transmitter should output
approximately 4 mA at its lower range value. A constant reading of 12 mA at zero
pressure indicates a calibration or zero-shift problem. An open loop would typically
result in loss of signal rather than a stable midrange value.
────────────────────────────────────────
QUESTION 4.
A VFD-driven centrifugal pump repeatedly trips on overcurrent during acceleration
despite no mechanical binding. Which parameter adjustment should be evaluated
first?
, A. Increase motor horsepower rating
B. Reduce acceleration time aggressiveness
C. Increase line voltage
D. Disable motor protection functions
Correct Answer: B. Reduce acceleration time aggressiveness
Explanation: Rapid acceleration can create excessive current demand, particularly
with high-inertia loads. Increasing acceleration time reduces inrush current and
mechanical stress. Increasing voltage or disabling protections can create additional
hazards and does not address the root cause.
────────────────────────────────────────
QUESTION 5.
A process control loop exhibits continuous oscillation after a technician significantly
increases proportional gain. Which interpretation is most accurate?
A. Loop responsiveness has become excessive
B. Sensor resolution is insufficient
C. Network bandwidth is inadequate
D. The actuator is undersized
Correct Answer: A. Loop responsiveness has become excessive
Explanation: Excessive proportional gain can cause a controller to overreact to
process deviations, resulting in sustained oscillations and instability. Proper tuning
requires balancing responsiveness with stability. The issue is directly associated
with control-loop dynamics rather than network or actuator limitations.
────────────────────────────────────────
QUESTION 6.
During troubleshooting of a three-phase motor starter, line voltage is present at the
contactor input but absent at the output while the coil is energized. What is the most
