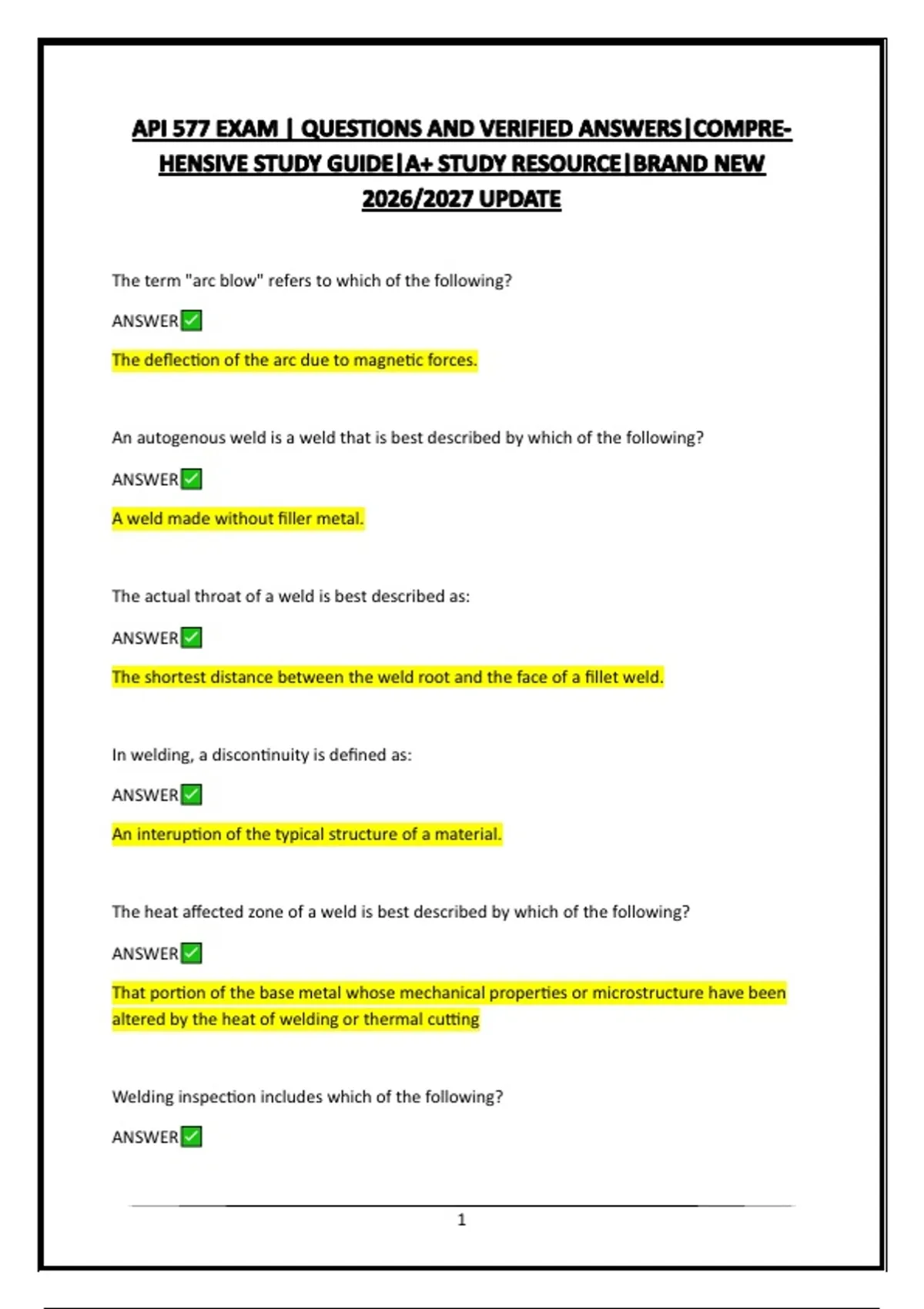

The term "arc blow" refers to which of the following?
ANSWER
The deflection of the arc due to magnetic forces.
An autogenous weld is a weld that is best described by which of the following?
ANSWER
A weld made without filler metal.
The actual throat of a weld is best described as:
ANSWER
The shortest distance between the weld root and the face of a fillet weld.
In welding, a discontinuity is defined as:
ANSWER
An interuption of the typical structure of a material.
The heat affected zone of a weld is best described by which of the following?
ANSWER
That portion of the base metal whose mechanical properties or microstructure have been
altered by the heat of welding or thermal cutting
Welding inspection includes which of the following?
ANSWER
1
,Visual and nondestructive examination of the welds, Review of specifications, welding pro-
cedures, and welder qualifications, Review of joint designs and cleaning procedures.
Which of the following tasks are not normally performed by the inspector prior to welding?
ANSWER
Check the appearance and size of welds.
. Who is responsible for the "quality craftsmanship" of weldments?
ANSWER
The welder.
During welding operations, the inspector should:
ANSWER
Confirm welding parameters and techniques are supported by the WPS and WPQ, Complete
physical checks, visual examinations, and in process NDE, Establish a quality control and
quality assurance umbrella with the welding organization.
Following the completion of welding, and before the completed welds are placed in service,
the inspector should:
ANSWER
a. Verify post weld acceptance and that NDE was performed at the selected locations, Verify
that post weld heat treatments and pressure testing were performed, if required, and that
the results were acceptable, Audit the inspection files to identify inaccuracies and incom-
plete information
If ASME Section V, Article 1 is specified by the referenceing code, NDE personnel:
ANSWER
Shall be qualified in accordance with ASNT SNT-TC-1A or ANSI/ASNT CP-189.
2
, If at any time during welding inspection the inspector discover defects or nonconformances,
he/she should:
ANSWER
The defects or nonconformances should be brought to the attention of those responsible or
corrected before the work proceeds further.
API 577 requires that inspectors should be aware of the hazards associated with welding and
take steps to avoid injury while performing inspection tasks. As a minimum, the inspector
should:
ANSWER
Follow all site safety rules and regulations.
API 577 describes all but which of the following welding processes?
ANSWER
Electro Slag Welding.
Which of the following weld processes uses a flux coated electrode?
ANSWER
SMAW.
Which of the following weld processes uses a non consumable electrode?
ANSWER
GMAW.
Which of the following is not an advantage of SMAW?
ANSWER
The deposition rate is higher than for GMAW or SAW.
3
