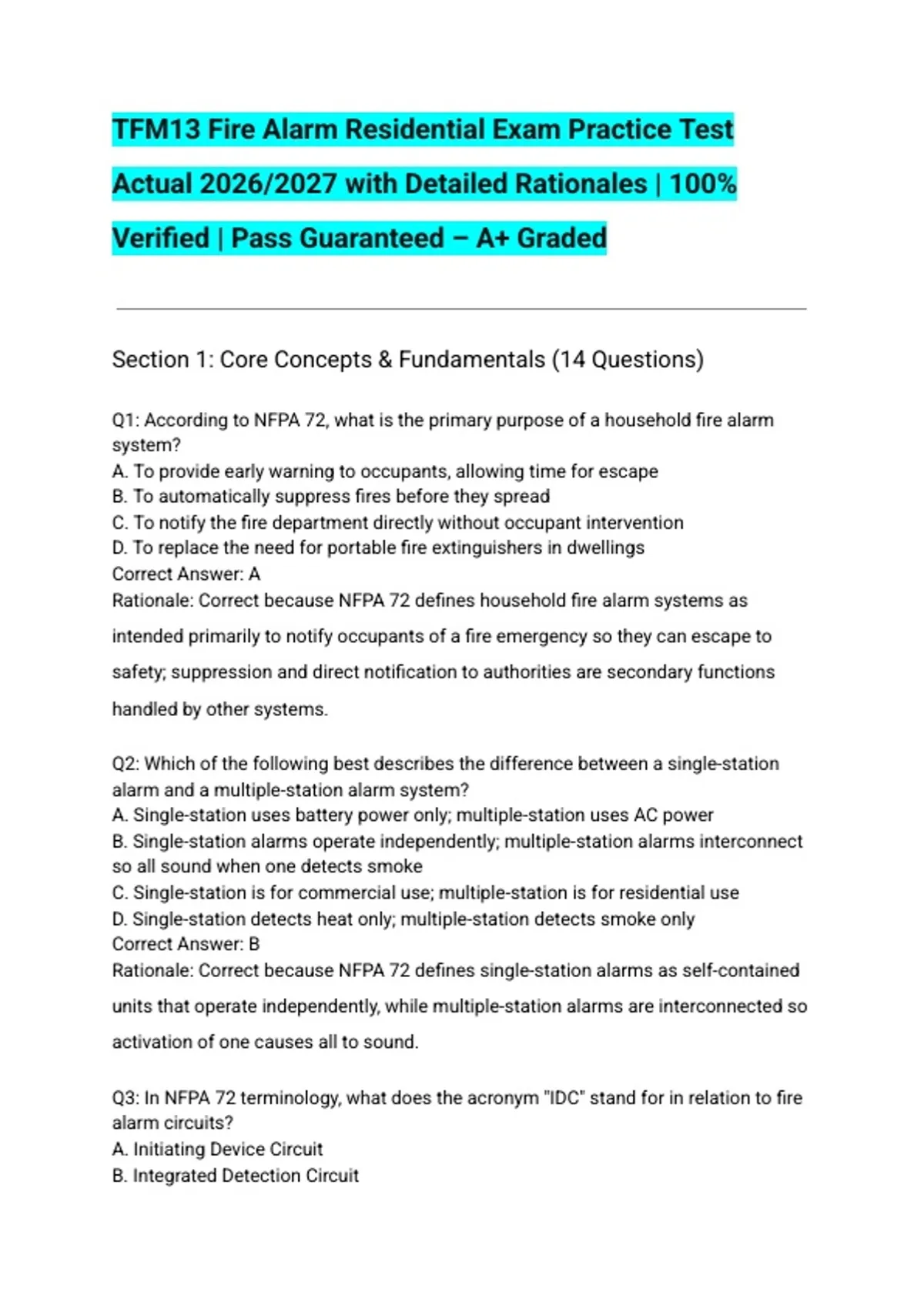

TFM13 Fire Alarm Residential Exam Practice Test
Actual 2026/2027 with Detailed Rationales | 100%
Verified | Pass Guaranteed – A+ Graded
Section 1: Core Concepts & Fundamentals (14 Questions)
Q1: According to NFPA 72, what is the primary purpose of a household fire alarm
system?
A. To provide early warning to occupants, allowing time for escape
B. To automatically suppress fires before they spread
C. To notify the fire department directly without occupant intervention
D. To replace the need for portable fire extinguishers in dwellings
Correct Answer: A
Rationale: Correct because NFPA 72 defines household fire alarm systems as
intended primarily to notify occupants of a fire emergency so they can escape to
safety; suppression and direct notification to authorities are secondary functions
handled by other systems.
Q2: Which of the following best describes the difference between a single-station
alarm and a multiple-station alarm system?
A. Single-station uses battery power only; multiple-station uses AC power
B. Single-station alarms operate independently; multiple-station alarms interconnect
so all sound when one detects smoke
C. Single-station is for commercial use; multiple-station is for residential use
D. Single-station detects heat only; multiple-station detects smoke only
Correct Answer: B
Rationale: Correct because NFPA 72 defines single-station alarms as self-contained
units that operate independently, while multiple-station alarms are interconnected so
activation of one causes all to sound.
Q3: In NFPA 72 terminology, what does the acronym "IDC" stand for in relation to fire
alarm circuits?
A. Initiating Device Circuit
B. Integrated Detection Circuit
,C. Internal Distribution Circuit
D. Input Data Channel
Correct Answer: A
Rationale: Correct because IDC stands for Initiating Device Circuit, which is the
circuit path connecting initiating devices such as smoke detectors and manual pull
stations to the fire alarm control unit.
Q4: What is the minimum required sound level for a fire alarm notification appliance
in a residential sleeping room when measured at the pillow level?
A. 55 dBA
B. 60 dBA
C. 75 dBA
D. 85 dBA
Correct Answer: C
Rationale: Correct because NFPA 72 requires that the sound level in sleeping areas
be at least 15 dBA above the average ambient sound level or 5 dBA above the
maximum sound level, with a minimum of 75 dBA measured at the pillow level.
Q5: Which type of smoke detector operates on the principle of detecting changes in
light obscuration within a sensing chamber?
A. Ionization smoke detector
B. Photoelectric smoke detector
C. Fixed-temperature heat detector
D. Rate-of-rise heat detector
Correct Answer: B
Rationale: Correct because photoelectric smoke detectors use a light source and a
photosensitive sensor; when smoke enters the chamber, it scatters or obscures the
light, triggering the alarm.
Q6: Under NFPA 72, what is the maximum allowable ceiling height for installing
spot-type smoke detectors in residential household fire alarm systems?
A. 10 feet
B. 12 feet
C. 15 feet
D. 21 feet
Correct Answer: D
, Rationale: Correct because NFPA 72 permits spot-type smoke detectors on ceilings
up to 21 feet in height for household fire alarm systems; beyond this height, special
considerations or alternative detection may be required.
Q7: Which of the following is classified as an initiating device in a household fire
alarm system?
A. Notification appliance
B. Smoke detector
C. Annunciator panel
D. Battery backup unit
Correct Answer: B
Rationale: Correct because a smoke detector is an initiating device that senses fire
conditions and sends a signal to the control unit; notification appliances and
annunciators are output devices, not initiating devices.
Q8: What is the primary advantage of an ionization smoke detector compared to a
photoelectric smoke detector?
A. Better detection of slow, smoldering fires
B. Better detection of fast-flaming fires with small smoke particles
C. Immunity to false alarms from steam and dust
D. Lower power consumption over the device lifespan
Correct Answer: B
Rationale: Correct because ionization detectors are more responsive to invisible,
smaller smoke particles typically produced by fast-flaming fires, whereas
photoelectric detectors are more responsive to visible smoke from smoldering fires.
Q9: According to NFPA 72, what is the required spacing for smoke detectors on a
level ceiling with no obstructions?
A. 10 feet
B. 20 feet
C. 30 feet
D. 40 feet
Correct Answer: C
Rationale: Correct because NFPA 72 specifies a nominal spacing of 30 feet for
smoke detectors on smooth, level ceilings, meaning detectors should be located
within 30 feet of any point in the protected area.
Actual 2026/2027 with Detailed Rationales | 100%
Verified | Pass Guaranteed – A+ Graded
Section 1: Core Concepts & Fundamentals (14 Questions)
Q1: According to NFPA 72, what is the primary purpose of a household fire alarm
system?
A. To provide early warning to occupants, allowing time for escape
B. To automatically suppress fires before they spread
C. To notify the fire department directly without occupant intervention
D. To replace the need for portable fire extinguishers in dwellings
Correct Answer: A
Rationale: Correct because NFPA 72 defines household fire alarm systems as
intended primarily to notify occupants of a fire emergency so they can escape to
safety; suppression and direct notification to authorities are secondary functions
handled by other systems.
Q2: Which of the following best describes the difference between a single-station
alarm and a multiple-station alarm system?
A. Single-station uses battery power only; multiple-station uses AC power
B. Single-station alarms operate independently; multiple-station alarms interconnect
so all sound when one detects smoke
C. Single-station is for commercial use; multiple-station is for residential use
D. Single-station detects heat only; multiple-station detects smoke only
Correct Answer: B
Rationale: Correct because NFPA 72 defines single-station alarms as self-contained
units that operate independently, while multiple-station alarms are interconnected so
activation of one causes all to sound.
Q3: In NFPA 72 terminology, what does the acronym "IDC" stand for in relation to fire
alarm circuits?
A. Initiating Device Circuit
B. Integrated Detection Circuit
,C. Internal Distribution Circuit
D. Input Data Channel
Correct Answer: A
Rationale: Correct because IDC stands for Initiating Device Circuit, which is the
circuit path connecting initiating devices such as smoke detectors and manual pull
stations to the fire alarm control unit.
Q4: What is the minimum required sound level for a fire alarm notification appliance
in a residential sleeping room when measured at the pillow level?
A. 55 dBA
B. 60 dBA
C. 75 dBA
D. 85 dBA
Correct Answer: C
Rationale: Correct because NFPA 72 requires that the sound level in sleeping areas
be at least 15 dBA above the average ambient sound level or 5 dBA above the
maximum sound level, with a minimum of 75 dBA measured at the pillow level.
Q5: Which type of smoke detector operates on the principle of detecting changes in
light obscuration within a sensing chamber?
A. Ionization smoke detector
B. Photoelectric smoke detector
C. Fixed-temperature heat detector
D. Rate-of-rise heat detector
Correct Answer: B
Rationale: Correct because photoelectric smoke detectors use a light source and a
photosensitive sensor; when smoke enters the chamber, it scatters or obscures the
light, triggering the alarm.
Q6: Under NFPA 72, what is the maximum allowable ceiling height for installing
spot-type smoke detectors in residential household fire alarm systems?
A. 10 feet
B. 12 feet
C. 15 feet
D. 21 feet
Correct Answer: D
, Rationale: Correct because NFPA 72 permits spot-type smoke detectors on ceilings
up to 21 feet in height for household fire alarm systems; beyond this height, special
considerations or alternative detection may be required.
Q7: Which of the following is classified as an initiating device in a household fire
alarm system?
A. Notification appliance
B. Smoke detector
C. Annunciator panel
D. Battery backup unit
Correct Answer: B
Rationale: Correct because a smoke detector is an initiating device that senses fire
conditions and sends a signal to the control unit; notification appliances and
annunciators are output devices, not initiating devices.
Q8: What is the primary advantage of an ionization smoke detector compared to a
photoelectric smoke detector?
A. Better detection of slow, smoldering fires
B. Better detection of fast-flaming fires with small smoke particles
C. Immunity to false alarms from steam and dust
D. Lower power consumption over the device lifespan
Correct Answer: B
Rationale: Correct because ionization detectors are more responsive to invisible,
smaller smoke particles typically produced by fast-flaming fires, whereas
photoelectric detectors are more responsive to visible smoke from smoldering fires.
Q9: According to NFPA 72, what is the required spacing for smoke detectors on a
level ceiling with no obstructions?
A. 10 feet
B. 20 feet
C. 30 feet
D. 40 feet
Correct Answer: C
Rationale: Correct because NFPA 72 specifies a nominal spacing of 30 feet for
smoke detectors on smooth, level ceilings, meaning detectors should be located
within 30 feet of any point in the protected area.
