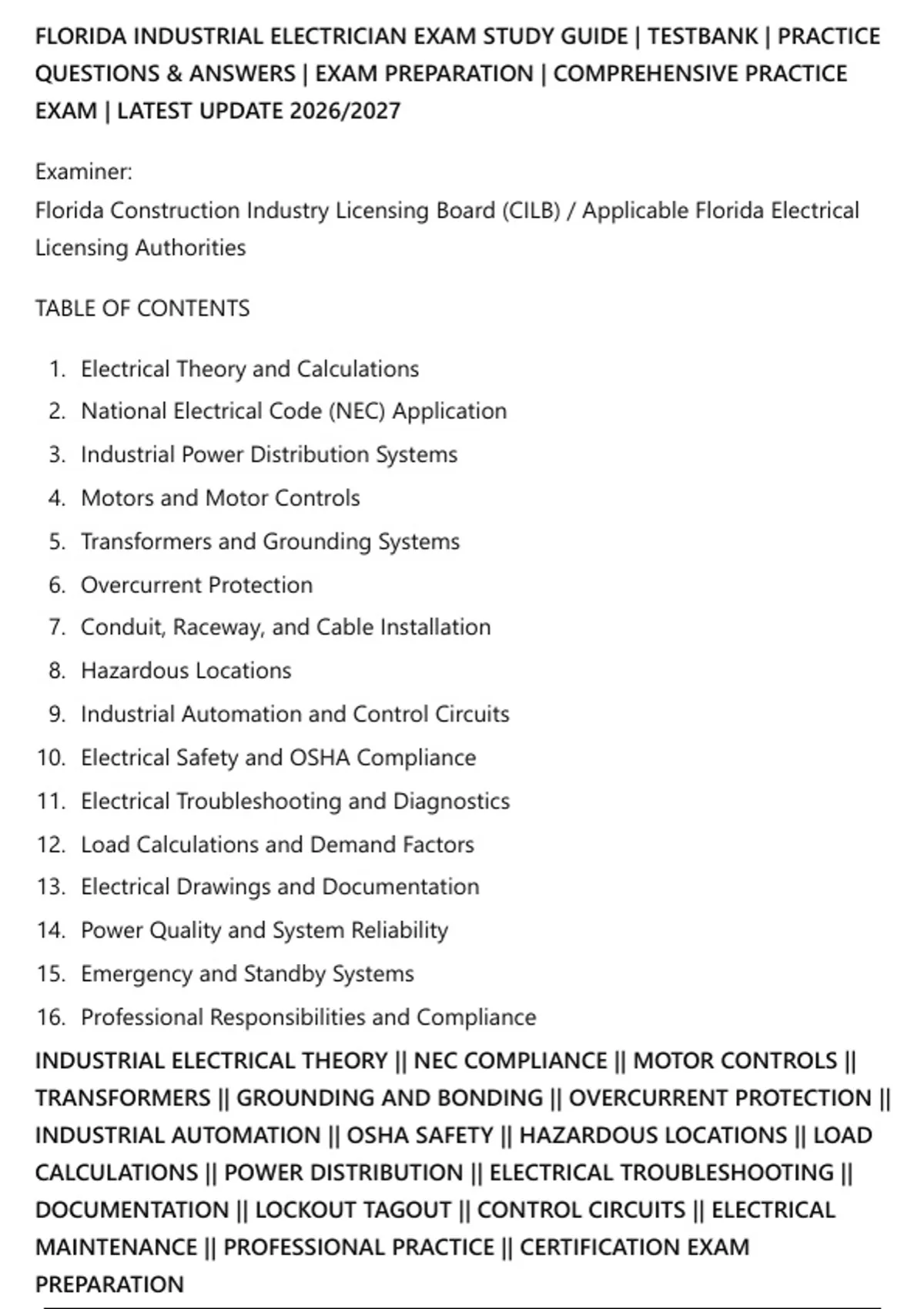

FLORIDA INDUSTRIAL ELECTRICIAN EXAM STUDY GUIDE | TESTBANK | PRACTICE
QUESTIONS & ANSWERS | EXAM PREPARATION | COMPREHENSIVE PRACTICE
EXAM | LATEST UPDATE 2026/2027
Examiner:
Florida Construction Industry Licensing Board (CILB) / Applicable Florida Electrical
Licensing Authorities
TABLE OF CONTENTS
1. Electrical Theory and Calculations
2. National Electrical Code (NEC) Application
3. Industrial Power Distribution Systems
4. Motors and Motor Controls
5. Transformers and Grounding Systems
6. Overcurrent Protection
7. Conduit, Raceway, and Cable Installation
8. Hazardous Locations
9. Industrial Automation and Control Circuits
10. Electrical Safety and OSHA Compliance
11. Electrical Troubleshooting and Diagnostics
12. Load Calculations and Demand Factors
13. Electrical Drawings and Documentation
14. Power Quality and System Reliability
15. Emergency and Standby Systems
16. Professional Responsibilities and Compliance
INDUSTRIAL ELECTRICAL THEORY || NEC COMPLIANCE || MOTOR CONTROLS ||
TRANSFORMERS || GROUNDING AND BONDING || OVERCURRENT PROTECTION ||
INDUSTRIAL AUTOMATION || OSHA SAFETY || HAZARDOUS LOCATIONS || LOAD
CALCULATIONS || POWER DISTRIBUTION || ELECTRICAL TROUBLESHOOTING ||
DOCUMENTATION || LOCKOUT TAGOUT || CONTROL CIRCUITS || ELECTRICAL
MAINTENANCE || PROFESSIONAL PRACTICE || CERTIFICATION EXAM
PREPARATION
,QUESTION 1.
An industrial facility installs a continuous load of 180 amperes on a 480V feeder
supplying process equipment expected to operate for more than three hours
continuously. What is the minimum feeder ampacity required under NEC principles?
A. 180 A
B. 200 A
C. 225 A
D. 250 A
Correct Answer: C. 225 A
Explanation: Continuous loads must generally be calculated at 125% of the load.
Multiplying 180 A by 1.25 yields 225 A. The other values either fail to account for
the continuous loading requirement or exceed the minimum required ampacity.
────────────────────────────────────────
QUESTION 2.
A three-phase induction motor repeatedly trips its overload protection despite
measured current remaining below the overload setting. Which condition is most
likely responsible?
A. Excessive harmonic distortion causing thermal stress
B. Low conductor resistance
C. Increased insulation resistance
D. Oversized raceway installation
Correct Answer: A. Excessive harmonic distortion causing thermal stress
Explanation: Harmonic distortion can increase motor heating without necessarily
producing a proportional increase in RMS current measurements observed during
routine testing. Increased thermal stress can activate overload devices. The
remaining options would not normally produce this specific symptom.
,────────────────────────────────────────
QUESTION 3.
An electrician discovers that a separately derived system has the grounded
conductor bonded at multiple downstream locations. What is the primary
compliance concern?
A. Reduced transformer efficiency
B. Increased conductor ampacity
C. Objectionable current flowing on bonding paths
D. Excessive voltage regulation
Correct Answer: C. Objectionable current flowing on bonding paths
Explanation: Multiple bonding points can create parallel current paths through
equipment grounding conductors and metal raceways. This condition may
introduce objectionable current and create safety hazards. The other choices do not
represent the primary code concern.
────────────────────────────────────────
QUESTION 4.
A maintenance engineer measures a voltage imbalance of 4% across a three-phase
motor. What is the most appropriate action?
A. Continue operation indefinitely because imbalance is below 5%
B. Replace overload relays only
C. Increase branch-circuit overcurrent protection size
D. Investigate and correct the source of imbalance before motor damage occurs
Correct Answer: D. Investigate and correct the source of imbalance before
motor damage occurs
Explanation: Even relatively small voltage imbalances can produce significantly
higher current imbalances and motor heating. Corrective action should focus on
, identifying the supply or load issue. The other options fail to address the underlying
risk to motor longevity.
────────────────────────────────────────
QUESTION 5.
A 75-kVA, three-phase transformer rated 480V primary and 208Y/120V secondary
supplies a calculated secondary load of 68 kVA. What is the transformer loading
percentage?
A. 90.7%
B. 82.5%
C. 75.0%
D. 68.0%
Correct Answer: A. 90.7%
Explanation: Transformer loading percentage equals actual load divided by rated
capacity multiplied by 100. Dividing 68 kVA by 75 kVA yields approximately 90.7%.
The other answers result from incorrect calculations or assumptions.
────────────────────────────────────────
QUESTION 6.
An industrial electrician is reviewing a hazardous location where ignitable gases are
present during normal operations. Which classification is most appropriate?
A. Class II, Division 2
B. Class I, Division 1
C. Class III, Division 1
D. Class II, Division 1
Correct Answer: B. Class I, Division 1
Explanation: Class I locations involve flammable gases or vapors. Division 1 applies
when hazardous concentrations are expected under normal operating conditions.
